Description
The new flagship Ultimo Titanium further improves the extraordinary combination of musicality and high power handling the original Ultimo subwoofers were known for.
While most subwoofers are little more than high-output bass makers, the Ultimo series was engineered with a synergy of tight, controlled musicality and life-like deep bass reproduction with no equal for delivering the ultimate bass experience.
Ultimo Titanium subwoofers are engineered to set a new standard in subwoofer technology and bass performance, equipped with Morel’s most advanced, cutting–edge technology derived from the company’s HiFi bass drivers. At the heart of the new subwoofers is Morel’s titanium voice coil former. Exceptionally stiff and lightweight, the titanium improves the dynamics of the driver for even quicker transient response, with lower distortion and increased power handling.
The new Ultimo Titanium subwoofers employ a new copper shorting ring to enable a more linear response by reducing distortion, resulting in a flat impedance response. This serves as a very critical component especially in subwoofers where distortion levels are relatively very high.
Other features are similar to its renowned sibling the Ultimo; A gigantic 5.1” Hexatech™ External Voice Coil (EVC™), the DMM™ (Dual Magnet Motor) motor design that achieves over 90% efficiency and the PFS™ (Progression Field Symmetry) spider/surround technology stiffens the spider as excursion levels increase, ensuring maximum linearity, minimum distortion, and truly flat response.
The Ultimo Titanium subwoofer series benefit from the incorporation of Morel’s titanium voice coil technology and continued parameter optimization, thus enabling it to work more efficiently in smaller enclosures than their predecessors while improving their performance.
The culmination of these new advancements results in the Ultimo Titanium being the most dynamic car audio subwoofer series Morel has engineered, promising the highest resolution for ultimate in bass reproduction.
Additional Information
Specification
Performance Specifications
MOR ULTIMO TI 802
Power RMS
800 W
Nominal Impeance
2 Ohm
Sensitivity 2.83Vrms/1M
84 dB
Sensitivity 1W/1M
83.5 dB
Frequency response
20 – 900 Hz
Cone material
Carbon-fiber laminated paper
Voice coil diameter
130 mm
Voice coil height
37 mm
Voice coil former
Titanium
Voice coil wire
Hexatech aluminum
Number of layers
2
Max linear excursion
‘+/- 12.5 mm
Product Data
Physical Specifications: MOR ULTIMO TI 802
Width: 222 mm
Height: 120 mm
Net weight: 6.1 Kg
Driver displacement: 2 L
: 2
Max linear excursion: +- 12.5 mm
File Download
Delivery Information
Delivery information content here.

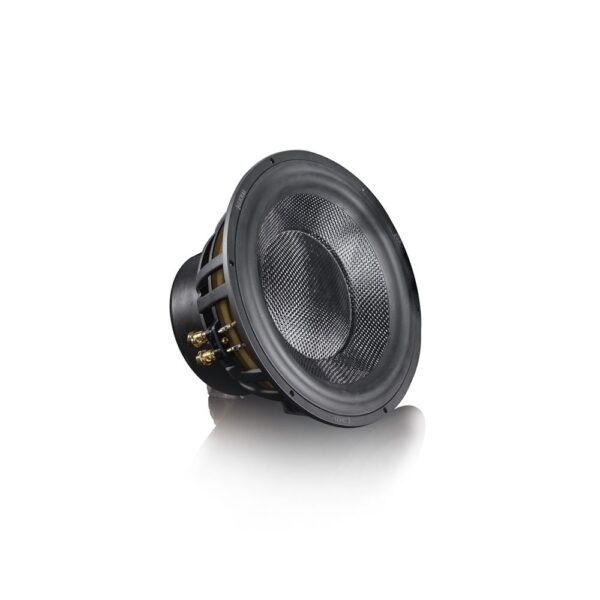

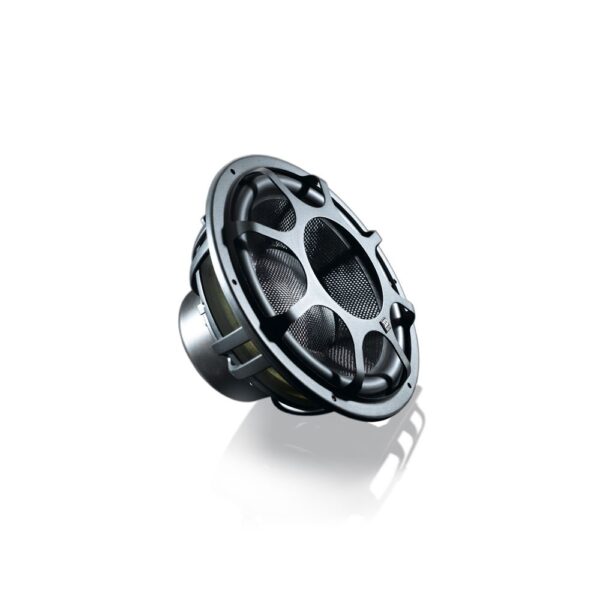

Morel Ultimo TI 802 8″ Subwoofer 800W 2 Ohm
Morel Ultimo Ti 8″ / 200 mm Subwoofer 800W @ 2 Ohm
£999.00
The new flagship Ultimo Titanium further improves the extraordinary combination of musicality and high power handling the original Ultimo subwoofers were known for.
While most subwoofers are little more than high-output bass makers, the Ultimo series was engineered with a synergy of tight, controlled musicality and life-like deep bass reproduction with no equal for delivering the ultimate bass experience.
Ultimo Titanium subwoofers are engineered to set a new standard in subwoofer technology and bass performance, equipped with Morel’s most advanced, cutting–edge technology derived from the company’s HiFi bass drivers. At the heart of the new subwoofers is Morel’s titanium voice coil former. Exceptionally stiff and lightweight, the titanium improves the dynamics of the driver for even quicker transient response, with lower distortion and increased power handling.
The new Ultimo Titanium subwoofers employ a new copper shorting ring to enable a more linear response by reducing distortion, resulting in a flat impedance response. This serves as a very critical component especially in subwoofers where distortion levels are relatively very high.
Other features are similar to its renowned sibling the Ultimo; A gigantic 5.1” Hexatech™ External Voice Coil (EVC™), the DMM™ (Dual Magnet Motor) motor design that achieves over 90% efficiency and the PFS™ (Progression Field Symmetry) spider/surround technology stiffens the spider as excursion levels increase, ensuring maximum linearity, minimum distortion, and truly flat response.
The Ultimo Titanium subwoofer series benefit from the incorporation of Morel’s titanium voice coil technology and continued parameter optimization, thus enabling it to work more efficiently in smaller enclosures than their predecessors while improving their performance.
The culmination of these new advancements results in the Ultimo Titanium being the most dynamic car audio subwoofer series Morel has engineered, promising the highest resolution for ultimate in bass reproduction.
Performance Specifications
MOR ULTIMO TI 802
Power RMS
800 W
Nominal Impeance
2 Ohm
Sensitivity 2.83Vrms/1M
84 dB
Sensitivity 1W/1M
83.5 dB
Frequency response
20 – 900 Hz
Cone material
Carbon-fiber laminated paper
Voice coil diameter
130 mm
Voice coil height
37 mm
Voice coil former
Titanium
Voice coil wire
Hexatech aluminum
Number of layers
2
Max linear excursion
‘+/- 12.5 mm
Physical Specifications
MOR ULTIMO TI 802
Width
222 mm
Height
120 mm
Net weight
6.1 Kg
Driver displacement
2 L
2
Max linear excursion
+- 12.5 mm
