Description

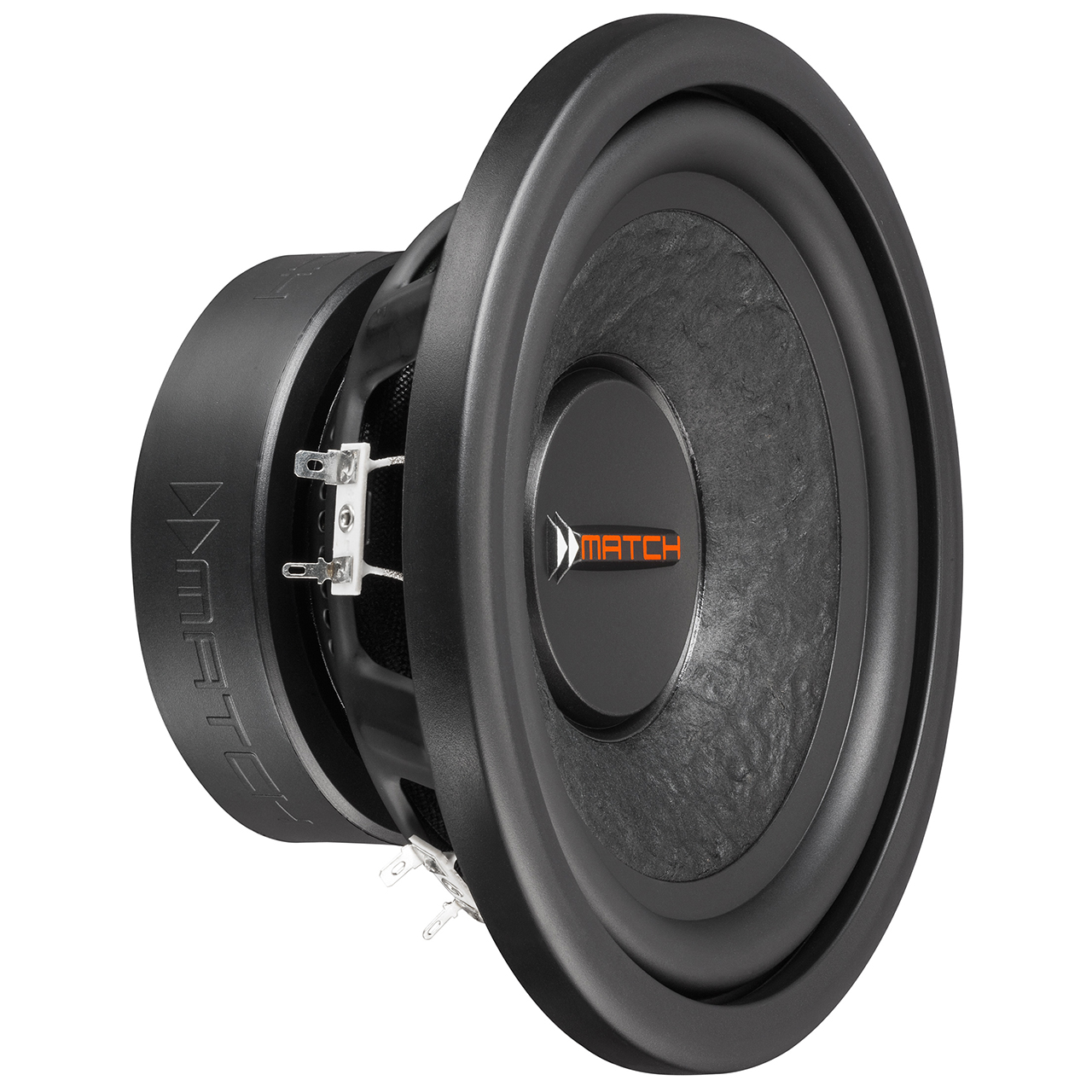

MATCH PP 8W-Q
You didn’t find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your “personalized” version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.
Features
- 8? / 200 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
- Extremely stiff hand-scooped paper cone for maximum sound pressure
- Double ventilated voice coil for minimum compression effects
- Powerful magnet for compact-sized vented enclosures
- Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
- Optimized for the perfect interaction with MATCH Plug & Play amplifiers
Additional Information
Specification
Performance Specifications
MATCH PP 8W-Q
Power RMS / max. (P)
200 / 400 Watts
Impedance (Z)
4 x 3 Ω
DC resistance (Re)
4 x 2.7 Ω
Resonance frequency (Fs)
37 Hz
Mechanical Q factor (Qms)
5.40
Electrical Q factor (Qes)
0.57
Total Q factor (Qts)
0.51
Compliance (Cms)
341 µm/N
Equivalent air volume (Vas)
23 L
Force factor (B*I)
7.5 Tm
Efficiency 1 W / 1 m (SPL)
87 dB
Cone area (Sd)
222 cm²
Moving mass (Mms)
53 g
Cone material
Hand-scooped paper cone
Mechanical resistance (Rms)
3.3 kg/s
Voice coil diameter (ø)
50.8 mm
Voice coil winding height
21 mm
Max. linear excursion (Xmax)
+/- 6.5 mm
Sealed box
Not recommended
Vented box: Net volume
10 L
Vented box: Port diameter (ø)
60 mm / 2.36″
Vented box: Port area
28 cm²
Vented box: Port length
25 cm / 9.84″
Vented box: Port tuning frequency (Fb)
47 Hz
Vented box: Lower limiting frequency (-3dB)
45 Hz
Product Data
Physical Specifications: MATCH PP 8W-Q
Outer diameter (ø): 212 mm / 8.35″
Installation diameter (ø): 183 mm / 7.2″
Installation depth: 105 mm / 4.1″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Match PP 8W-Q 8″ Subwoofer
8″ / 200 mm Plug & Play subwoofer with 4 x 3 Ohms, quad voice-coil for extremely compact vented enclosures (approx. 9 liters net volume)
£94.99£94.99 + £8.99 UK delivery = £103.98
