Description

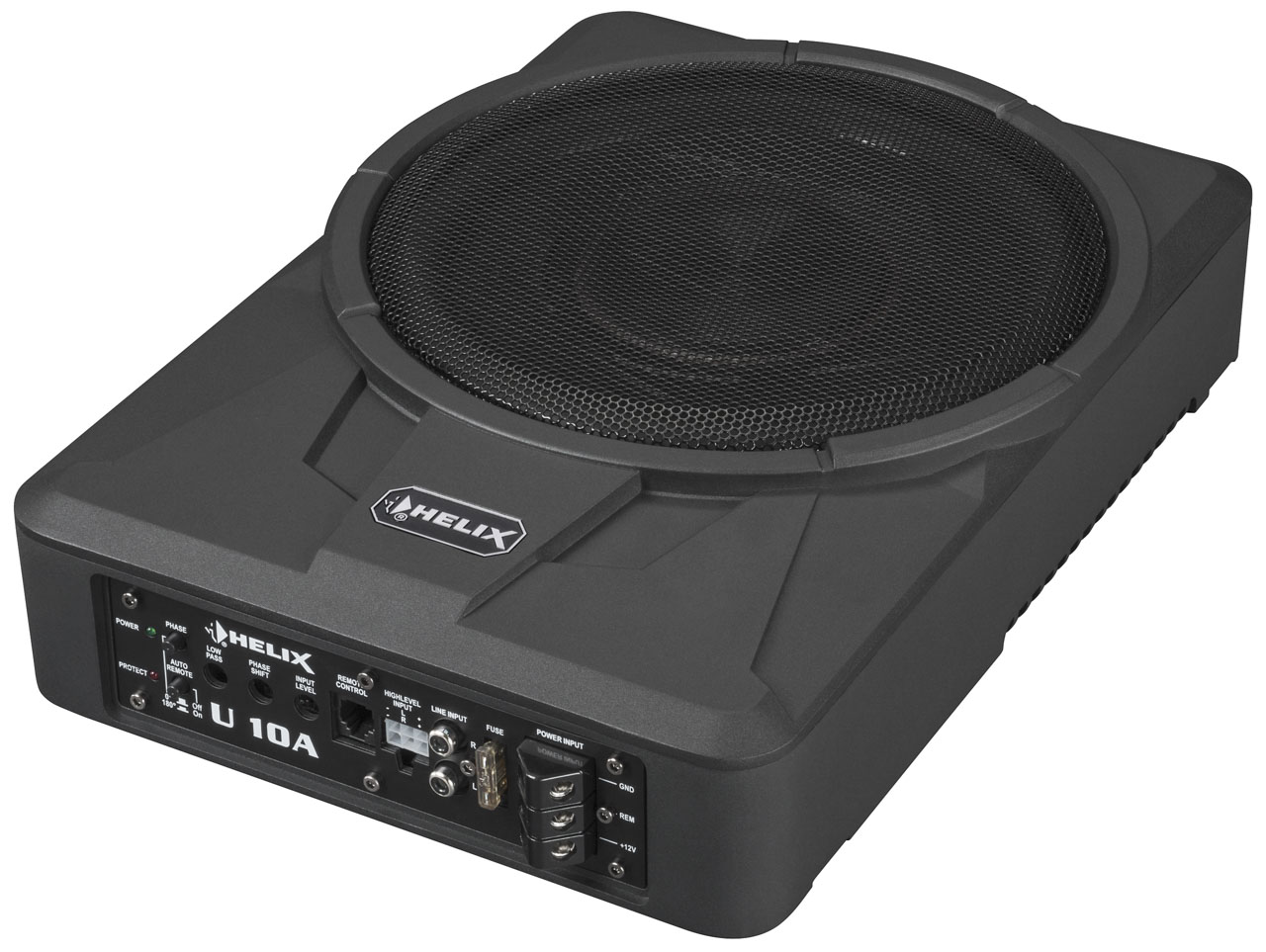

HELIX U 10A
Bass is in the smallest hut –If mounting space in the vehicle is scarce and existing car hifi systems badly need the “extra kick” in the low frequency range without great effort, the new HELIX active subwoofers U 10A and U 8A are the right choice. Driven by powerful, integrated Class AB amplifiers with 180 W RMS, the heavy-duty drivers with their rock-solid aluminum cones and heat-resistant voice coils easily transform the amplifier power into punchy bass. Thanks to comprehensive setting options like the adjustable, high-slope lowpass filter and particularly sensitive phase control, the low frequency reproduction can be perfectly adapted to the acoustic conditions inside the vehicle. Equipped with a 2-channel highlevel input with automatic turn on function as well as a 2-channel lowlevel RCA input a seamless integration is guaranteed. And thanks to the especially shallow cabinet design the installation will be a no-brainer, especially if space is extremely limited – these small “bass boosters” may even fit under the seats, for example.
Features
- Powerful, integrated Class AB amplifier with 180 W RMS power for punchy bass
- Solid and low-resonance diecast aluminium housing for precise bass reproduction and optimum heat dissipation
- Heavy-duty 10” / 250 mm chassis with extremely stable aluminum cone for compression-free transformation of the amplifier power into sound pressure

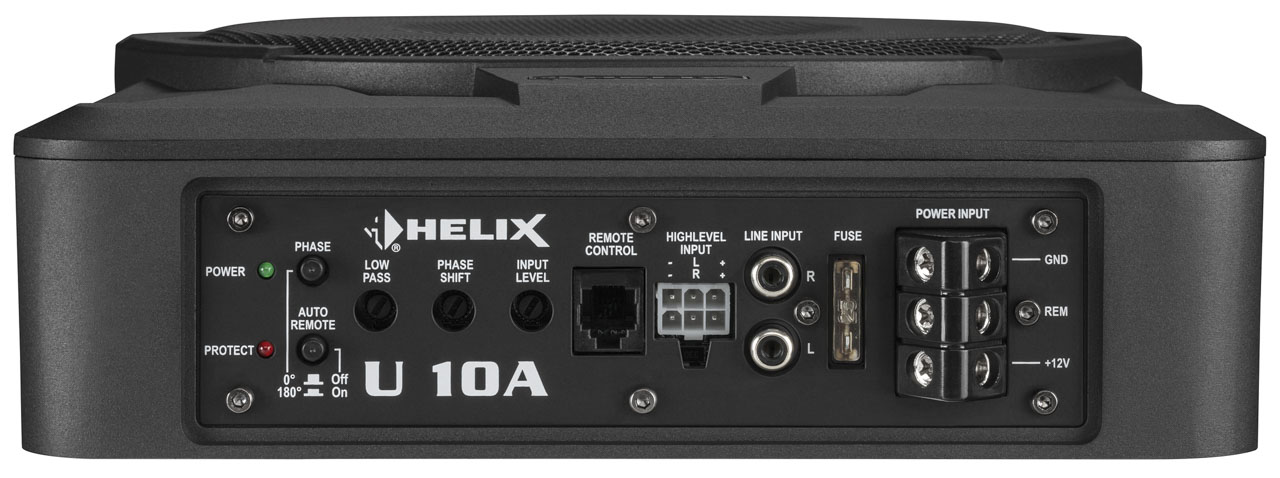

- 2-channel highlevel input with Auto Turn-on function as well as 2-channel lowlevel input
- Continuously adjustable, steep-flanked lowpass filter
- Particularly sensitive adjustment of the phase

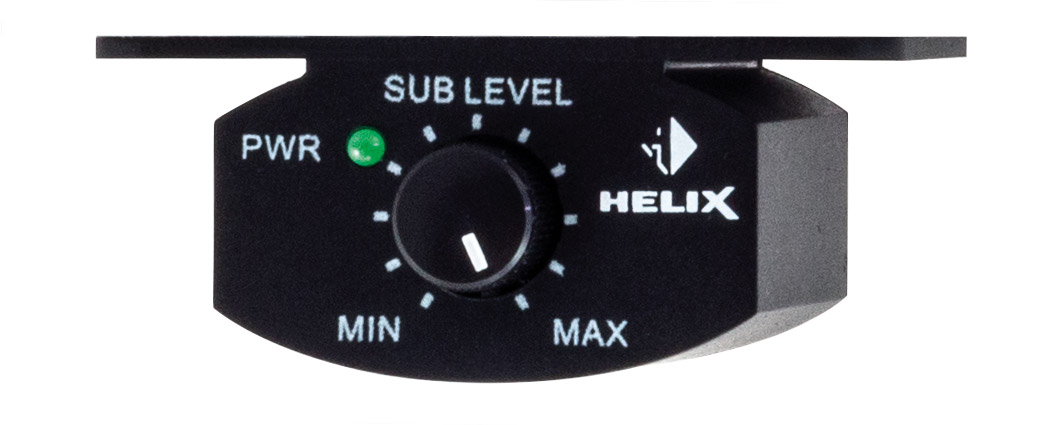

- Cable remote control for volume adjustment included in delivery
- Especially flat housing design – ideal for space-saving under-seat mounting
Additional Information
Specification
Performance Specifications
HELIX U 10A
Power RMS / max.
180 / 360 Watts
Woofer diameter
10″ / 250 mm
Inputs
2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input
Input sensitivity
Highlevel 1.2 – 20 Volts RCA / Cinch 0.3 – 4 Volts
Input impedance RCA / Cinch
10 kOhms
Input impedance highlevel
33 Ohms
Frequency response
40 – 150 Hz
Lowpass
50 – 150 Hz adjustable
Subsonic
16 Hz / 12dB/Oct.
Phase switch
0° / 180° switchable
Phase shift
0 – 180° adjustable
Slope lowpass
24 dB/Oct.
Signal-to-noise ratio
> 92 dB (A-weighted)
Distortion (THD)
< 0.4 %
Operating voltage
10.5 – 16 Volts
Fuse
25 A Maxi-fuse (APX)
Additional features
Diecast aluminum housing, cable remote control for volume adjustment, Auto Remote switch
Product Data
Physical Specifications: HELIX U 10A
Dimensions (H x W x D): 78 x 245 x 345 mm / 3.07 x 9.65 x 13.58″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix U 10A 10″ Subwoofer Active Subwoofer Box
Ultra-compact 25 cm / 10″ active subwoofer Power RMS / max.: 180 / 360 Watts
£284.99
