Description

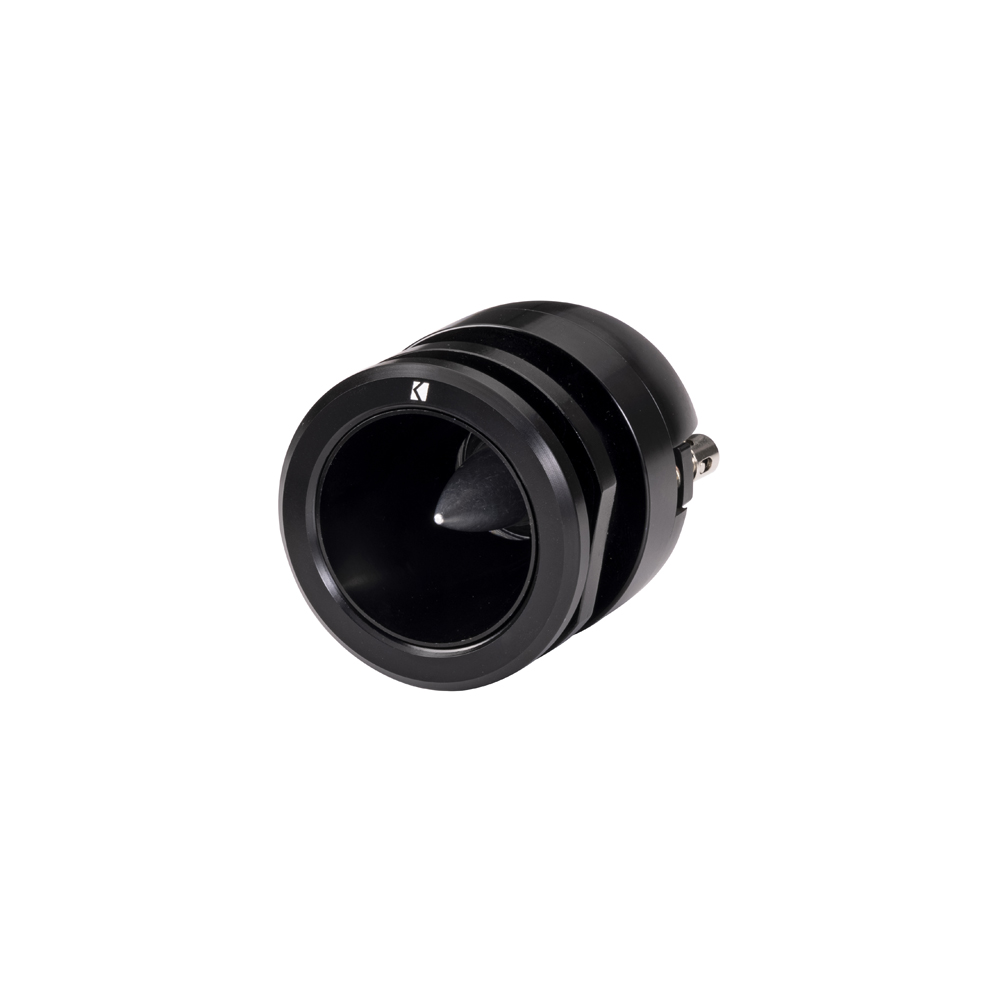

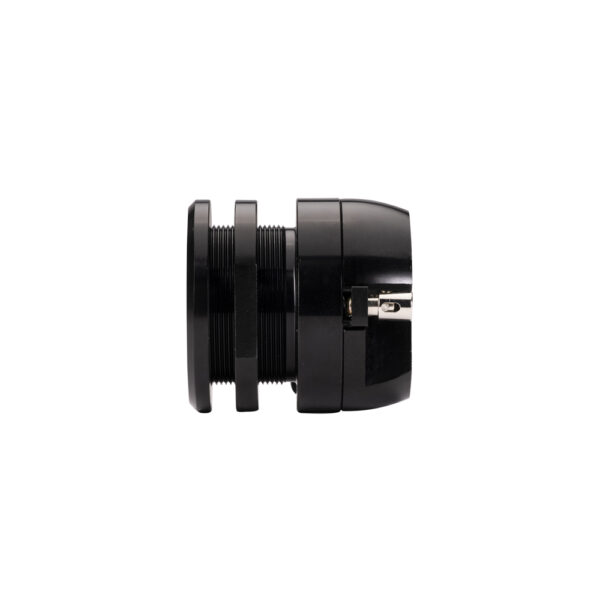

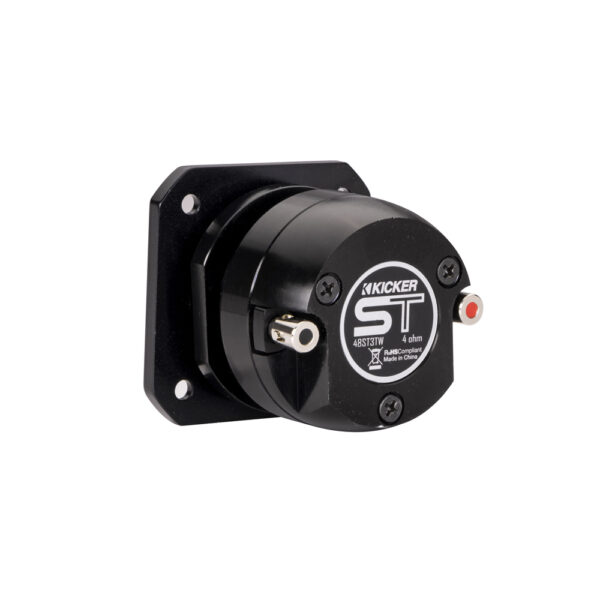

Kicker ST ST3TW 1″ Bullet Tweeter Single
A single 1″ horn-loaded bullet tweeter from Kicker’s ST Street Series, the pro-audio style range built for competition-level SPL systems. The aluminium diaphragm is extremely efficient and voiced to keep vocals clear over very loud bass.
Features
- Horn-loaded aluminium diaphragm for very high output
- Pro-audio style bullet design for SPL builds

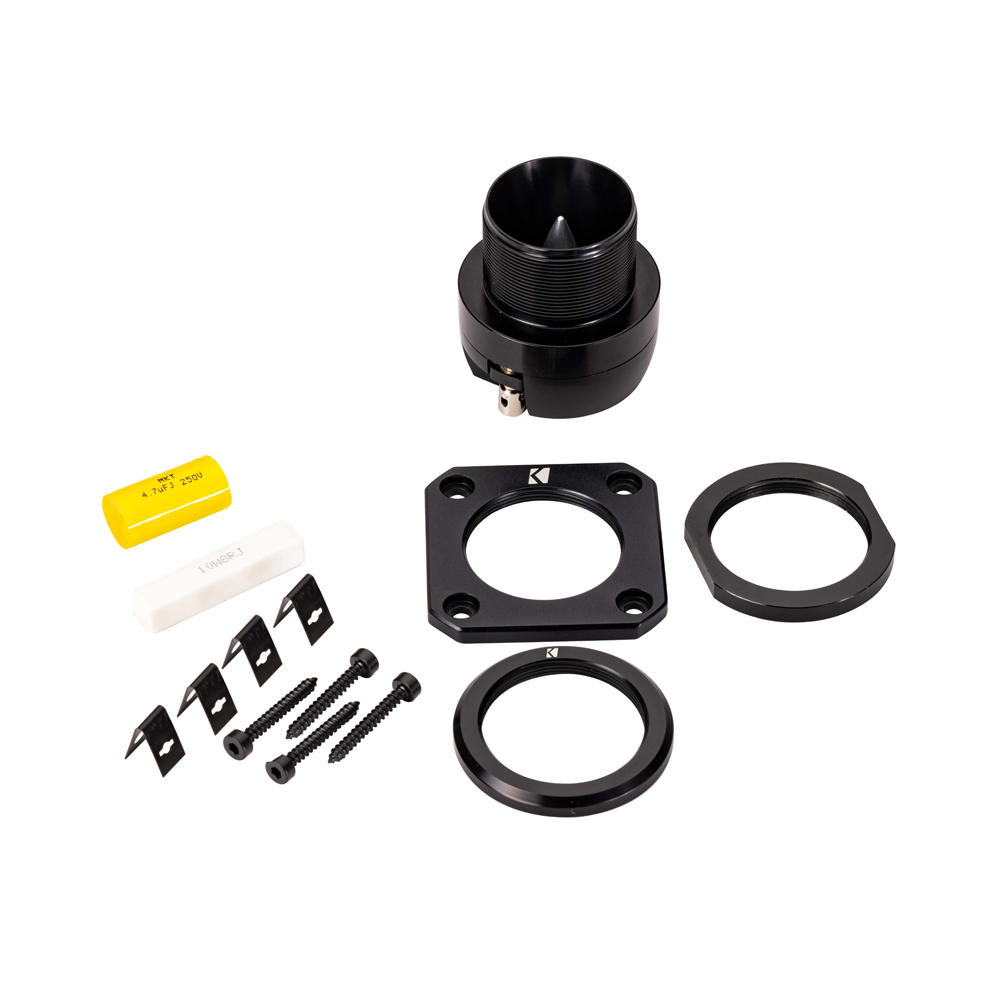

- Front or rear mounting with trim bezel options
- In-line 6 dB crossover included
- Field-replaceable voice coil assembly
- Sold singly
Additional Information
Specification
Performance Specifications
Kicker ST3TW
Design
Bullet
Impedance
4 Ohm
Recommended amplifier power
15-50 W
Peak power handling
100 W
Frequency response
3,500 Hz – 20,000 Hz
Sensitivity
106 dB (1 W / 1 m)
In-line crossover
6 dB/octave high-pass
Product Data
Physical Specifications: Kicker ST3TW
Tweeter: 25 mm / 1″
Dome material: Aluminium
Mounting depth: 30 mm / 1-3/16″
Mounting diameter: 58 mm / 2-5/16″
Thread length: 27 mm / 1-1/16″
Thread diameter: 43 mm / 1-11/16″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Kicker ST ST3TW 1″ Bullet Tweeter Single
Kicker ST ST3TW 1″ Bullet Tweeter Single, part number KA49ST3TW. Horn-loaded aluminium diaphragm for very high output. Pro-audio style bullet design for SPL builds.
£99.95
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Kicker ST ST3TW 1″ Bullet Tweeter Single
A single 1″ horn-loaded bullet tweeter from Kicker’s ST Street Series, the pro-audio style range built for competition-level SPL systems. The aluminium diaphragm is extremely efficient and voiced to keep vocals clear over very loud bass.
Features
- Horn-loaded aluminium diaphragm for very high output
- Pro-audio style bullet design for SPL builds
- Front or rear mounting with trim bezel options
- In-line 6 dB crossover included
- Field-replaceable voice coil assembly
- Sold singly
Performance Specifications
Kicker ST3TW
Design
Bullet
Impedance
4 Ohm
Recommended amplifier power
15-50 W
Peak power handling
100 W
Frequency response
3,500 Hz – 20,000 Hz
Sensitivity
106 dB (1 W / 1 m)
In-line crossover
6 dB/octave high-pass
Physical Specifications
Kicker ST3TW
Tweeter
25 mm / 1″
Dome material
Aluminium
Mounting depth
30 mm / 1-3/16″
Mounting diameter
58 mm / 2-5/16″
Thread length
27 mm / 1-1/16″
Thread diameter
43 mm / 1-11/16″
