Power Modules – Designed for Peak Power

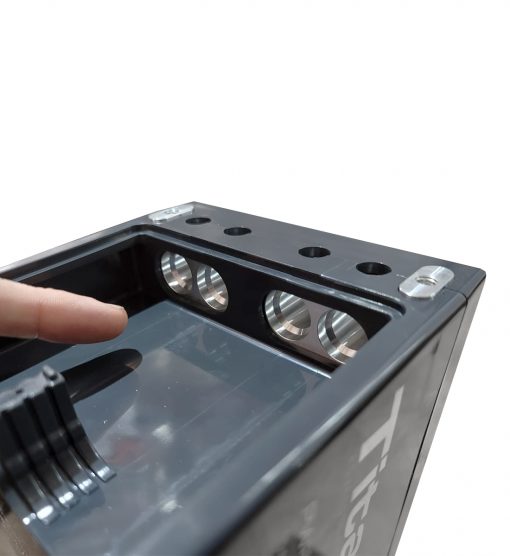

This Titan8 Series Lithium Titanate Oxide (LTO) series uses a very high power lithium cell that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity). This translates to a single 10Ah module that can support burst current up to 1,000A, and can accept 300A of continuous charge current. The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 24V, 36V, or any configuration imaginable.
APPLICATIONS
- Primary Audio Power Source
- Supports upto 5000w or 1000A burst current
- Ultra high burst Performance
Additional Information
Specification
Performance Specifications
XS Power PWR-S5
Nominal voltage
12 V
Maximum amps
2000
Cranking amps (CA)
1000
Cranking amps, lead-acid equivalent
1500
Capacity (Ah)
10
Capacity, lead-acid equivalent (Ah)
30
Energy (Wh)
120
Supports up to
5000 Watts
Terminal polarity
Left or right (reversible)
Included hardware
M6 Terminal Hardware Included
Chemistry
Lithium Titanate Oxide (LTO)
Maximum charging current
Accepts up to 300 Amps of Charging Current
Inputs
Four Inputs
Product Data
Physical Specifications: XS Power PWR-S5
Dimensions (L x W x H): 188 x 123 x 127 mm / 7.4 x 4.85 x 5″
Weight: 3.63 kg / 8 lbs
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

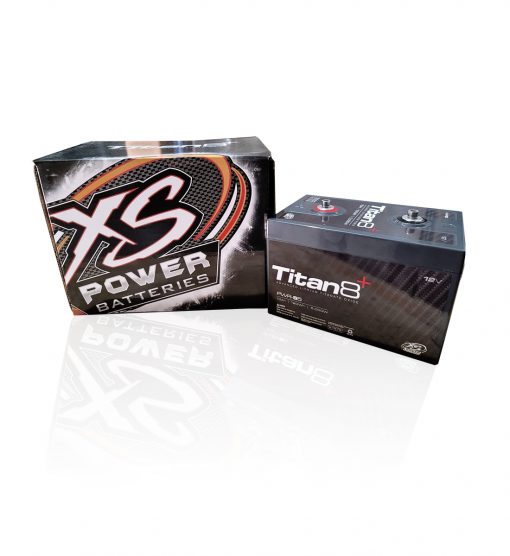

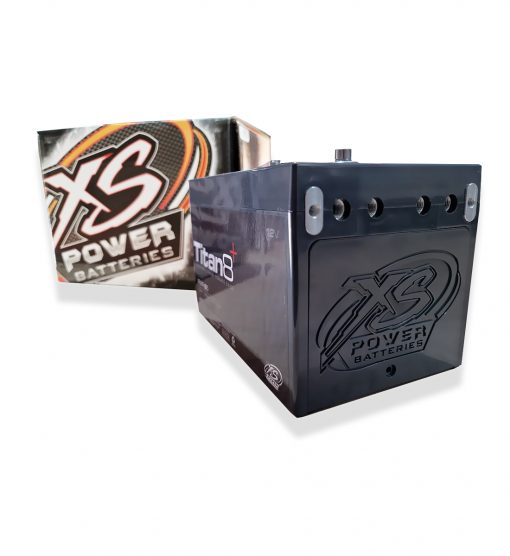

XS Power Titan8 PWR-S5 12v Lithium Titanate Battery
Power Modules – Designed for Peak Power
£1,049.00
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Power Modules – Designed for Peak Power
This Titan8 Series Lithium Titanate Oxide (LTO) series uses a very high power lithium cell that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity). This translates to a single 10Ah module that can support burst current up to 1,000A, and can accept 300A of continuous charge current. The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 24V, 36V, or any configuration imaginable.
APPLICATIONS
- Primary Audio Power Source
- Supports upto 5000w or 1000A burst current
- Ultra high burst Performance
Performance Specifications
XS Power PWR-S5
Nominal voltage
12 V
Maximum amps
2000
Cranking amps (CA)
1000
Cranking amps, lead-acid equivalent
1500
Capacity (Ah)
10
Capacity, lead-acid equivalent (Ah)
30
Energy (Wh)
120
Supports up to
5000 Watts
Terminal polarity
Left or right (reversible)
Included hardware
M6 Terminal Hardware Included
Chemistry
Lithium Titanate Oxide (LTO)
Maximum charging current
Accepts up to 300 Amps of Charging Current
Inputs
Four Inputs
Physical Specifications
XS Power PWR-S5
Dimensions (L x W x H)
188 x 123 x 127 mm / 7.4 x 4.85 x 5″
Weight
3.63 kg / 8 lbs
