Description
Subtronix BMW Plug & Play 4 Channel DSP Amplifier Upgrade Kit
A plug and play amplifier upgrade for BMWs with the standard (base) audio system, with or without ASD (Active Sound Design). One kit fits every car in the table below.

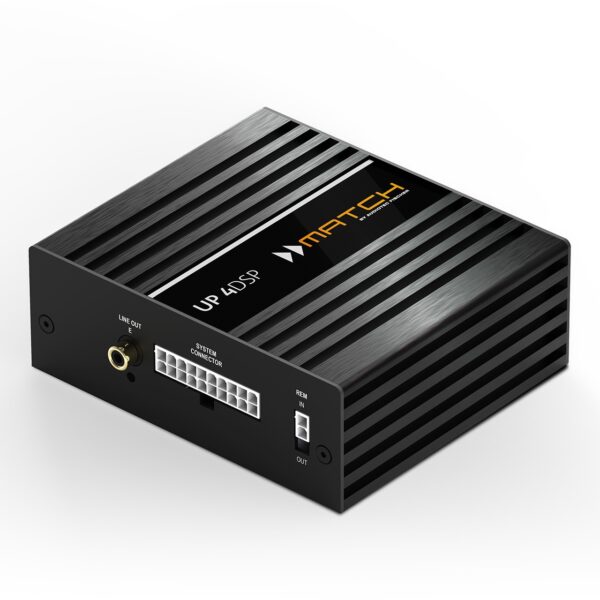

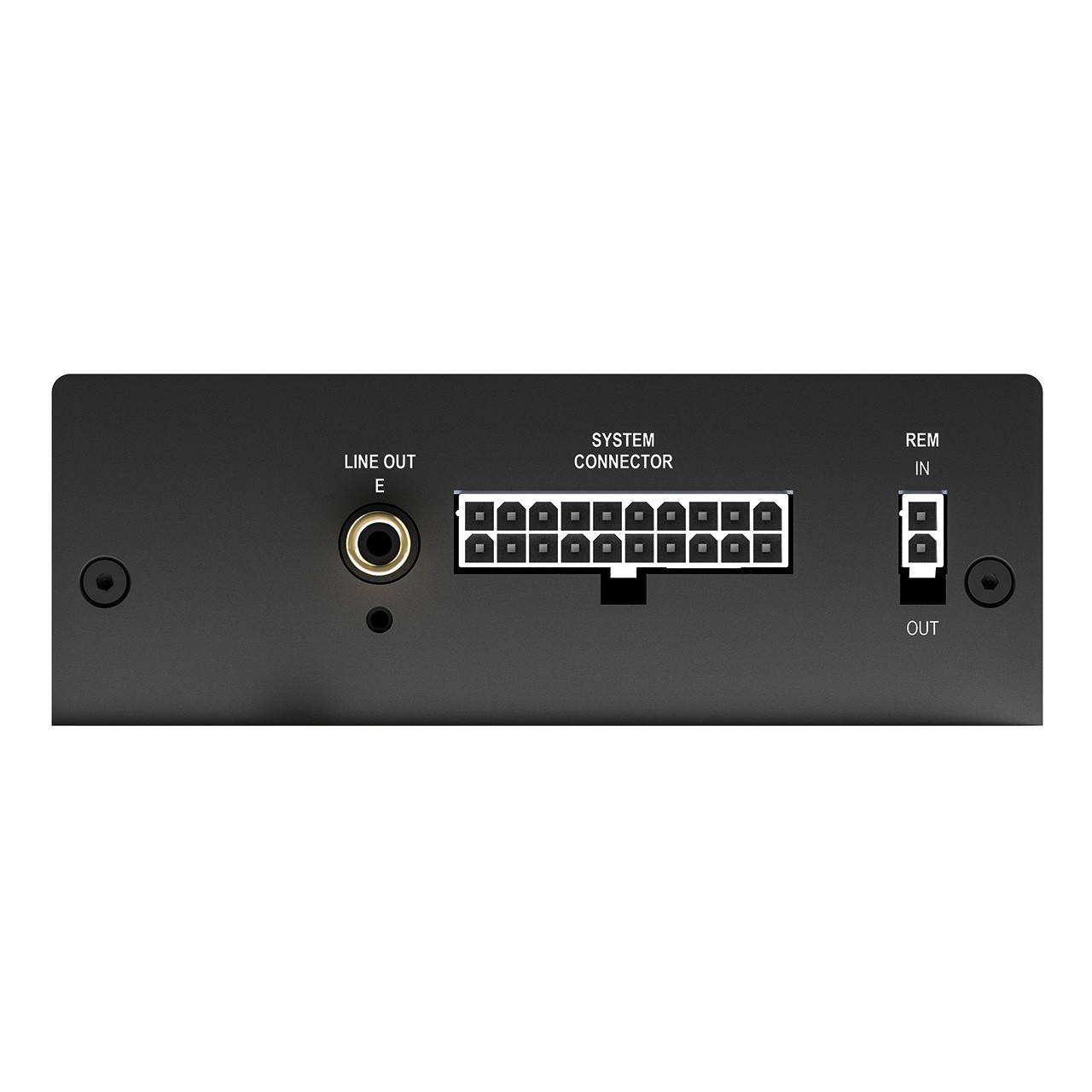

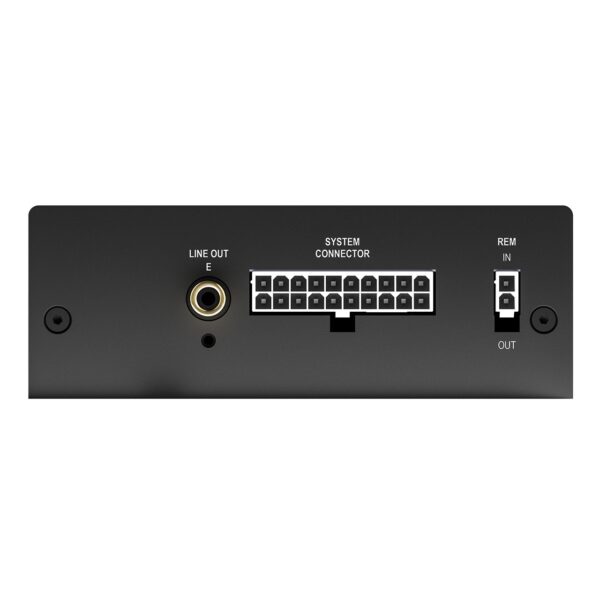

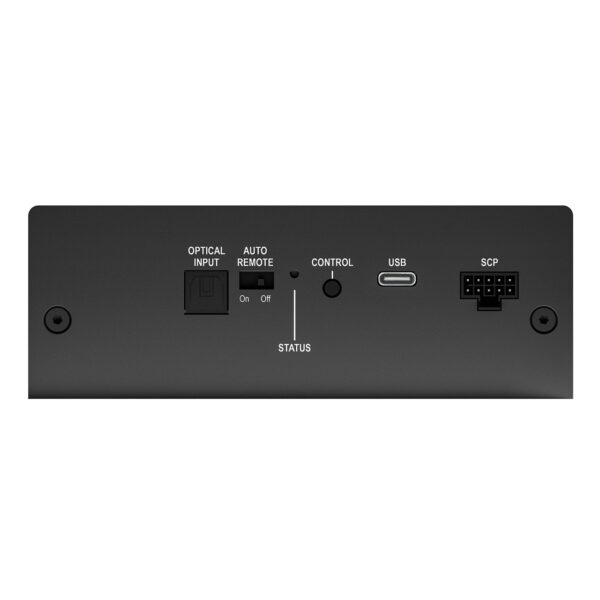

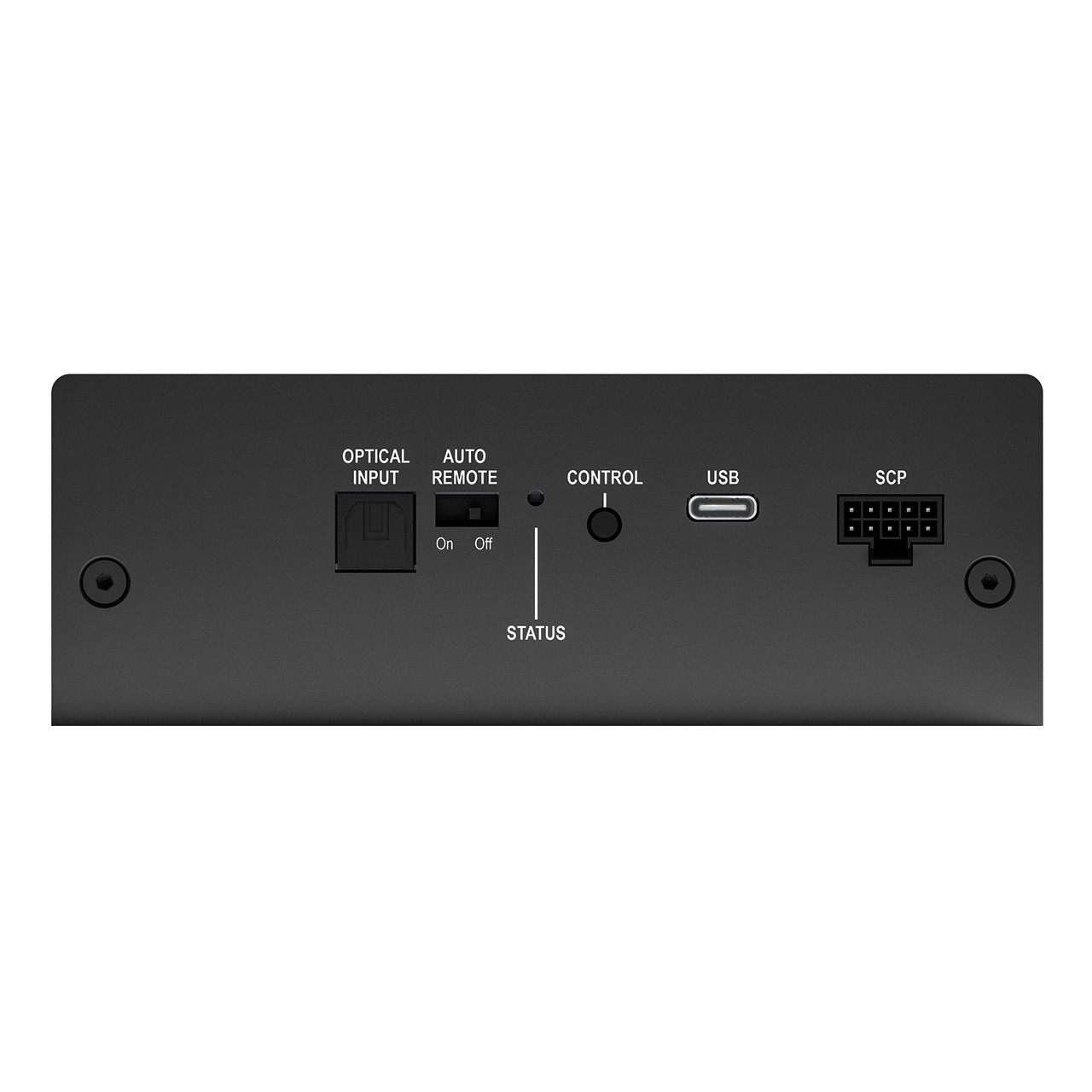

The Match UP 4DSP is a compact 4 channel Class GD amplifier with a built-in 5 channel 64 bit DSP. With the plug and play signal harness it bi-amps your BMW: channels A and B drive the front door speakers at 2 x 60 W RMS, and channels C and D drive the under-seat subwoofers at up to 2 x 140 W RMS into 2 Ω. The harness splits the signal between the doors and the under-seat subs without cutting or modifying any factory wiring, so the car can go back to standard if you ever need it to.
It is DIY friendly: plug and play wiring, separate power cabling and fusing in the box, and phone support from us while you fit it. There is no mounting bracket, so you choose where the amp goes; at 46 x 130 x 110 mm it fits in small spaces. Once it is in, we will set the DSP up properly for your car with a free 1 hour base tune at our Nottinghamshire workshop.
It is built for cars that already have upgraded front speakers and under-seat subwoofers, for example our Subtronix BMW plug and play speaker kits. Want both? The full kit for your car combines this amp kit with the right speaker kit.
Will it fit my BMW?
| Chassis | Model | Years | Speaker kit |
|---|---|---|---|
| E81 | 1 Series | 05/2007 to 07/2012 | Kit A |
| E82 | 1 Series | 10/2007 to 10/2013 | Kit A |
| E87 | 1 Series | 03/2007 to 06/2011 | Kit A |
| E88 | 1 Series | 04/2004 to 06/2011 | Kit A |
| E90 | 3 Series | 01/2005 to 08/2011 | Kit A |
| E91 | 3 Series | 01/2005 to 08/2011 | Kit A |
| E92 | 3 Series | 01/2005 to 08/2011 | Kit A |
| E93 | 3 Series | 01/2005 to 08/2011 | Kit A |
| F10 | 5 Series | 01/2010 to 01/2017 | Kit A |
| F11 | 5 Series | 01/2010 to 01/2017 | Kit A |
| F18 | 5 Series | 01/2010 to 01/2017 | Kit A |
| E63 | 6 Series | 09/2003 to 08/2010 | Kit A |
| E64 | 6 Series | 02/2004 to 06/2010 | Kit A |
| E84 | X1 | 10/2009 to 05/2015 | Kit A |
| F20 | 1 Series | 06/2011 to 08/2019 | Kit B |
| F21 | 1 Series | 07/2012 to 08/2019 | Kit B |
| F22 | 2 Series | 03/2015 to 07/2021 | Kit B |
| F23 | 2 Series | 02/2015 to 07/2021 | Kit B |
| F87 (M2) | 2 Series | 10/2015 to 07/2021 | Kit B |
| F45 | 2 Series Active Tourer | 03/2014 to 10/2021 | Kit B |
| F46 | 2 Series Gran Tourer | 03/2015 to on | Kit B |
| F30 | 3 Series | 10/2011 to 03/2019 | Kit B |
| F31 | 3 Series | 05/2012 to 03/2019 | Kit B |
| F34 | 3 Series | 03/2013 to 03/2019 | Kit B |
| F35 | 3 Series | 07/2012 to 03/2019 | Kit B |
| F80 (M3) | 3 Series | 02/2014 to 02/2018 | Kit B |
| F32 | 4 Series | 06/2014 to 08/2020 | Kit B |
| F33 | 4 Series | 06/2014 to 08/2020 | Kit B |
| F36 | 4 Series Gran Coupe | 06/2014 to 06/2021 | Kit B |
| G30 | 5 Series | 02/2017 to 06/2019 | Kit B |
| G31 | 5 Series | 05/2017 to 06/2019 | Kit B |
| G38 | 5 Series | 07/2017 to 06/2019 | Kit B |
| F06 | 6 Series Gran Coupe | 05/2012 to 01/2018 | Kit B |
| G32 | 6 Series Gran Turismo | 06/2017 to 06/2019 | Kit B |
| I12 | i8 | 01/2013 to 01/2020 | Kit B |
| L15 | i8 | 01/2018 to 01/2020 | Kit B |
| F82, F83 | M4 | 02/2014 to 01/2020 | Kit B |
| F90 (M5) | M5 | 02/2017 to 02/2023 | Kit B |
| F48, F49 | X1 | 06/2015 to 10/2022 | Kit B |
| F39 | X2 | 03/2018 to 12/2021 | Kit B |
| F25 | X3 | 01/2010 to 08/2017 | Kit B |
| G01 | X3 | 08/2017 to 06/2019 | Kit B |
| F26 | X4 | 01/2014 to 03/2018 | Kit B |
| G02, F98 (X4 M) | X4 | 03/2018 to 08/2019 | Kit B |
| E60 | 5 Series | 07/2003 to 05/2010 | Kit C |
| E61 | 5 Series | 07/2003 to 05/2010 | Kit C |
| F07 | 5 Series Gran Turismo | 10/2009 to 05/2017 | Kit C |
| E83 | X3 | 01/2004 to 08/2010 | Kit C |
| E70 | X5 | 08/2006 to 08/2013 | Kit C |
| E71, E72 | X6 | 01/2008 to 01/2014 | Kit C |
Is my car base audio?
These kits are for BMWs with the standard (base) audio system, with or without ASD (Active Sound Design). The quick check: sit in the car and look at the small triangle panel behind each door mirror, at the front corner of the door window.
- Harman Kardon badge on the panel: Harman Kardon system, not compatible.
- A tweeter with no badge: usually the HiFi system, not compatible.
- No tweeter: base audio, compatible.
Some early E-series 1 and 5 Series cars have a tweeter or an empty grille there even on base audio, so if in doubt send us a photo and we will confirm before you order.
Every DSP we sell includes a free 1 hour base tune set-up. Get in touch to book it.
Features
- Match UP 4DSP 4 channel amplifier with built-in 5 channel 64 bit DSP
- Bi-amps the front doors and the under-seat subwoofers on separate channels
- Plug and play signal harness, no cutting of factory wiring
- Separate power cabling and fusing included
- DIY friendly, with phone support while you fit it
- Fits BMWs with the standard (base) audio system, with or without ASD
- Compact 46 x 130 x 110 mm amplifier, mount it where suits you (no bracket included)
- Free 1 hour base tune set-up included
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Subtronix BMW Plug & Play 4 Channel DSP Amplifier Upgrade Kit
Kit contents
Match UP 4DSP 4 channel DSP amplifier, plug and play signal harness, power cabling and fusing
Amplifier power, front speakers
2 x 60 W RMS @ 4 Ohms
Amplifier power, under-seat subwoofers
2 x 140 W RMS @ 2 Ohms
Product Data
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
