Description
Morel Ultimo SCX 102 10″ Subwoofer 2 Ohm SVC
Ultimo SC-X 10 inch subwoofer – High perfmonace bass, exceptional value
The Ultimo SC-X raises the bar for bass performance, combining Morel’s cutting-edge technology with incredible value. Designed for enthusiasts who demand both power and precision, the SC-X features a massive 5.1” Hexatech™ voice coil paired with an aluminum former. This configuration ensures efficient heat dissipation, contributing to a piston-like, linear movement that reduces distortion and enhances overall bass control.
Incorporating Morel’s innovative DMM™ (Double Magnet Motor) system, the SC-X maximizes magnetic field efficiency, boosting power handling while minimizing distortion. This advanced motor design ensures that the voice coil moves with precision, delivering deep, clean bass notes with exceptional clarity.

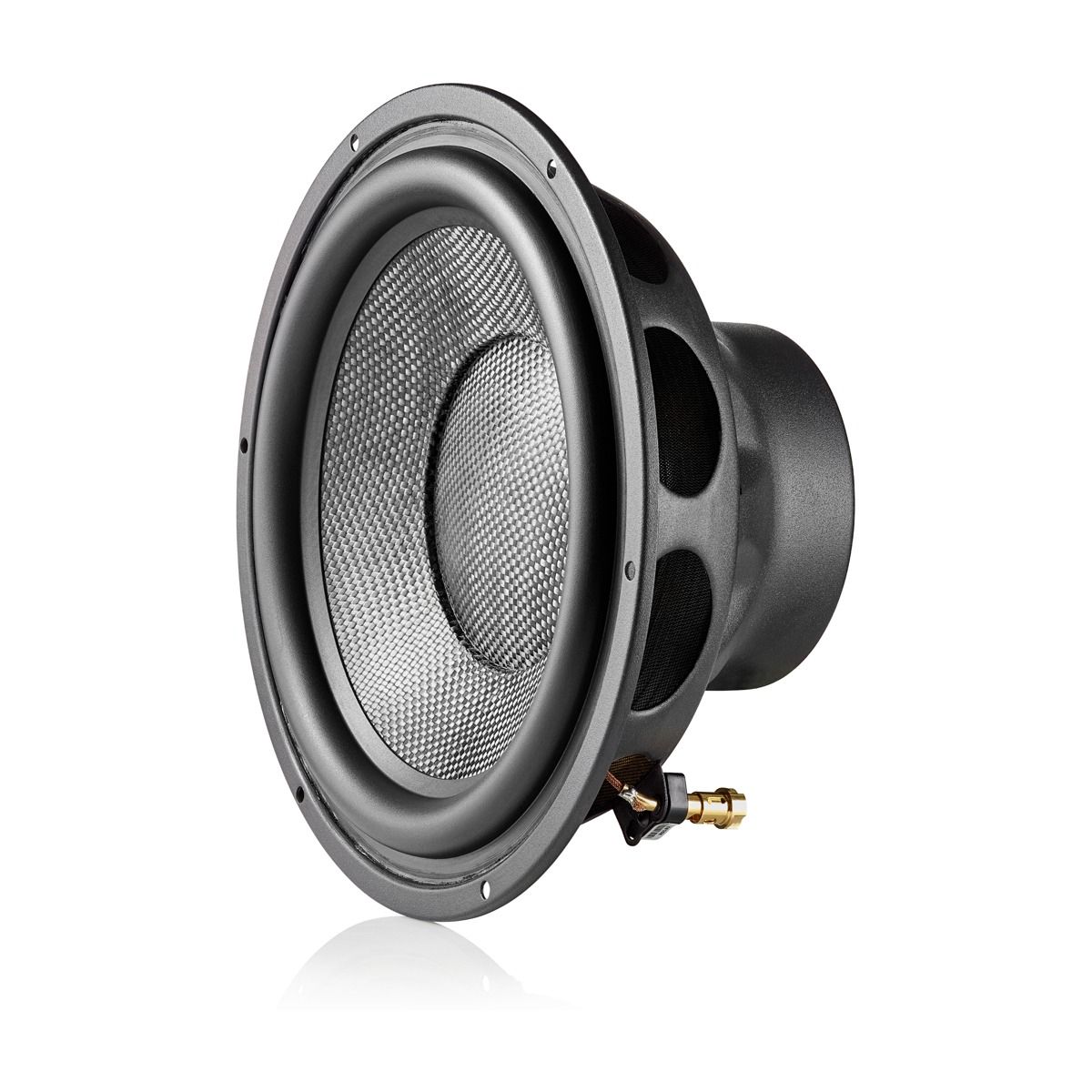

The hybrid carbon fiber and paper composite cone adds strength and damping, providing a highly controlled and accurate bass response without breakup or distortion. Combined with a new suspension system, the Ultimo SC-X boasts impressive excursion and dynamic range, making it ideal for even the most demanding bass notes.
Designed to work in both sealed and ported enclosures, the Ultimo SC-X offers versatile performance for audiophiles looking to achieve both musicality and high output. This subwoofer strikes the perfect balance between power, precision, and affordability, making it an ideal choice for those who want a high-fidelity experience at a great value.
Additional Information
Specification
Performance Specifications
Morel Ultimo SCX 102
Size
10″ / 250 mm
Impedance
2 Ohms
Voice coil
Single (SVC), 2 Ohm
Power handling RMS
500 W
Power handling peak
1500 W
Recommended amplifier power
300-600 W RMS
Sensitivity
82.8 dB (1 W / 1 m)
Frequency response
10-500 Hz
Grille

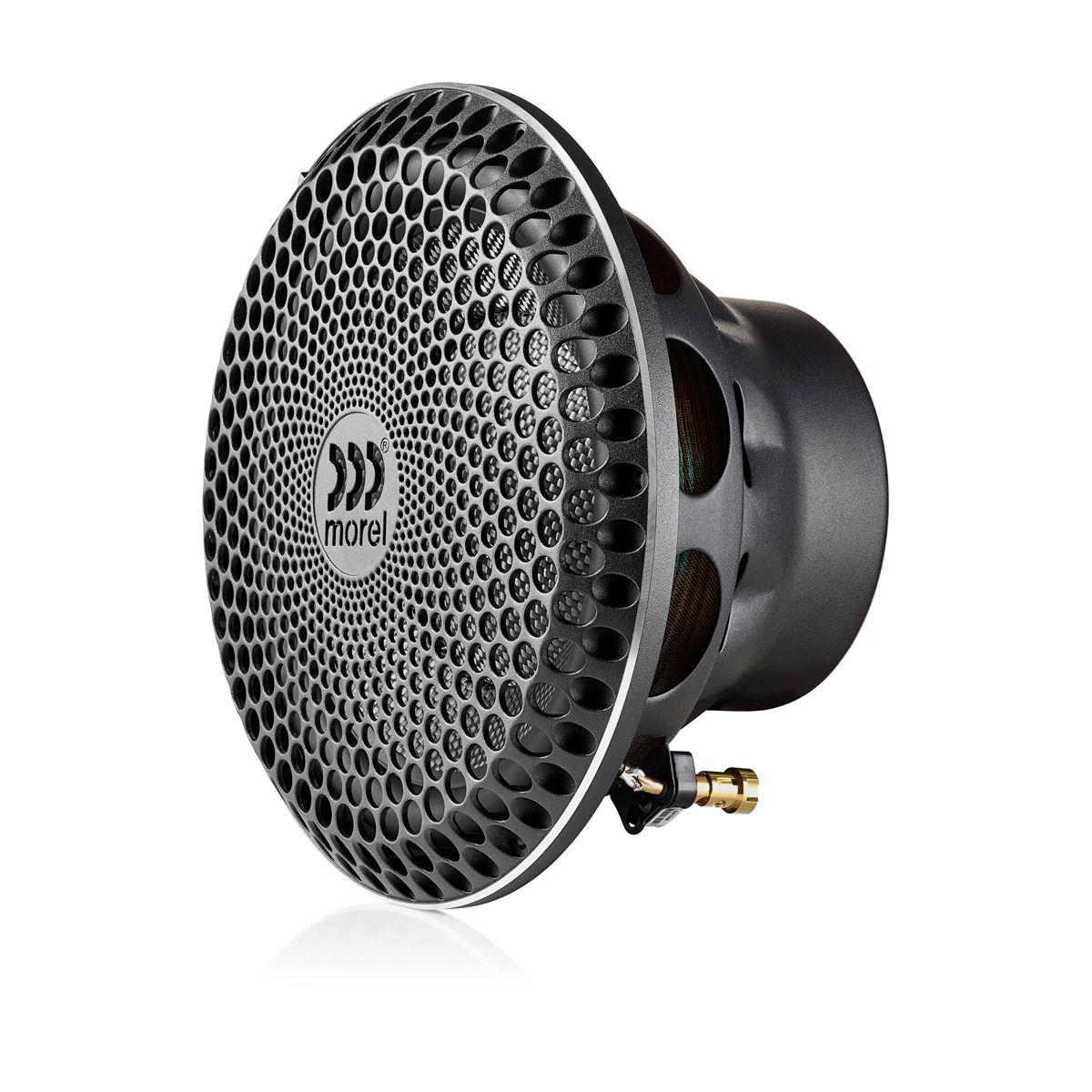

Lotus grille included
Morel part number
ULTIMO SCX 102
Recommended sealed enclosure: Net volume
0.8 cuft / 22.6 L (F3 48Hz)
Recommended vented enclosure: Net volume
1.1 cuft / 31.1 L (tuned to 29 Hz)
Recommended vented enclosure: Vent
W 8″ x H 1.125″ x L 23.3″ / W 203.2mm x H 28.6mm x L 591.8mm
Product Data
Physical Specifications: Morel Ultimo SCX 102
Outer diameter: 263 mm / 10.35″
Mounting depth: 133.5 mm / 5.26″
Cut-out diameter: 227 mm / 8.94″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Morel Ultimo SCX 102 10″ Subwoofer 2 Ohm SVC
Ultimo SCX 10″ (250mm) Subwoofer 2 Ohm SVC
£749.00
Morel Ultimo SCX 102 10″ Subwoofer 2 Ohm SVC
Ultimo SC-X 10 inch subwoofer – High perfmonace bass, exceptional value
The Ultimo SC-X raises the bar for bass performance, combining Morel’s cutting-edge technology with incredible value. Designed for enthusiasts who demand both power and precision, the SC-X features a massive 5.1” Hexatech™ voice coil paired with an aluminum former. This configuration ensures efficient heat dissipation, contributing to a piston-like, linear movement that reduces distortion and enhances overall bass control.
Incorporating Morel’s innovative DMM™ (Double Magnet Motor) system, the SC-X maximizes magnetic field efficiency, boosting power handling while minimizing distortion. This advanced motor design ensures that the voice coil moves with precision, delivering deep, clean bass notes with exceptional clarity.
The hybrid carbon fiber and paper composite cone adds strength and damping, providing a highly controlled and accurate bass response without breakup or distortion. Combined with a new suspension system, the Ultimo SC-X boasts impressive excursion and dynamic range, making it ideal for even the most demanding bass notes.
Designed to work in both sealed and ported enclosures, the Ultimo SC-X offers versatile performance for audiophiles looking to achieve both musicality and high output. This subwoofer strikes the perfect balance between power, precision, and affordability, making it an ideal choice for those who want a high-fidelity experience at a great value.
Performance Specifications
Morel Ultimo SCX 102
Size
10″ / 250 mm
Impedance
2 Ohms
Voice coil
Single (SVC), 2 Ohm
Power handling RMS
500 W
Power handling peak
1500 W
Recommended amplifier power
300-600 W RMS
Sensitivity
82.8 dB (1 W / 1 m)
Frequency response
10-500 Hz
Grille
Lotus grille included
Morel part number
ULTIMO SCX 102
Recommended sealed enclosure: Net volume
0.8 cuft / 22.6 L (F3 48Hz)
Recommended vented enclosure: Net volume
1.1 cuft / 31.1 L (tuned to 29 Hz)
Recommended vented enclosure: Vent
W 8″ x H 1.125″ x L 23.3″ / W 203.2mm x H 28.6mm x L 591.8mm
Physical Specifications
Morel Ultimo SCX 102
Outer diameter
263 mm / 10.35″
Mounting depth
133.5 mm / 5.26″
Cut-out diameter
227 mm / 8.94″
