Description

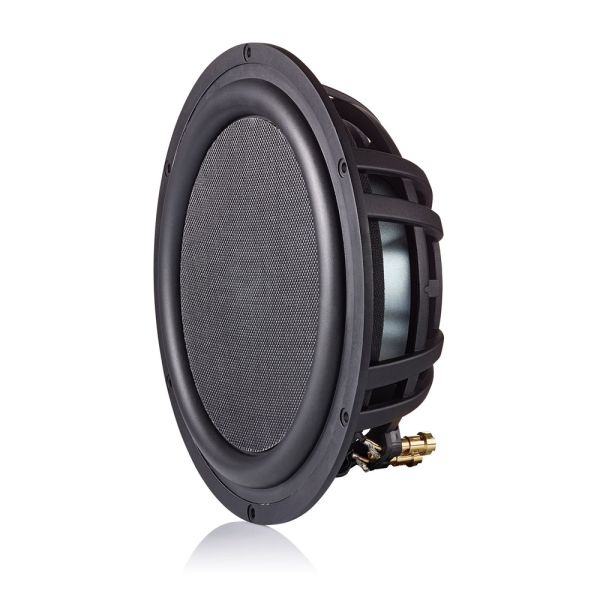

PowerSlim 12-inch Thin-Line Subwoofer (700 W, dual 4 Ω voice coils)
Dual 4Ω voice coils permit deploying the PowerSlim as a 2Ω or 8Ω driver
The Morel Ultimo PowerSlim subwoofers redefine what’s possible in the world of bass reproduction. From their compact yet powerful architecture and state-of-the-art engineering, they are an unrivaled force in the realm of shallow subwoofers.
As a testament to their design, the Ultimo PowerSlim subwoofers were bestowed the esteemed EISA “Best In-Car Subwoofer” award for 2023-2024. This accolade defines Morel’s relentless commitment to pioneering audio technology and delivering unparalleled sonic encounters.
In developing a no-compromise shallow subwoofer, much inspiration was taken from what was learned with our renowned Ultimo Titanium but reimagined to deliver the ultimate bass performance in a compact space. At the heart of the Ultimo PowerSlim is our advanced EVC™ (External Voice Coil) motor technology featuring a massive 5.1-inch diameter voice coil. Its large size, combined with the use of our lightweight aluminum Hexatech™ voice coil wire, give it power handling that is simply unmatched in the shallow subwoofer category while serving up superb linearity and control, ensuring a rich, accurate and dynamic bass experience.
Features:
- 12 inch
- 700W RMS
- Dual voice coil (4 ohm each coil)
- 78mm mounting depth
- Hexatach voice coil
- Massive 5.1-inch diameter voice coil
- EISA Award winner ‘Best In Car Subwoofer’

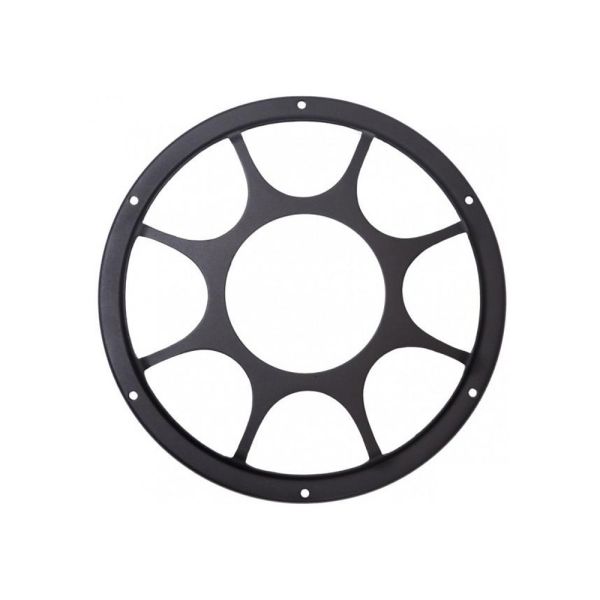

- Octopus grill included
Additional Information
Specification
Performance Specifications
MOR ULTIMO PS 124D
RMS Power
700 W
Max. Trans. Pwr Handling
2100 W
Impedance
4 Ohms Dual
Sensitivity
83 Db
Frequency response
20-500 Hz
Resonance Freq. Fs
24 Hz
Voice Coil Diameter
51 mm
Voice Coil Height
30 mm
DC Resistance
1.6 Ohms
Moving Mass MMS
252.1 g
Cone Type
Flat Honeycomb
Cone Material
4 Layers Carbon
Product Data
Physical Specifications: MOR ULTIMO PS 124D
Width: 305 mm
Depth: 86 mm
Net Weight: 5500 g
File Download
Delivery Information
Delivery information content here.
Morel Ultimo PS 124D 12″ Slim subwoofer 700 W
Morel Ultimo Powerslim 12″ / 300 mm Dual Voicecoil Subwoofer 4 Ohm
£799.00
PowerSlim 12-inch Thin-Line Subwoofer (700 W, dual 4 Ω voice coils)
Dual 4Ω voice coils permit deploying the PowerSlim as a 2Ω or 8Ω driver
The Morel Ultimo PowerSlim subwoofers redefine what’s possible in the world of bass reproduction. From their compact yet powerful architecture and state-of-the-art engineering, they are an unrivaled force in the realm of shallow subwoofers.
As a testament to their design, the Ultimo PowerSlim subwoofers were bestowed the esteemed EISA “Best In-Car Subwoofer” award for 2023-2024. This accolade defines Morel’s relentless commitment to pioneering audio technology and delivering unparalleled sonic encounters.
In developing a no-compromise shallow subwoofer, much inspiration was taken from what was learned with our renowned Ultimo Titanium but reimagined to deliver the ultimate bass performance in a compact space. At the heart of the Ultimo PowerSlim is our advanced EVC™ (External Voice Coil) motor technology featuring a massive 5.1-inch diameter voice coil. Its large size, combined with the use of our lightweight aluminum Hexatech™ voice coil wire, give it power handling that is simply unmatched in the shallow subwoofer category while serving up superb linearity and control, ensuring a rich, accurate and dynamic bass experience.
Features:
- 12 inch
- 700W RMS
- Dual voice coil (4 ohm each coil)
- 78mm mounting depth
- Hexatach voice coil
- Massive 5.1-inch diameter voice coil
- EISA Award winner ‘Best In Car Subwoofer’
- Octopus grill included
Performance Specifications
MOR ULTIMO PS 124D
RMS Power
700 W
Max. Trans. Pwr Handling
2100 W
Impedance
4 Ohms Dual
Sensitivity
83 Db
Frequency response
20-500 Hz
Resonance Freq. Fs
24 Hz
Voice Coil Diameter
51 mm
Voice Coil Height
30 mm
DC Resistance
1.6 Ohms
Moving Mass MMS
252.1 g
Cone Type
Flat Honeycomb
Cone Material
4 Layers Carbon
Physical Specifications
MOR ULTIMO PS 124D
Width
305 mm
Depth
86 mm
Net Weight
5500 g
