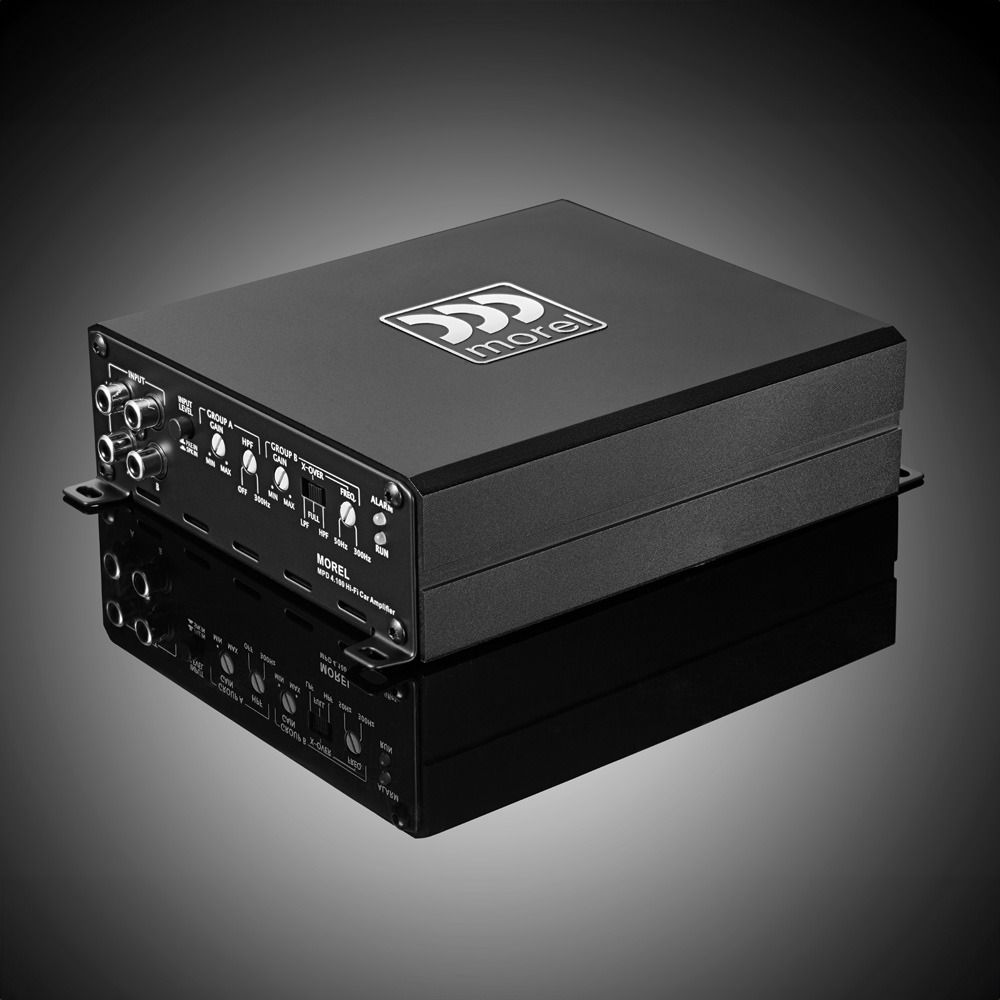

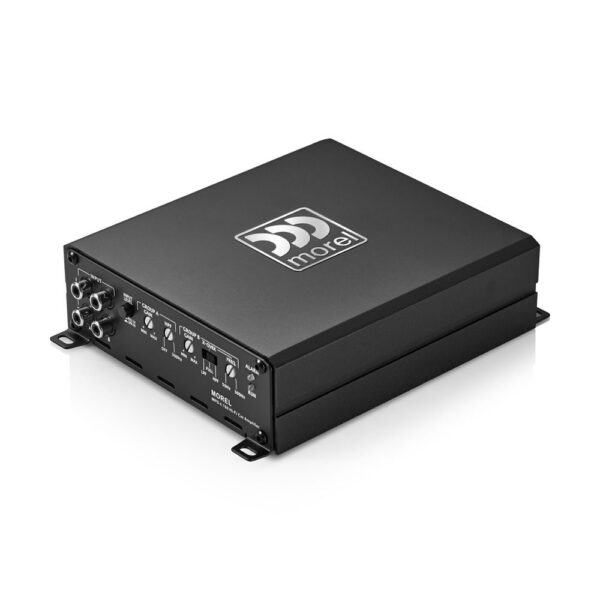

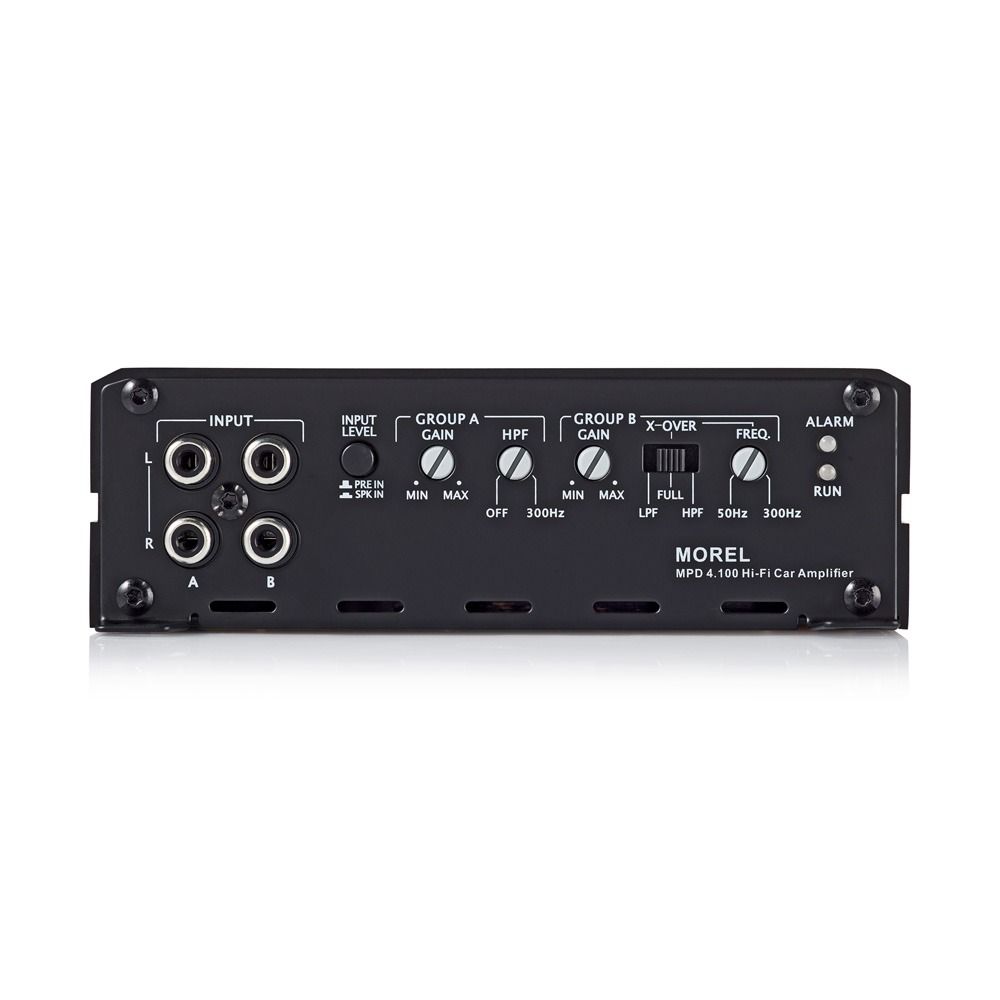

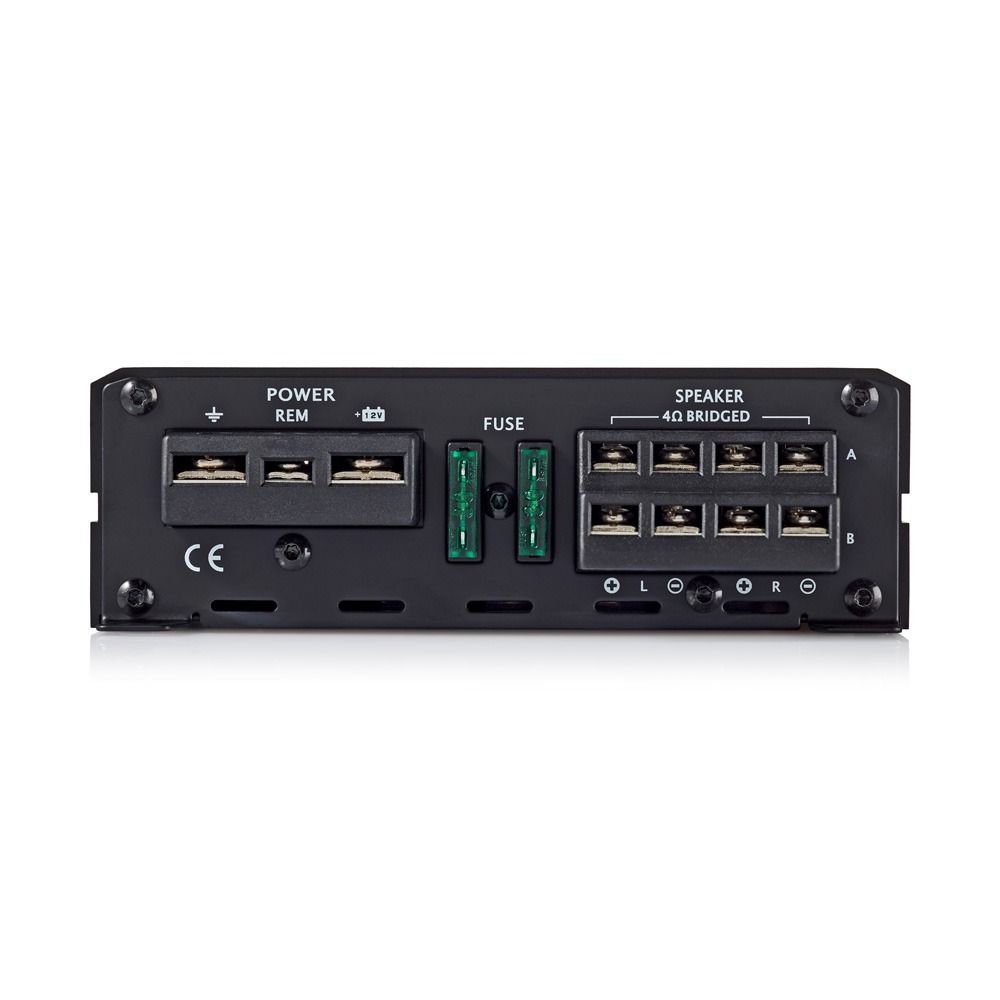

Morel MPD 4.100 100W 4 Channel Class D Full-Range Amplifier

Whether you’re a seasoned audiophile or a newcomer to the world of high-quality audio, these amplifiers offer an audio experience that’s truly extraordinary.

Experience exceptional in-car audio with the Morel MPD 4.100 Amplifier. This compact yet powerful amplifier delivers 115W x 4 at 4 ohms and 165W x 4 at 2 ohms, with a bridging option of 330W x 2 at 4 ohms. Enjoy impressive sonic clarity with a frequency response of 20Hz to 30kHz and a Signal-to-Noise ratio over 93dB. Customize your sound with variable high-pass and low-pass crossovers (50-300Hz, 12dB slope) and maintain crystal clear music with a Total Harmonic Distortion (THD) below 0.2%. The built-in protection circuit ensures long-term reliability, making the MPD4.70 the perfect choice for audiophiles seeking high-quality sound in a compact package.

• Impressive Clarity : Wide frequency response of 20Hz to 30kHz and Signal-to-Noise ratio over 93dB ensure superior audio quality.

• Compact and Powerful: Space-saving designs with robust power outputs suitable for any vehicle. These amplifiers can be discreetly tucked away, yet they deliver remarkable power without consuming valuable space.

• Customizable Sound: Variable crossovers for personalized audio tuning, enhancing your in-car audio experience.

• Built-in Protection: Advanced circuits to safeguard against overcurrent, short circuits, thermal issues, and internal errors, ensuring long-term reliability.

• MPS-HL high-low level adaptor – All MPD Amplifiers seamlessly pair with the MPS-HL high-low level adaptor (available separately), equipped with a 50-ohm load resistor to keep load-sensing factory amplifiers active, simplifying your installation process.

Performance Specifications

Morel MPD 4.100

Output power RMS @ 4 Ohms

4 x 115 W

Output power RMS @ 2 Ohms

4 x 165 W

Output power RMS bridged @ 4 Ohms

2 x 330 W

Frequency response

20 Hz – 30 kHz

Signal-to-noise ratio

93 dB

Input sensitivity

0.2-5 V (low level), 0.4-10 V (high level)

Turn-on

12 V remote or DC offset

Morel part number

MPD 4.100

Physical Specifications: Morel MPD 4.100

Dimensions (H x W x L): 48 x 148 x 203.5 mm

Next working day delivery if ordered before 12:00, unless item is special order.

Morel MPD 4.100 100W 4 Channel Class D Full-Range Amplifier

MPD 100W 4 Channel Class D Full-Range Amplifier

£329.00
