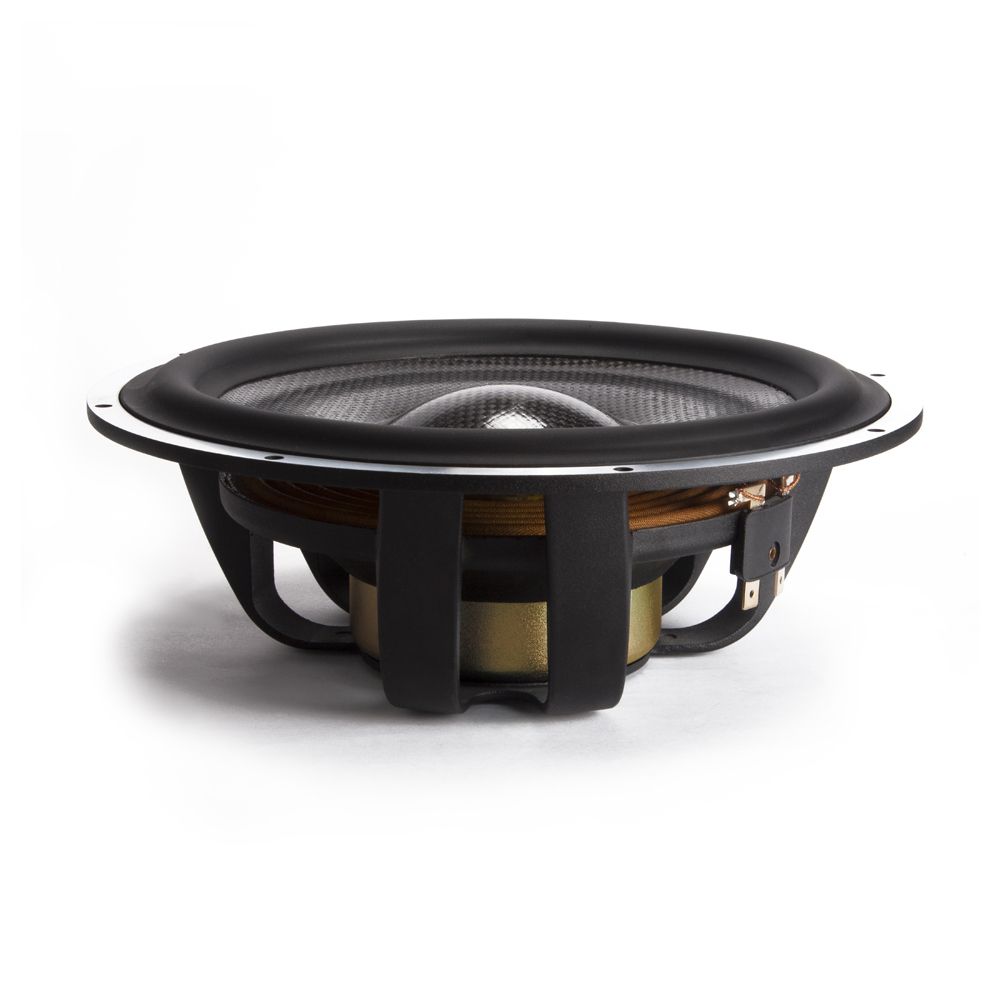

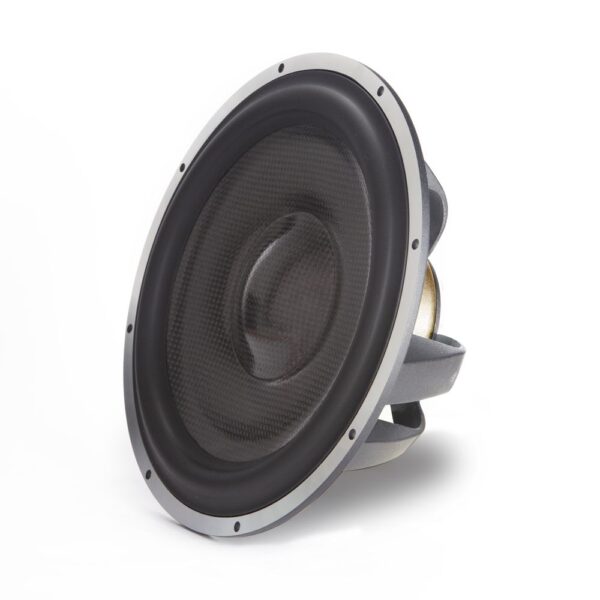

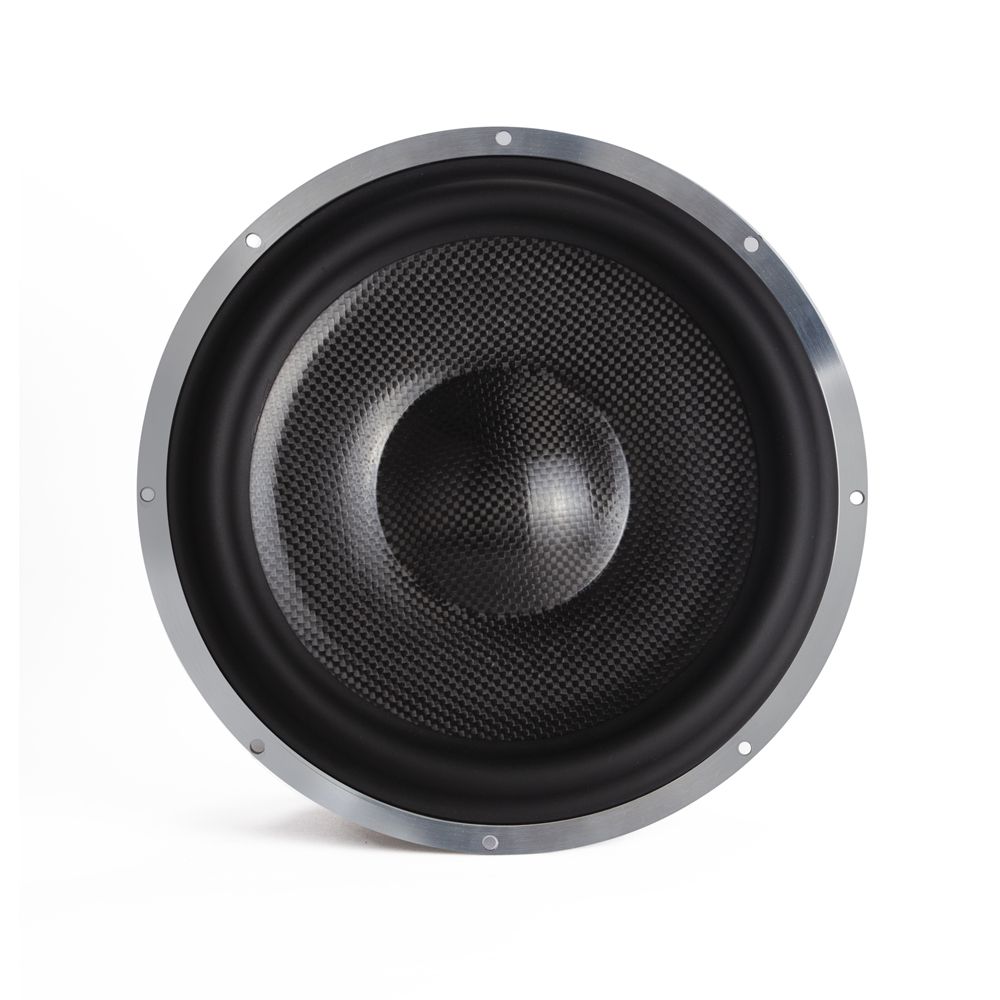

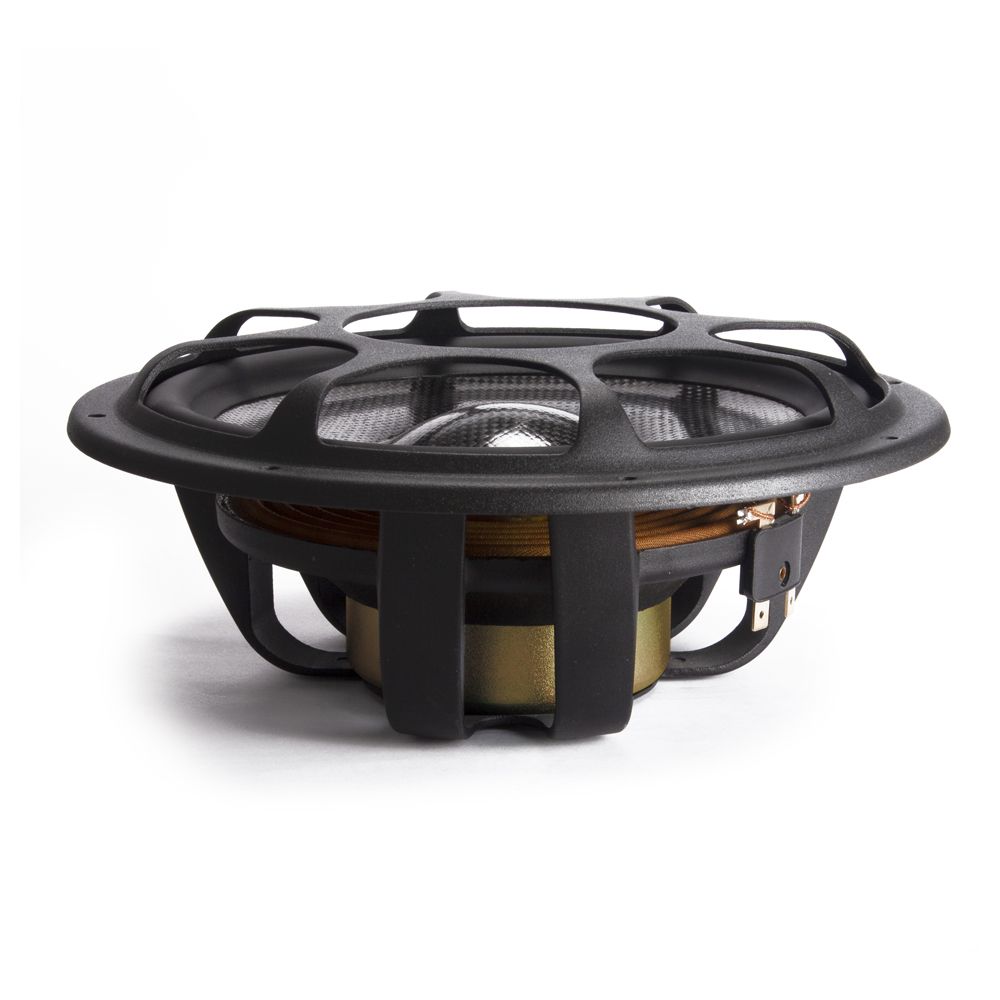

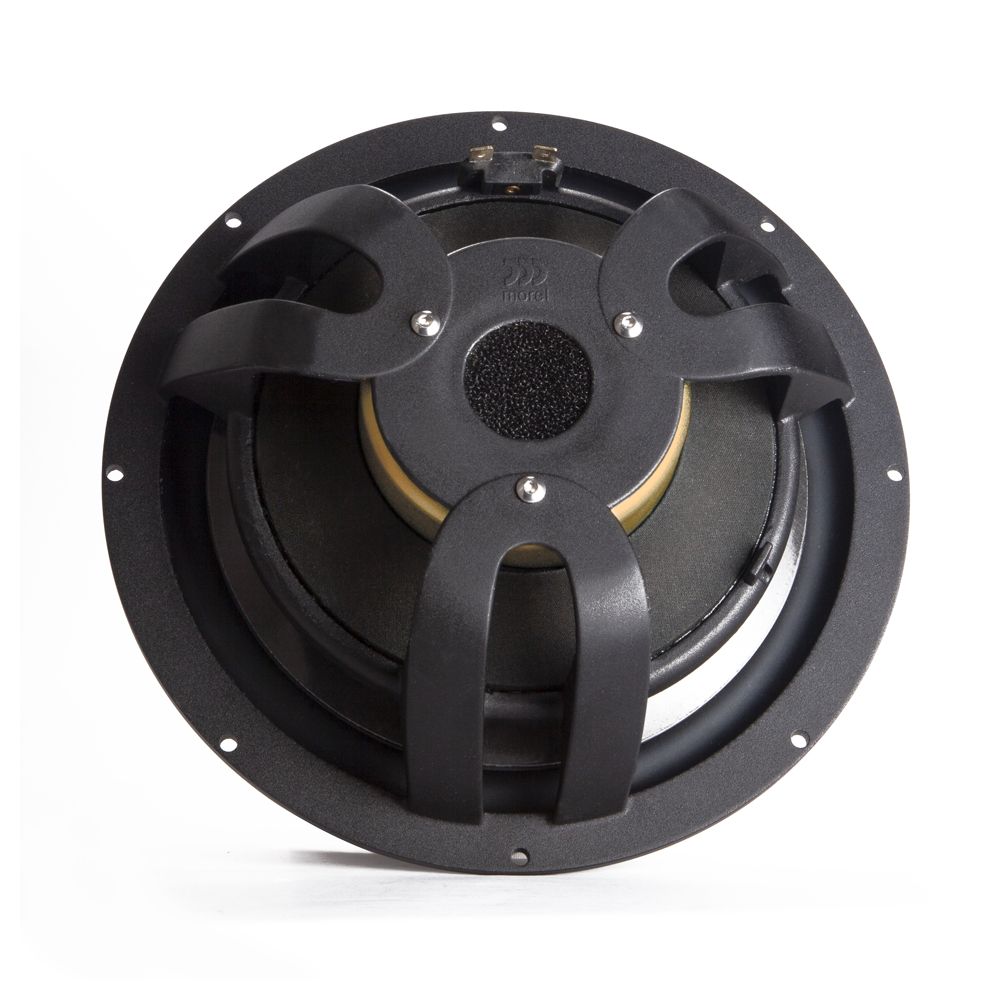

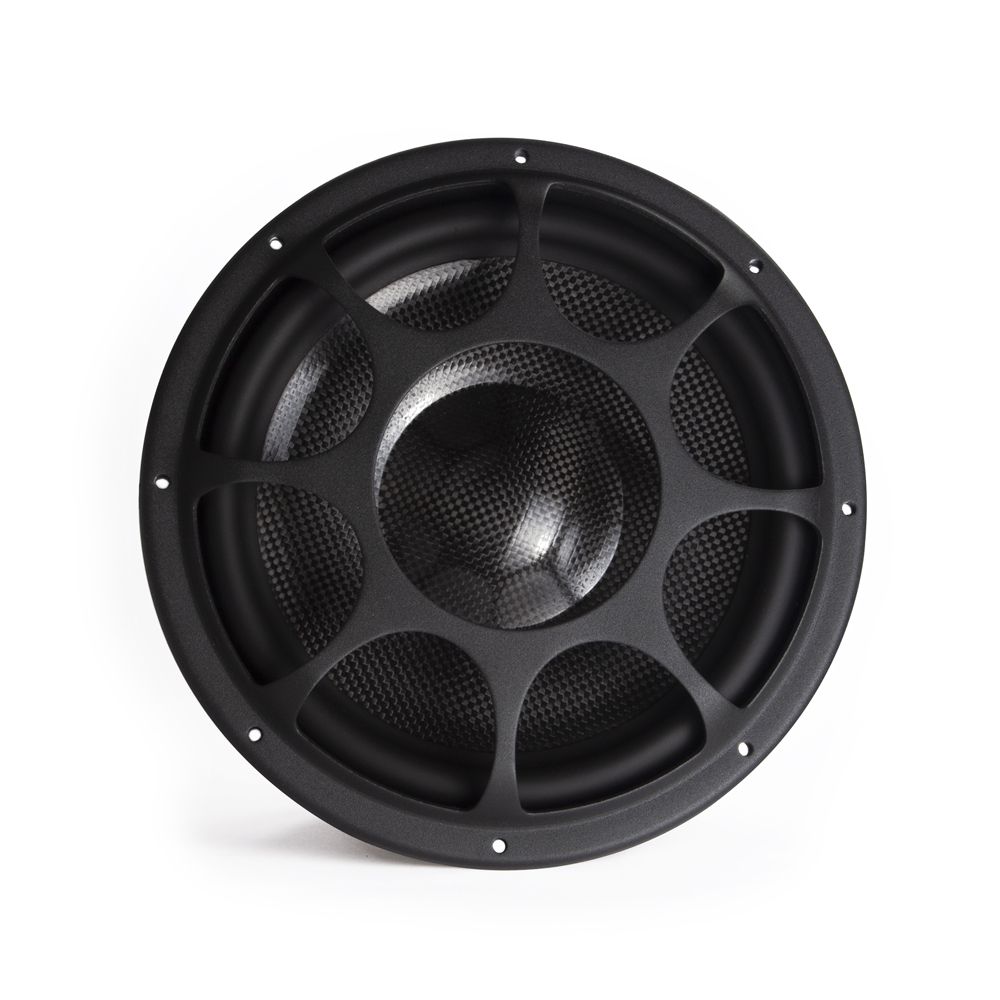

Morel Elate Carbon MW9 9″ Mid-Woofers (Pair)

Not all drivers are created equal, and the visually inspiring Elate Carbon woofers were developed with next-level performance in mind. These new drivers get their Carbon moniker from their triple-layer cones from which they are derived, consisting of two layers of carbon fibre sandwiching a Rohacell foam core. These proprietary cones were developed to give them incredible stiffness, high damping and light weight, the trifecta for cone performance.

Paired with a large 3-inch diameter Hexatech aluminium voice coil, titanium former, and Morel’s EVC motor technology, the Elate Carbon achieves remarkable control and low distortion which translates to highly transparent and bass-rich sound reproduction.

Performance Specifications

Morel Elate Carbon MW9

Speaker size

9″

Type

Component

Power handling RMS

200 W

Impedance

4 Ohms

Sensitivity

89 dB (2.83 V / 1 m)

Frequency response

25-3000 Hz

Supplied as

Pair

Grilles

Included

Morel part number

ELAT CAR MW9

Physical Specifications: Morel Elate Carbon MW9

Installation depth: 71 mm / 2.80″

Installation diameter: 192 mm / 7.56″

Next working day delivery if ordered before 12:00, unless item is special order.
