Description

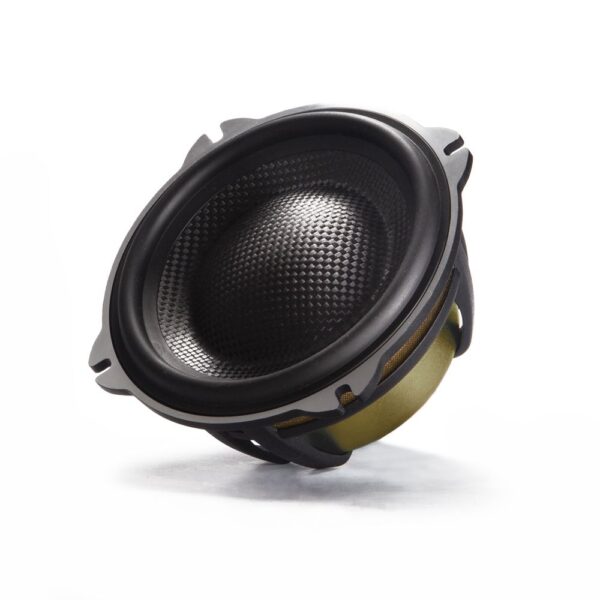

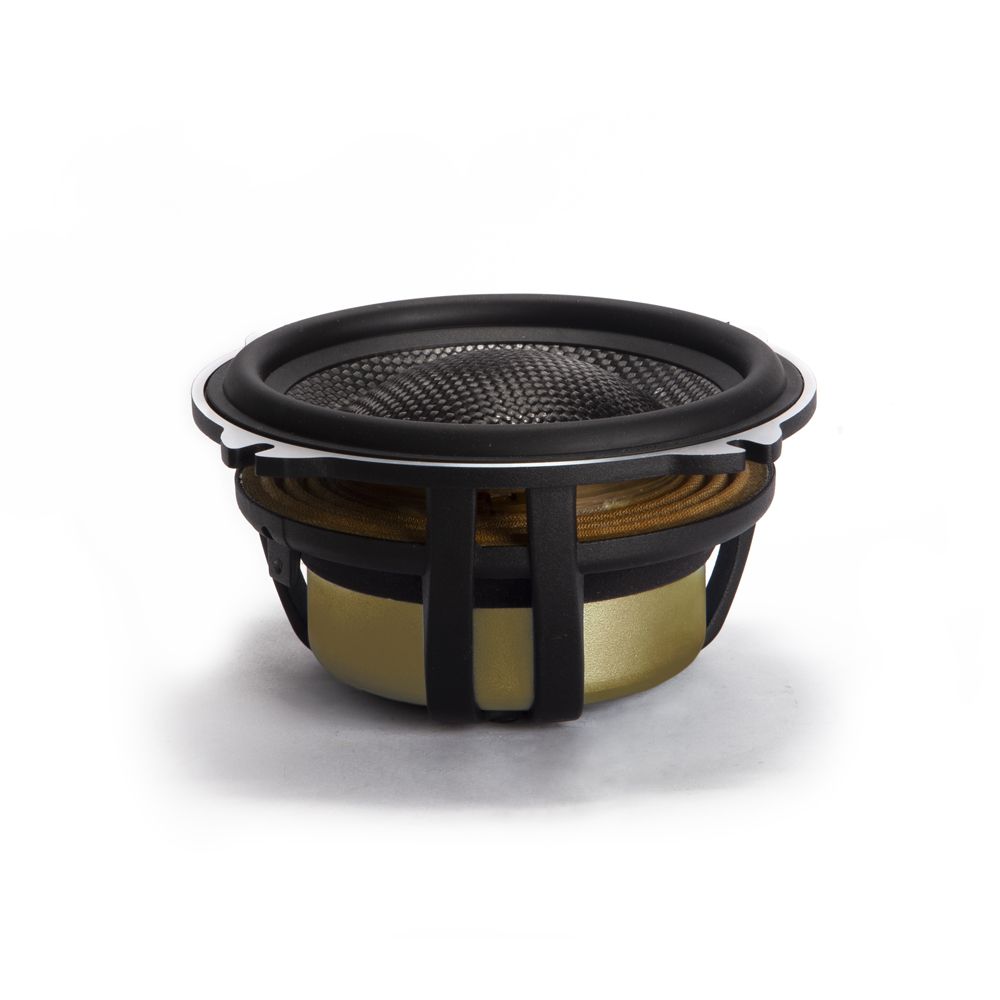

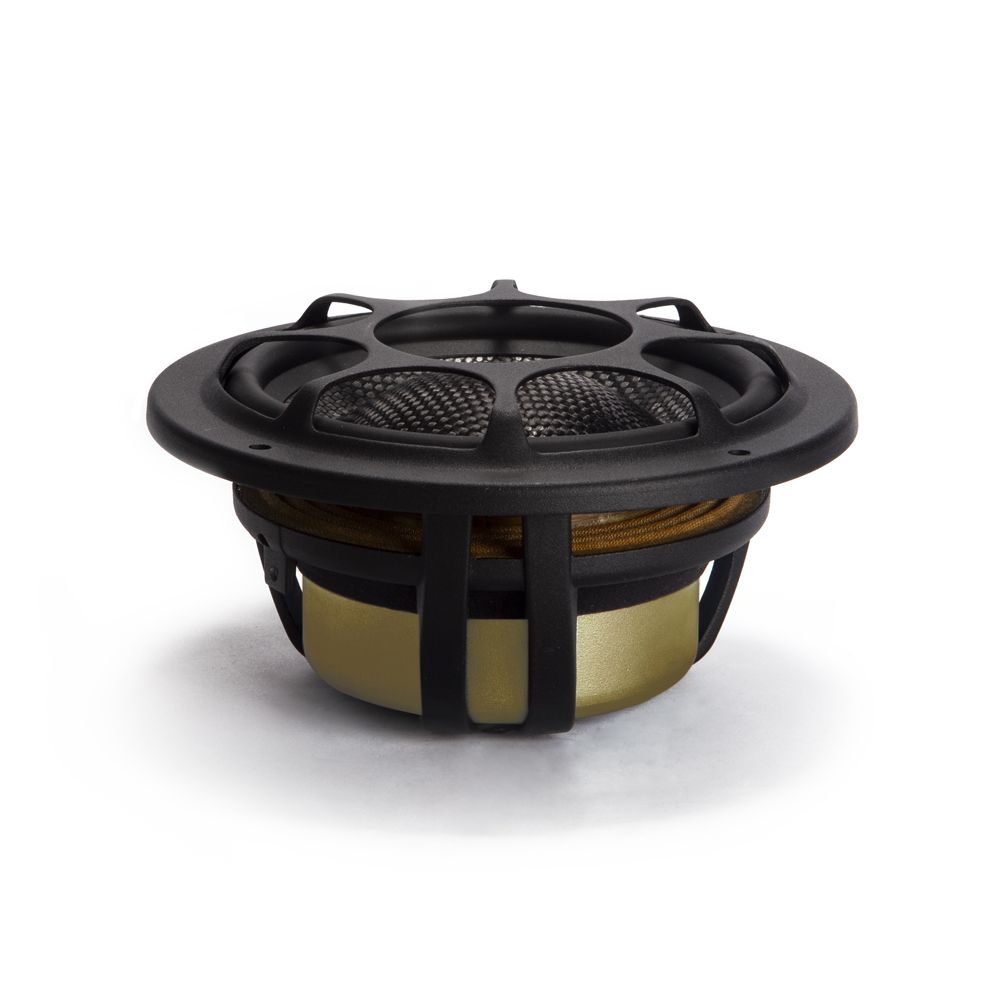

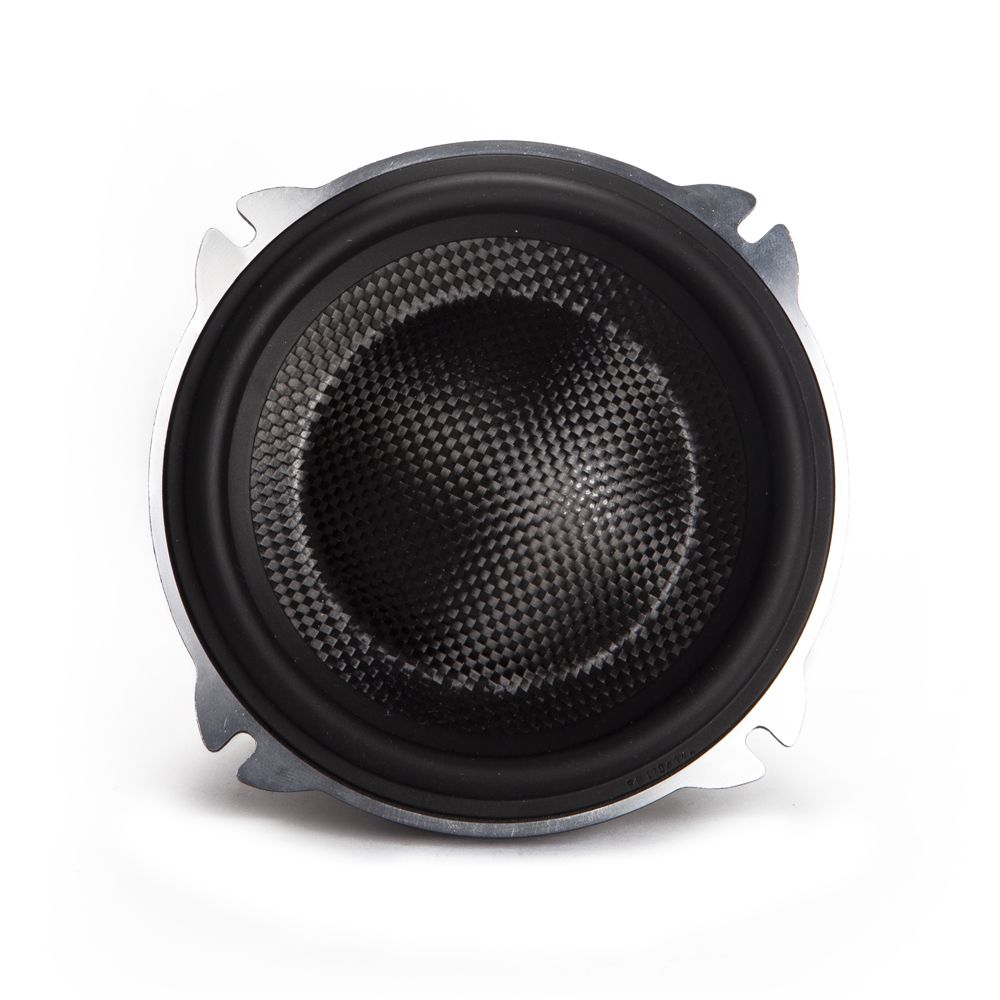

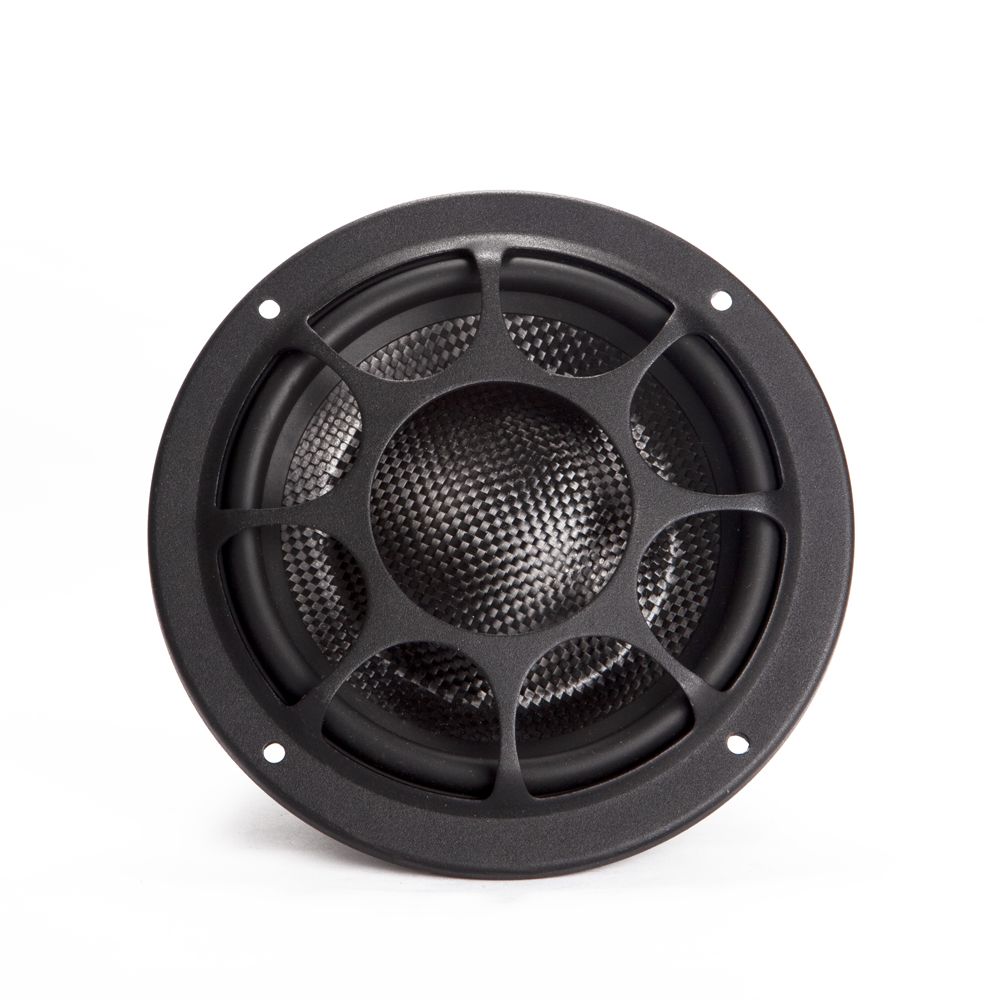

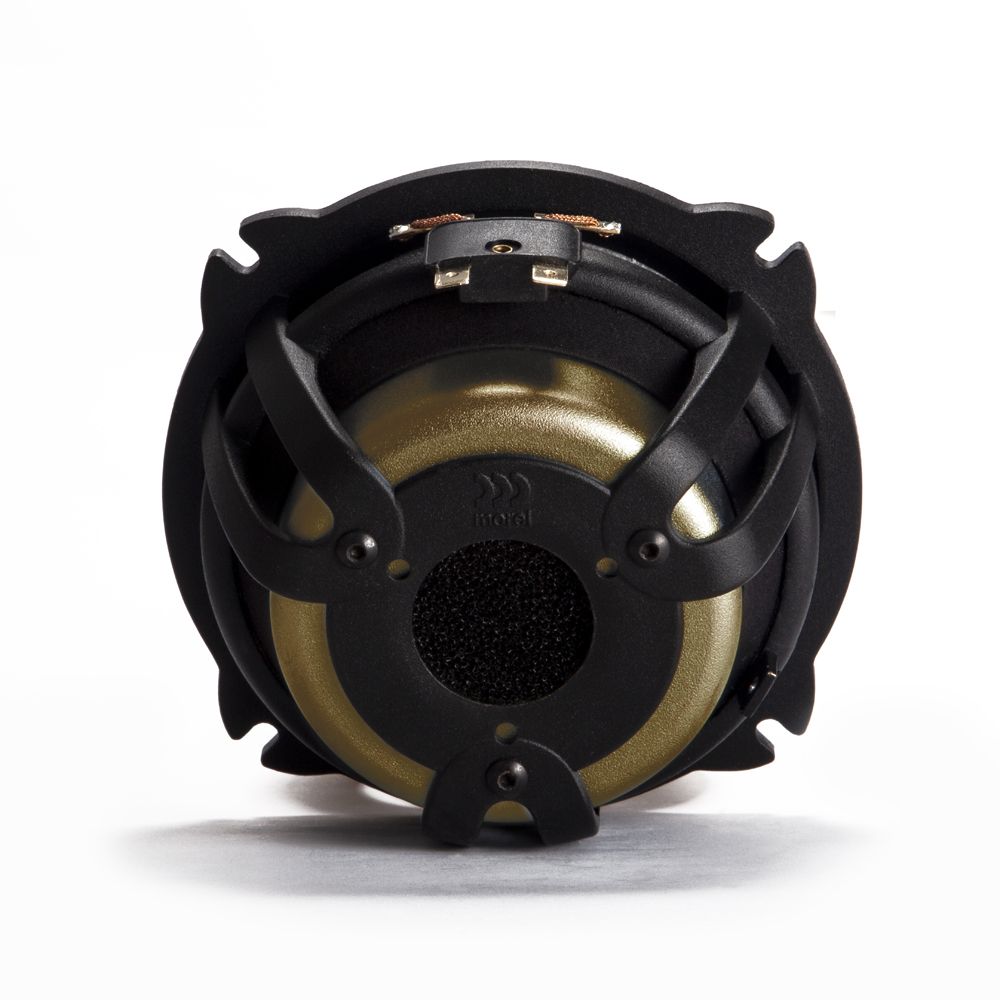

Morel Elate Carbon MW5 5.25″ Mid-Woofers (Pair)
Not all drivers are created equal, and the visually inspiring Elate Carbon woofers were developed with next-level performance in mind. These new drivers get their Carbon moniker from their triple-layer cones from which they are derived, consisting of two layers of carbon fibre sandwiching a Rohacell foam core. These proprietary cones were developed to give them incredible stiffness, high damping and light weight, the trifecta for cone performance.
Paired with a large 3-inch diameter Hexatech aluminium voice coil, titanium former, and Morel’s EVC motor technology, the Elate Carbon achieves remarkable control and low distortion which translates to highly transparent and bass-rich sound reproduction.
Additional Information
Specification
Performance Specifications
Morel Elate Carbon MW5
Speaker size
5.25″
Type
Component
Power handling RMS
160 W
Impedance
4 Ohms
Sensitivity
85 dB (2.83 V / 1 m)
Frequency response
40-5000 Hz
Supplied as
Pair
Grilles
Included
Morel part number
ELAT CAR MW5
Product Data
Physical Specifications: Morel Elate Carbon MW5
Installation depth: 60 mm / 2.36″
Installation diameter: 120 mm / 4.72″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Morel Elate Carbon MW5 5.25″ Mid-Woofers (Pair)
Elate Carbon 5.25″ (130 mm) Component Mid-Range Woofer Pair
£1,469.00
Morel Elate Carbon MW5 5.25″ Mid-Woofers (Pair)
Not all drivers are created equal, and the visually inspiring Elate Carbon woofers were developed with next-level performance in mind. These new drivers get their Carbon moniker from their triple-layer cones from which they are derived, consisting of two layers of carbon fibre sandwiching a Rohacell foam core. These proprietary cones were developed to give them incredible stiffness, high damping and light weight, the trifecta for cone performance.
Paired with a large 3-inch diameter Hexatech aluminium voice coil, titanium former, and Morel’s EVC motor technology, the Elate Carbon achieves remarkable control and low distortion which translates to highly transparent and bass-rich sound reproduction.
Performance Specifications
Morel Elate Carbon MW5
Speaker size
5.25″
Type
Component
Power handling RMS
160 W
Impedance
4 Ohms
Sensitivity
85 dB (2.83 V / 1 m)
Frequency response
40-5000 Hz
Supplied as
Pair
Grilles
Included
Morel part number
ELAT CAR MW5
Physical Specifications
Morel Elate Carbon MW5
Installation depth
60 mm / 2.36″
Installation diameter
120 mm / 4.72″
