MATCH UP W8MB-S4 RHD
Premium cars deserve premium sound – and this includes a deep and punchy bass reproduction which the basic speaker setup in Mercedes vehicles doesn’t deliver at all. However, the perfect solution is quite simple – the heavy-duty 8? / 200 mm woofers of the UP W8MB-S4 system fit perfectly into the original mounting positions in the bulkhead and provide exactly the right punch that you can feel and which brings music to life.
Especially in combination with one of our DSP amplifiers these subwoofers reveals their full potential in respect of dynamics.
Features
- Optimized sound characteristics for Mercedes vehicles for a spectacular sound in combination with significantly increased power handling
- Exclusively developed baskets and car-specific connectors for Mercedes vehicles for easiest installation
- Perfectly combinable with further MATCH UPGRADE components – e.g. DSP amplifier
- Right hand drive version
Additional Information
Specification
Performance Specifications
MATCH UP W8MB-S4 RHD
Power RMS / max. (P)
100 / 200 Watts
Impedance (Z)
1 x 4 Ω
DC resistance (Re)
3,6 Ω
Frequency response
25 – 250 Hz
Resonance frequency (Fs)
51 Hz
Mechanical Q factor (Qms)
7.24
Electrical Q factor (Qes)
0.71
Total Q factor (Qts)
0.64
Compliance (Cms)
276 µm/N
Equivalent air volume (Vas)
18 L
Force factor (B*I)
7.6 Tm
Efficiency 1 W / 1 m (SPL)
88 dB
Cone area (Sd)
216 cm²
Moving mass (Mms)
35 g
Cone material
Paper cone
Mechanical resistance (Rms)
1.6 kg/s
Voice coil diameter (ø)
37 mm
Voice coil winding height
16 mm
Max. linear excursion (Xmax)
+/- 5 mm
Product Data
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

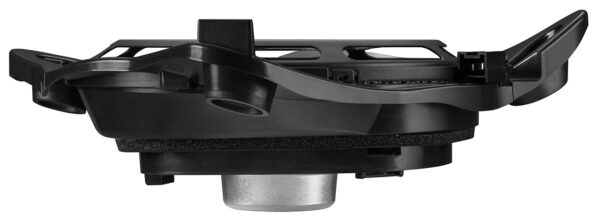

Match UP W8MB-S4 RHD 8″ Subwoofer for Mercedes
2 x 20cm / 8″ subwoofer with exclusively developed basket for Mercedes vehicles
C: 205 cabriolet / coupe / sedan / T-model, E: 213 sedan / T-model
E: 238 cabriolet / coupe, GLC: 253 SUV / SUV coupe – S: 222 sedan
£399.99
