Match UP 8BMW MK2
The UP 8BMW MK2 is the Plug & Play upgrade amp for BMWs with the HiFi sound system (option 676). It’s an 8-channel Class GD amplifier with an integrated 9-channel DSP, supplied with the BMW Plug & Play cable and a BMW-specific mounting plate, so it fits at the factory location with no cutting.
Six highlevel inputs with ADEP.3 and an optical digital input handle the factory signal, and the output is 6 x 65 W RMS at 4 Ohms plus two subwoofer-capable channels with up to 2 x 90 W at 4 Ohms or 2 x 160 W at 2 Ohms. The MK2 adds USB-C and the Extension Card 2.0 slot. It’s the heart of a step-by-step BMW upgrade and pairs with MATCH BMW subwoofers, 2-way and centre speakers, and HELIX COMPOSE speakers.
Every DSP we sell includes a free 1 hour base tune set-up. Get in touch to book it.
Features
- Plug & Play for BMW HiFi (option 676): connection cable and mounting plate included
- 8-channel Class GD amplifier with an integrated 9-channel 64-bit DSP
- 6 highlevel inputs with ADEP.3 for clean factory head unit integration
- 32-bit ACO platform: AISA, Input EQ, Dynamic Loudness Control, Remote Tone Control, Augmented Bass Processing, RealCenter
- TuneEQ automated frequency response correction and Virtual Channel Processing in DSP PC-Tool 6
- Optical SPDIF input (12-96 kHz)
- Extension Card 2.0 slot (MK2) for Bluetooth HD streaming or extra inputs
- USB-C connection for DSP PC-Tool (MK2)
- Mono RCA line output for an extra sub amp such as the MATCH UP 1FX
- EV-ready up to 18 V, start-stop capable down to 6 V, auto remote switch, Smart Control Port
Full technical data is on the Product Specification and Product Data tabs.
Compatibility
BMW E and F series, plus G30 / G31 before facelift, with the HiFi sound system (option 676). Cars with the RAM module (from about 09/2019) are excluded. The mounting plate doesn’t fit 1-series E models. Check your car in the Audiotec Fischer Upgrade Finder, or send us your chassis, year and sound system and we’ll confirm it.
In the box: UP 8BMW MK2, BMW HiFi Plug & Play connection cable, BMW mounting plate and hardware, power input connector, USB cable, instruction manual.
Additional Information
Specification
Performance Specifications
MATCH UP 8BMW MK2
Power RMS @ 4 Ohms
Channels A – F: 65 W, Channels G – H: 75 W (min. 3 Ohms)
Power RMS @ 2 Ohms
Channels G – H: 125 W
Max. output power per channel
Channels A – F: up to 80 W @ 4 Ohms; Channels G – H: up to 90 W @ 4 Ohms / 160 W @ 2 Ohms
Amplifier technology
Class GD
Inputs
6 x highlevel, 1 x optical SPDIF (12 – 96 kHz), 1 x Extension Card 2.0
Input sensitivity
2.8 – 11 V
Input impedance highlevel
9 – 33 Ohms with ADEP.3
Outputs
8 x speaker, 1 x RCA, 1 x remote out
Frequency response
15 Hz – 22,000 Hz
DSP
64 Bit, 295 MHz, 48 kHz sampling
Signal converters
BurrBrown A/D and D/A
Signal-to-noise ratio
Digital in 104 dB, analog in 100 dB (A-weighted)
Distortion (THD+N @ 1 kHz, 1 W, 4 Ohms)
< 0.02 %
Operating voltage
10.5 – 18 V (max. 5 sec. down to 6 V)
Power rating
12 V DC, 40 A max.
Idle current
380 mA
Fuse
1 x 25 A LP-Mini (APS)
Product Data
Physical Specifications: MATCH UP 8BMW MK2
Dimensions (H x W x D): 46 x 130 x 153 mm / 1.81 x 5.12 x 6.02 in
Operating temperature: -40 to +70 C

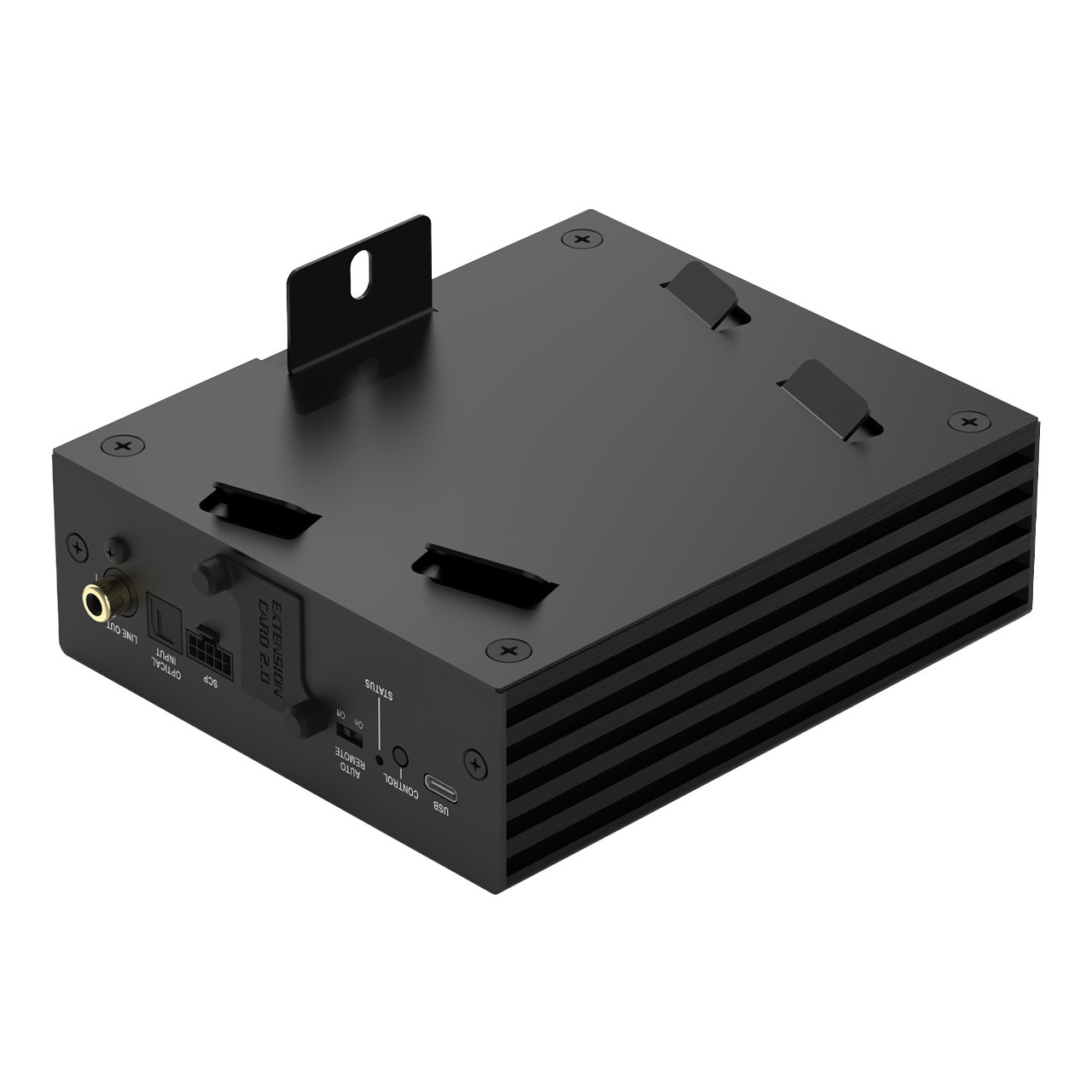

Mounting: BMW-specific mounting plate included
