Description
Match UP 4DSP
The UP 4DSP is a compact 4 channel amplifier with a built-in 5 channel DSP, made for cars with a simple 2 or 4 channel factory radio where you want a clear step up in sound without the size and complexity of a big multi-channel amp. It is ideal for daily drivers, lease cars and tight installs.
Channels A and B give 2 x 60 W RMS at 4 Ohms for a front speaker set, while channels C and D give 2 x 85 W RMS at 4 Ohms or 2 x 140 W RMS at 2 Ohms for a compact bass upgrade. A mono RCA output can feed an external sub amp, and an optical SPDIF input takes digital sources or aftermarket head units.
It connects to the factory system through a smart 4 channel high-level input with ADEP.3, with optional plug and play harnesses available. The start-stop ready power supply runs up to 18 V, so it suits hybrid and electric vehicles too. Set-up is via DSP PC-Tool 6 with TuneEQ automated equalisation.
Every DSP we sell includes a free 1 hour base tune set-up. Get in touch to book it.
Features
- 4 channel Class GD amplifier with 5 channel 64 Bit DSP and 1 channel line output
- Smart 4 channel high-level input with ADEP.3, optional plug and play harnesses
- Optical SPDIF input, 12 to 96 kHz
- TuneEQ automated equalisation in DSP PC-Tool 6
- ISA input signal analyser and Input EQ to undo factory radio tuning
- Augmented Bass Processing, RealCenter, DLC and Remote Tone Control
- Smart Control Port for DIRECTOR, CONDUCTOR and other remotes
- Start-stop capable supply up to 18 V, ideal for EVs
- Compact and efficient with low heat output
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Match UP 4DSP
Channels
4 amplified + 1 line output, 5 channel DSP
Power RMS, channels A – B @ 4 Ohms
2 x 60 W (min. 3 Ohms)
Power RMS, channels C – D @ 4 Ohms
2 x 85 W
Power RMS, channels C – D @ 2 Ohms
2 x 140 W
Amplifier technology
Class GD
Inputs
4 x high-level speaker input, 1 x optical SPDIF (12 – 96 kHz)
Input sensitivity
2.8 – 11 V
Input impedance high-level
9 – 33 Ohms with ADEP.3
Outputs
4 x speaker output, 1 x RCA, 1 x remote out
Output voltage RCA
3 V RMS
Frequency response
15 Hz – 22,000 Hz
DSP resolution
64 Bit
DSP power
295 MHz (1.2 billion MAC operations/second)
Sampling rate
48 kHz
Signal converters
A/D BurrBrown, D/A BurrBrown
S/N ratio digital input
102 dB (A-weighted)
S/N ratio analogue input
101 dB (A-weighted)
THD @ 1 kHz, 1 W into 4 Ohms
< 0.03 %
THD+N @ 1 kHz, 1 W into 4 Ohms
< 0.03 %
Damping factor
> 50
Operating voltage
10.5 – 18 V (max. 5 sec. down to 6 V)
Power rating
DC 12 V, 35 A max.
Idle current
260 mA
Max. remote output current
500 mA
Operating temperature
-40 °C to +70 °C
Fuse
1 x 30 A LP-Mini fuse (APS)
Additional features
32 Bit CoProcessor, ADEP.3, start-stop capability, Smart Control Port, USB-C, auto remote, line out
Order number
M114000
Product Data
Physical Specifications: Match UP 4DSP
Dimensions (H x W x D): 46 x 130 x 110 mm / 1.81 x 5.12 x 4.33″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

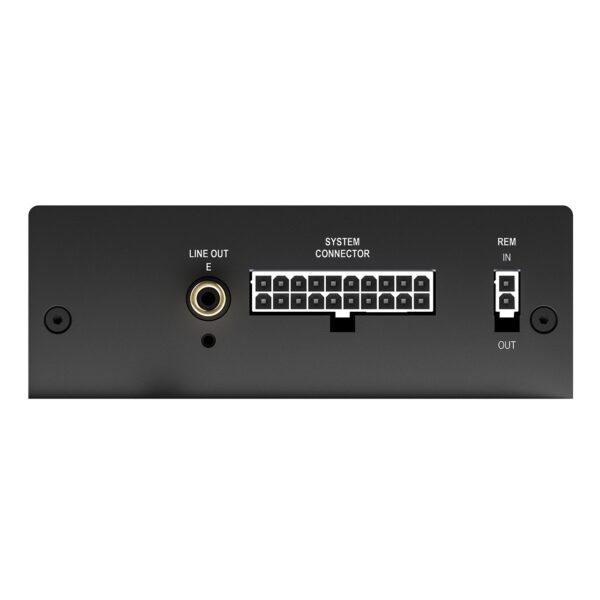

Match UP 4DSP 4 Channel Processor Amplifier
Match UP 4DSP, part number M114000. A compact 4 channel Class GD upgrade amplifier with a built-in 5 channel 64 Bit DSP, 2 x 60 W plus 2 x 140 W RMS at 2 Ohms.
£399.99
Free 1 hour base tune includedFit it yourself, then bring the car to our Nottinghamshire workshop and we will set it up for you. No time limit.
Want it fitted?We can fit anything we sell at our Nottingham workshop.
