Description
MATCH UP 10DSP 24V Edition
Please note: this version is for 24 V electrical systems only (trucks, buses, motorhomes on a 24 V supply). It will not work in a normal 12 V car. For 12 V vehicles, see the standard MATCH UP 10DSP.
The UP 10DSP 24V Edition is a 10-channel Class GD upgrade amplifier with a built-in 11-channel 64-bit DSP, made for upgrading multi-channel factory sound systems in 24 V vehicles. Eight high-level inputs (two of them taking up to 32 V), an optical digital input and an extension card slot give you plenty of ways to connect it.
Features
Highlights
- 10-channel Class GD amplifier plus a 1-channel line output, with an 11-channel DSP
- 64-bit fixed-point audio DSP and a 32-bit ACO coprocessor
- 8-channel high-level input with ADEP.3; channels G-H accept up to 32 V
- Optical SPDIF input (12-96 kHz) with automatic signal detection
- MEC slot for Bluetooth or USB HD audio streaming modules
- Input Signal Analyzer, Input EQ and TuneEQ automated frequency response correction
- Augmented Bass Processing, StageXpander and RealCenter effects
- Virtual Channel Processing, plus 1:1 input-to-output routing with the optional MEC ANALOG IN
- Galvanically isolated mono RCA output for an external amplifier
- Smart Control Port for the DIRECTOR or CONDUCTOR remotes
- Auto remote switch and power save mode
- 10 sound setup memories
In the box
- 1 x UP 10DSP 24V Edition amplifier
- 4 x connection cables
- 1 x mounting plates and material
- 1 x power input connector
- 1 x USB cable
- 1 x instruction manual
Additional Information
Specification
Performance Specifications
Match UP 10DSP 24V Edition
Output power (RMS, 4 Ohms)
8 x 65 W (channels A-H)
Subwoofer outputs I-J
2 x 90 W at 4 Ohms, 2 x 160 W at 2 Ohms
Inputs
8 x high-level, 1 x optical SPDIF, 1 x remote in
Input sensitivity
A-F 4-16 V; G-H 4-16 V or 8-32 V
Outputs
10 x speaker, 1 x RCA, 1 x remote out
Frequency response
10 Hz to 22 kHz
Signal-to-noise ratio
105 dB digital, 103 dB analog (A-weighted)
Operating voltage
18 to 36 V (down to 12 V for up to 5 seconds)
Idle current
210 mA
Fuses
2 x 25 A LP-Mini (APS)
Audiotec Fischer order number
M111005
Product Data
Physical Specifications: Match UP 10DSP 24V Edition
Dimensions (H x W x D): 46 x 145 x 163 mm
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

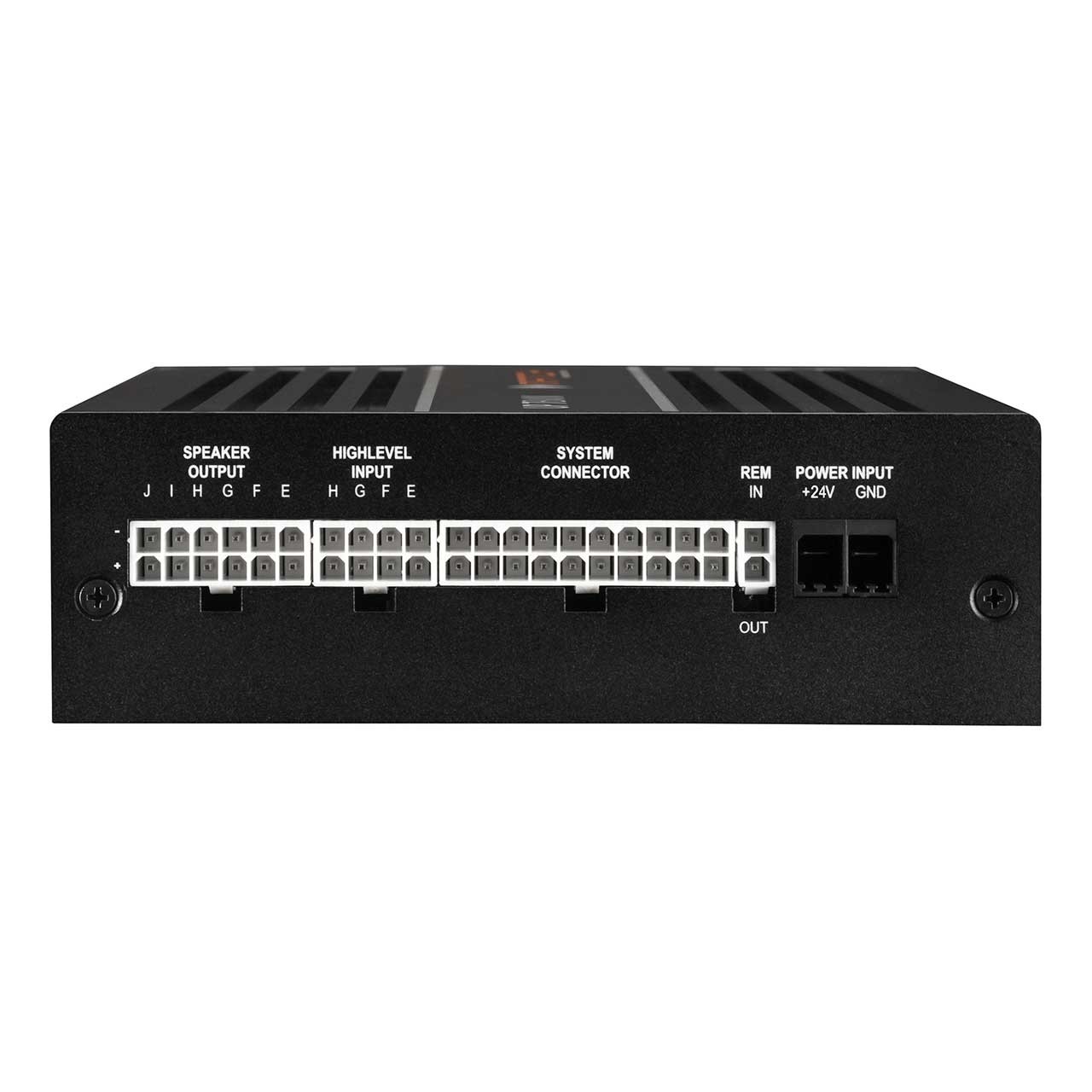

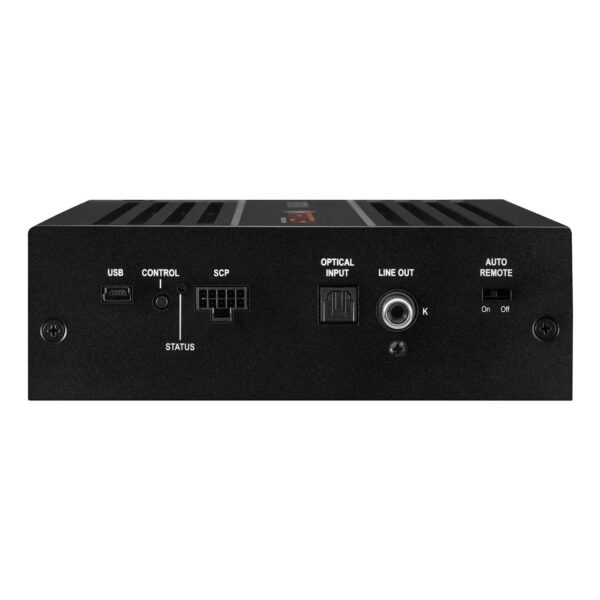

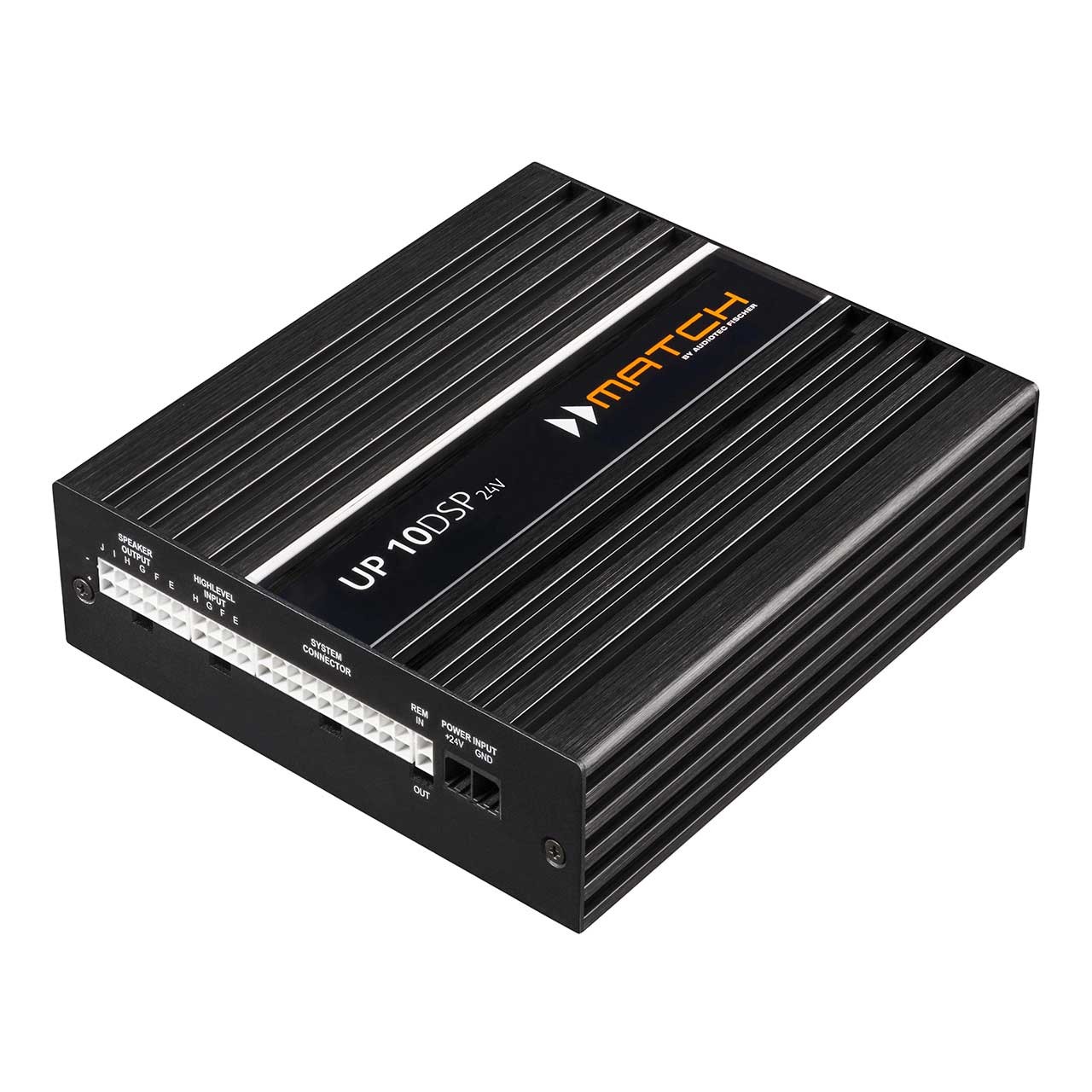

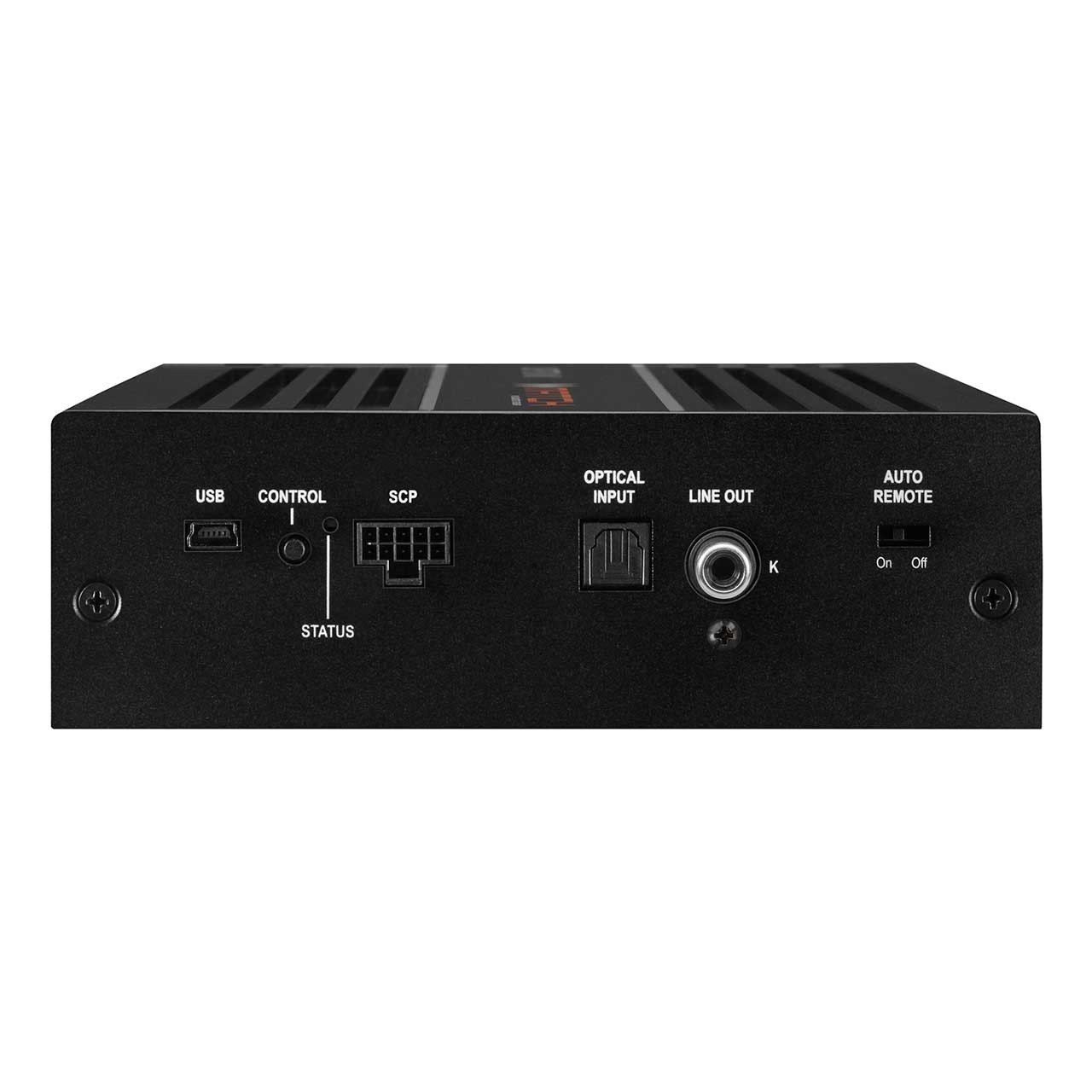

Match UP 10DSP 24V Edition 10 Channel Processor Amplifier (24 V only)
24 V ONLY: 10-channel Class GD upgrade amplifier with an 11-channel 64-bit DSP, for trucks, buses and other 24 V vehicles.
£899.99
Free 1 hour base tune includedFit it yourself, then bring the car to our Nottinghamshire workshop and we will set it up for you. No time limit.
Want it fitted?We can fit anything we sell at our Nottingham workshop.
MATCH UP 10DSP 24V Edition
Please note: this version is for 24 V electrical systems only (trucks, buses, motorhomes on a 24 V supply). It will not work in a normal 12 V car. For 12 V vehicles, see the standard MATCH UP 10DSP.
The UP 10DSP 24V Edition is a 10-channel Class GD upgrade amplifier with a built-in 11-channel 64-bit DSP, made for upgrading multi-channel factory sound systems in 24 V vehicles. Eight high-level inputs (two of them taking up to 32 V), an optical digital input and an extension card slot give you plenty of ways to connect it.
Features
Highlights
- 10-channel Class GD amplifier plus a 1-channel line output, with an 11-channel DSP
- 64-bit fixed-point audio DSP and a 32-bit ACO coprocessor
- 8-channel high-level input with ADEP.3; channels G-H accept up to 32 V
- Optical SPDIF input (12-96 kHz) with automatic signal detection
- MEC slot for Bluetooth or USB HD audio streaming modules
- Input Signal Analyzer, Input EQ and TuneEQ automated frequency response correction
- Augmented Bass Processing, StageXpander and RealCenter effects
- Virtual Channel Processing, plus 1:1 input-to-output routing with the optional MEC ANALOG IN
- Galvanically isolated mono RCA output for an external amplifier
- Smart Control Port for the DIRECTOR or CONDUCTOR remotes
- Auto remote switch and power save mode
- 10 sound setup memories
In the box
- 1 x UP 10DSP 24V Edition amplifier
- 4 x connection cables
- 1 x mounting plates and material
- 1 x power input connector
- 1 x USB cable
- 1 x instruction manual
Performance Specifications
Match UP 10DSP 24V Edition
Output power (RMS, 4 Ohms)
8 x 65 W (channels A-H)
Subwoofer outputs I-J
2 x 90 W at 4 Ohms, 2 x 160 W at 2 Ohms
Inputs
8 x high-level, 1 x optical SPDIF, 1 x remote in
Input sensitivity
A-F 4-16 V; G-H 4-16 V or 8-32 V
Outputs
10 x speaker, 1 x RCA, 1 x remote out
Frequency response
10 Hz to 22 kHz
Signal-to-noise ratio
105 dB digital, 103 dB analog (A-weighted)
Operating voltage
18 to 36 V (down to 12 V for up to 5 seconds)
Idle current
210 mA
Fuses
2 x 25 A LP-Mini (APS)
Audiotec Fischer order number
M111005
Physical Specifications
Match UP 10DSP 24V Edition
Dimensions (H x W x D)
46 x 145 x 163 mm
