MATCH PP-TES 5.15 Ryzen Premium Main
A 15-channel Plug & Play upgrade harness that connects a MATCH UP 10DSP to a Ryzen-chipset Tesla Model 3 or Model Y with the factory premium sound system. The 3-way front speakers, the centre speaker and the subwoofer are driven by the UP 10DSP, for more power, more dynamics and much more precise sound. The rear and immersive speakers stay on the original Tesla amplifier.
Important: the UP 10DSP must have an analog input card fitted. For the UP 10DSP MK2 that is the Extension Card 2.0 ANALOG IN (sold separately); for the original UP 10DSP (MK1) it is the MEC ANALOG IN. Power for the amplifier is wired separately; it isn’t supplied through this harness. For the standard (non-premium) sound system, use the MATCH PP-TES 1.7B Ryzen instead.
The harness is also the basis for a bigger upgrade: with the MATCH PP-TES 5.15 V EIGHTEEN Extension harness it connects a HELIX V EIGHTEEN DSP instead, which then drives all 15 speakers directly while keeping the 3D immersive sound.
Features
Compatibility
- MATCH UP 10DSP MK2 with an Extension Card 2.0 ANALOG IN fitted
- MATCH UP 10DSP (MK1) with a MEC ANALOG IN fitted
- HELIX V EIGHTEEN DSP, together with the MATCH PP-TES 5.15 V EIGHTEEN Extension harness
- Tesla Model 3 with the Ryzen chipset and premium sound, March 2022 to September 2023
- Tesla Model Y with the Ryzen chipset and premium sound, February 2022 to January 2025
Features
- 15-channel Plug & Play connection for the UP 10DSP audio signals
- Tesla-specific plugs and jacks for the vehicle loom
- Front 3-way, centre and subwoofer driven by the UP 10DSP; rear and immersive speakers stay on the Tesla amplifier
- ADEP termination plug included
- Expandable to a HELIX V EIGHTEEN DSP with the V EIGHTEEN Extension harness
- Cable length: 5 m
Not sure this is the right harness for your car? Get in touch with your model, year and sound system and we’ll check it before you order.
Additional Information
Specification
Performance Specifications
MATCH PP-TES 5.15 Ryzen Premium Main
Channels
15
Compatible amplifiers
UP 10DSP MK2 with Extension Card 2.0 ANALOG IN; UP 10DSP MK1 with MEC ANALOG IN; HELIX V EIGHTEEN DSP with the PP-TES 5.15 V EIGHTEEN Extension
Compatible vehicles
Tesla Model 3 (Ryzen, premium sound) 03/2022 to 09/2023; Tesla Model Y (Ryzen, premium sound) 02/2022 to 01/2025
Product Data
Physical Specifications: MATCH PP-TES 5.15 Ryzen Premium Main
Cable length: 5 m
Amplifier connectors: 1 x 20-pin MOLEX (System Connector input), 1 x 12-pin MOLEX (speaker outputs E to J), 1 x 8-pin MOLEX (highlevel inputs E to H), 1 x 4-pin MOLEX (ADEP termination plug, included)
Extension connectors: 1 x 16-pin MOLEX plug and 1 x 16-pin MOLEX jack for the V EIGHTEEN Extension
Vehicle connectors: Tesla 12-pin and 16-pin system plugs and jacks
Scope of delivery: 1 x PP-TES 5.15 Ryzen Premium Main harness
Part number: M145300
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

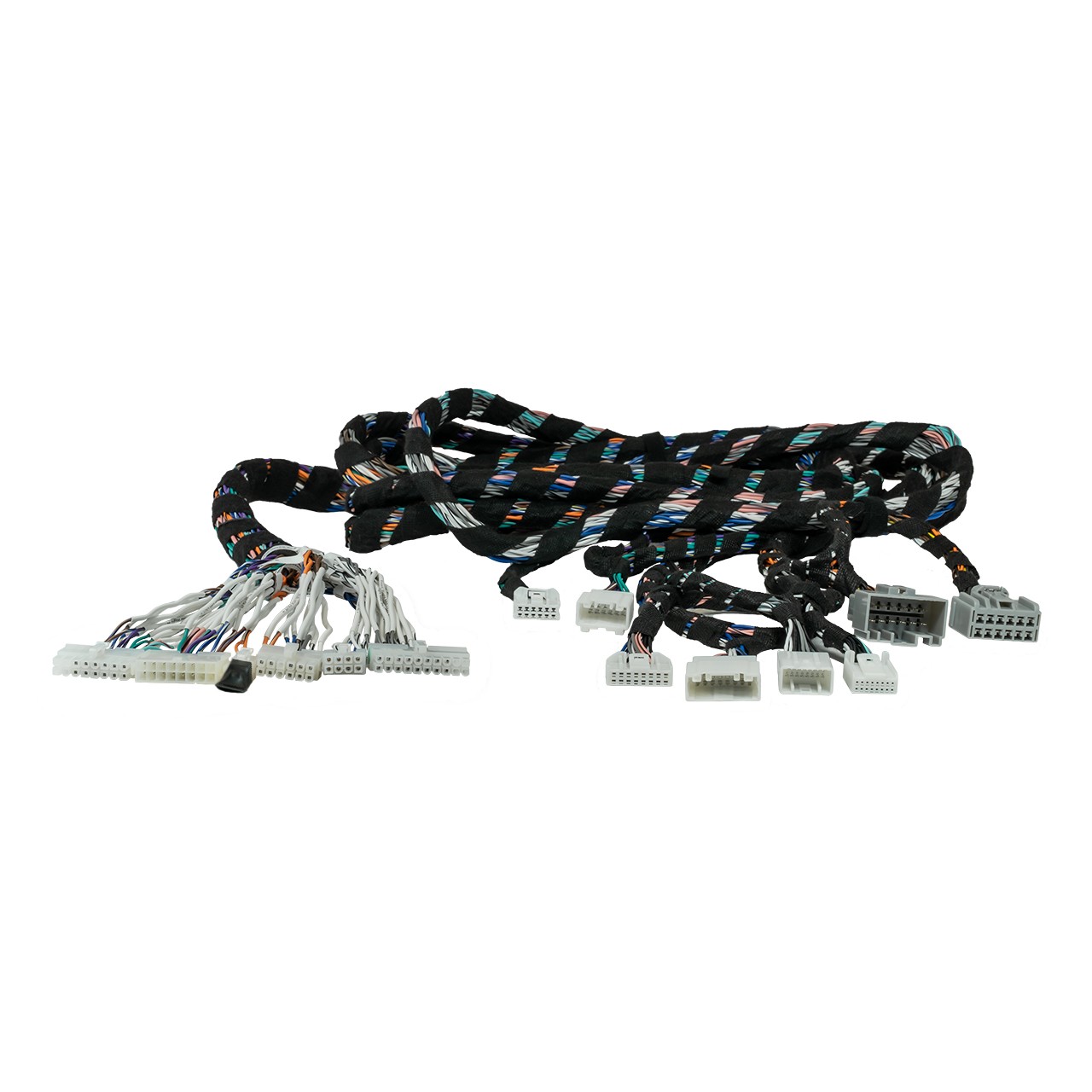

Match PP-TES 5.15 Ryzen Premium Main Tesla Model 3 / Model Y Premium Sound Harness for UP 10DSP
15-channel Plug & Play harness: MATCH UP 10DSP to Ryzen-chipset Tesla Model 3 (3/2022-9/2023) and Model Y (2/2022-1/2025) with the factory premium sound system. Needs an UP 10DSP fitted with an Extension Card 2.0 ANALOG IN. Part number M145300.
£269.99
