Description
MATCH PP-BMW 1.9RAM-HK

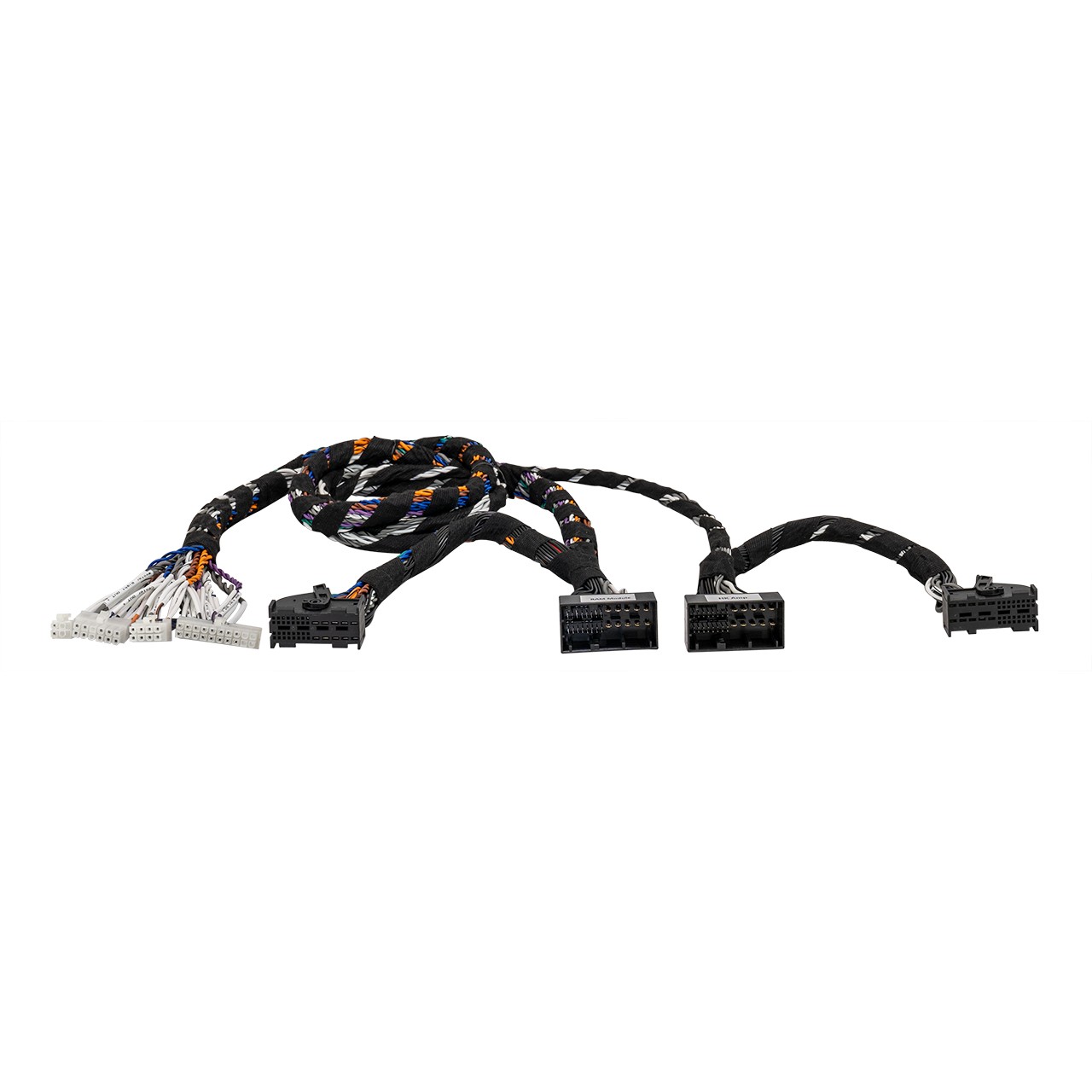

A 9-channel Plug & Play upgrade harness that connects a MATCH UP 10DSP to BMWs with the factory Harman Kardon system and a RAM (Receiver Audio Module), built from mid 2019 onwards.
The amplifier needs an ANALOG IN extension card, which is not included: the Extension Card 2.0 ANALOG IN for the UP 10DSP MK2, or the MEC ANALOG IN for the MK1. Before first start-up, the jumper for high-level inputs G and H inside the UP 10DSP must be set to the high voltage range (32 V).
Features
Compatibility
- MATCH UP 10DSP MK2 with Extension Card 2.0 ANALOG IN, or UP 10DSP MK1 with MEC ANALOG IN
- BMWs with a RAM module and the factory Harman Kardon system, built from mid 2019
Features
- Plug & Play connectors for the UP 10DSP and its ANALOG IN card
- Connects in-line between the vehicle loom and the RAM receiver
- Length: 1.00 m
Not sure this is the right harness for your car? Get in touch with your make, model and year and we’ll check it before you order.
Additional Information
Specification
Performance Specifications
Match PP-BMW 1.9RAM-HK
Connectors
1 x 20-pole MOLEX (UP 10DSP System Connector input); 1 x 8-pole MOLEX (high-level inputs E-H); 1 x 12-pole MOLEX (speaker outputs E-J); 1 x 4-pole MOLEX (ANALOG IN card); 1 x 42-pole BMW RAM socket and 1 x 42-pole BMW RAM plug
Audiotec Fischer order number
M171307
Product Data
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Match PP-BMW 1.9RAM-HK Harman Kardon RAM Harness for UP 10DSP
9-channel Plug & Play harness: MATCH UP 10DSP to BMWs with Harman Kardon and a RAM module (mid 2019 on). Needs an ANALOG IN card.
£139.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
