Description

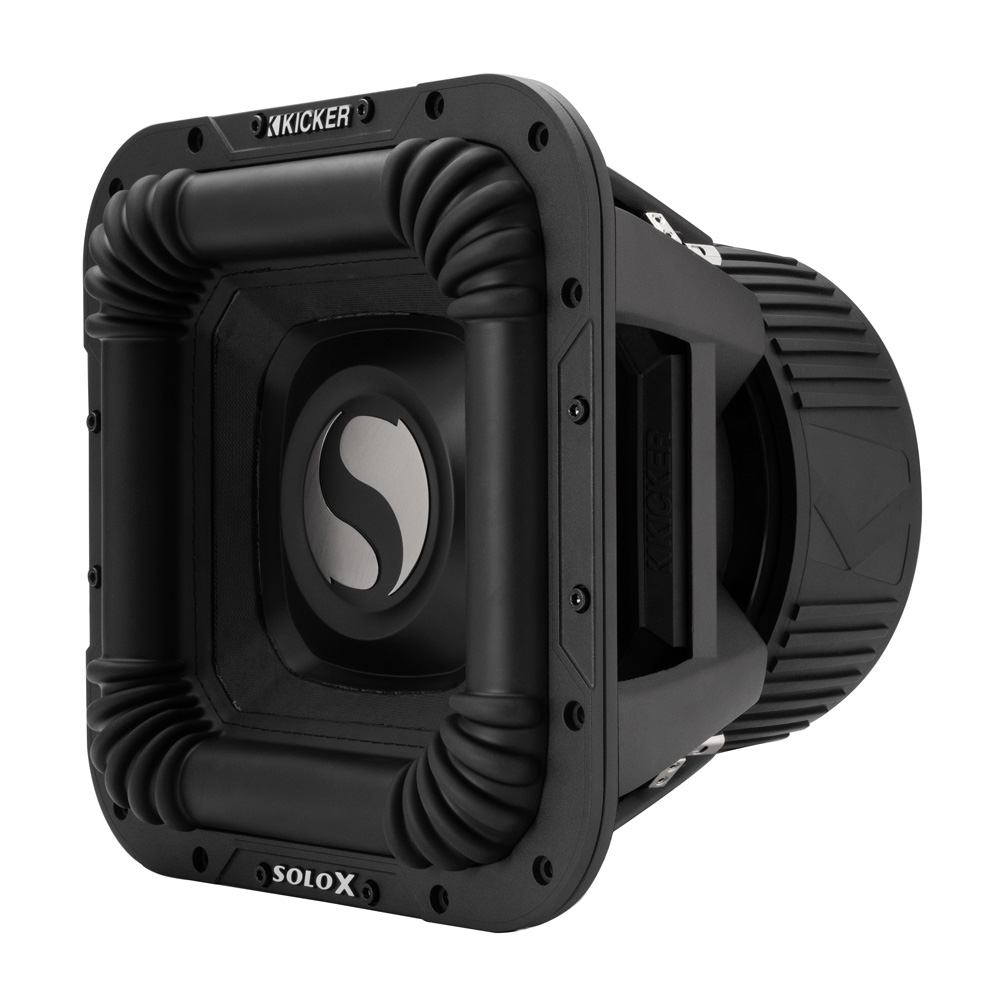

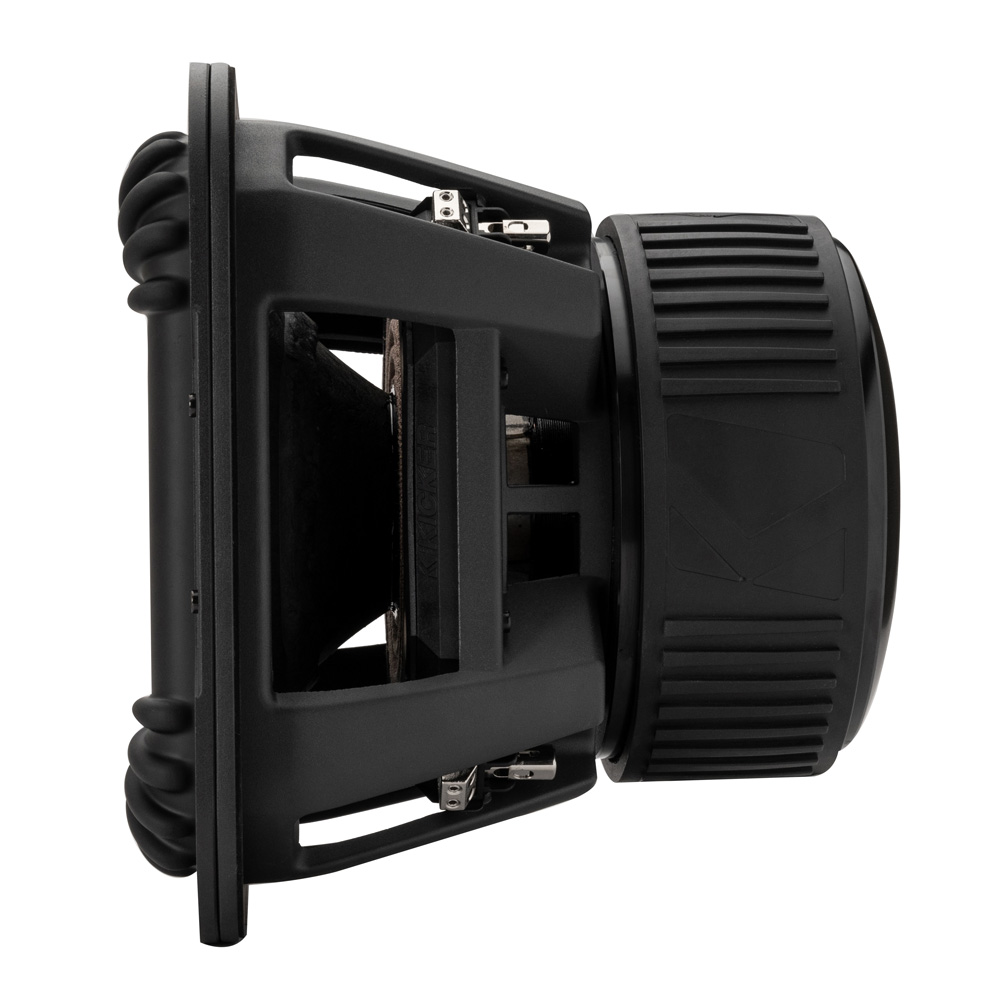

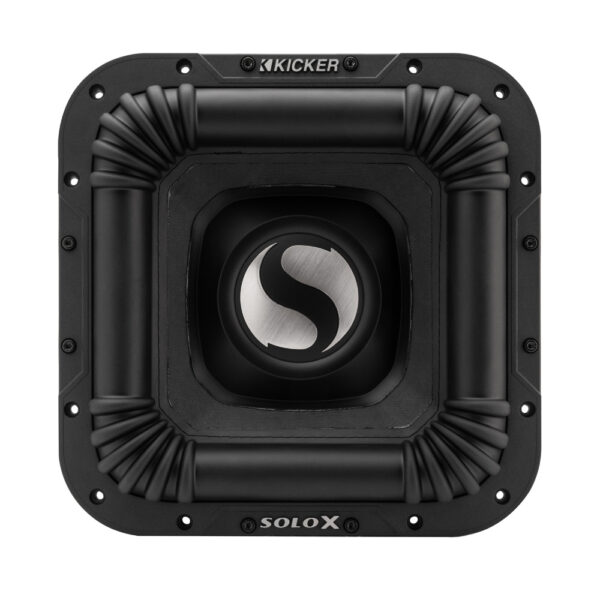

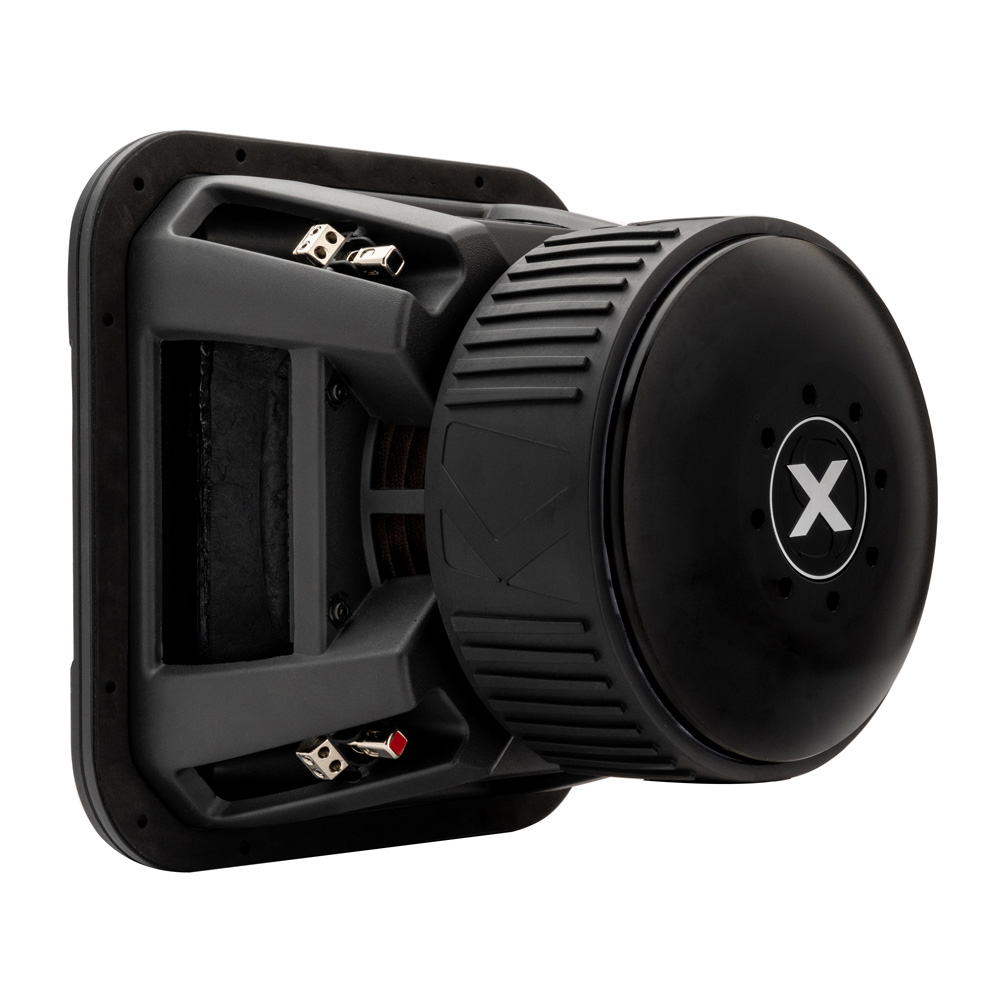

Kicker SoloX L7X122 12″ Square Dual Voice Coil 2 Ohm Subwoofer

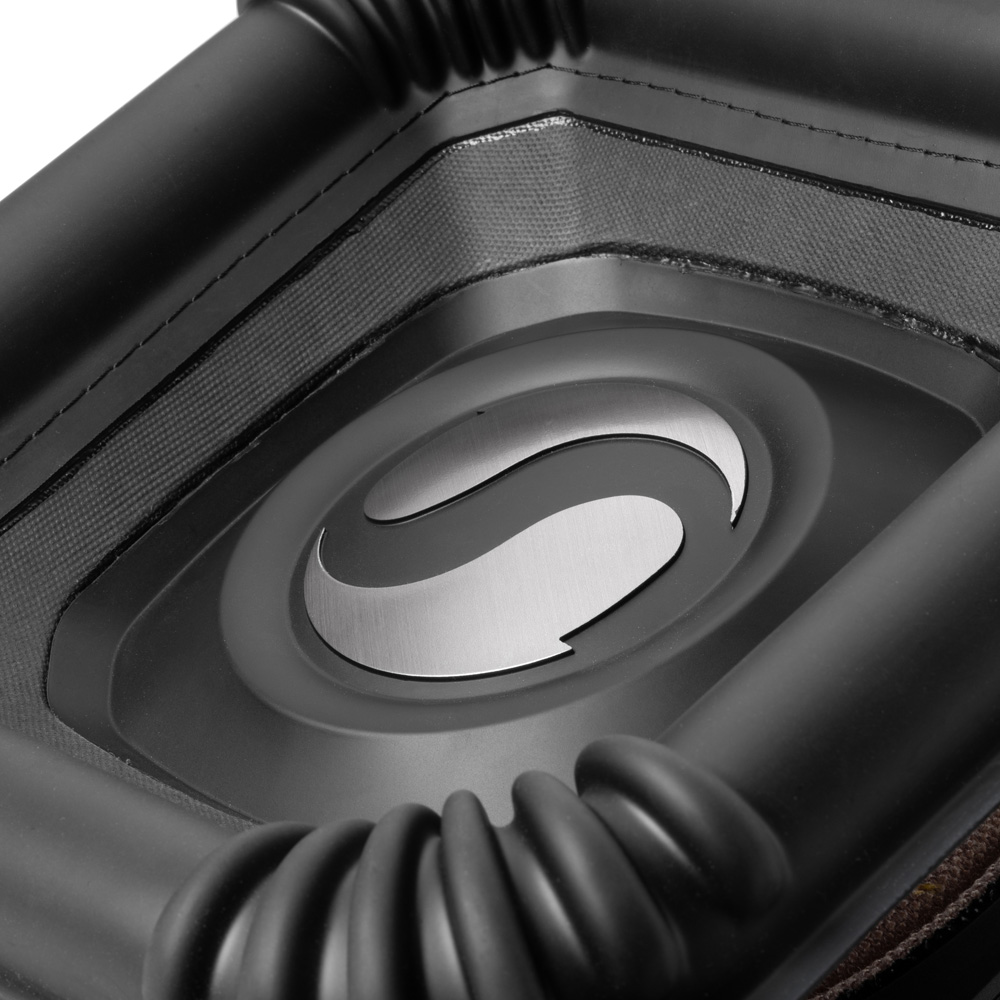

SoloX L7X is Kicker’s ferrite competition subwoofer: a triple-stacked ferrite motor around a hyper-extended pole piece, a 3″ voice coil on a dual-spider suspension, and a double-pressed pulp cone on an ultra-long-throw Santoprene surround, with square-cone tech and Forced-Air Cooling. The 12″ L7X122 has dual 2 Ohm voice coils.
Features
- 12″ competition subwoofer, dual voice coil (DVC), 2 Ohm per coil
- Triple-stacked ferrite magnet motor
- Dual-spider suspension
- Double-pressed pulp cone with long-throw surround
- Forced-Air Cooling
Additional Information
Specification
Performance Specifications
Kicker L7X122
Voice coils
Dual voice coil (DVC), 2 Ohm per coil
Recommended amplifier power RMS
1,000-2,000 W
Frequency response
20 Hz – 100 Hz
Vented enclosure tuning frequency
31 Hz
Product Data
Physical Specifications: Kicker L7X122
Subwoofer size: 300 mm / 12″
Magnet diameter: 220 mm / 8-11/16″
Total magnet weight: 11.5 kg / 406 oz
Voice coil diameter: 75 mm / 3″
Voice coil winding width: 62.5 mm / 2.5″
Top plate thickness: 13 mm / 0.5″
Xmax: 31.3 mm / 1.25″
Mounting cutout: 281 mm / 11-1/16″
Mounting depth: 257 mm / 10-1/8″
Recommended vented box volume: 84.9 L / 3 cu ft
Port opening: 90 x 330 mm / 3.5″ x 13″
Port length: 930 mm / 36.5″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Kicker SoloX L7X122 12″ Square Dual Voice Coil 2 Ohm Subwoofer
Kicker SoloX L7X122 12″ Square Dual Voice Coil 2 Ohm Subwoofer, part number KA49L7X122. 12″ competition subwoofer, dual voice coil (DVC), 2 Ohm per coil. Triple-stacked ferrite magnet motor.
£699.95
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Kicker SoloX L7X122 12″ Square Dual Voice Coil 2 Ohm Subwoofer
SoloX L7X is Kicker’s ferrite competition subwoofer: a triple-stacked ferrite motor around a hyper-extended pole piece, a 3″ voice coil on a dual-spider suspension, and a double-pressed pulp cone on an ultra-long-throw Santoprene surround, with square-cone tech and Forced-Air Cooling. The 12″ L7X122 has dual 2 Ohm voice coils.
Features
- 12″ competition subwoofer, dual voice coil (DVC), 2 Ohm per coil
- Triple-stacked ferrite magnet motor
- Dual-spider suspension
- Double-pressed pulp cone with long-throw surround
- Forced-Air Cooling
Performance Specifications
Kicker L7X122
Voice coils
Dual voice coil (DVC), 2 Ohm per coil
Recommended amplifier power RMS
1,000-2,000 W
Frequency response
20 Hz – 100 Hz
Vented enclosure tuning frequency
31 Hz
Physical Specifications
Kicker L7X122
Subwoofer size
300 mm / 12″
Magnet diameter
220 mm / 8-11/16″
Total magnet weight
11.5 kg / 406 oz
Voice coil diameter
75 mm / 3″
Voice coil winding width
62.5 mm / 2.5″
Top plate thickness
13 mm / 0.5″
Xmax
31.3 mm / 1.25″
Mounting cutout
281 mm / 11-1/16″
Mounting depth
257 mm / 10-1/8″
Recommended vented box volume
84.9 L / 3 cu ft
Port opening
90 x 330 mm / 3.5″ x 13″
Port length
930 mm / 36.5″
