Kicker Solo-Baric L7S122 12″ Square Dual Voice Coil 2 Ohm Subwoofer

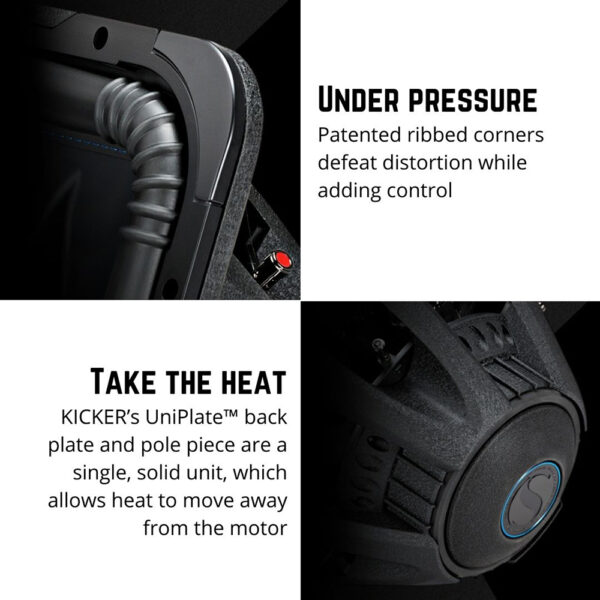

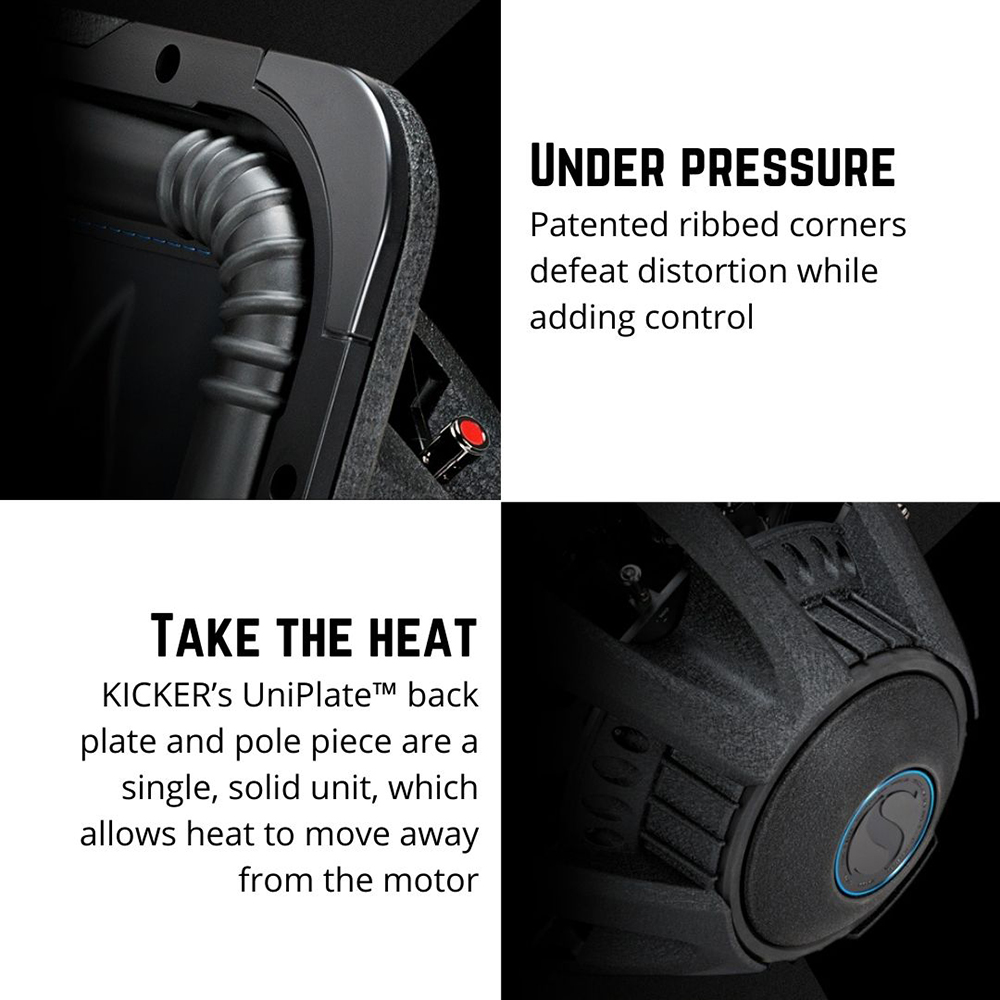

The Solo-Baric L7S is the original square sub. Its square cone moves more air than a round driver, patented ribbed corners control distortion, and UniPlate construction with perimeter venting handles heat and power. The 12″ L7S122 has dual 2 Ohm voice coils with high-temperature copper windings.
Features
- 12″ square subwoofer, dual voice coil (DVC), 2 Ohm per coil
- Injection-moulded polypropylene cone with patented ribbed corners
- SoloKon 360-degree back bracing
- UniPlate back plate and perimeter venting
- Cast aluminium basket
Additional Information
Specification
Performance Specifications
Kicker L7S122
Voice coils
Dual voice coil (DVC), 2 Ohm per coil
Recommended amplifier power
750 W
Peak power
1,500 W
Sensitivity
88.6 dB (1 W / 1 m)
Frequency response
20 Hz – 100 Hz
Product Data
Physical Specifications: Kicker L7S122
Subwoofer size: 305 mm / 12″
Mounting depth: 169 mm / 6-11/16″
Mounting cutout, square: 281 mm / 11-1/16″
Min recommended sealed box volume: 35.4 L / 1.25 cu ft
Max recommended sealed box volume: 56.64 L / 2.0 cu ft
Min recommended vented box volume: 49.6 L / 1.75 cu ft
Max recommended vented box volume: 92.1 L / 3.25 cu ft
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Kicker Solo-Baric L7S122 12″ Square Dual Voice Coil 2 Ohm Subwoofer
Kicker Solo-Baric L7S122 12″ Square Dual Voice Coil 2 Ohm Subwoofer, part number KA44L7S122. 12″ square subwoofer, dual voice coil (DVC), 2 Ohm per coil. Injection-moulded polypropylene cone with patented ribbed corners.
£349.95
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Kicker Solo-Baric L7S122 12″ Square Dual Voice Coil 2 Ohm Subwoofer
The Solo-Baric L7S is the original square sub. Its square cone moves more air than a round driver, patented ribbed corners control distortion, and UniPlate construction with perimeter venting handles heat and power. The 12″ L7S122 has dual 2 Ohm voice coils with high-temperature copper windings.
Features
- 12″ square subwoofer, dual voice coil (DVC), 2 Ohm per coil
- Injection-moulded polypropylene cone with patented ribbed corners
- SoloKon 360-degree back bracing
- UniPlate back plate and perimeter venting
- Cast aluminium basket
Performance Specifications
Kicker L7S122
Voice coils
Dual voice coil (DVC), 2 Ohm per coil
Recommended amplifier power
750 W
Peak power
1,500 W
Sensitivity
88.6 dB (1 W / 1 m)
Frequency response
20 Hz – 100 Hz
Physical Specifications
Kicker L7S122
Subwoofer size
305 mm / 12″
Mounting depth
169 mm / 6-11/16″
Mounting cutout, square
281 mm / 11-1/16″
Min recommended sealed box volume
35.4 L / 1.25 cu ft
Max recommended sealed box volume
56.64 L / 2.0 cu ft
Min recommended vented box volume
49.6 L / 1.75 cu ft
Max recommended vented box volume
92.1 L / 3.25 cu ft
