Description
Kicker Solo-Baric L7S104 10″ Square Dual Voice Coil 4 Ohm Subwoofer

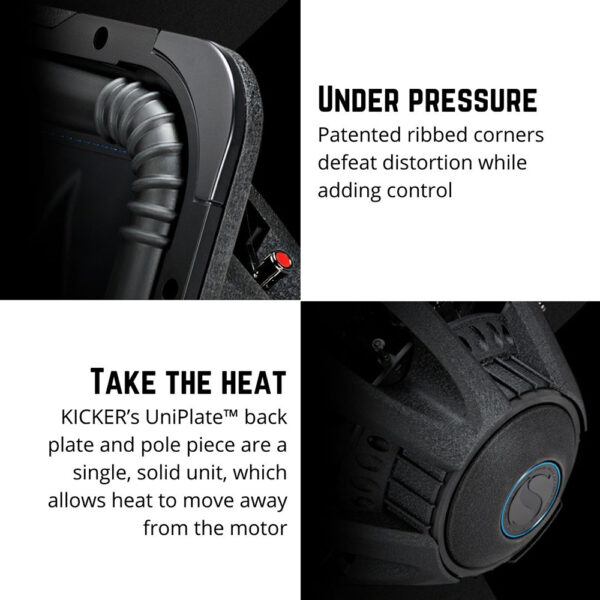

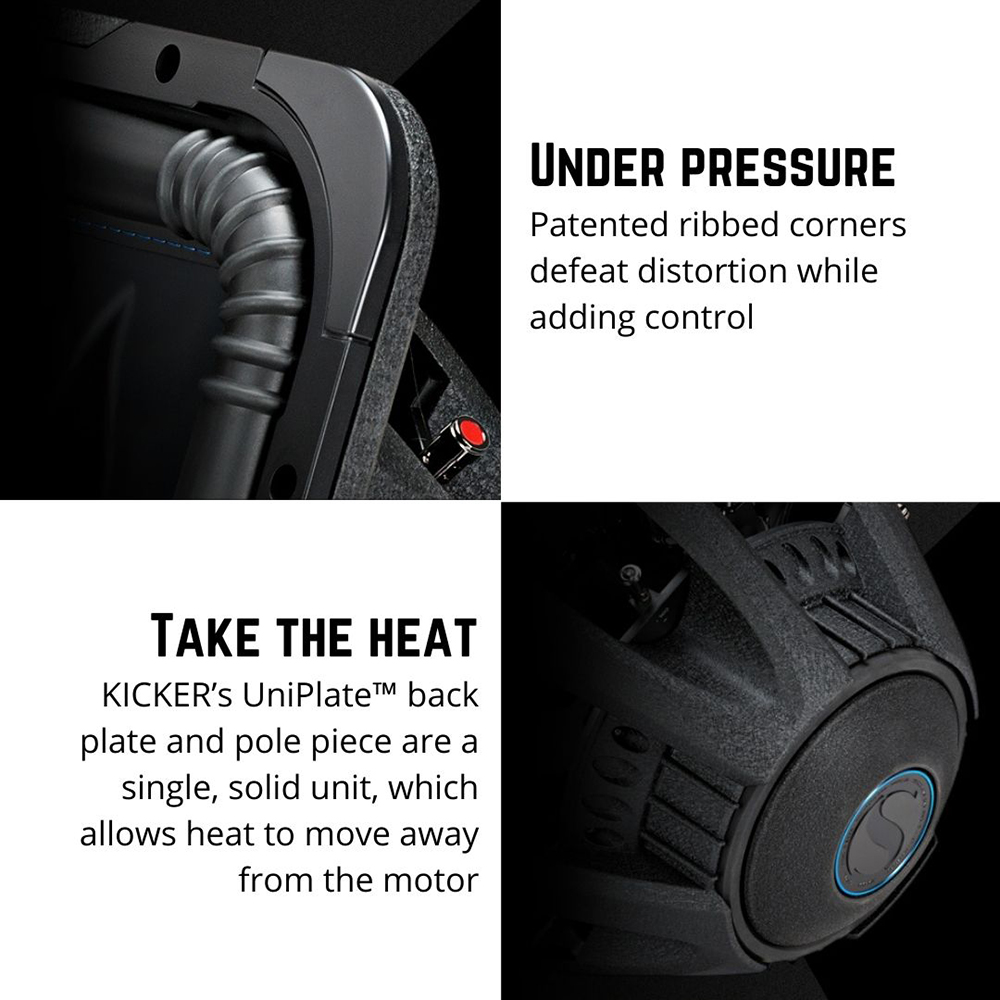

The Solo-Baric L7S is the original square sub. Its square cone moves more air than a round driver, patented ribbed corners control distortion, and UniPlate construction with perimeter venting handles heat and power. The 10″ L7S104 has dual 4 Ohm voice coils with high-temperature copper windings.
Features
- 10″ square subwoofer, dual voice coil (DVC), 4 Ohm per coil
- Injection-moulded polypropylene cone with patented ribbed corners
- SoloKon 360-degree back bracing
- UniPlate back plate and perimeter venting
- Cast aluminium basket
Additional Information
Specification
Performance Specifications
Kicker L7S104
Voice coils
Dual voice coil (DVC), 4 Ohm per coil
Recommended amplifier power
600 W
Peak power
1,200 W
Sensitivity
86.8 dB (1 W / 1 m)
Frequency response
24 Hz – 100 Hz
Product Data
Physical Specifications: Kicker L7S104
Subwoofer size: 254 mm / 10″
Mounting depth: 159 mm / 6-1/4″
Mounting cutout, square: 237 mm / 9-5/16″
Min recommended sealed box volume: 28.32 L / 1.0 cu ft
Max recommended sealed box volume: 35.4 L / 1.25 cu ft
Min recommended vented box volume: 35.4 L / 1.25 cu ft
Max recommended vented box volume: 63.8 L / 2.25 cu ft
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Kicker Solo-Baric L7S104 10″ Square Dual Voice Coil 4 Ohm Subwoofer
Kicker Solo-Baric L7S104 10″ Square Dual Voice Coil 4 Ohm Subwoofer, part number KA44L7S104. 10″ square subwoofer, dual voice coil (DVC), 4 Ohm per coil. Injection-moulded polypropylene cone with patented ribbed corners.
£279.95
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Kicker Solo-Baric L7S104 10″ Square Dual Voice Coil 4 Ohm Subwoofer
The Solo-Baric L7S is the original square sub. Its square cone moves more air than a round driver, patented ribbed corners control distortion, and UniPlate construction with perimeter venting handles heat and power. The 10″ L7S104 has dual 4 Ohm voice coils with high-temperature copper windings.
Features
- 10″ square subwoofer, dual voice coil (DVC), 4 Ohm per coil
- Injection-moulded polypropylene cone with patented ribbed corners
- SoloKon 360-degree back bracing
- UniPlate back plate and perimeter venting
- Cast aluminium basket
Performance Specifications
Kicker L7S104
Voice coils
Dual voice coil (DVC), 4 Ohm per coil
Recommended amplifier power
600 W
Peak power
1,200 W
Sensitivity
86.8 dB (1 W / 1 m)
Frequency response
24 Hz – 100 Hz
Physical Specifications
Kicker L7S104
Subwoofer size
254 mm / 10″
Mounting depth
159 mm / 6-1/4″
Mounting cutout, square
237 mm / 9-5/16″
Min recommended sealed box volume
28.32 L / 1.0 cu ft
Max recommended sealed box volume
35.4 L / 1.25 cu ft
Min recommended vented box volume
35.4 L / 1.25 cu ft
Max recommended vented box volume
63.8 L / 2.25 cu ft
Next working day delivery if ordered before 12:00, unless item is special order.
