Description

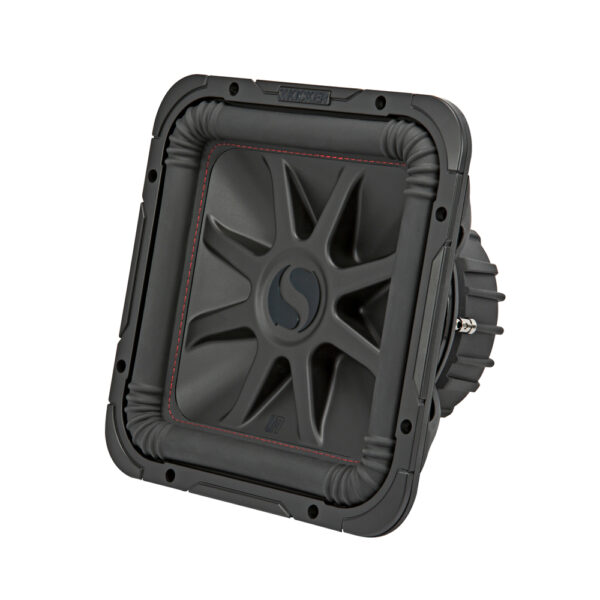

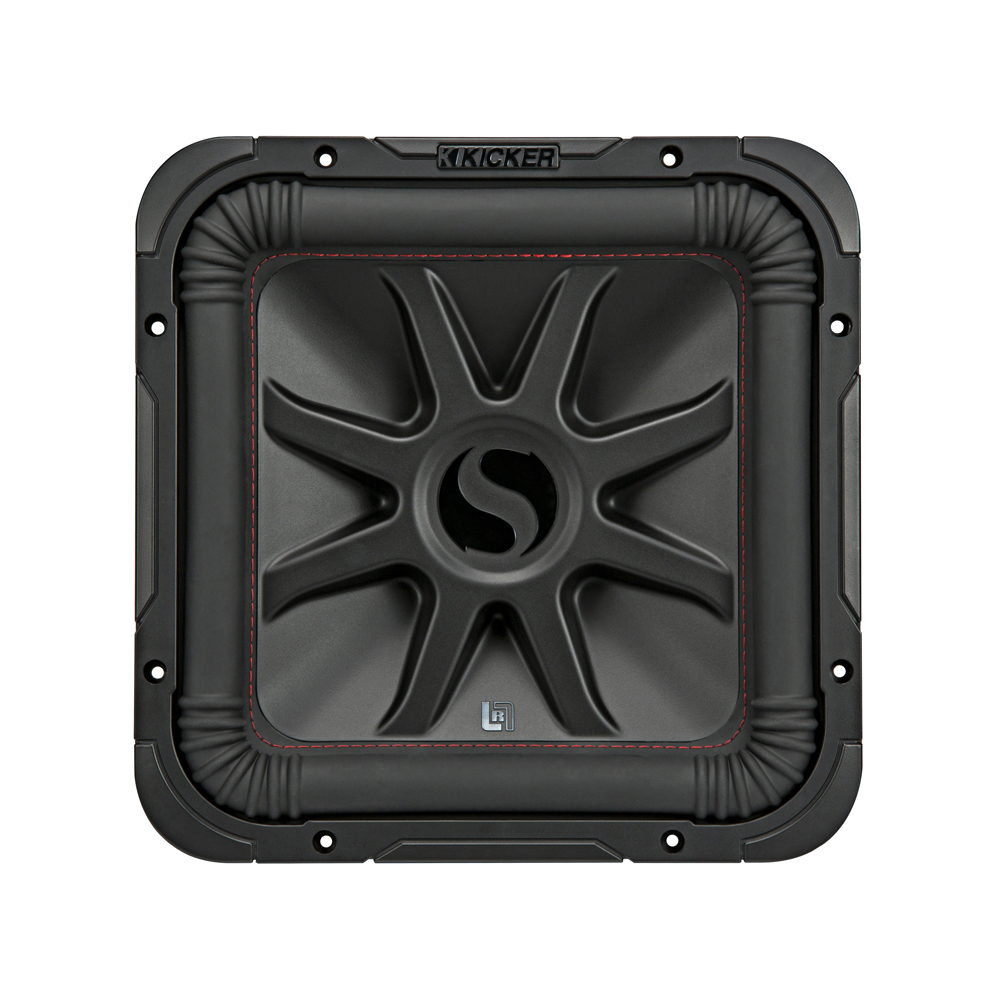

Kicker Solo-Baric L7R124 12″ Square Dual Voice Coil 4 Ohm Subwoofer
The Solo-Baric L7R is Kicker’s square sub designed to give more bass than a round driver without needing a bigger box. The 12″ L7R124 has dual 4 Ohm voice coils, patented ribbed corners, SoloKon 360-degree back bracing and UniPlate thermal management.
Features
- 12″ square subwoofer, dual voice coil (DVC), 4 Ohm per coil
- Square cone moves more air than a round sub

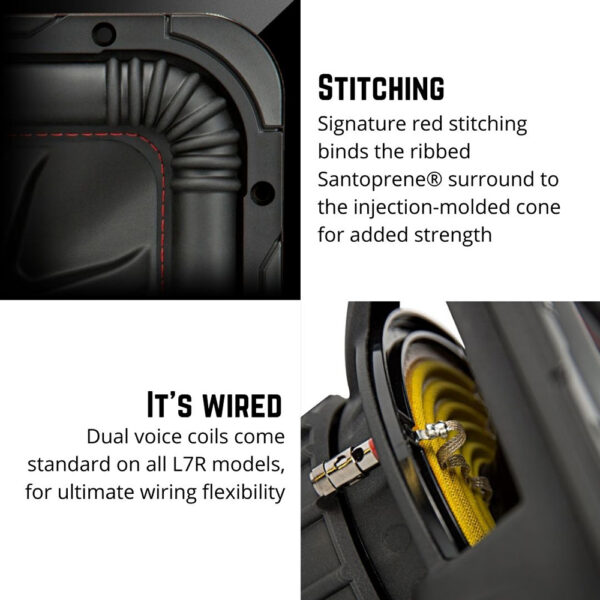

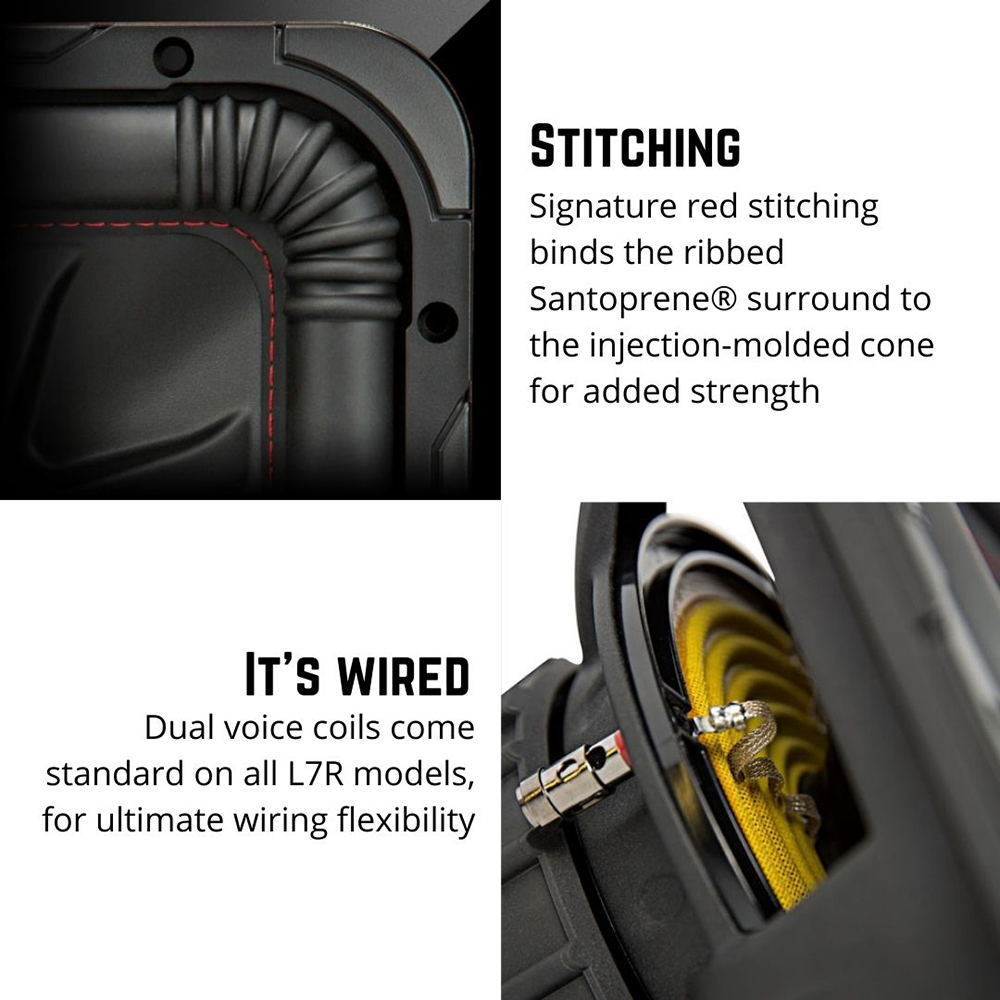

- Patented ribbed corners and SoloKon back bracing

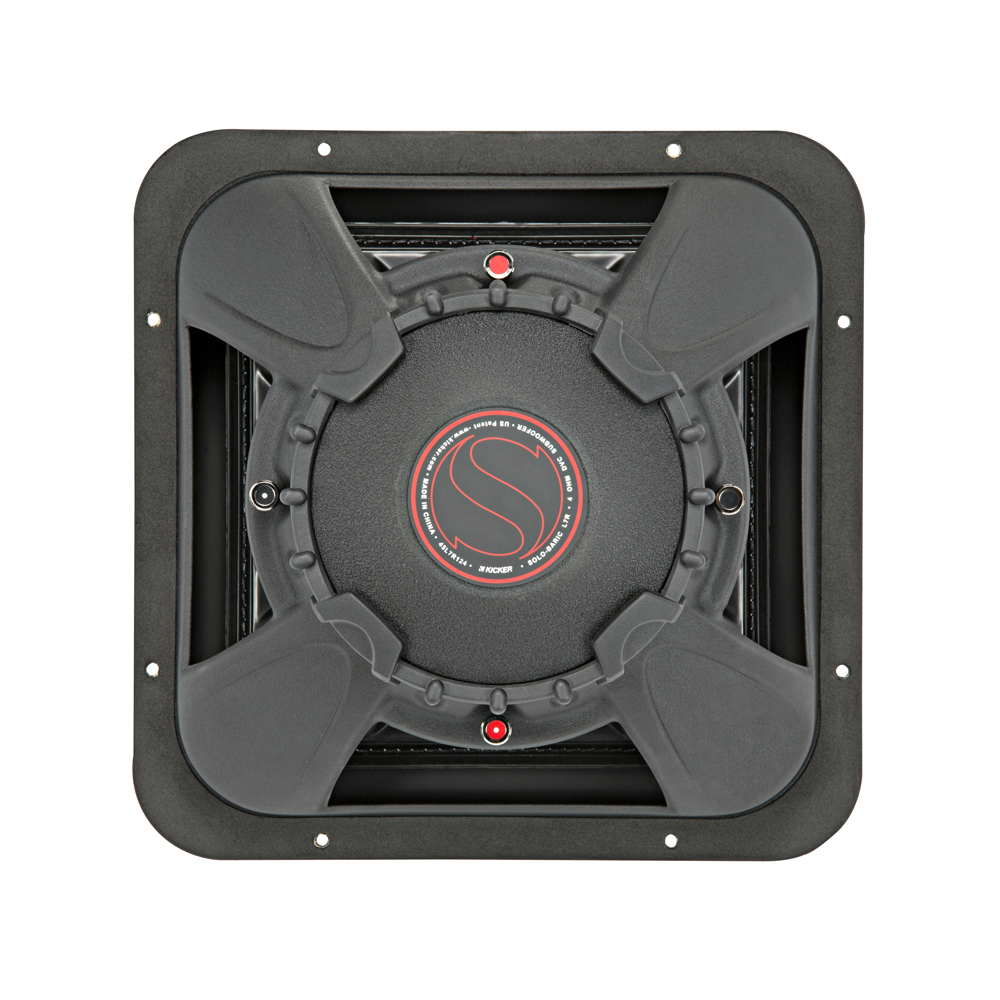

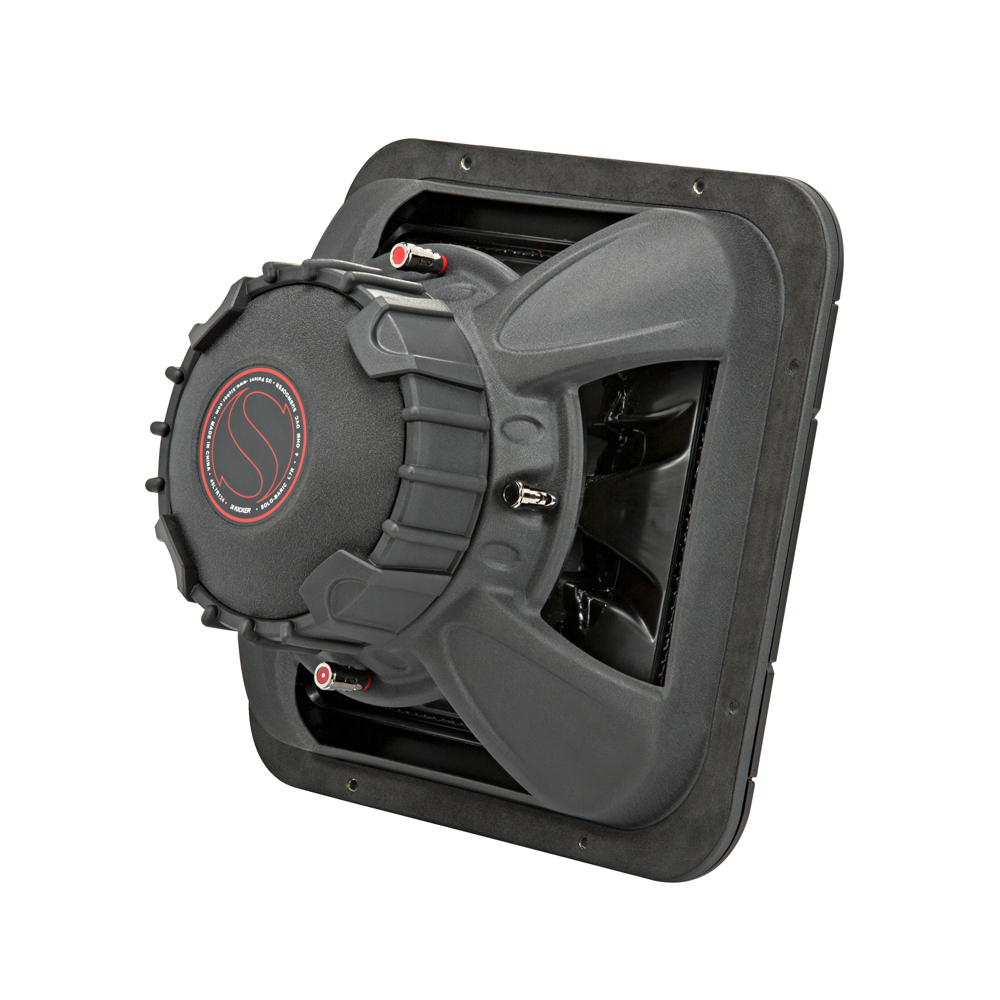

- UniPlate back plate and pole piece
- Steel basket with nickel-plated terminals
Additional Information
Specification
Performance Specifications
Kicker L7R124
Voice coils
Dual voice coil (DVC), 4 Ohm per coil
Recommended amplifier power
600 W
Peak power
1,200 W
Sensitivity
86.7 dB (1 W / 1 m)
Product Data
Physical Specifications: Kicker L7R124
Subwoofer size: 300 mm / 12″
Mounting depth: 174 mm / 6-7/8″
Mounting diameter: 281 mm / 11-1/16″
Min sealed box vol: 24.92 L / .88 cu ft
Max sealed box vol: 56.64 L / 2 cu ft
Min vented box vol: 49.6 L / 1.75 cu ft
Max vented box vol: 92 L / 3.25 cu ft
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Kicker Solo-Baric L7R124 12″ Square Dual Voice Coil 4 Ohm Subwoofer
Kicker Solo-Baric L7R124 12″ Square Dual Voice Coil 4 Ohm Subwoofer, part number KA45L7R124. 12″ square subwoofer, dual voice coil (DVC), 4 Ohm per coil. Square cone moves more air than a round sub.
£269.95
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Kicker Solo-Baric L7R124 12″ Square Dual Voice Coil 4 Ohm Subwoofer
The Solo-Baric L7R is Kicker’s square sub designed to give more bass than a round driver without needing a bigger box. The 12″ L7R124 has dual 4 Ohm voice coils, patented ribbed corners, SoloKon 360-degree back bracing and UniPlate thermal management.
Features
- 12″ square subwoofer, dual voice coil (DVC), 4 Ohm per coil
- Square cone moves more air than a round sub
- Patented ribbed corners and SoloKon back bracing
- UniPlate back plate and pole piece
- Steel basket with nickel-plated terminals
Performance Specifications
Kicker L7R124
Voice coils
Dual voice coil (DVC), 4 Ohm per coil
Recommended amplifier power
600 W
Peak power
1,200 W
Sensitivity
86.7 dB (1 W / 1 m)
Physical Specifications
Kicker L7R124
Subwoofer size
300 mm / 12″
Mounting depth
174 mm / 6-7/8″
Mounting diameter
281 mm / 11-1/16″
Min sealed box vol
24.92 L / .88 cu ft
Max sealed box vol
56.64 L / 2 cu ft
Min vented box vol
49.6 L / 1.75 cu ft
Max vented box vol
92 L / 3.25 cu ft
Next working day delivery if ordered before 12:00, unless item is special order.
