Description

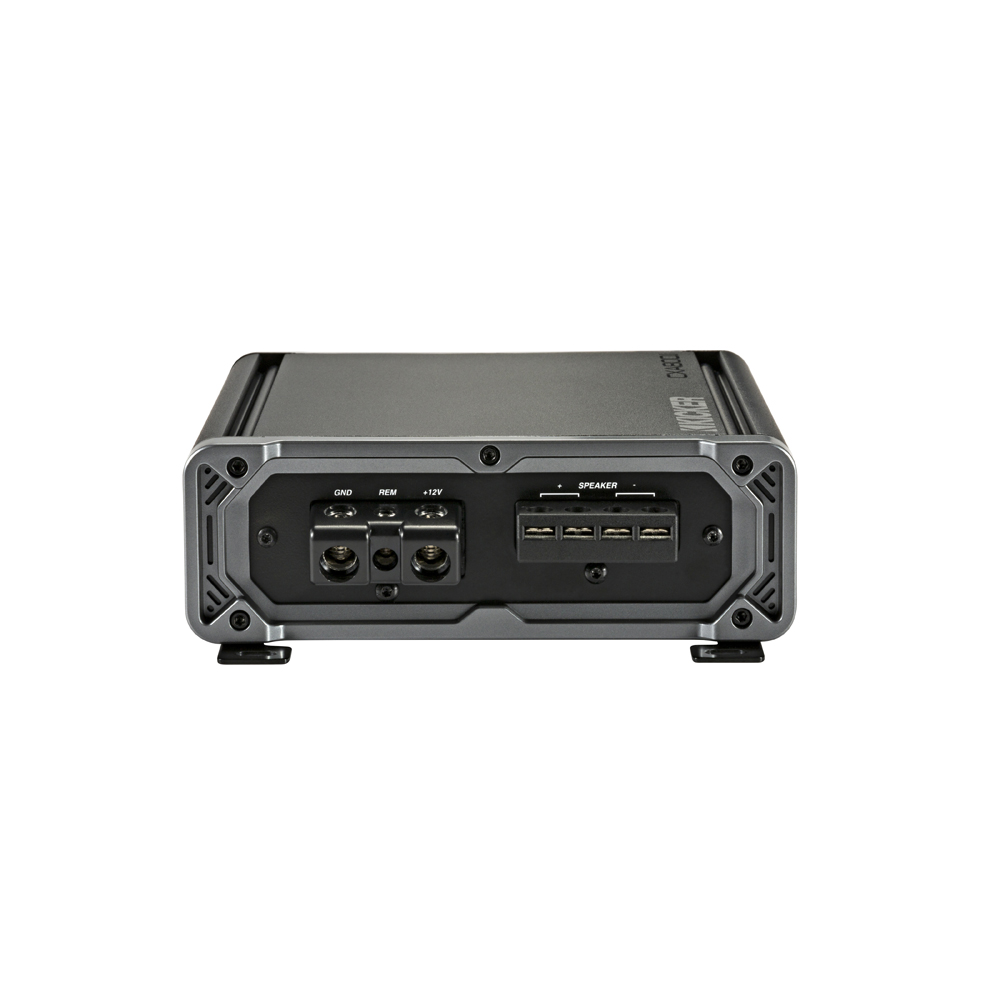

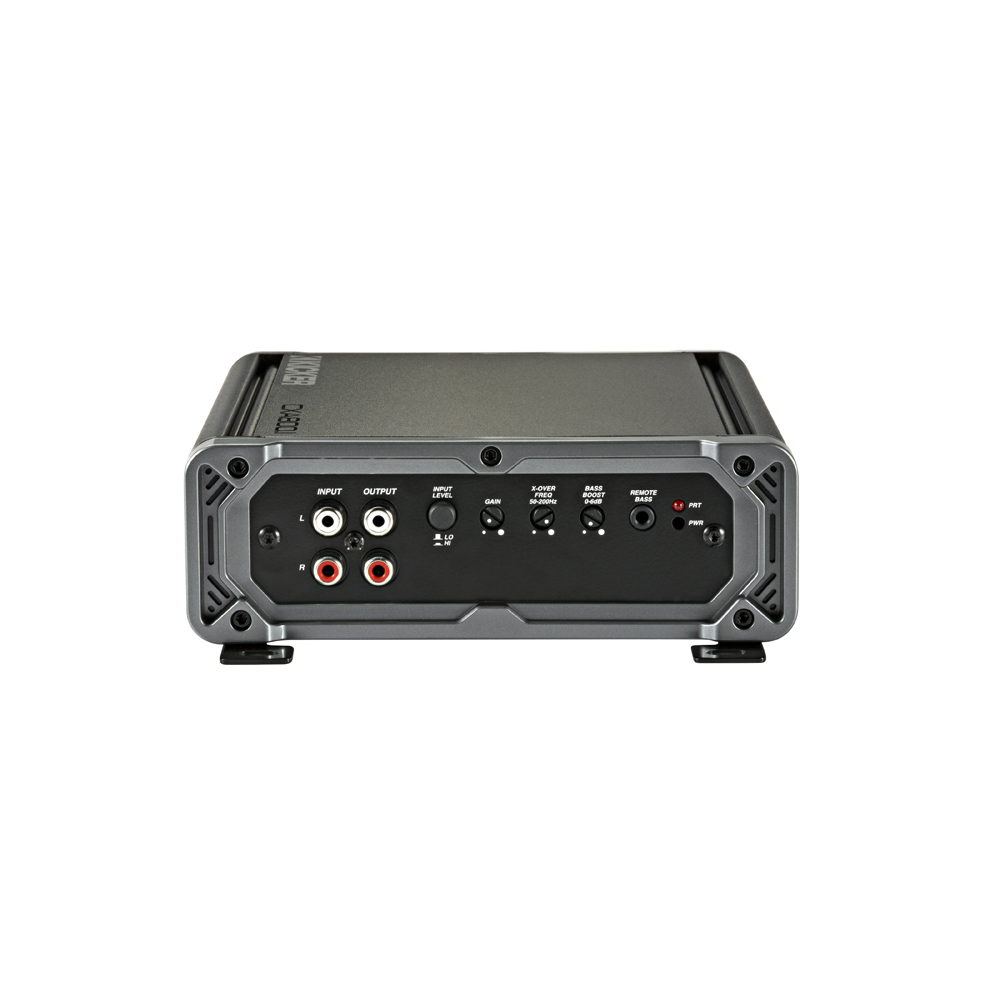

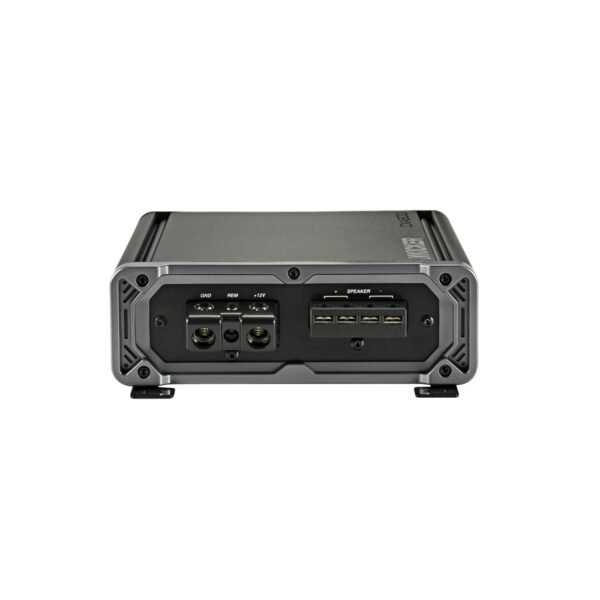

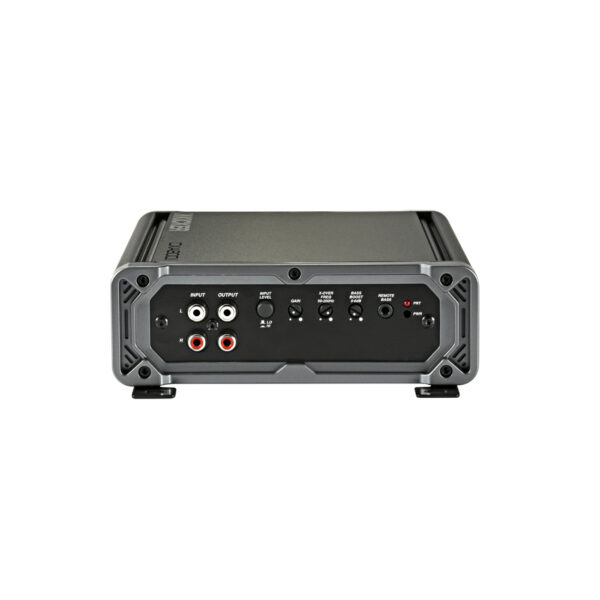

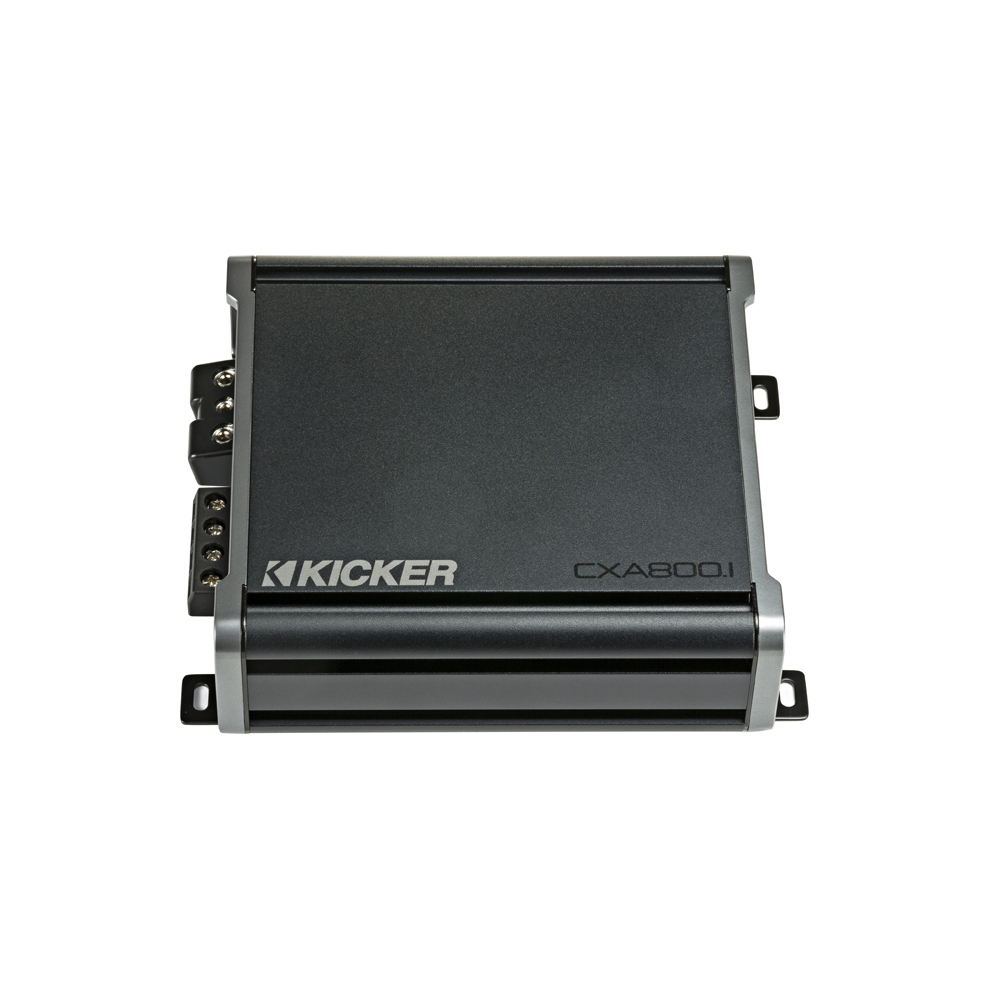

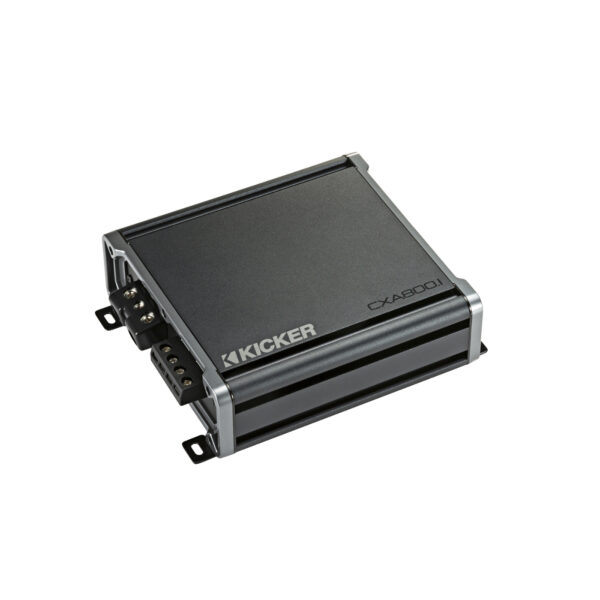

Kicker CXA800.1 800W Mono Subwoofer Amplifier
Kicker’s CX Series amplifiers combine a tidy, efficient design with clean power and simple tuning. The CXA800.1 is a 1 Ohm stable mono subwoofer amplifier with KickEQ bass boost, a 12 dB crossover, a 24 dB subsonic filter and full-range pass-through outputs to expand the system. It accepts up to 40 V (400 W) of speaker-level input, so most factory head units need no line output converter.
Features
- 800 W mono Class D amplifier
- Accepts speaker-level input up to 40 V, no line output converter needed

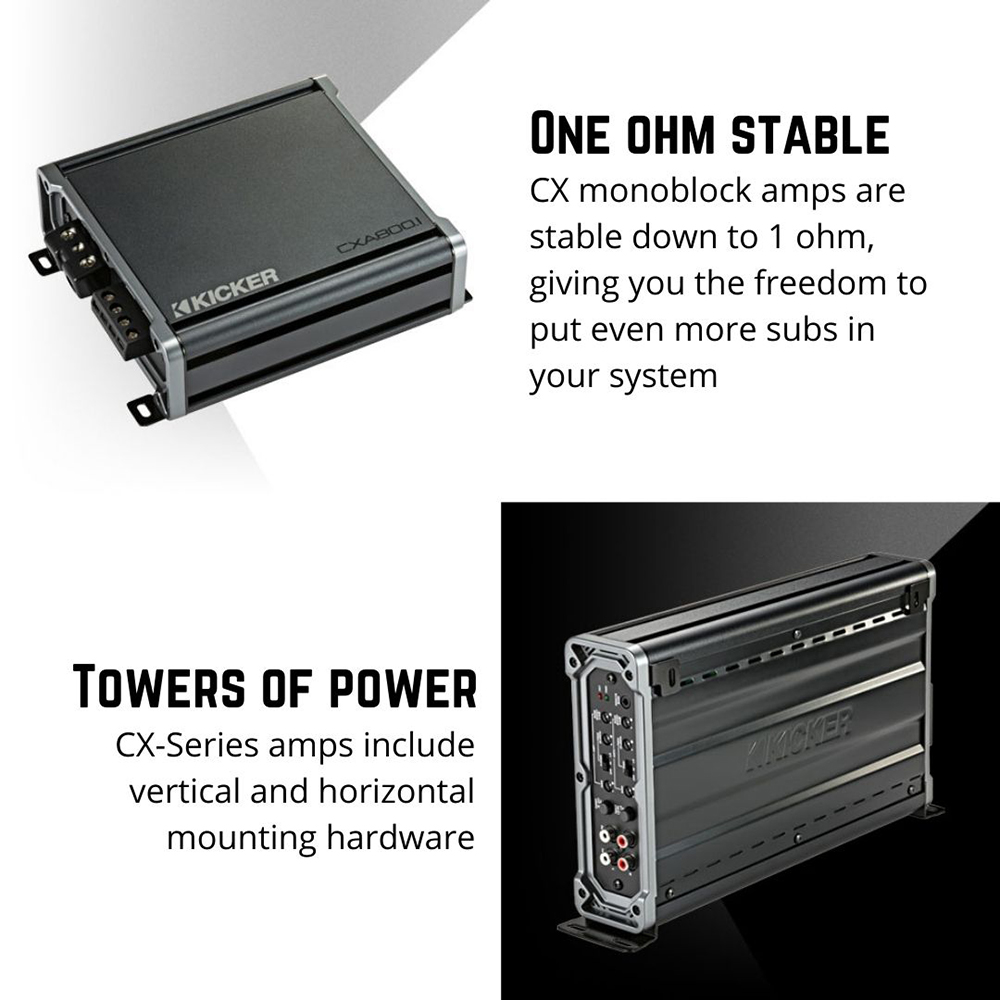

- 1 Ohm stable, with KickEQ bass boost and subsonic filter
- Optional remote bass control (sold separately)

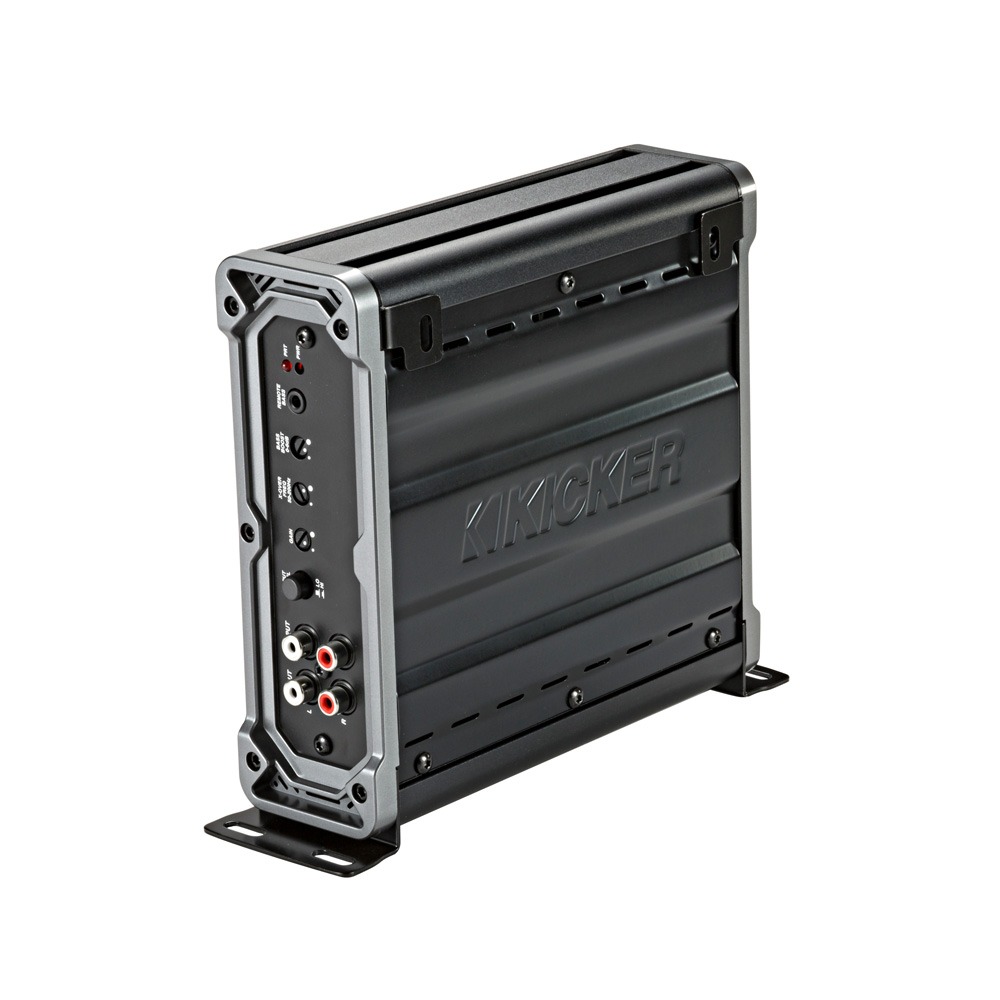

- Vertical and horizontal mounting hardware
Additional Information
Specification
Performance Specifications
Kicker CXA800.1
RMS power, 4 Ohm mono
300 W x 1
RMS power, 2 Ohm mono
600 W x 1
RMS power, 1 Ohm mono
800 W x 1
Frequency response
25 Hz – 200 Hz
Signal-to-noise ratio
>95 dB, A-weighted, re: rated power
Input sensitivity
Low level 125 mV-5 V, high level 1 V-40 V
Electronic crossover
Variable low-pass 50-200 Hz, 12 dB/octave
KickEQ bass boost
Variable 0-6 dB at 40 Hz
Subsonic filter
25 Hz, 24 dB/octave
Remote bass
Yes, CXRC (sold separately)
Product Data
Physical Specifications: Kicker CXA800.1
Height: 59 mm / 2-3/8″
Width: 170 mm / 6-3/4″
Length: 206 mm / 8-1/8″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Kicker CXA800.1 800W Mono Subwoofer Amplifier
Kicker CXA800.1 800W Mono Subwoofer Amplifier, part number KA46CXA8001. 800 W mono Class D amplifier. Accepts speaker-level input up to 40 V, no line output converter needed.
£299.95
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Kicker CXA800.1 800W Mono Subwoofer Amplifier
Kicker’s CX Series amplifiers combine a tidy, efficient design with clean power and simple tuning. The CXA800.1 is a 1 Ohm stable mono subwoofer amplifier with KickEQ bass boost, a 12 dB crossover, a 24 dB subsonic filter and full-range pass-through outputs to expand the system. It accepts up to 40 V (400 W) of speaker-level input, so most factory head units need no line output converter.
Features
- 800 W mono Class D amplifier
- Accepts speaker-level input up to 40 V, no line output converter needed
- 1 Ohm stable, with KickEQ bass boost and subsonic filter
- Optional remote bass control (sold separately)
- Vertical and horizontal mounting hardware
Performance Specifications
Kicker CXA800.1
RMS power, 4 Ohm mono
300 W x 1
RMS power, 2 Ohm mono
600 W x 1
RMS power, 1 Ohm mono
800 W x 1
Frequency response
25 Hz – 200 Hz
Signal-to-noise ratio
>95 dB, A-weighted, re: rated power
Input sensitivity
Low level 125 mV-5 V, high level 1 V-40 V
Electronic crossover
Variable low-pass 50-200 Hz, 12 dB/octave
KickEQ bass boost
Variable 0-6 dB at 40 Hz
Subsonic filter
25 Hz, 24 dB/octave
Remote bass
Yes, CXRC (sold separately)
Physical Specifications
Kicker CXA800.1
Height
59 mm / 2-3/8″
Width
170 mm / 6-3/4″
Length
206 mm / 8-1/8″
Next working day delivery if ordered before 12:00, unless item is special order.
