Description

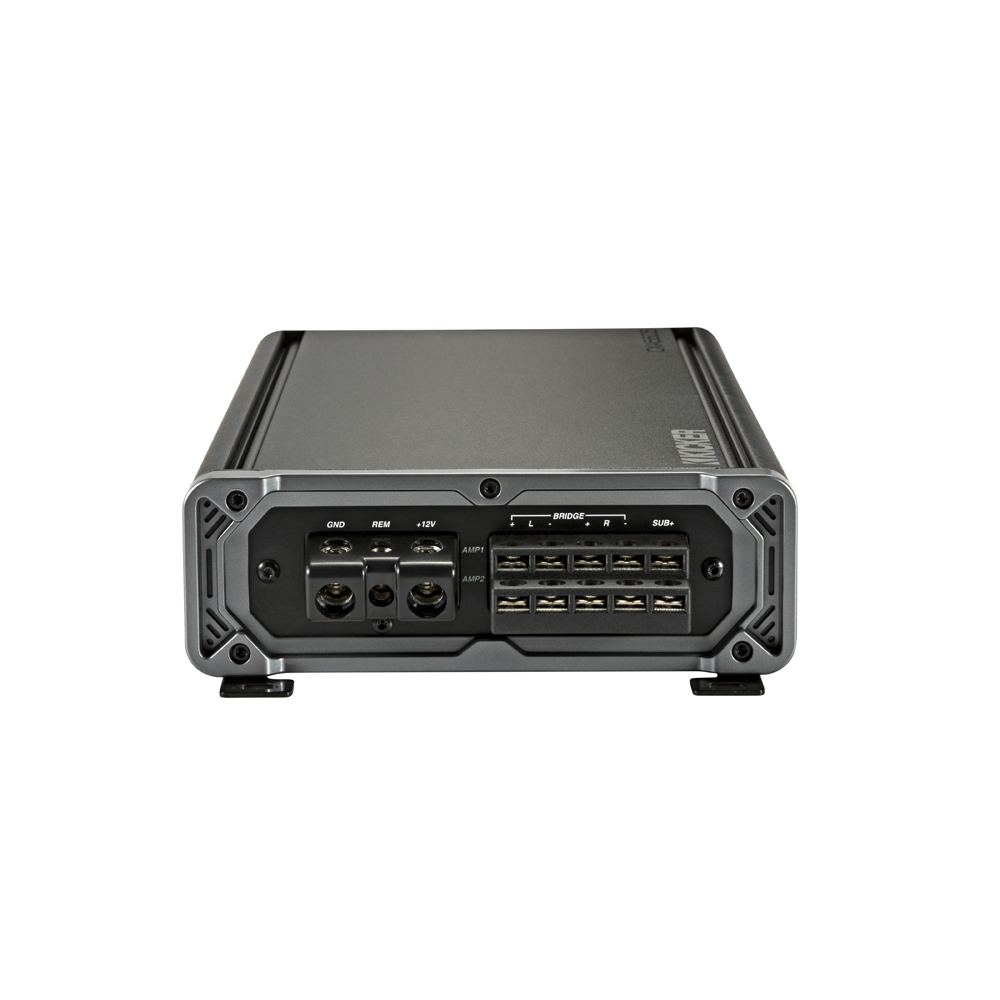

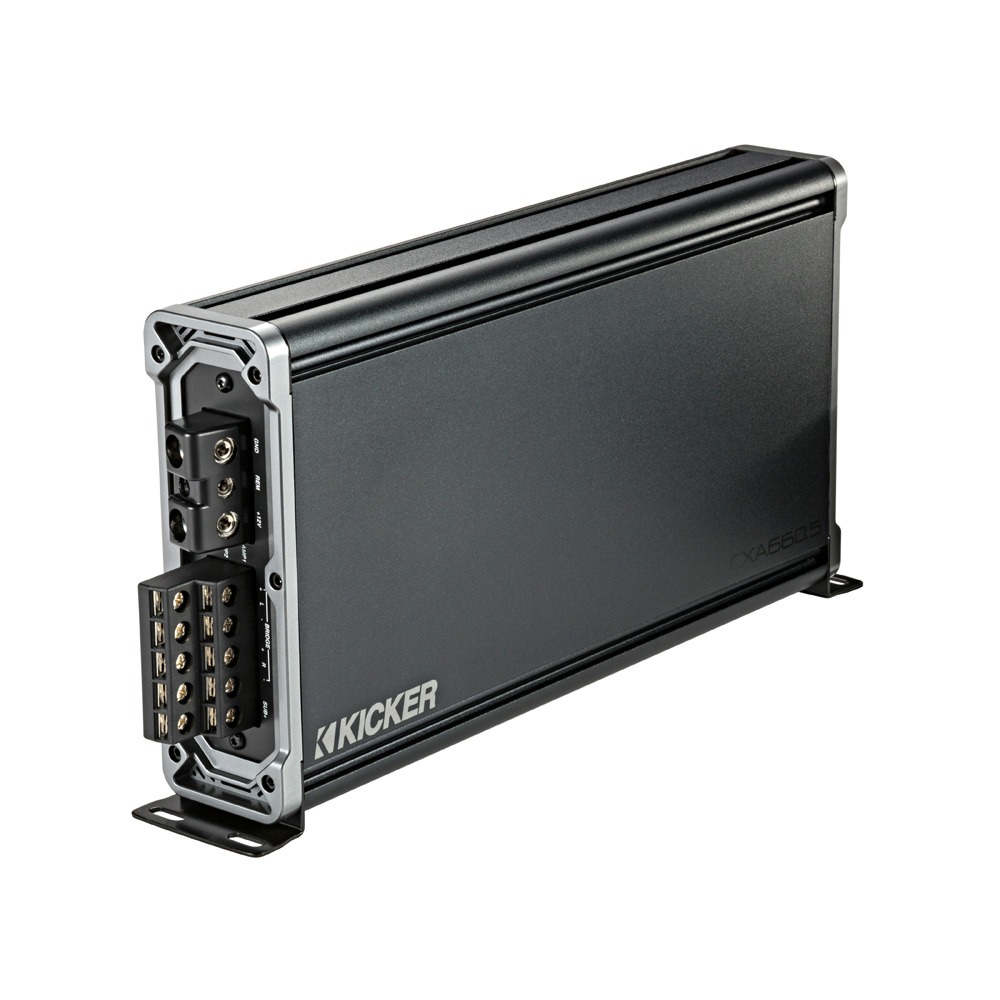

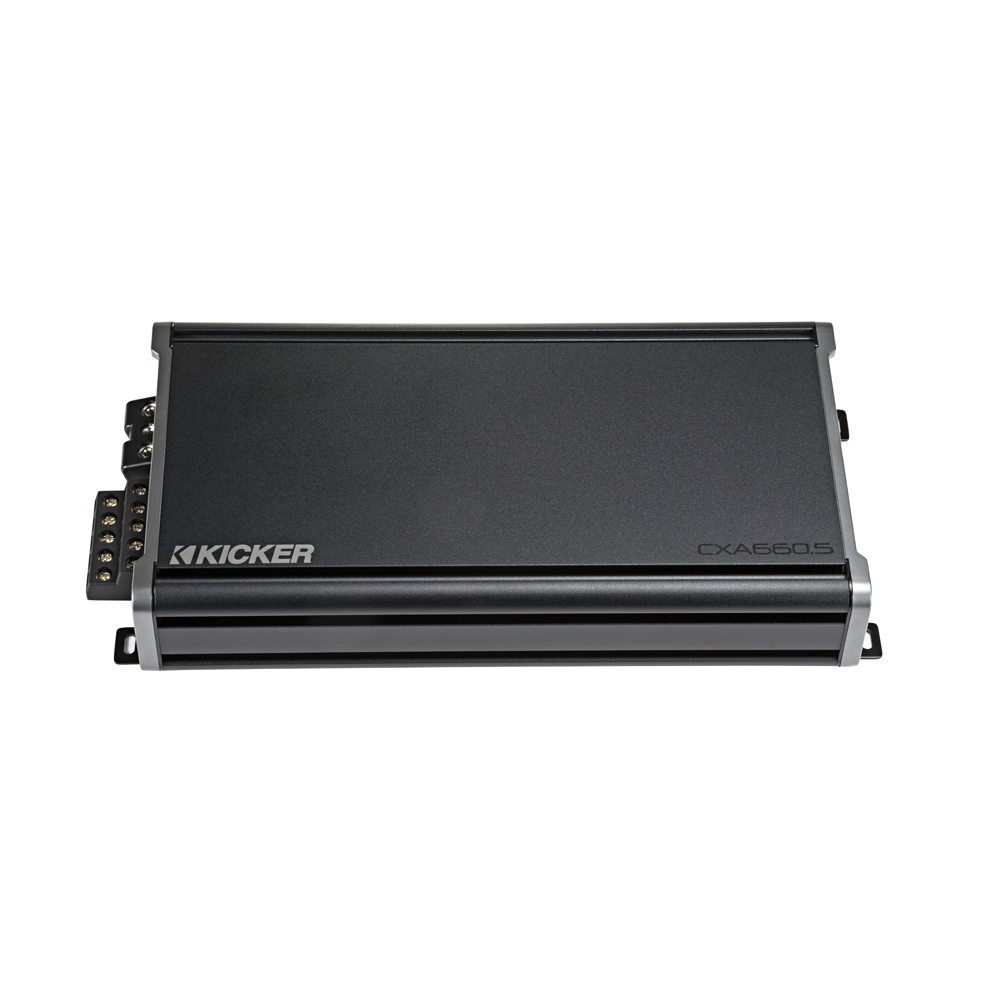

Kicker CXA660.5 660W 5 Channel Amplifier
Kicker’s CX Series amplifiers combine a tidy, efficient design with clean power and simple tuning. The CXA660.5 is a 5 channel system amplifier: four Class A/B channels for the speakers and a Class D channel for the subwoofer. It accepts up to 40 V (400 W) of speaker-level input, so most factory head units need no line output converter.
Features
- 660 W 5 channel amplifier
- Accepts speaker-level input up to 40 V, no line output converter needed
- Variable 12 dB crossovers
- Efficient heat sink design
- Vertical and horizontal mounting hardware
Additional Information
Specification
Performance Specifications
Kicker CXA660.5
Power 4 Ohm stereo
65 W x 4
Power 2 Ohm stereo
90 W x 4
Power 4 Ohm stereo
180 W x 2
Power 4 Ohm mono sub ch
150 W x 1
Power 2 Ohm mono sub ch
300 W x 1
CXRC remote bass capable (sold sep.)
Yes
Frequency response
10 Hz – 20,000 Hz
Frequency response
25 Hz – 200 Hz
Input sensitivity
125mV-5V (Low Level) 1V-40V (High Level)
Signal-to-noise ratio
90dB
Active crossover
Amp 1-2: High Pass 10-200Hz @ 12dB/Octave Sub Channel: Low Pass 50-200Hz @ 12dB/Octave
Subsonic filter
25Hz @24dB/Octave
KickEQ boost
Variable 0-6dB @40Hz
Product Data
Physical Specifications: Kicker CXA660.5
Dimensions: 357 mm / 14-1/8″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Kicker CXA660.5 660W 5 Channel Amplifier
Kicker CXA660.5 660W 5 Channel Amplifier, part number KA46CXA6605. 660 W 5 channel amplifier. Accepts speaker-level input up to 40 V, no line output converter needed.
£449.95
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Kicker CXA660.5 660W 5 Channel Amplifier
Kicker’s CX Series amplifiers combine a tidy, efficient design with clean power and simple tuning. The CXA660.5 is a 5 channel system amplifier: four Class A/B channels for the speakers and a Class D channel for the subwoofer. It accepts up to 40 V (400 W) of speaker-level input, so most factory head units need no line output converter.
Features
- 660 W 5 channel amplifier
- Accepts speaker-level input up to 40 V, no line output converter needed
- Variable 12 dB crossovers
- Efficient heat sink design
- Vertical and horizontal mounting hardware
Performance Specifications
Kicker CXA660.5
Power 4 Ohm stereo
65 W x 4
Power 2 Ohm stereo
90 W x 4
Power 4 Ohm stereo
180 W x 2
Power 4 Ohm mono sub ch
150 W x 1
Power 2 Ohm mono sub ch
300 W x 1
CXRC remote bass capable (sold sep.)
Yes
Frequency response
10 Hz – 20,000 Hz
Frequency response
25 Hz – 200 Hz
Input sensitivity
125mV-5V (Low Level) 1V-40V (High Level)
Signal-to-noise ratio
90dB
Active crossover
Amp 1-2: High Pass 10-200Hz @ 12dB/Octave Sub Channel: Low Pass 50-200Hz @ 12dB/Octave
Subsonic filter
25Hz @24dB/Octave
KickEQ boost
Variable 0-6dB @40Hz
Physical Specifications
Kicker CXA660.5
Dimensions
357 mm / 14-1/8″
