Description

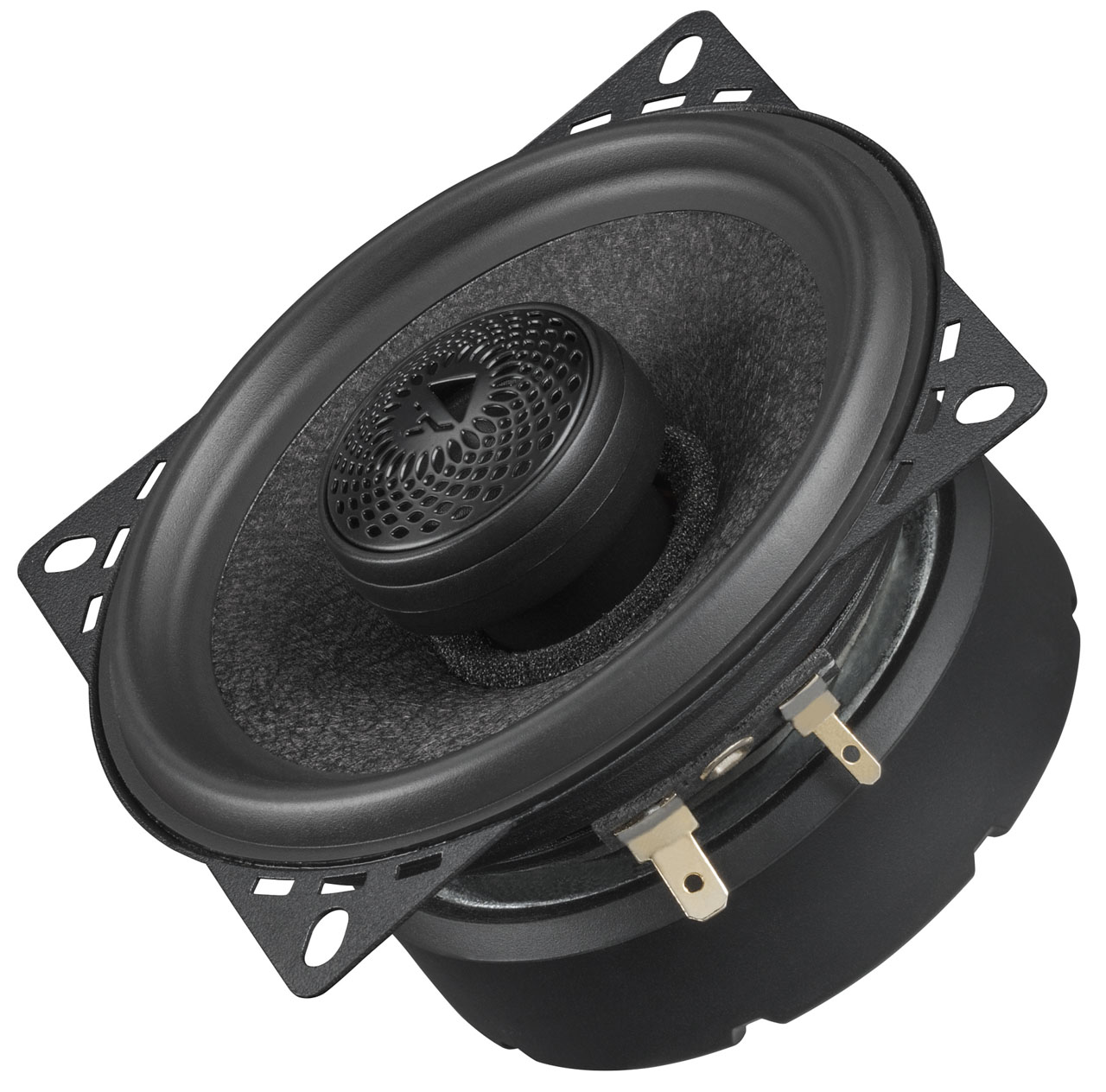

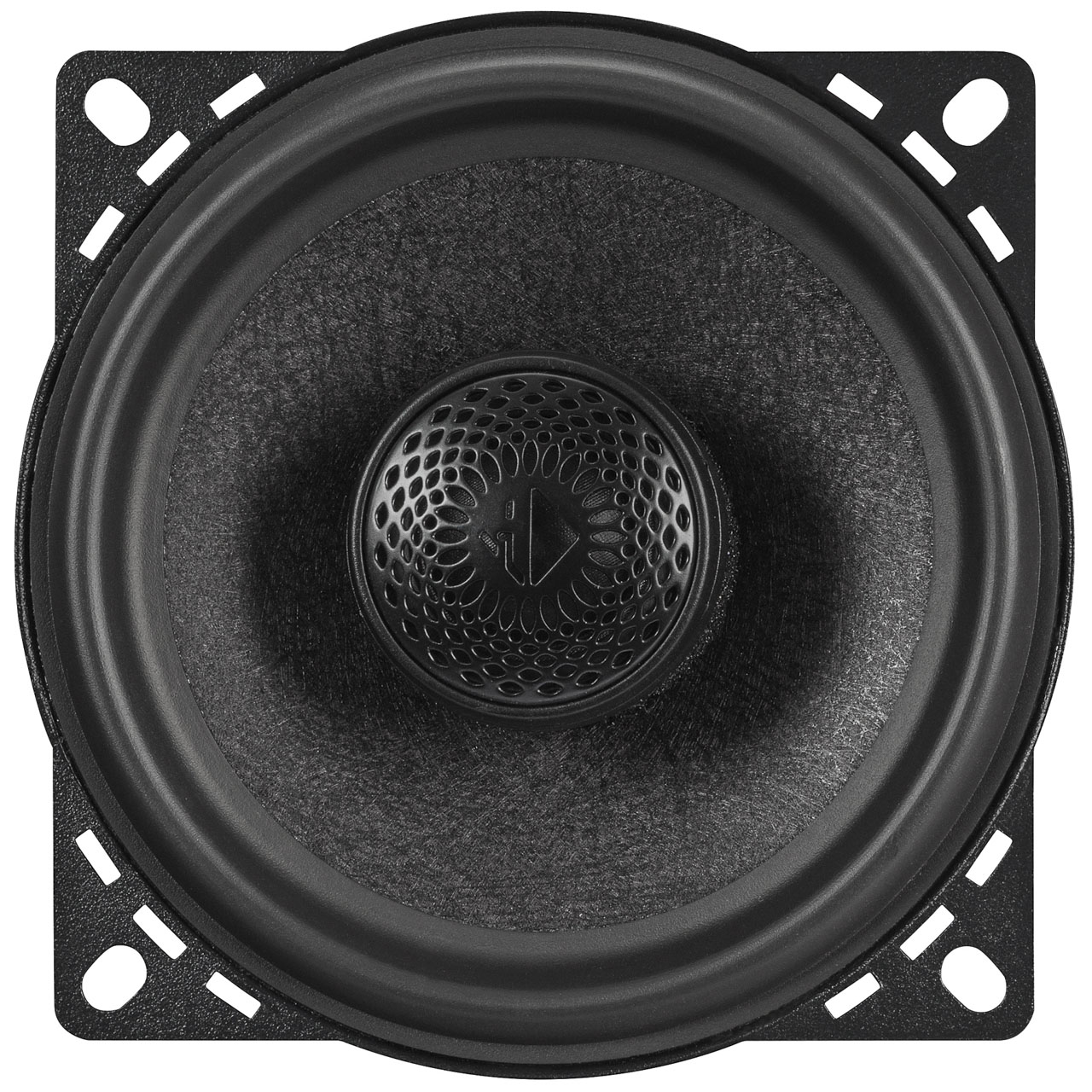

HELIX S 4X
Sound quality meets elegance – The new S speaker series turns every ride into a special sound experience.
In addition to the novel, timelessly elegant design, the 2-way coaxial system offers an exceptional sound quality. Uniquely sensitive and crystal clear, the silk dome of the tweeter conjures the music into the room. Due to its central position inside the mid-woofer, the music is perceived as a point sound source and thus optimizes the tonal balance. The result: an incredibly homogeneous and natural sound.
The stiff and lightweight diaphragm of the mid-woofer consists of a novel basalt fiber paper compound. A perfect combination to guarantee clear, pure sound even at high volume levels. In conjunction with a power amplifier from Audiotec Fischer, the S coaxial system performs at its best.
Make every ride a special sound experience!
Features
- 4? / 100 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
- Specially shaped rubber surround for larger effective cone area and increased maximum excursion
- 0.75? / 19 mm tweeter with coated silk dome for balanced, natural sound reproduction and lowest compression effects
- Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling

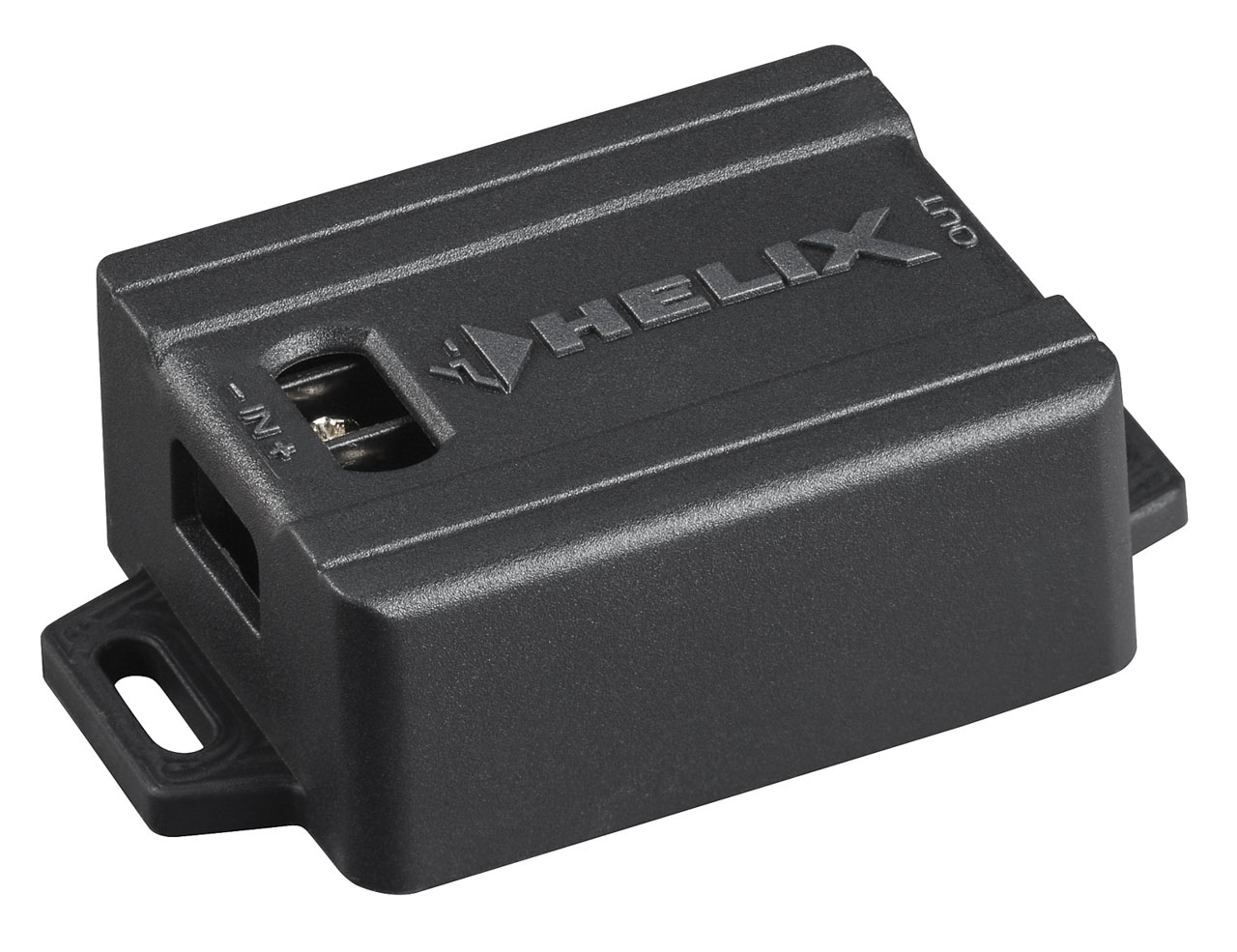

- Separate inline crossover with 6/6 dB slope and integrated tweeter protection
Additional Information
Specification
Performance Specifications
HELIX S 4X
Power RMS / max.
60 / 120 Watts
Frequency response
80 Hz – 25,000 Hz
Impedance
4 Ω
Sensitivity 1 W / 1 m
89 dB
Cone material
TW: Coated silk dome W: Basalt-fiber-paper compund
Crossover
Separate, 6/6 dB slope
Product Data
Physical Specifications: HELIX S 4X
Outer diameter: 102 mm / 4.01″
Installation diameter: 92.3 mm / 3.63″
Installation depth: 46.5 mm / 1.83″
Dimensions crossover: 58 x 49 x 24 mm / 2.32 x 1.96 x 0.94″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

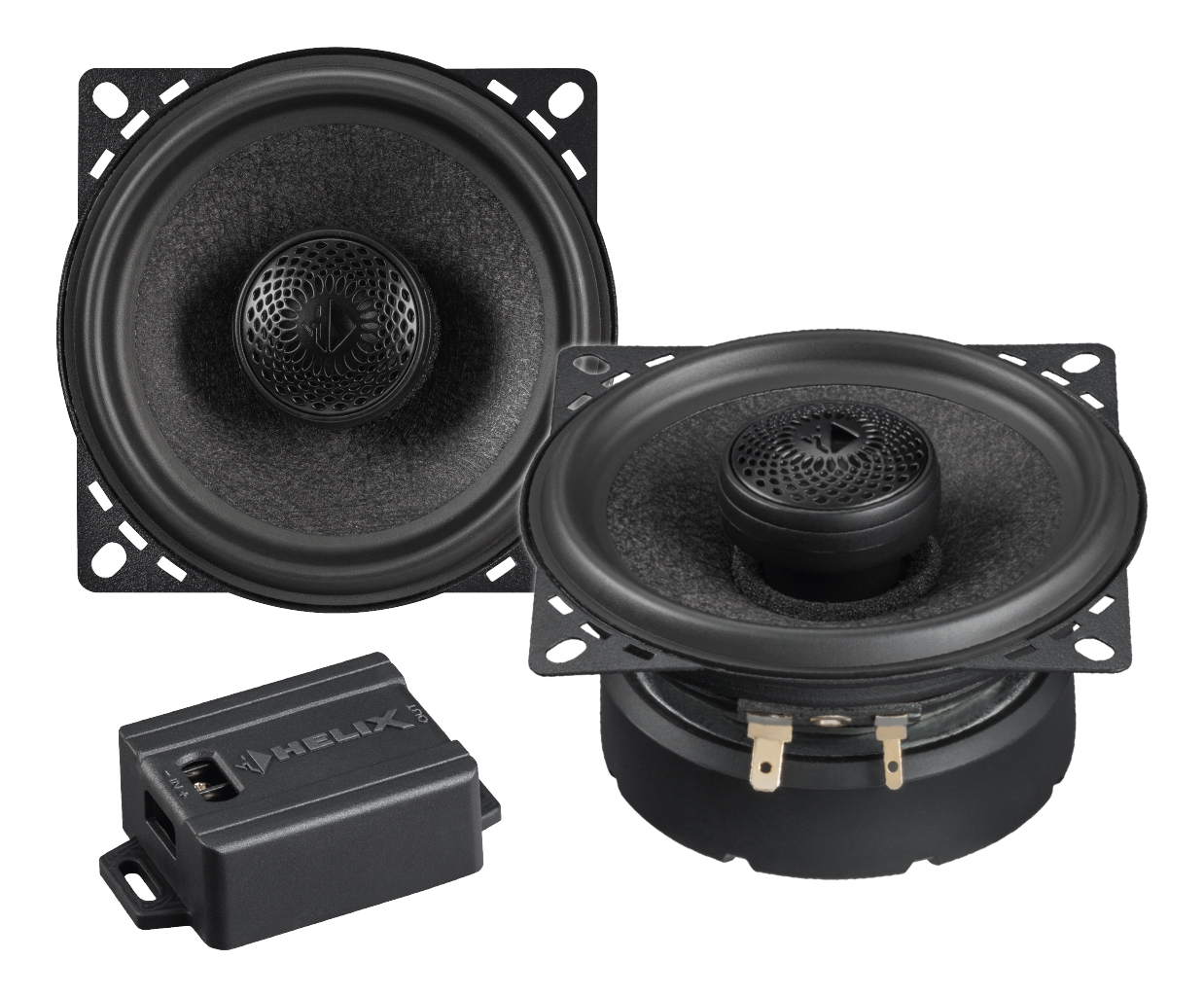

Helix S 4X 4″ Coaxial Speaker
10 cm / 4″ 2-way coaxial system Power handling: 60 / 120 Watts Frequency range: 80 Hz – 25,000 Hz
£149.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
HELIX S 4X
Sound quality meets elegance – The new S speaker series turns every ride into a special sound experience.
In addition to the novel, timelessly elegant design, the 2-way coaxial system offers an exceptional sound quality. Uniquely sensitive and crystal clear, the silk dome of the tweeter conjures the music into the room. Due to its central position inside the mid-woofer, the music is perceived as a point sound source and thus optimizes the tonal balance. The result: an incredibly homogeneous and natural sound.
The stiff and lightweight diaphragm of the mid-woofer consists of a novel basalt fiber paper compound. A perfect combination to guarantee clear, pure sound even at high volume levels. In conjunction with a power amplifier from Audiotec Fischer, the S coaxial system performs at its best.
Make every ride a special sound experience!
Features
- 4? / 100 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
- Specially shaped rubber surround for larger effective cone area and increased maximum excursion
- 0.75? / 19 mm tweeter with coated silk dome for balanced, natural sound reproduction and lowest compression effects
- Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
- Separate inline crossover with 6/6 dB slope and integrated tweeter protection
Performance Specifications
HELIX S 4X
Power RMS / max.
60 / 120 Watts
Frequency response
80 Hz – 25,000 Hz
Impedance
4 Ω
Sensitivity 1 W / 1 m
89 dB
Cone material
TW: Coated silk dome W: Basalt-fiber-paper compund
Crossover
Separate, 6/6 dB slope
Physical Specifications
HELIX S 4X
Outer diameter
102 mm / 4.01″
Installation diameter
92.3 mm / 3.63″
Installation depth
46.5 mm / 1.83″
Dimensions crossover
58 x 49 x 24 mm / 2.32 x 1.96 x 0.94″
Next working day delivery if ordered before 12:00, unless item is special order.
