Description

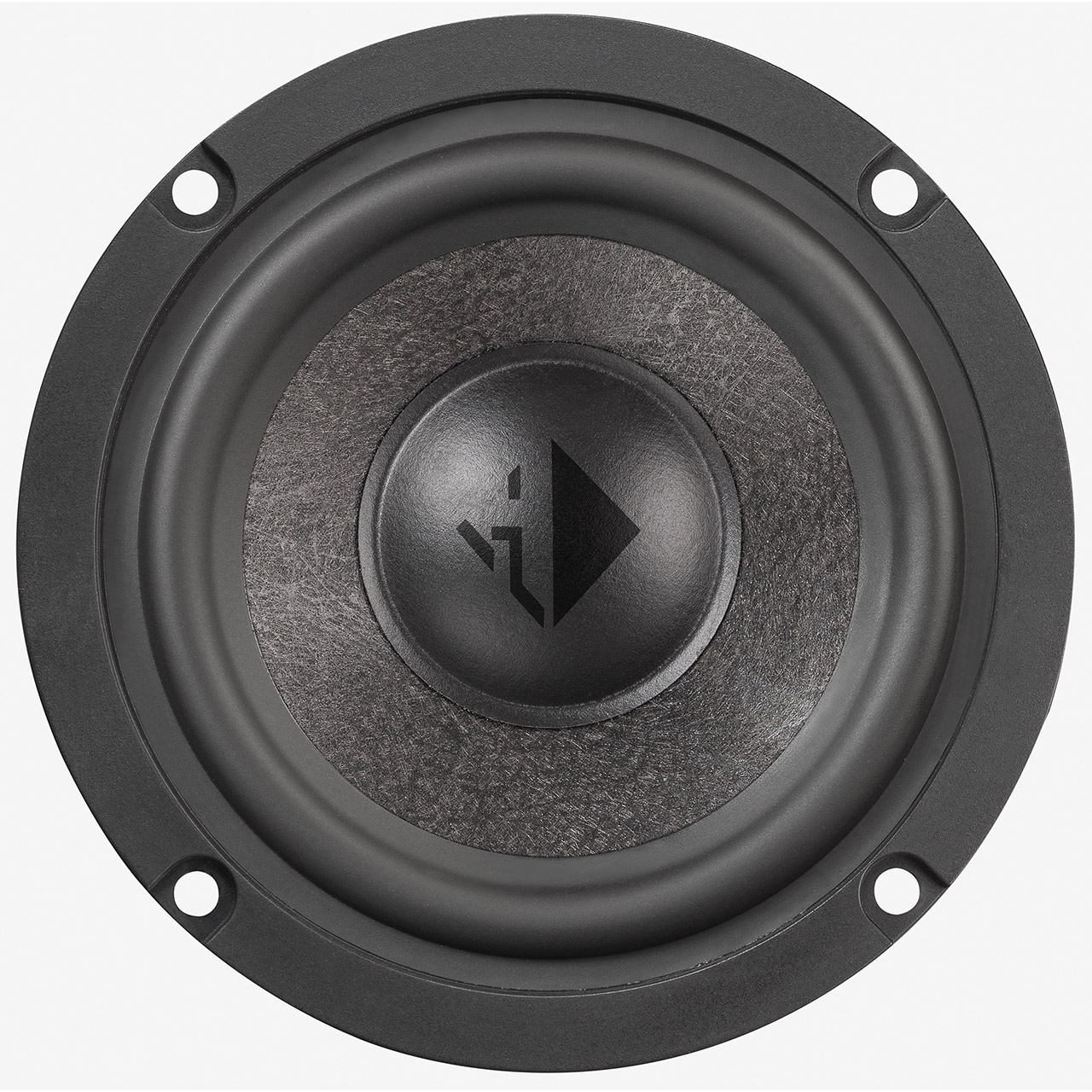

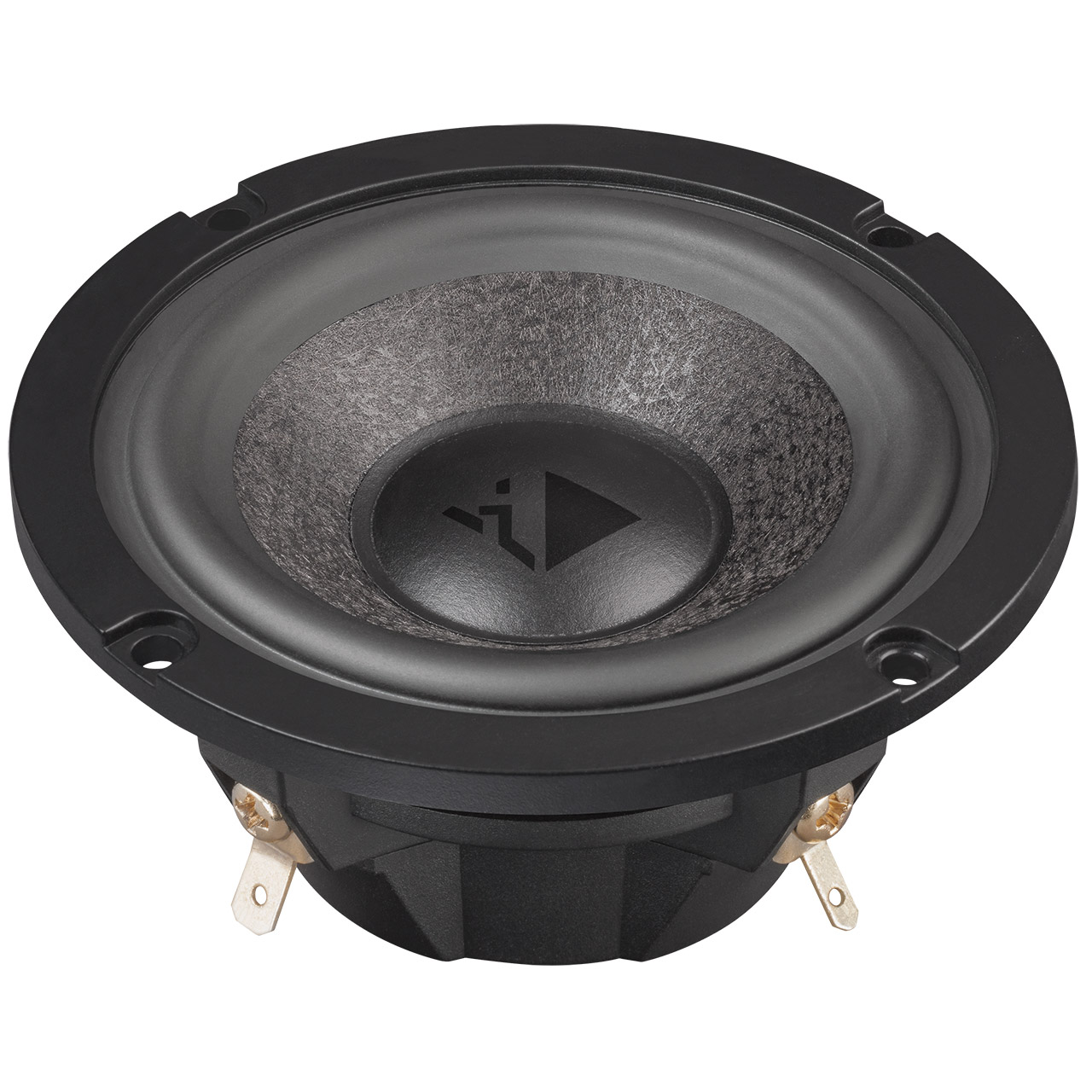

HELIX S 3M
A cone midrange driver in an elegant design, trimmed for maximum sound quality – and thus the perfect addition to any fully active 3-way speaker system.
The highly rigid membrane consists of a novel basalt fiber-paper compound. An ideal combination to ensure clear and precise sound even at high volumes? In addition to maximum uncoloured mid-range reproduction, the S 3M also offers extremely low distortion thanks to the linear neodymium magnet system.
The dream team is the combination with the S 1T tweeter and a S 6B or S 4B woofer. Driven by a power amplifier from Audiotec Fischer, the S loudspeakers perform at their best and provide the perfect basis for absolute top sound systems!
Features
- 3? / 75 mm cone midrange speaker with novel basaltfiberpaper compound cone – a perfect combination of lowest weight, high stiffness and perfect inner damping
- Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
- Low-resonant basket made from glassfiber reinforced plastic with optimized voice coil cooling for high power handling

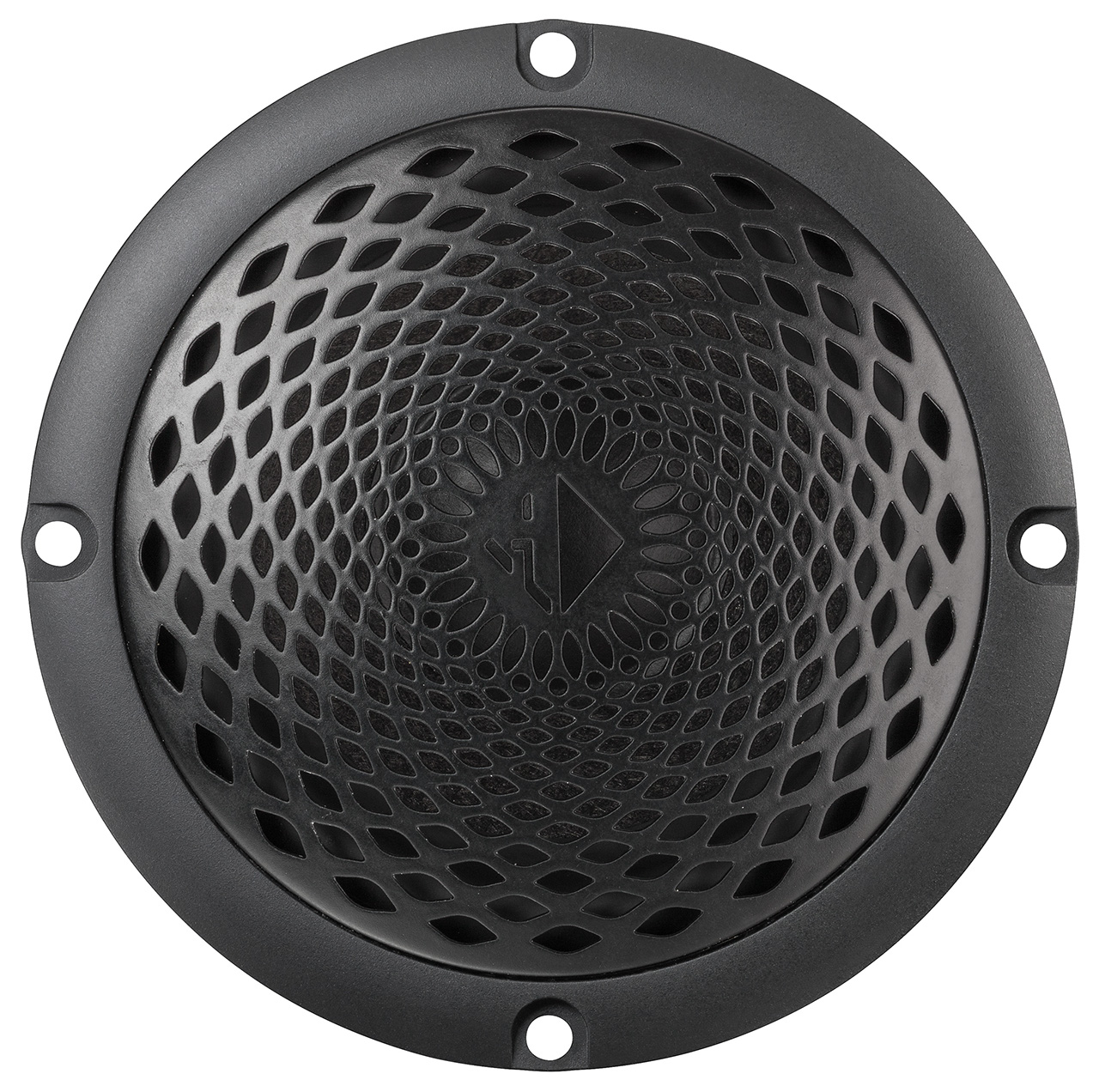

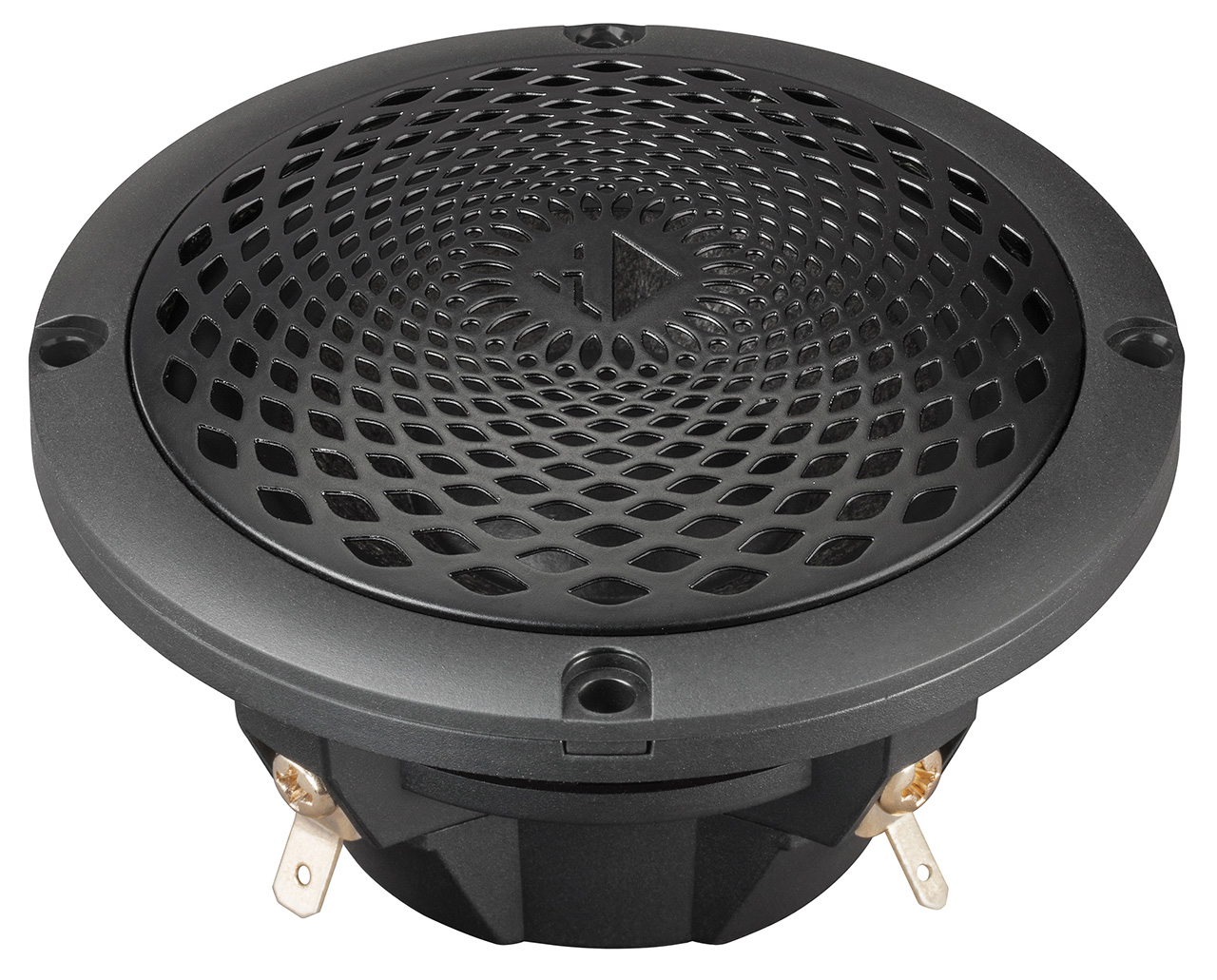

- Grille included
Additional Information
Specification
Performance Specifications
HELIX S 3M
Power RMS / max.
75 / 150 Watts (highpass > 400 Hz at 24 dB/Oct.)
Impedance
4 Ω
DC resistance
3.2 Ω
Frequency response
400 Hz – 6,000 Hz
Resonance frequency
130 Hz
Mechanical Q factor
4.47
Electrical Q factor
0.48
Total Q factor
0.43
Compliance
396 µm/N
Equivalent air volume
0.57 L
Force factor
4.6 Tm
Sensitivity 1 W / 1 m
86 dB
Cone area
32 cm²
Moving mass
3.8 g
Cone material
Basalt-fiber-paper compound
Mechanical resistance
0.69 kg/s
Voice coil diameter
25 mm
Voice coil winding height
8 mm
Max. linear excursion
+/- 2 mm
Sealed box with minimum 200 ml net volume: Net volumes
Recommended DSP / amplifier settings
Sealed box with minimum 200 ml net volume: 0.2 liter (System resonance: 230 Hz)
Crossover frequency: 500 Hz Min. filter slope: 12 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.4 liter (System resonance: 190 Hz)
Crossover frequency: 450 Hz Min. filter slope: 18 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.6 liter (System resonance: 170 Hz)
Crossover frequency: 400 Hz Min. filter slope: 24 dB/Oct.
Product Data
Physical Specifications: HELIX S 3M
Outer diameter: 90 mm / 3.54″
Installation diameter: 73 mm / 2.87″
Installation depth: 37 mm / 1.46″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix S 3M 3″ Midrange Speaker
86 cm / 3″ cone midrange speaker Power handling: 75 / 150 Watts Frequency range: 400 Hz – 6,000 Hz
£119.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
HELIX S 3M
A cone midrange driver in an elegant design, trimmed for maximum sound quality – and thus the perfect addition to any fully active 3-way speaker system.
The highly rigid membrane consists of a novel basalt fiber-paper compound. An ideal combination to ensure clear and precise sound even at high volumes? In addition to maximum uncoloured mid-range reproduction, the S 3M also offers extremely low distortion thanks to the linear neodymium magnet system.
The dream team is the combination with the S 1T tweeter and a S 6B or S 4B woofer. Driven by a power amplifier from Audiotec Fischer, the S loudspeakers perform at their best and provide the perfect basis for absolute top sound systems!
Features
- 3? / 75 mm cone midrange speaker with novel basaltfiberpaper compound cone – a perfect combination of lowest weight, high stiffness and perfect inner damping
- Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
- Low-resonant basket made from glassfiber reinforced plastic with optimized voice coil cooling for high power handling
- Grille included
Performance Specifications
HELIX S 3M
Power RMS / max.
75 / 150 Watts (highpass > 400 Hz at 24 dB/Oct.)
Impedance
4 Ω
DC resistance
3.2 Ω
Frequency response
400 Hz – 6,000 Hz
Resonance frequency
130 Hz
Mechanical Q factor
4.47
Electrical Q factor
0.48
Total Q factor
0.43
Compliance
396 µm/N
Equivalent air volume
0.57 L
Force factor
4.6 Tm
Sensitivity 1 W / 1 m
86 dB
Cone area
32 cm²
Moving mass
3.8 g
Cone material
Basalt-fiber-paper compound
Mechanical resistance
0.69 kg/s
Voice coil diameter
25 mm
Voice coil winding height
8 mm
Max. linear excursion
+/- 2 mm
Sealed box with minimum 200 ml net volume: Net volumes
Recommended DSP / amplifier settings
Sealed box with minimum 200 ml net volume: 0.2 liter (System resonance: 230 Hz)
Crossover frequency: 500 Hz Min. filter slope: 12 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.4 liter (System resonance: 190 Hz)
Crossover frequency: 450 Hz Min. filter slope: 18 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.6 liter (System resonance: 170 Hz)
Crossover frequency: 400 Hz Min. filter slope: 24 dB/Oct.
Physical Specifications
HELIX S 3M
Outer diameter
90 mm / 3.54″
Installation diameter
73 mm / 2.87″
Installation depth
37 mm / 1.46″
