Description
HELIX P 3M

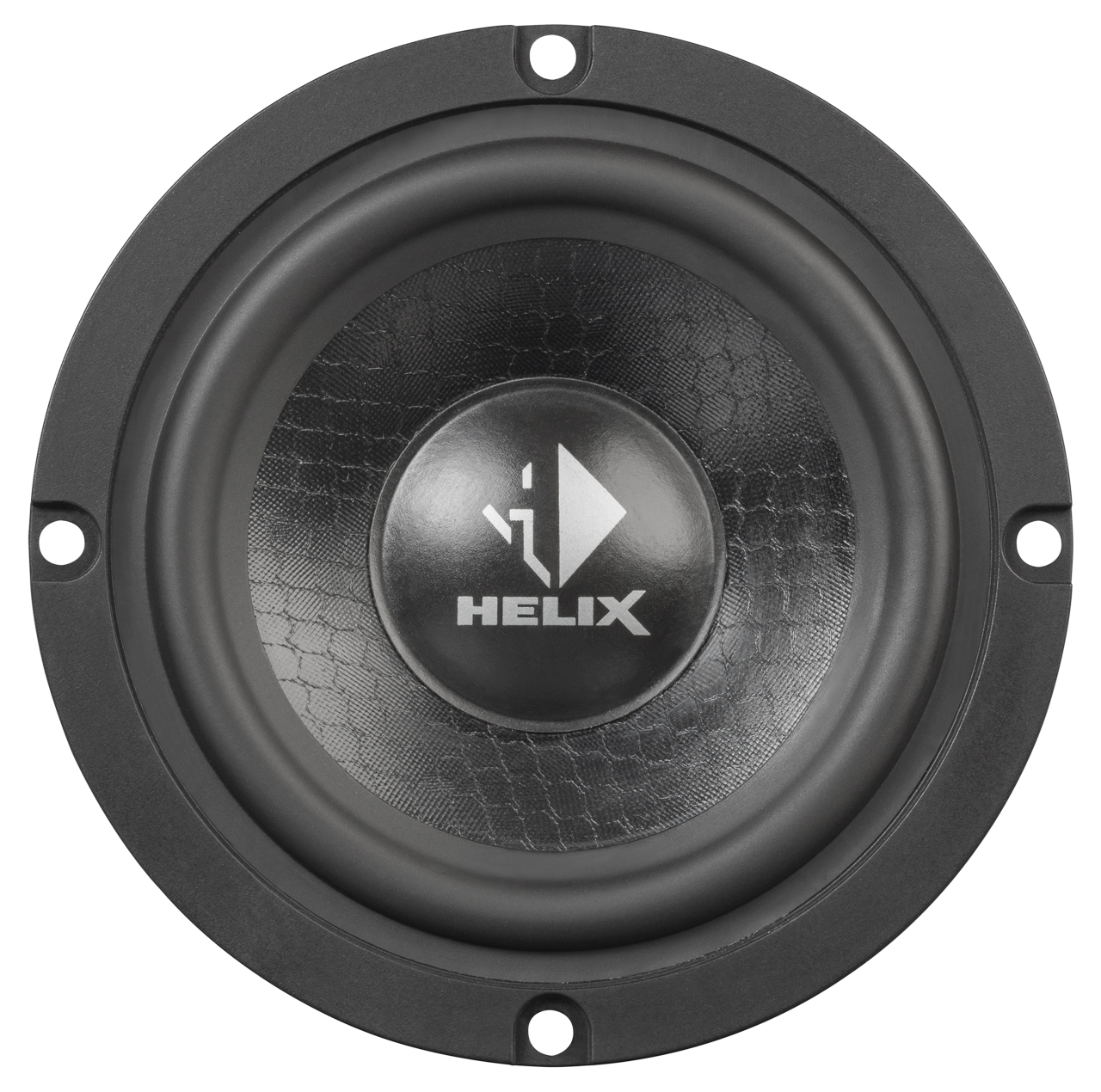

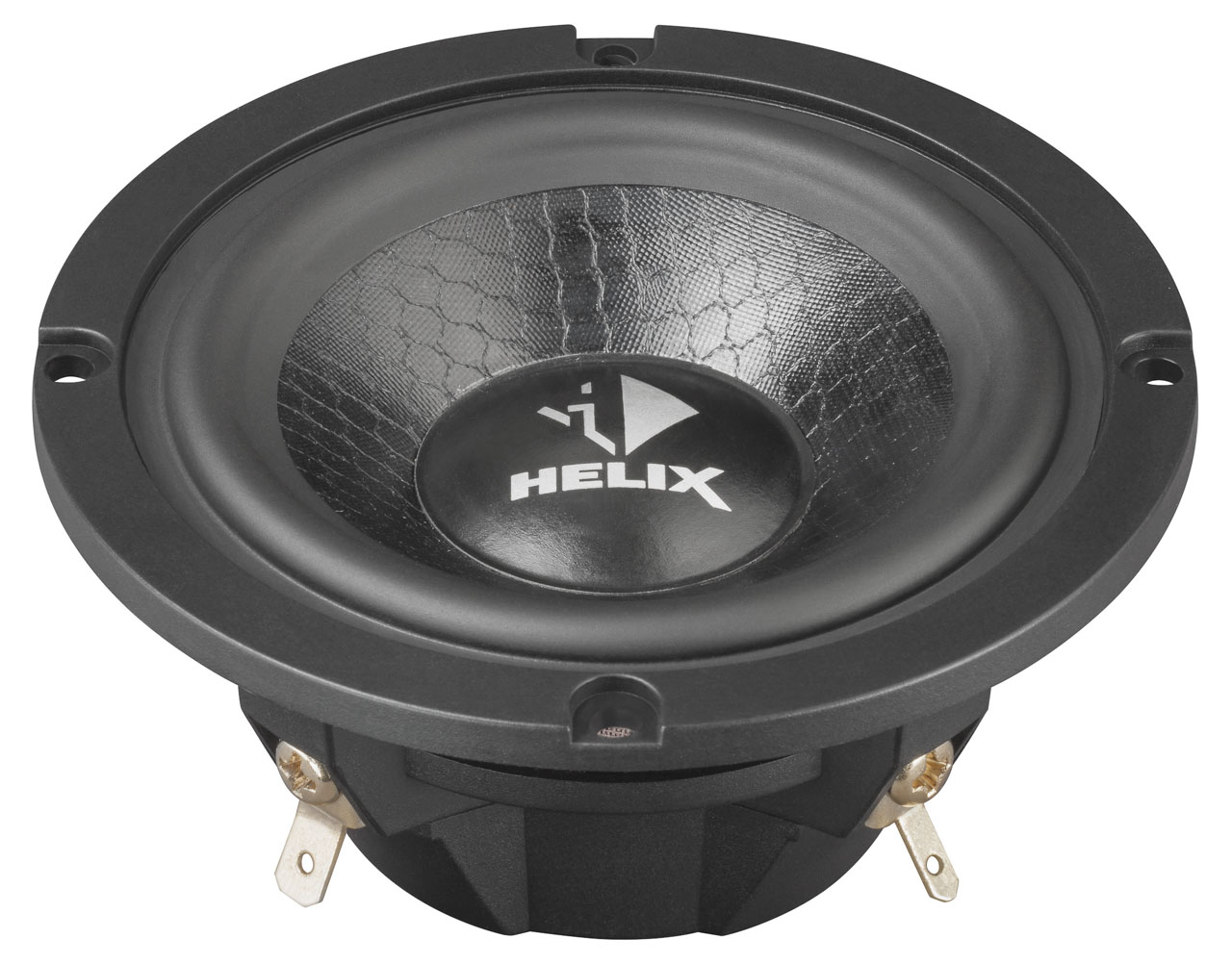

The P 3M cone midrange speaker is the perfect complement for every fully active driven 2-way speaker system. Its lightweight glassfiber-paper compound cone guarantees excellent impulse response and minimum sound discoloration, whereas the highly efficient neodymium magnet system provides for a linear drive and minimum distortion. Additionally, the flow-optimized basket not only prevents rear reflections, but also ensures compression-free sound reproduction thanks to optimum voice coil cooling. The P 3M develops its full tonal potential in a sealed, dampened enclosure.
Features
- 3? / 75 mm cone midrange speaker with novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping
- Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
- Low-resonant basket made from glassfiber reinforced plastic with optimized voice coil cooling for high power handling

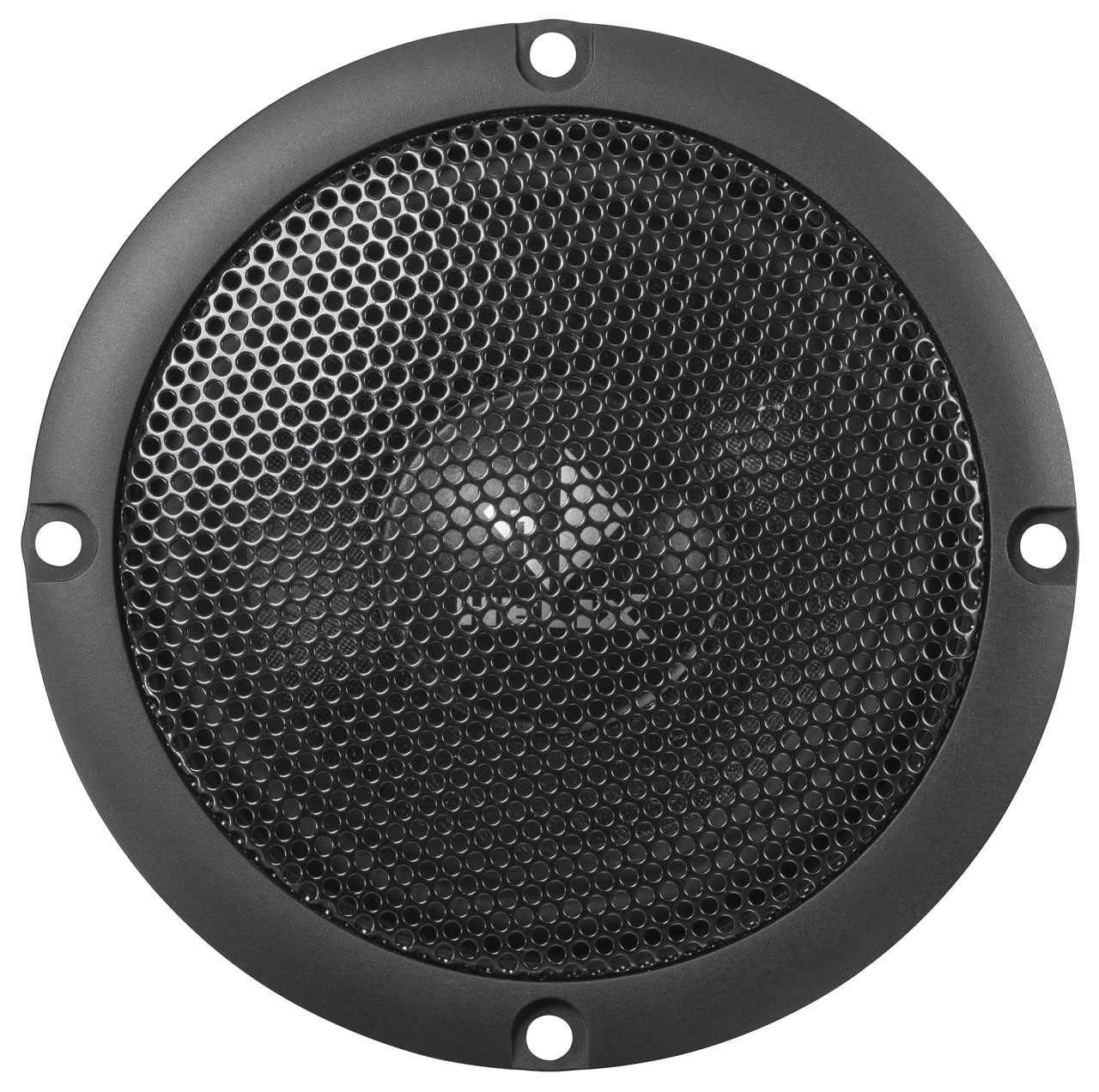

- Grille included
Additional Information
Specification
Performance Specifications
HELIX P 3M
Power RMS / max.
75 / 150 Watts (highpass > 400 Hz at 24 dB/Oct.)
Impedance
4 Ω
DC resistance
3.3 Ω
Frequency response
400 Hz – 5,000 Hz
Resonance frequency
130 Hz
Mechanical Q factor
4.72
Electrical Q factor
0.50
Total Q factor
0.45
Compliance
415 µm/N
Equivalent air volume
0.54 L
Force factor
4.4 Tm
Sensitivity 1 W / 1 m
86 dB
Cone area
30 cm²
Moving mass
3.7 g
Cone material
Glassfiber-paper compound cone
Mechanical resistance
0.63 kg/s
Voice coil diameter
25 mm
Voice coil winding height
8 mm
Max. linear excursion
+/- 2 mm
Sealed box with minimum 200 ml net volume: Net volumes
Recommended DSP / amplifier settings
Sealed box with minimum 200 ml net volume: 0.2 liter (System resonance: 230 Hz)
Crossover frequency: 500 Hz Min. filter slope: 12 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.4 liter (System resonance: 190 Hz)
Crossover frequency: 450 Hz Min. filter slope: 18 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.6 liter (System resonance: 170 Hz)
Crossover frequency: 400 Hz Min. filter slope: 24 dB/Oct.
Product Data
Physical Specifications: HELIX P 3M
Outer diameter: 90 mm / 3.54″
Installation diameter: 73 mm / 2.87″
Installation depth: 37 mm / 1.46″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

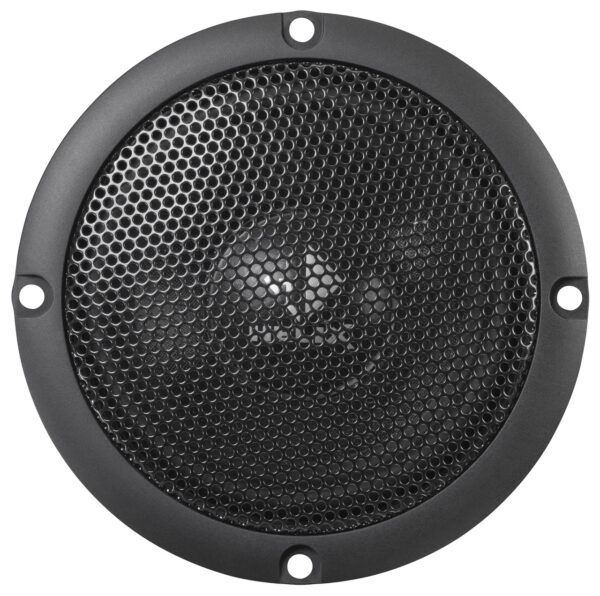

Helix P 3M 3″ Midrange Speaker
75 mm / 3″ cone midrangePower handling: 75 / 150 Watts Frequency range: 400 Hz – 5,000 Hz
£154.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
HELIX P 3M
The P 3M cone midrange speaker is the perfect complement for every fully active driven 2-way speaker system. Its lightweight glassfiber-paper compound cone guarantees excellent impulse response and minimum sound discoloration, whereas the highly efficient neodymium magnet system provides for a linear drive and minimum distortion. Additionally, the flow-optimized basket not only prevents rear reflections, but also ensures compression-free sound reproduction thanks to optimum voice coil cooling. The P 3M develops its full tonal potential in a sealed, dampened enclosure.
Features
- 3? / 75 mm cone midrange speaker with novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping
- Highly efficient, compact neodymium magnet system for linear drive and minimum distortion
- Low-resonant basket made from glassfiber reinforced plastic with optimized voice coil cooling for high power handling
- Grille included
Performance Specifications
HELIX P 3M
Power RMS / max.
75 / 150 Watts (highpass > 400 Hz at 24 dB/Oct.)
Impedance
4 Ω
DC resistance
3.3 Ω
Frequency response
400 Hz – 5,000 Hz
Resonance frequency
130 Hz
Mechanical Q factor
4.72
Electrical Q factor
0.50
Total Q factor
0.45
Compliance
415 µm/N
Equivalent air volume
0.54 L
Force factor
4.4 Tm
Sensitivity 1 W / 1 m
86 dB
Cone area
30 cm²
Moving mass
3.7 g
Cone material
Glassfiber-paper compound cone
Mechanical resistance
0.63 kg/s
Voice coil diameter
25 mm
Voice coil winding height
8 mm
Max. linear excursion
+/- 2 mm
Sealed box with minimum 200 ml net volume: Net volumes
Recommended DSP / amplifier settings
Sealed box with minimum 200 ml net volume: 0.2 liter (System resonance: 230 Hz)
Crossover frequency: 500 Hz Min. filter slope: 12 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.4 liter (System resonance: 190 Hz)
Crossover frequency: 450 Hz Min. filter slope: 18 dB/Oct.
Sealed box with minimum 200 ml net volume: 0.6 liter (System resonance: 170 Hz)
Crossover frequency: 400 Hz Min. filter slope: 24 dB/Oct.
Physical Specifications
HELIX P 3M
Outer diameter
90 mm / 3.54″
Installation diameter
73 mm / 2.87″
Installation depth
37 mm / 1.46″
