Description
HELIX M SIX
One for all – no matter if 3-way, 2-way or subwoofer application, the 6-channel amplifier M SIX will always be the right choice.
With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp really gets your speaker cones going despite its super-compact dimensions. On the other hand the M SIX stays totally cool thanks to its highly efficient Class D design topology. And even bridged configurations are possible, delivering up to 3 x 200 Watts RMS of clean and undistorted output power.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. And finally the perfect sound tuning is no big deal thanks to its integrated crossover with all its setup options.
Features
- Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
- Start-Stop capability down to 6V supply voltage

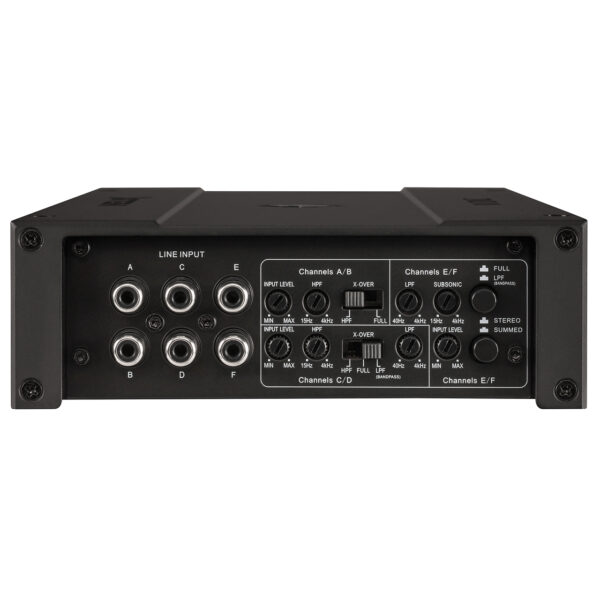

- 6-channel lowlevel input
- Integrated, active crossover with highpass, lowpass, bandpass and subsonic
- “Input mode” switch for channel E & F for flexible input signal routing
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Special features:
Start-Stop capability
The switched power supply of the HELIX M SIX assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Additional Information
Specification
Performance Specifications
M SIX
Output power RMS ≤ 1% THD+N
‘- @ 4 Ohms
6 x 100 Watts
‘- @ 2 Ohms
6 x 100 Watts
‘- @ 1 Ohms
‘-
‘- bridged @ 4 Ohms
3 x 200 Watts
‘- bridged @ 2 Ohms
‘-
Max. output power per channel
Up to 130 Watts RMS @ 4 / 2 Ohms
Amplifier technology
Class D
Inputs
6 x RCA / Cinch
1 x Remote In
Input sensitivity
RCA / Cinch 0.5 – 6 Volts
Input impedance RCA / Cinch
20 kOhms
Input impedance highlevel
‘-
Outputs
6 x Speaker output
Output voltage RCA / Cinch
‘-
Signal converter for digital input
‘-
Frequency response
10 Hz – 30,000 Hz
Bass boost
‘-
Highpass
15 Hz – 4,000 Hz adjustable
Lowpass
40 Hz – 4,000 Hz adjustable
Bandpass
15 Hz – 4,000 Hz adjustable
Subsonic / HPF
15 Hz – 4,000 Hz adjustable
Phase
‘-
Slope high- / lowpass
‘ 12 dB/Oct.
Slope subsonic / lowpass
‘-
Signal-to-noise ratio digital input
‘-
Signal-to-noise ratio analog input
98 dB (A-weighted)
Distortion (THD)
0.05 %
Damping factor
100
Operating voltage
10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
1,550 mA
Operating temperature range
‘-40° C to +70° C
Fuse
2 x 35 A Maxi-fuse (APX)
Power rating
DC 12 V ⎓ 80 A max.
Additional features
Active, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capability
Product Data
Physical Specifications: M SIX
Approximate Length: 320 mm
Approximate Width: 154 mm
Approximate Height: 154 mm
File Download
Delivery Information
Delivery information content here.

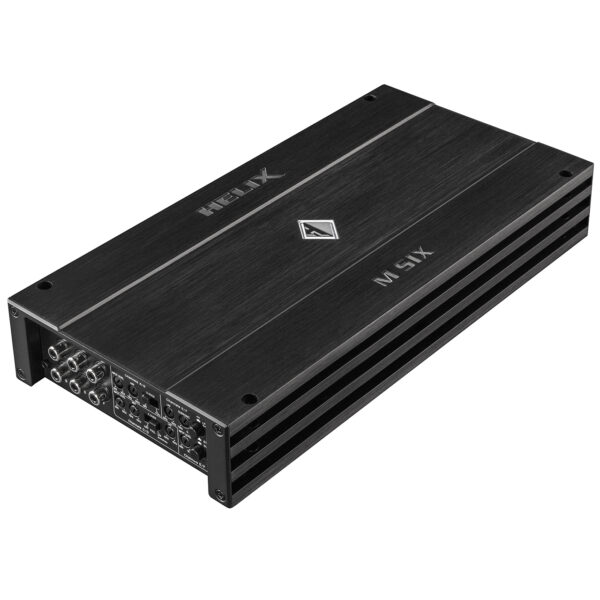

Helix M SIX 6 Channel Amplifier
6-channel amplifier with integrated active crossover
£359.00
HELIX M SIX
One for all – no matter if 3-way, 2-way or subwoofer application, the 6-channel amplifier M SIX will always be the right choice.
With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp really gets your speaker cones going despite its super-compact dimensions. On the other hand the M SIX stays totally cool thanks to its highly efficient Class D design topology. And even bridged configurations are possible, delivering up to 3 x 200 Watts RMS of clean and undistorted output power.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. And finally the perfect sound tuning is no big deal thanks to its integrated crossover with all its setup options.
Features
- Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
- Start-Stop capability down to 6V supply voltage
- 6-channel lowlevel input
- Integrated, active crossover with highpass, lowpass, bandpass and subsonic
- “Input mode” switch for channel E & F for flexible input signal routing
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Special features:
Start-Stop capability
The switched power supply of the HELIX M SIX assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Performance Specifications
M SIX
Output power RMS ≤ 1% THD+N
‘- @ 4 Ohms
6 x 100 Watts
‘- @ 2 Ohms
6 x 100 Watts
‘- @ 1 Ohms
‘-
‘- bridged @ 4 Ohms
3 x 200 Watts
‘- bridged @ 2 Ohms
‘-
Max. output power per channel
Up to 130 Watts RMS @ 4 / 2 Ohms
Amplifier technology
Class D
Inputs
6 x RCA / Cinch
1 x Remote In
Input sensitivity
RCA / Cinch 0.5 – 6 Volts
Input impedance RCA / Cinch
20 kOhms
Input impedance highlevel
‘-
Outputs
6 x Speaker output
Output voltage RCA / Cinch
‘-
Signal converter for digital input
‘-
Frequency response
10 Hz – 30,000 Hz
Bass boost
‘-
Highpass
15 Hz – 4,000 Hz adjustable
Lowpass
40 Hz – 4,000 Hz adjustable
Bandpass
15 Hz – 4,000 Hz adjustable
Subsonic / HPF
15 Hz – 4,000 Hz adjustable
Phase
‘-
Slope high- / lowpass
‘ 12 dB/Oct.
Slope subsonic / lowpass
‘-
Signal-to-noise ratio digital input
‘-
Signal-to-noise ratio analog input
98 dB (A-weighted)
Distortion (THD)
0.05 %
Damping factor
100
Operating voltage
10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
1,550 mA
Operating temperature range
‘-40° C to +70° C
Fuse
2 x 35 A Maxi-fuse (APX)
Power rating
DC 12 V ⎓ 80 A max.
Additional features
Active, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capability
Physical Specifications
M SIX
Approximate Length
320 mm
Approximate Width
154 mm
Approximate Height
154 mm
