Description
HELIX M ONE X
Small, efficient and uncompromisingly stable – the M ONE X is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Features
- Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonicand phase control
- TwinPower Link for connecting two amplifiers in bridged mode
- Bass remote control for volume adjustment
- Low heat dissipation thanks to extraordinary efficiency
Special features
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M ONE X.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE X assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Additional Information
Specification
Performance Specifications
HELIX M ONE X
Power RMS ≤ 1% THD+N
Normal operation, (One amplifier)
@ 4 Ohms
1 x 400 Watts
@ 2 Ohms
1 x 700 Watts
@ 1 Ohm
1 x 1,030 Watts
Max. output power per channel*:
Up to 1,180 Watts RMS @ 1 Ohm
Amplifier technology
Class D
Inputs
2 x RCA / Cinch, 2 x Highlevel speaker input, 1 x Remote In, 1 x Remote control input
Input sensitivity
RCA / Cinch 0.5 – 6 Volts, Highlevel 1.1 – 13 Volts
Input impedance RCA / Cinch
20 kOhms
Input impedance highlevel
9 – 33 Ohms
Outputs
1 x Speaker output
Frequency response
10 Hz – 250 Hz
Bass boost
0 – 12 dB / 30 – 80 Hz
Lowpass
50 Hz – 250 Hz adjustable
Bandpass
10 Hz – 250 Hz adjustable
Subsonic
10 Hz – 50 Hz adjustable
Phase
0 – 180° adjustable
Slope subsonic / lowpass
12 / 24 dB/Oct.
Signal-to-noise ratio analog input
95 dB (A-weighted)
Distortion (THD)
0.20 %
Damping factor
150
Operating voltage
10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
800 mA
Operating temperature range
-40 °C to +70 °C
Fuse
3 x 40 A Maxi-fuse (APX)
Power rating
DC 12 V ⎓ 106 A max.
Additional features
Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
Product Data
Physical Specifications: HELIX M ONE X
Dimensions (H x W x D): 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06”
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.

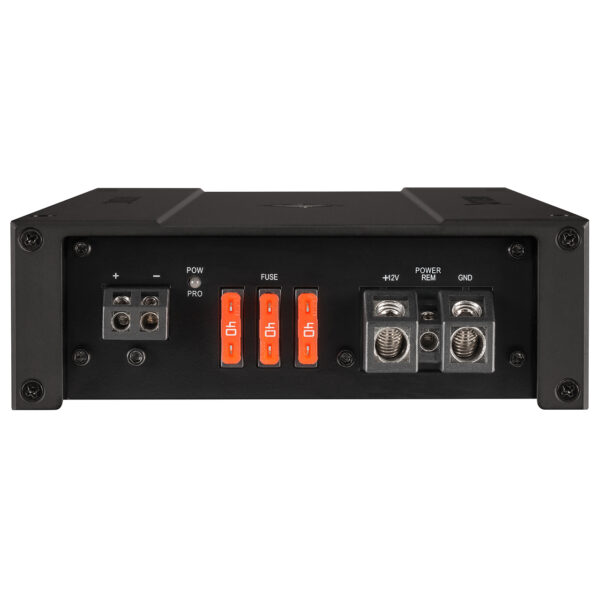

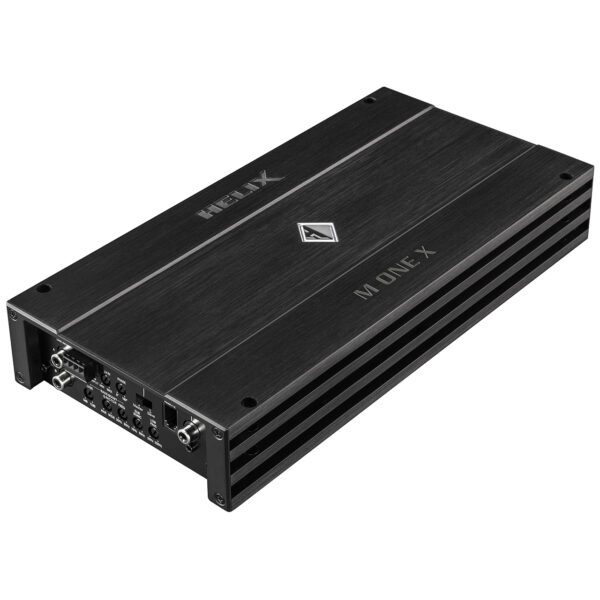

Helix M ONE X 1180W Mono Amplifier
1-channel subwoofer amplifier with integratedactive crossover and 1 Ohm stability
£299.99
