Description
HELIX M ONE
Small, efficient and uncompromisingly stable – the M ONE is a highly compact monoblock amplifier for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Features
- Small footprint Class D amplifier with high output power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- Extremely stable output stage with high-current power transistors and 1 Ohm stability
- Bass remote control for volume adjustment
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Special features:
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Additional Information
Specification
Performance Specifications
M ONE
Output power RMS ? 1% THD+N
‘- @ 4 Ohms
1 x 240 Watts
‘- @ 2 Ohms
1 x 410 Watts
‘- @ 1 Ohms
1 x 600 Watts
‘- bridged @ 4 Ohms
‘-
‘- bridged @ 2 Ohms
‘-
Max. output power per channel
Up to 720 Watts RMS @ 1 Ohm
Amplifier technology
Class D
Inputs
2 x RCA / Cinch
2 x Highlevel speaker input
1 x Remote In
1 x Remote control input
Input sensitivity
RCA / Cinch 0.5 – 6 Volts
Highlevel 1.1 – 13 Volts
Input impedance RCA / Cinch
20 kOhms
Input impedance highlevel
13 Ohms
Outputs
1 x Speaker output
Output voltage RCA / Cinch
‘-
Signal converter for digital input
‘-
Frequency response
10 Hz – 250 Hz
Bass boost
0 – 12 dB / 25 – 75 Hz
Highpass
‘-
Lowpass
50 Hz – 250 Hz adjustable
Bandpass
10 Hz – 250 Hz adjustable
Subsonic
10 Hz – 50 Hz adjustable
Phase
0 – 180? adjustable
Slope high- / lowpass
‘-
Slope subsonic / lowpass
12 / 24 dB/Oct.
Signal-to-noise ratio digital input
‘-
Signal-to-noise ratio analog input
95 dB (A-weighted)
Distortion (THD)
0.20%
Damping factor
100
Operating voltage
10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
650 mA
Operating temperature range
‘-40? C to +70? C

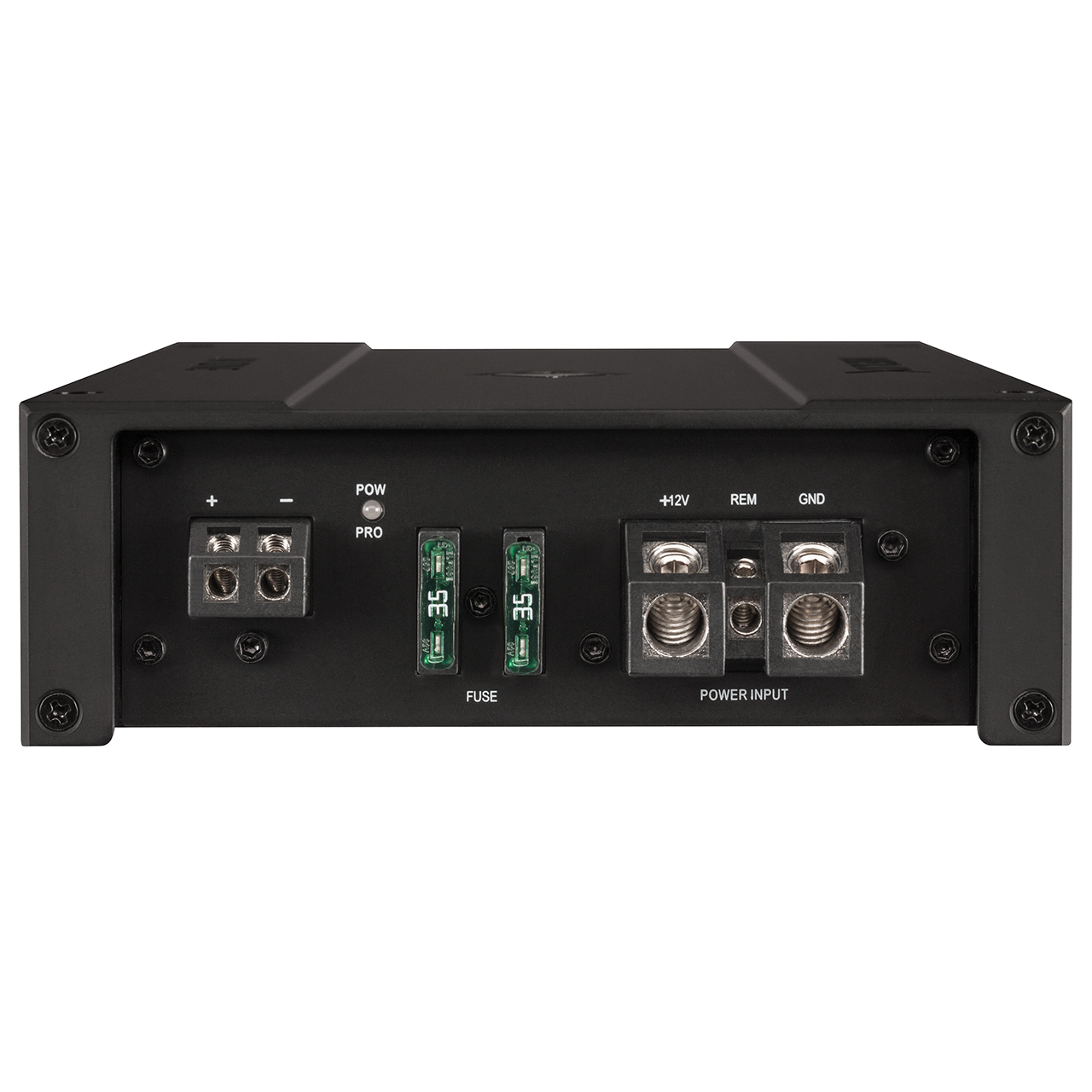

Fuse
2 x 35 A Maxi-fuse (APX)
Additional features
Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
Product Data
Physical Specifications: M ONE
Approximate Length: 154 mm
Approximate Width: 230 mm
Approximate Height: 50 mm
File Download
Delivery Information
Delivery information content here.
Helix M ONE 1200W Mono Amplifier
1-channel subwoofer amplifier with integratedactive crossover and 1 Ohm stability
£249.00
