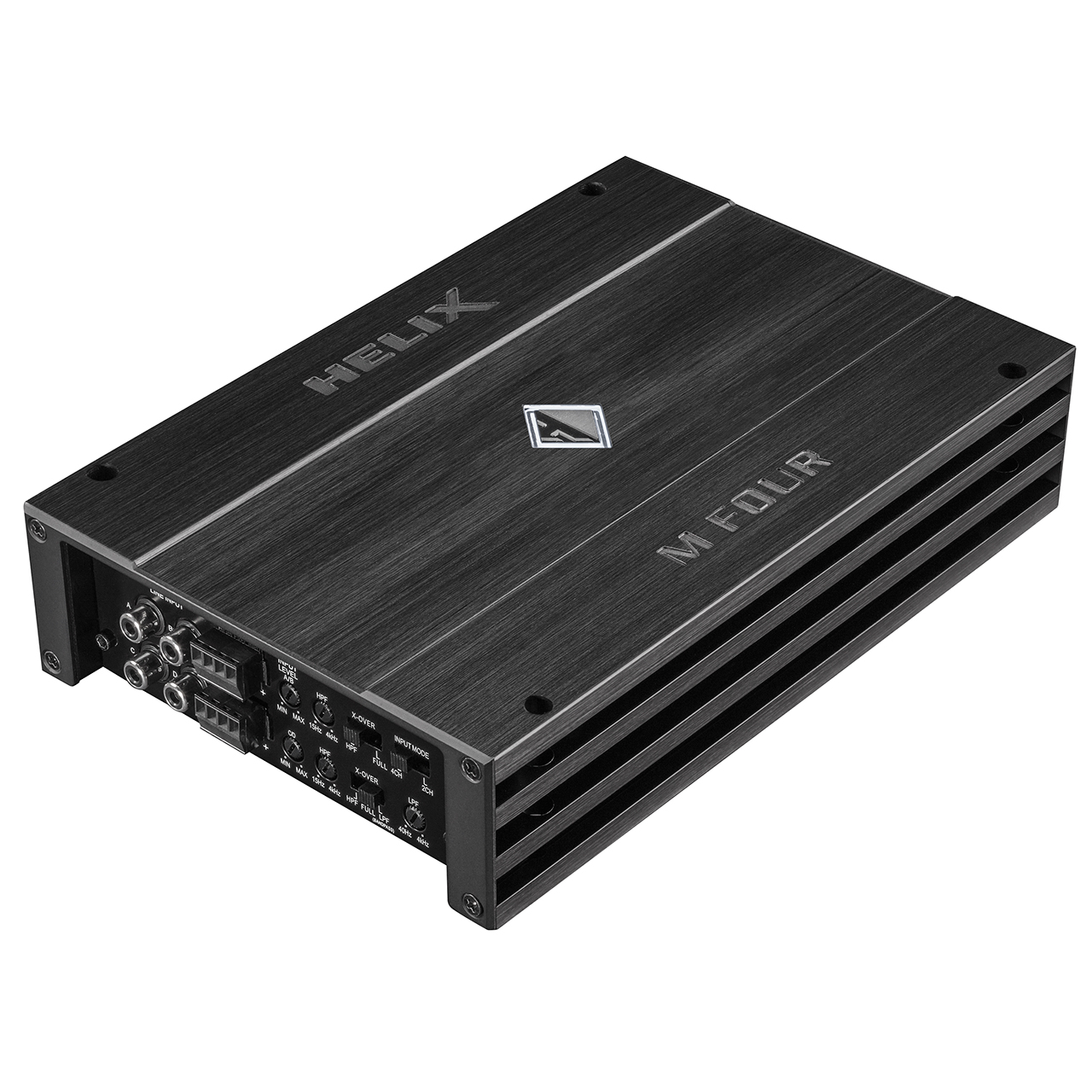

HELIX M FOUR
If you like to rev up your front and rear speakers, the M FOUR will be exactly the right “tool” to do so. With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp will heat up your voice coils in no time despite its super-compact dimensions. On the other hand the M FOUR stays totally cool thanks to the highly efficient Class D design topology. 3-channel or 2-channel configurations are possible as well, delivering up to 2 x 200 Watts RMS of clean and undistorted output power.
Needless to say that the M FOUR is equipped with a bunch of intelligent attributes like “start-stop capability” and our proprietary “ADEP” highlevel input so that it easily deals with all installation challenges of modern cars. Finally the extensive audio features will offer a sound quality at its best.
Features
- Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
- Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with highpass, lowpass and bandpass
- “Input mode” switch for flexible input signal routing
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Special features:
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M FOUR.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M FOUR assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Additional Information
Specification
Performance Specifications
M FOUR
Output power RMS ≤ 1% THD+N
‘- @ 4 Ohms
4 x 100 Watts
‘- @ 2 Ohms
4 x 100 Watts
‘- @ 1 Ohm
‘-
‘- bridged @ 4 Ohms
2 x 200 Watts
‘- bridged @ 2 Ohms
‘-
Max. output power per channel*
Up to 135 Watts RMS @ 4 / 2 Ohms
Amplifier technology
Class D

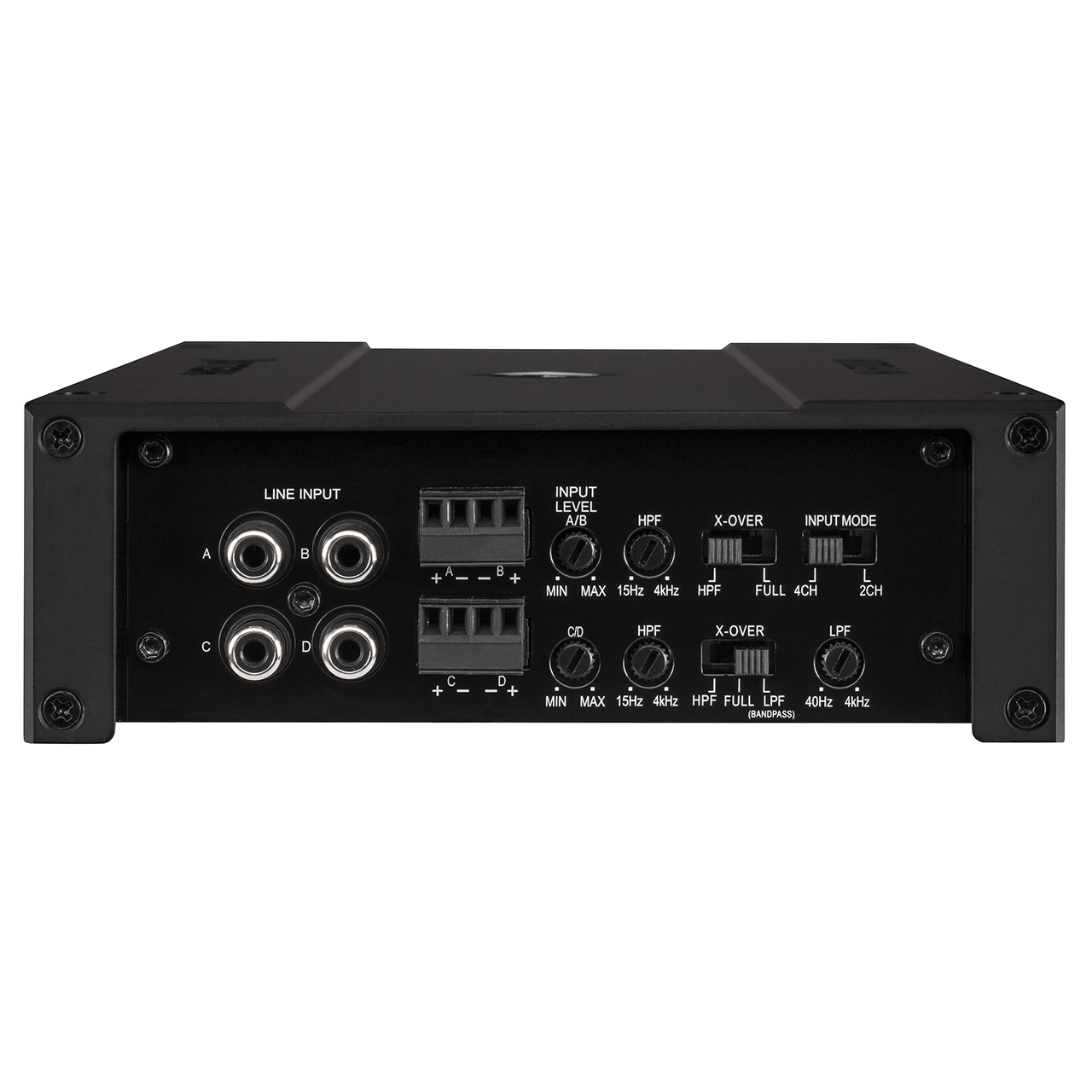

Inputs
4 x RCA / Cinch
4 x Highlevel speaker input
1 x Remote In
Input sensitivity
RCA / Cinch 0.5 – 6 Volts
Highlevel 1.3 – 13 Volts
Input impedance RCA / Cinch
20 kOhms
Input impedance highlevel
9 – 33 Ohms

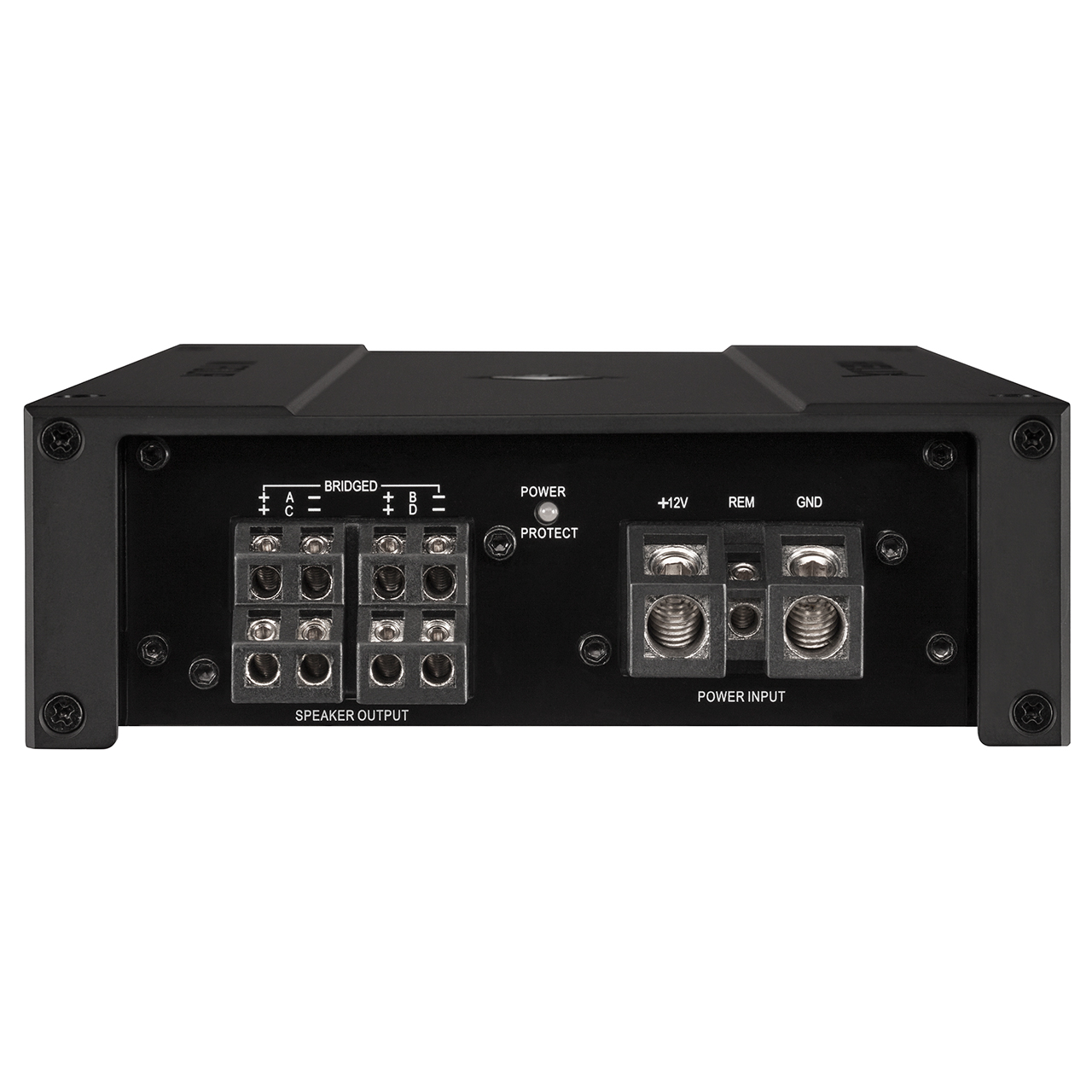

Outputs
4 x Speaker output
Output voltage RCA / Cinch
‘-
Signal converter for digital input
‘-
Frequency response
10 Hz – 30,000 Hz
Bass boost
‘-
Highpass
15 Hz – 4,000 Hz adjustable
Lowpass
40 Hz – 4,000 Hz adjustable
Bandpass
15 Hz – 4,000 Hz adjustable
Subsonic
‘-
Phase
‘-
Slope high- / lowpass
‘ 12 dB/Oct.
Slope subsonic / lowpass
‘-
Signal-to-noise ratio digital input
‘-
Signal-to-noise ratio analog input
98 dB (A-weighted)
Distortion (THD)
0.05 %
Damping factor
100
Operating voltage
10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
1,100 mA
Operating temperature range
‘-40° C to +70° C
Fuse
2 x 30 A Maxi-fuse (APX)
Power rating
DC 12 V ⎓ 45 A max.
Additional features
Active, adjustable crossover, input mode switch, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP)
Product Data
helix:
Approximate Length: 230 mm
Approximate Width: 154 mm
Approximate Height: 50 mm
File Download
Delivery Information
Delivery information content here.
Helix M FOUR 100W 4 Channel Amplifier
4-channel amplifier with integrated active crossover 4 x 100 / 200 Watts @ 4 Ohms
£299.00
