Helix IK S10-SVC2

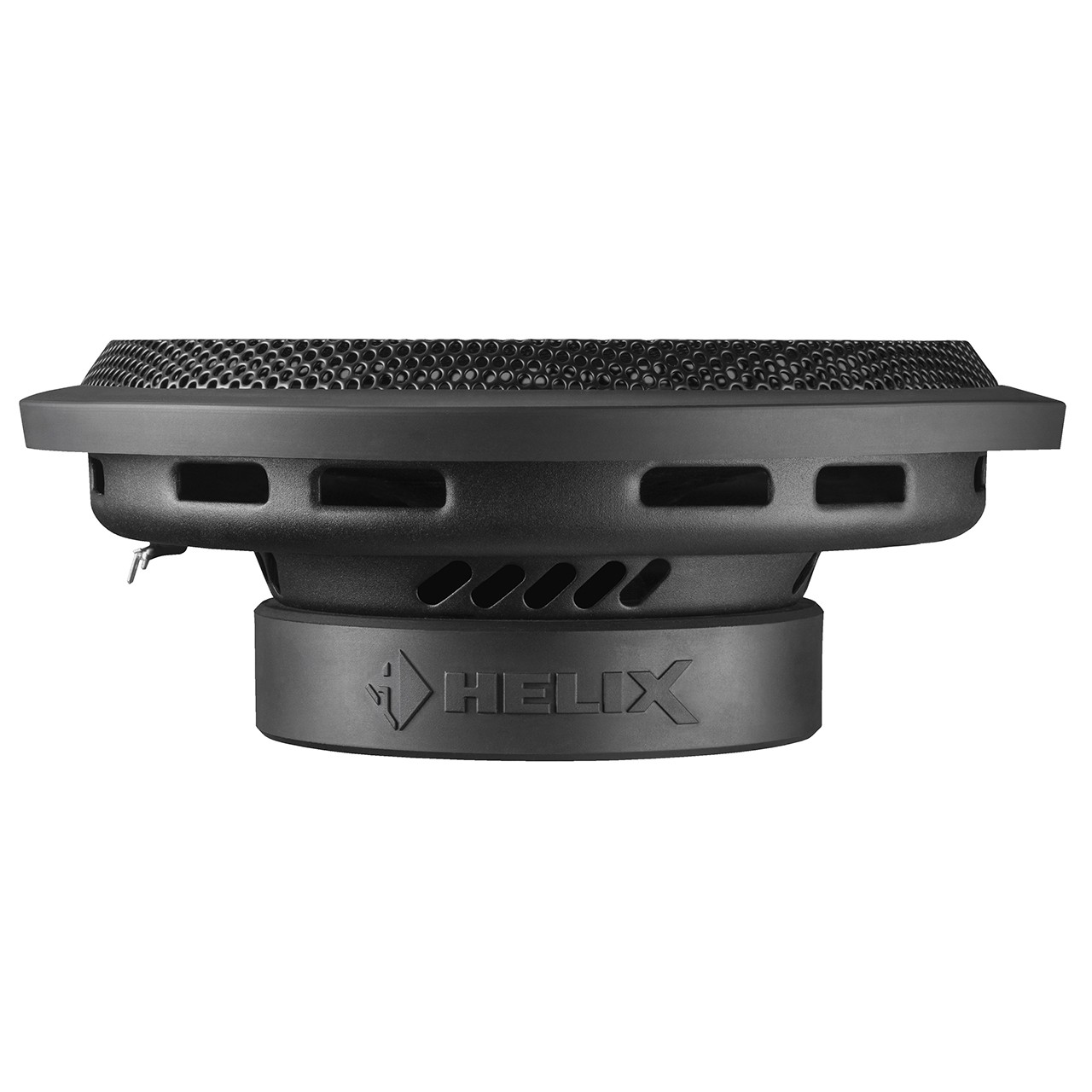

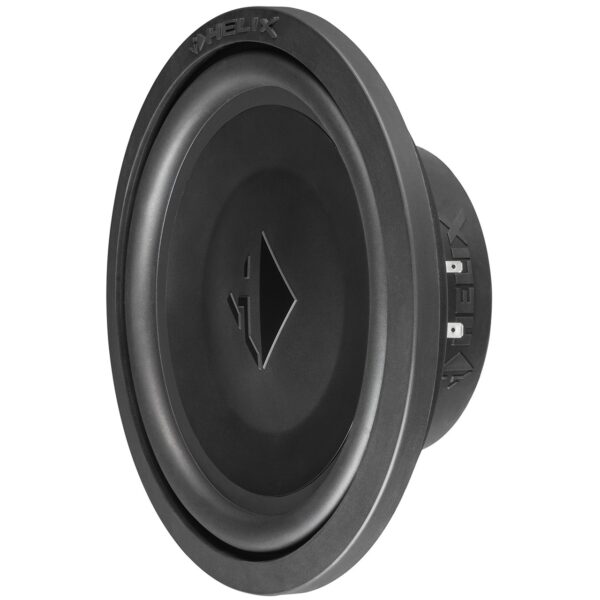

The Helix IK S10-SVC2 is a 10″ / 250 mm shallow-mount subwoofer from the Impact range. With an installation depth of only 84.5 mm, it makes particularly flat and compact enclosures possible without giving up bass: large voice coils and a low resonant frequency give it bass performance that holds its own against larger woofers. It handles 300 W RMS and 600 W max.

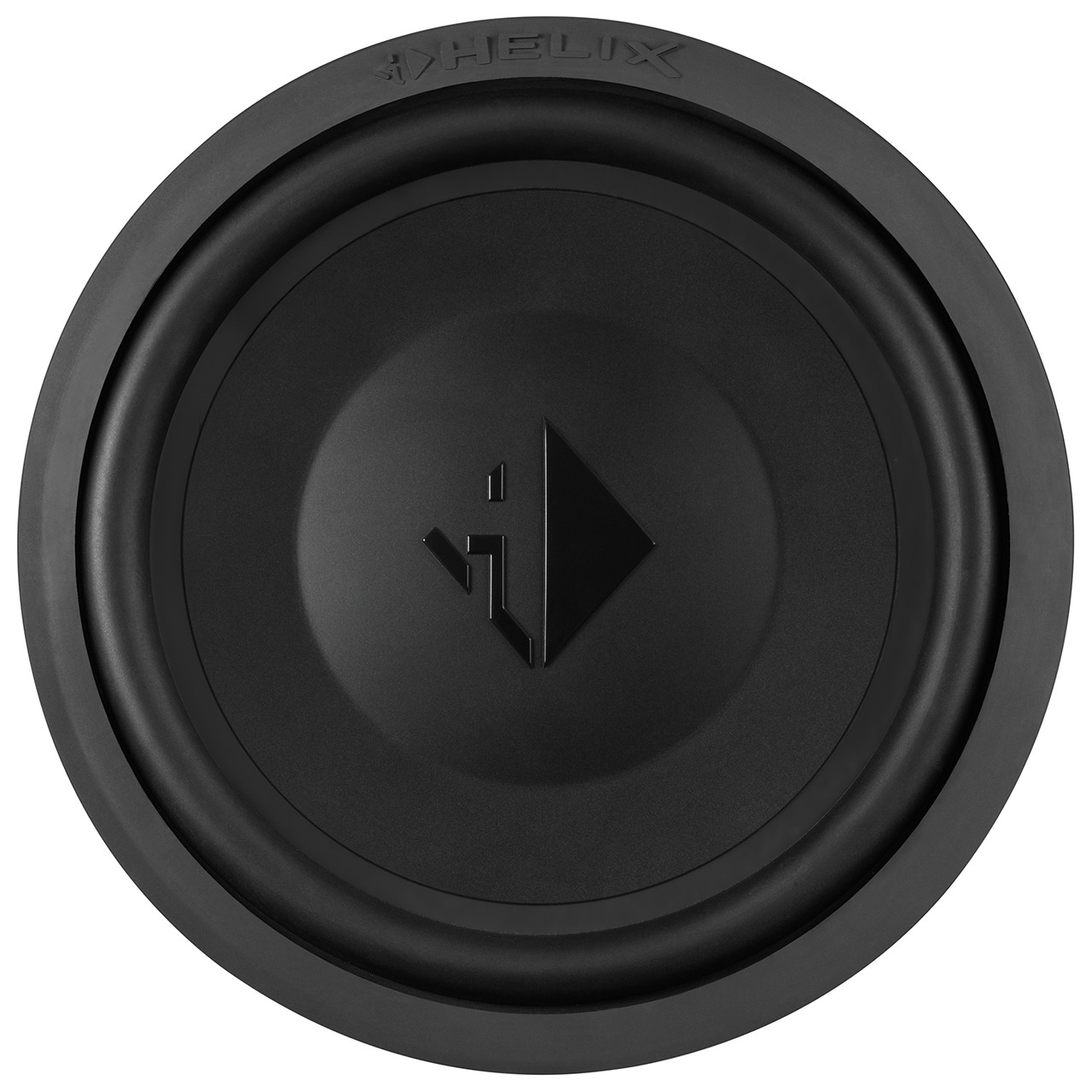

A very stiff sandwich paper cone and a heavy-duty drive system turn amplifier power into clean, compression-free output while keeping bass lines detailed. The magnet has a threaded hole in the back so the woofer can be screwed to the back panel of the enclosure, which steadies thin-walled shallow boxes and cuts enclosure vibration.

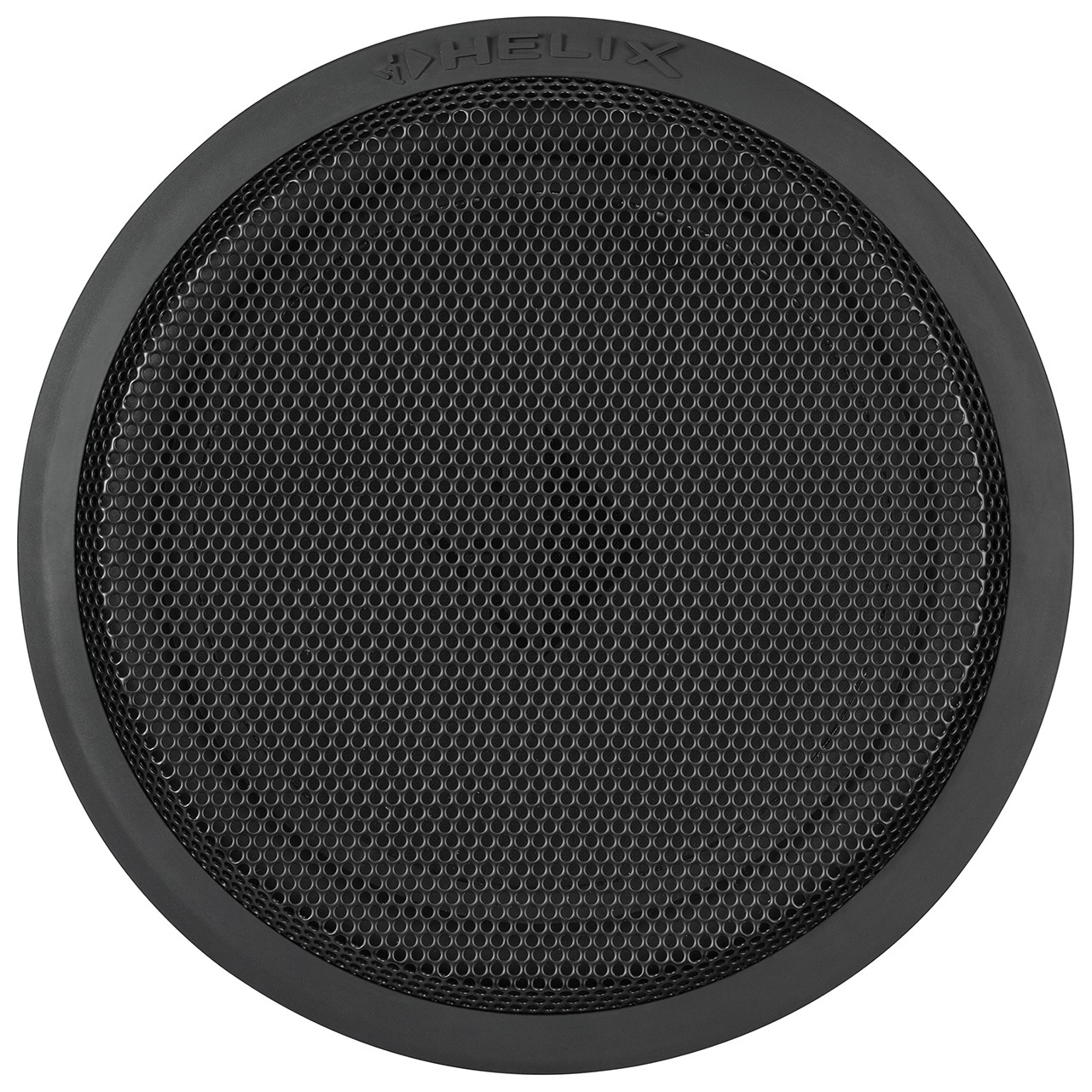

The 1 x 2 Ohm single voice coil is a straightforward match for a mono amplifier that is stable at 2 Ohms. The grille, gasket and an enclosure terminal with gold-plated screw terminals come in the box, and Helix publish recommended enclosures with matching DSP settings: 14 L sealed or 16 L vented. Ideal if you are building your own box.
Features
- Very low installation depth (84.5 mm), made for compact and shallow enclosures
- 1 x 2 Ohm single voice coil
- Threaded hole in the magnet for screwing to the enclosure back panel, reducing enclosure vibration
- Very stiff sandwich paper cone
- Long-excursion rubber surround
- Rugged magnet cover with Helix lettering
- Enclosure terminal, grille and gasket included
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
HELIX IK S10-SVC2
Power handling RMS / max.
300 / 600 Watts
Impedance
1 x 2 Ω
DC resistance
2.0 Ω
Resonance frequency
37 Hz
Mechanical Q factor
7.61
Electrical Q factor
0.54
Total Q factor
0.51
Compliance
150 μm/N
Equivalent air volume
26 L
Force factor
10.1 Tm
Sensitivity
93.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m
Moving mass
119 g
Mechanical resistance
3.7 kg/s
Max. linear excursion
+/- 6.0 mm
Sealed box: Net volume
14 L
Sealed box: Lower limiting frequency (-3dB)
46 Hz
Sealed box: Recommended DSP settings
Recommended “self-define” highpass filter with 45 Hz cut-off frequency and Q = 1.3; additional EQ filter 100 Hz / Q = 1.0 / -3 dB
Vented box: Net volume
16 L
Vented box: Port diameter
70 mm / 2.76″
Vented box: Port area
38 cm²
Vented box: Port length
38 cm / 14.96″
Vented box: Port tuning frequency
37 Hz
Vented box: Lower limiting frequency (-3dB)
39 Hz
Vented box: Recommended DSP settings
Recommended “self-define” highpass filter with 37 Hz cut-off frequency and Q = 1.2; additional EQ filter 95 Hz / Q = 0.7 / -3 dB
Product Data
Physical Specifications: HELIX IK S10-SVC2
Cone area: 353 cm²
Cone material: Sandwich paper cone
Voice coil diameter: 50.8 mm
Voice coil winding height: 18 mm
Outer diameter: 262 mm / 10.31″
Installation diameter: 229 mm / 9.01″
Installation depth: 84.5 mm / 3.33″
Scope of delivery: 1 x Subwoofer HELIX IK S10-SVC2, 1 x Grille, 1 x Gasket, 1 x Enclosure connecting terminal, 1 x Data sheet
Part number: K331003
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix IK S10-SVC2 10″ Shallow Subwoofer 1 x 2 Ohm
Helix IK S10-SVC2, part number K331003. A 10″ shallow-mount subwoofer only 84.5 mm deep, 300 W RMS with a 1 x 2 Ohm single voice coil.
£169.00
