Helix IK ES10.1-DVC2 MK2
The Helix IK ES10.1-DVC2 MK2 puts proper bass into places a normal subwoofer won’t go. Its exceptionally flat downfire ported enclosure is only 135 mm tall, made for hidden spots such as under a double boot floor. Firing into the floor uses the car itself to reinforce the bass and keeps the driver protected.
Inside is the shallow-mount 10″ / 250 mm Helix IK S10-DVC2 driver with a heavy-duty dual voice coil and a rigid sandwich paper cone, port-tuned to 37 Hz. Flat boxes need extra care to stop them vibrating, so the driver’s magnet is bolted to the enclosure’s back panel as extra stiffening. It handles 300 W RMS and Helix recommend 150 to 300 W of amplifier power. The dual voice coils can be set at the terminal to 1 x 1 Ohm for a monoblock, 1 x 4 Ohm for a bridged channel pair, or 2 x 2 Ohm for a multichannel DSP amplifier.

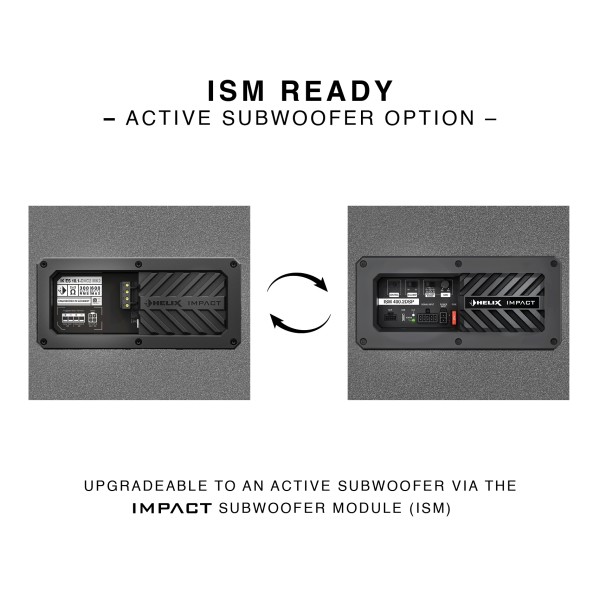

New in the MK2 version, it is ISM-ready. Swap the passive terminal for the optional Helix Impact ISM 400.2DSP subwoofer module and it becomes an active subwoofer with its own amplifier and DSP (also available from us as a complete kit). The new plug-in terminal also takes standard speaker cable on screw terminals or a Molex plug, so it is quick to remove when you need the boot space.
Features
- Extra-shallow downfire ported enclosure, only 135 mm tall
- Shallow-mount 10″ / 250 mm Helix IK S10-DVC2 driver with sandwich paper cone
- Magnet bolted to the back panel to stiffen the enclosure and cut vibration
- Dual voice coil, configurable at the terminal as 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
- MK2: ISM-ready, converts to an active subwoofer with the Helix Impact ISM 400.2DSP module
- New plug-in terminal with screw connection plus a Molex connector for custom wiring harnesses
- Feet with Velcro pads for a secure stand
- Hard-wearing carpet finish with embroidered Helix logo
In the box
- 1 x Downfire enclosure subwoofer IK ES10.1-DVC2 MK2
- 1 x Data sheet
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Helix IK ES10.1-DVC2 MK2
Power handling RMS
300 W
Recommended amplifier power
150 – 300 W RMS
Impedance
2 x 2 Ohm / 1 x 4 Ohm / 1 x 1 Ohm
Max. linear excursion (Xlin)
+/- 6 mm
Max. mechanical excursion (Xmax)
+/- 15 mm
Port tuning frequency (Fb)
37 Hz
Sensitivity
91 dB @ 2.83 V / 1 m, 88 dB @ 1 W / 1 m
Integrated subwoofer chassis
Helix IK S10-DVC2
Recommended DSP settings
“Self-define” highpass 37 Hz / Q = 1.2, EQ filter 95 Hz / Q = 0.7 / -3 dB
Compatible amplifier module
Helix Impact ISM 400.2DSP
Order number
K331021
Product Data
Physical Specifications: Helix IK ES10.1-DVC2 MK2
Dimensions (H x W x D): 135 x 725 x 350 mm / 5.3 x 28.5 x 13.8″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix IK ES10.1-DVC2 MK2 10″ Shallow Downfire Subwoofer Enclosure
Helix IK ES10.1-DVC2 MK2, part number K331021. An extra-shallow 10″ downfire ported subwoofer enclosure, only 135 mm tall, 300 W RMS, 2 x 2 Ohm and ready for the Impact ISM active subwoofer module.
£269.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Helix IK ES10.1-DVC2 MK2
The Helix IK ES10.1-DVC2 MK2 puts proper bass into places a normal subwoofer won’t go. Its exceptionally flat downfire ported enclosure is only 135 mm tall, made for hidden spots such as under a double boot floor. Firing into the floor uses the car itself to reinforce the bass and keeps the driver protected.
Inside is the shallow-mount 10″ / 250 mm Helix IK S10-DVC2 driver with a heavy-duty dual voice coil and a rigid sandwich paper cone, port-tuned to 37 Hz. Flat boxes need extra care to stop them vibrating, so the driver’s magnet is bolted to the enclosure’s back panel as extra stiffening. It handles 300 W RMS and Helix recommend 150 to 300 W of amplifier power. The dual voice coils can be set at the terminal to 1 x 1 Ohm for a monoblock, 1 x 4 Ohm for a bridged channel pair, or 2 x 2 Ohm for a multichannel DSP amplifier.
New in the MK2 version, it is ISM-ready. Swap the passive terminal for the optional Helix Impact ISM 400.2DSP subwoofer module and it becomes an active subwoofer with its own amplifier and DSP (also available from us as a complete kit). The new plug-in terminal also takes standard speaker cable on screw terminals or a Molex plug, so it is quick to remove when you need the boot space.
Features
- Extra-shallow downfire ported enclosure, only 135 mm tall
- Shallow-mount 10″ / 250 mm Helix IK S10-DVC2 driver with sandwich paper cone
- Magnet bolted to the back panel to stiffen the enclosure and cut vibration
- Dual voice coil, configurable at the terminal as 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
- MK2: ISM-ready, converts to an active subwoofer with the Helix Impact ISM 400.2DSP module
- New plug-in terminal with screw connection plus a Molex connector for custom wiring harnesses
- Feet with Velcro pads for a secure stand
- Hard-wearing carpet finish with embroidered Helix logo
In the box
- 1 x Downfire enclosure subwoofer IK ES10.1-DVC2 MK2
- 1 x Data sheet
Full technical data is on the Product Specification and Product Data tabs.
Performance Specifications
Helix IK ES10.1-DVC2 MK2
Power handling RMS
300 W
Recommended amplifier power
150 – 300 W RMS
Impedance
2 x 2 Ohm / 1 x 4 Ohm / 1 x 1 Ohm
Max. linear excursion (Xlin)
+/- 6 mm
Max. mechanical excursion (Xmax)
+/- 15 mm
Port tuning frequency (Fb)
37 Hz
Sensitivity
91 dB @ 2.83 V / 1 m, 88 dB @ 1 W / 1 m
Integrated subwoofer chassis
Helix IK S10-DVC2
Recommended DSP settings
“Self-define” highpass 37 Hz / Q = 1.2, EQ filter 95 Hz / Q = 0.7 / -3 dB
Compatible amplifier module
Helix Impact ISM 400.2DSP
Order number
K331021
Physical Specifications
Helix IK ES10.1-DVC2 MK2
Dimensions (H x W x D)
135 x 725 x 350 mm / 5.3 x 28.5 x 13.8″
