Description
Helix IK ER8.2-DVC2 MK2

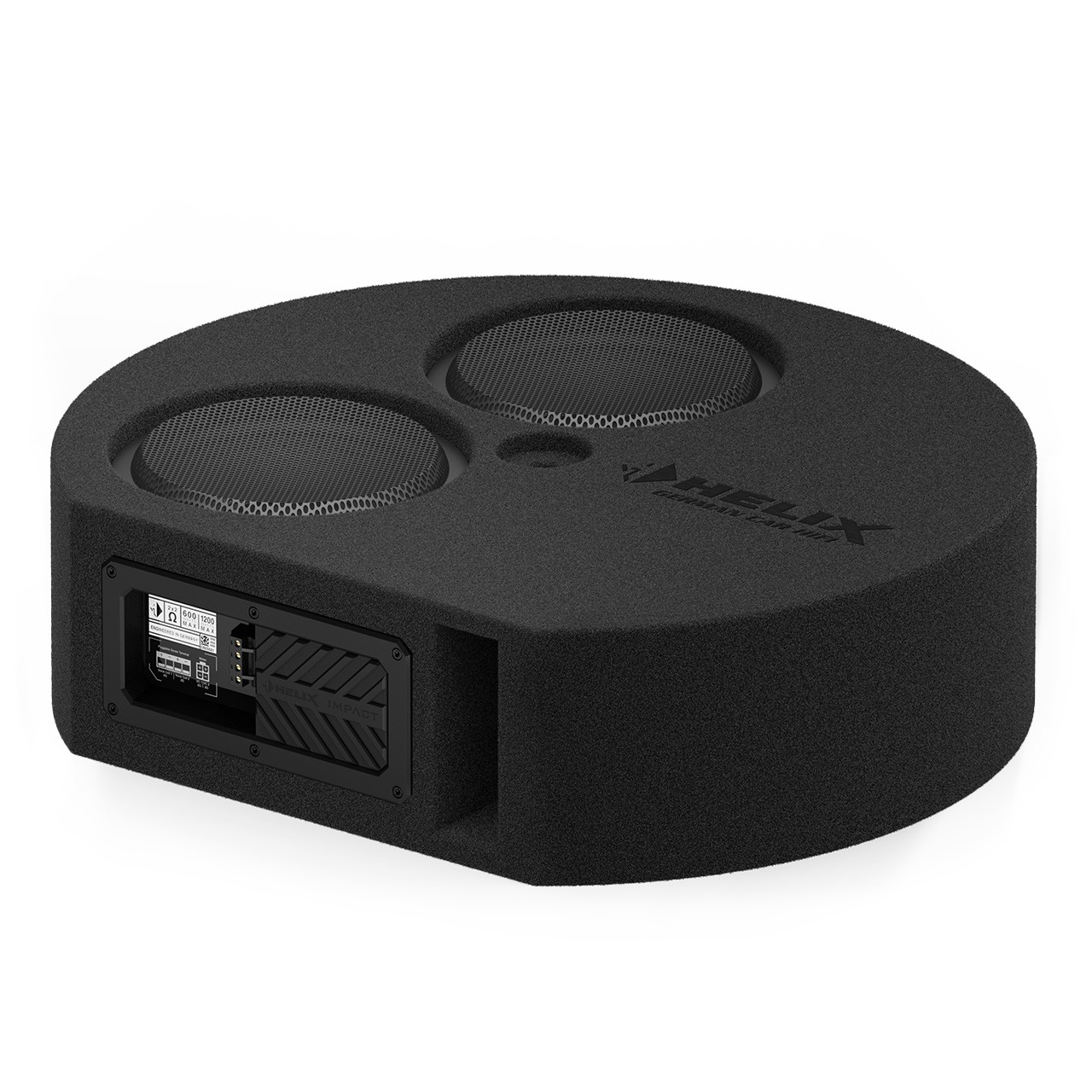

The Helix IK ER8.2-DVC2 MK2 is a round, shallow ported subwoofer designed to sit in the spare wheel well, so you get serious bass without losing boot space.
Two flush-mounted 8″ / 200 mm Helix IK W8 drivers with hand-scooped paper cones give it real punch. It handles 600 W RMS, Helix recommend 150 to 600 W of amplifier power, and the port is tuned to 41 Hz. At the terminal it can be set to 1 x 1 Ohm for a monoblock, 1 x 4 Ohm for a bridged channel pair, or 2 x 2 Ohm for a multichannel DSP amplifier.

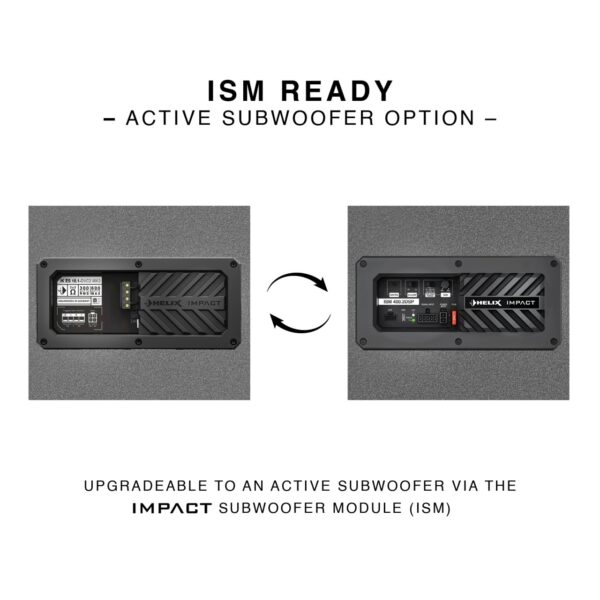

New in the MK2 version, it is ISM-ready. Swap the passive terminal for the optional Helix Impact ISM 400.2DSP subwoofer module and it becomes an active subwoofer with its own amplifier and DSP. The new plug-in terminal takes standard speaker cable on screw terminals or a Molex plug, and a mounting kit is included to secure it in the wheel well.
Features
- Round, shallow enclosure made for spare wheel wells
- Two 8″ / 200 mm high-excursion drivers with hand-scooped paper cones
- Vented design for strong output and good bass spread
- Impedance configurable at the terminal as 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
- MK2: ISM-ready, converts to an active subwoofer with the Helix Impact ISM 400.2DSP module

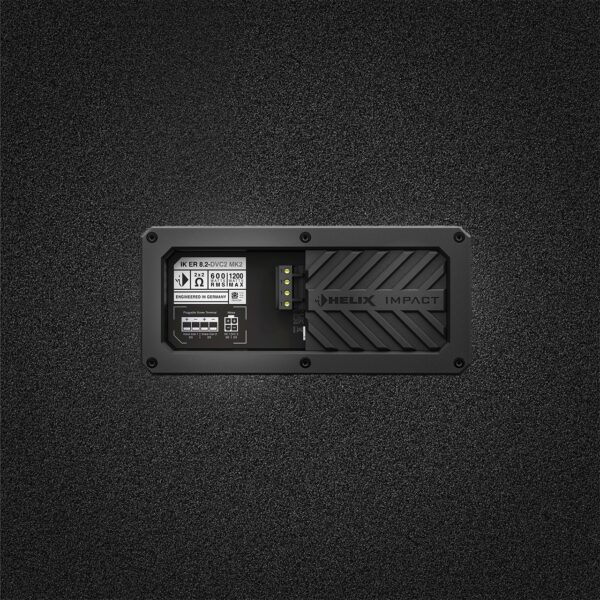

- New plug-in terminal with screw connection plus a Molex connector for custom wiring harnesses
- Flush-mounted drivers for a slim design and extra protection
- Hard-wearing carpet finish with embroidered Helix logo
- Mounting kit included for fixing in the spare wheel well
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Helix IK ER8.2-DVC2 MK2
Power handling RMS
600 W
Recommended amplifier power
150 – 600 W RMS
Impedance
2 x 2 Ohm / 1 x 4 Ohm / 1 x 1 Ohm
Max. linear excursion (Xlin)
+/- 8 mm
Max. mechanical excursion (Xmax)
+/- 17 mm
Port tuning frequency (Fb)
41 Hz
Sensitivity
92 dB @ 2.83 V / 1 m, 89 dB @ 1 W / 1 m
Integrated subwoofer chassis
2 x Helix IK W8-SVC2
Recommended DSP settings
“Self-define” highpass 35 Hz / Q = 1.0, EQ filter 60 Hz / Q = 1.0 / -1 dB
Compatible amplifier module
Helix Impact ISM 400.2DSP
Order number
K330822
Product Data
Physical Specifications: Helix IK ER8.2-DVC2 MK2
Dimensions (diameter x height): 580 x 160 mm / 22.8 x 6.3″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix IK ER8.2-DVC2 MK2 2 x 8″ Spare Wheel Subwoofer Enclosure
Helix IK ER8.2-DVC2 MK2, part number K330822. A round, shallow twin 8″ ported subwoofer for the spare wheel well, 600 W RMS and ready for the Impact ISM active subwoofer module.
£359.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Helix IK ER8.2-DVC2 MK2
The Helix IK ER8.2-DVC2 MK2 is a round, shallow ported subwoofer designed to sit in the spare wheel well, so you get serious bass without losing boot space.
Two flush-mounted 8″ / 200 mm Helix IK W8 drivers with hand-scooped paper cones give it real punch. It handles 600 W RMS, Helix recommend 150 to 600 W of amplifier power, and the port is tuned to 41 Hz. At the terminal it can be set to 1 x 1 Ohm for a monoblock, 1 x 4 Ohm for a bridged channel pair, or 2 x 2 Ohm for a multichannel DSP amplifier.
New in the MK2 version, it is ISM-ready. Swap the passive terminal for the optional Helix Impact ISM 400.2DSP subwoofer module and it becomes an active subwoofer with its own amplifier and DSP. The new plug-in terminal takes standard speaker cable on screw terminals or a Molex plug, and a mounting kit is included to secure it in the wheel well.
Features
- Round, shallow enclosure made for spare wheel wells
- Two 8″ / 200 mm high-excursion drivers with hand-scooped paper cones
- Vented design for strong output and good bass spread
- Impedance configurable at the terminal as 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
- MK2: ISM-ready, converts to an active subwoofer with the Helix Impact ISM 400.2DSP module
- New plug-in terminal with screw connection plus a Molex connector for custom wiring harnesses
- Flush-mounted drivers for a slim design and extra protection
- Hard-wearing carpet finish with embroidered Helix logo
- Mounting kit included for fixing in the spare wheel well
Full technical data is on the Product Specification and Product Data tabs.
Performance Specifications
Helix IK ER8.2-DVC2 MK2
Power handling RMS
600 W
Recommended amplifier power
150 – 600 W RMS
Impedance
2 x 2 Ohm / 1 x 4 Ohm / 1 x 1 Ohm
Max. linear excursion (Xlin)
+/- 8 mm
Max. mechanical excursion (Xmax)
+/- 17 mm
Port tuning frequency (Fb)
41 Hz
Sensitivity
92 dB @ 2.83 V / 1 m, 89 dB @ 1 W / 1 m
Integrated subwoofer chassis
2 x Helix IK W8-SVC2
Recommended DSP settings
“Self-define” highpass 35 Hz / Q = 1.0, EQ filter 60 Hz / Q = 1.0 / -1 dB
Compatible amplifier module
Helix Impact ISM 400.2DSP
Order number
K330822
Physical Specifications
Helix IK ER8.2-DVC2 MK2
Dimensions (diameter x height)
580 x 160 mm / 22.8 x 6.3″
Next working day delivery if ordered before 12:00, unless item is special order.
