Helix IK E10.1-DVC2 MK2

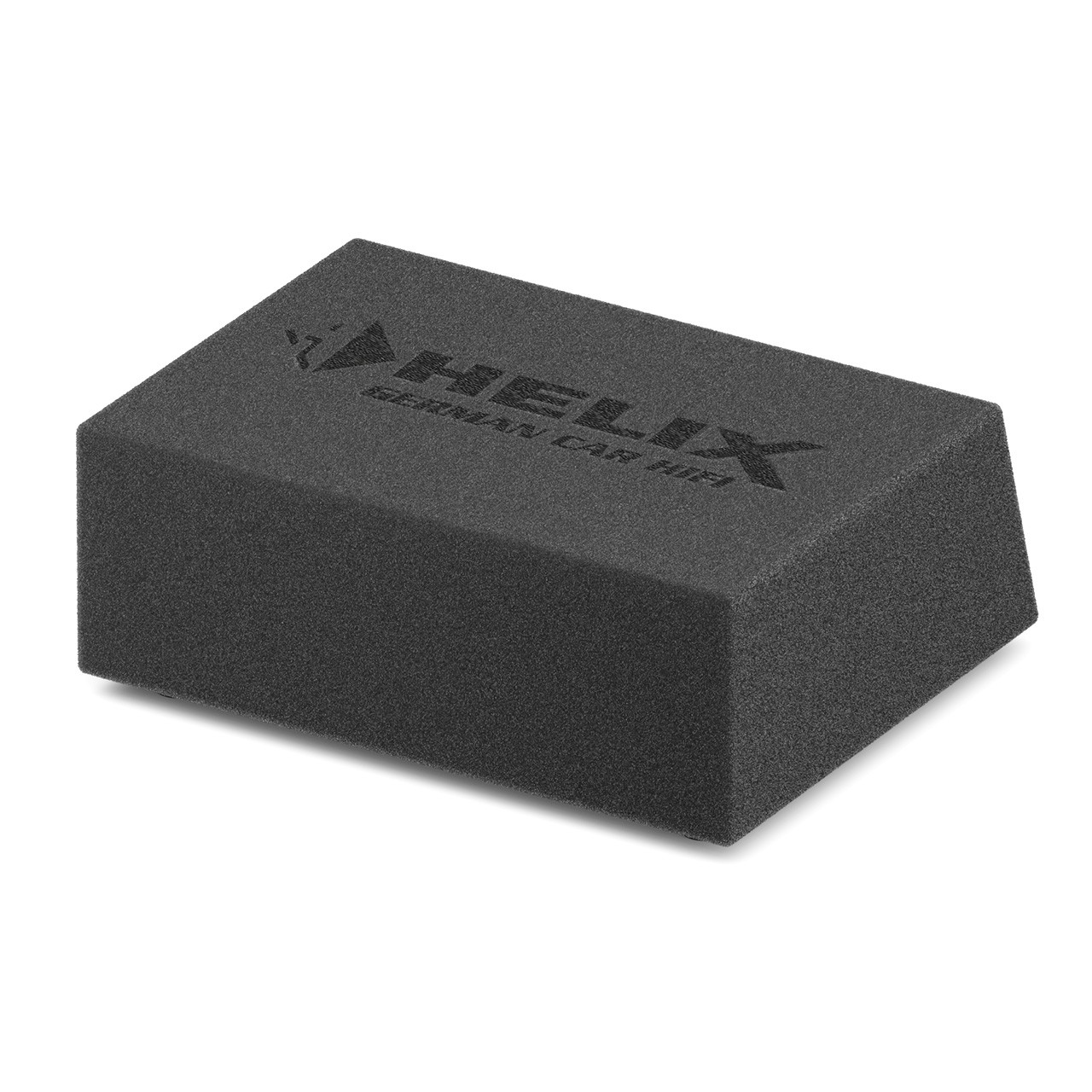

The Helix IK E10.1-DVC2 MK2 delivers deep, punchy bass from a low, space-saving downfire box, ideal if you want proper low end without a bulky enclosure. Firing into the floor uses the car itself to reinforce the bass and keeps the driver protected.
It uses the 10″ / 250 mm Helix IK W10-DVC2 driver with a hand-scooped paper cone, tuned to 43 Hz. It handles 300 W RMS and Helix recommend 150 to 300 W of amplifier power. The dual voice coils can be set at the terminal to 1 x 1 Ohm for a monoblock, 1 x 4 Ohm for a bridged channel pair, or 2 x 2 Ohm for a multichannel DSP amplifier.

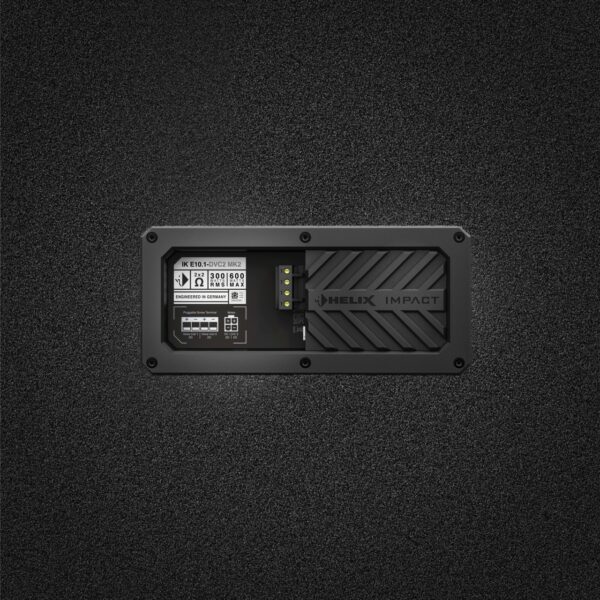

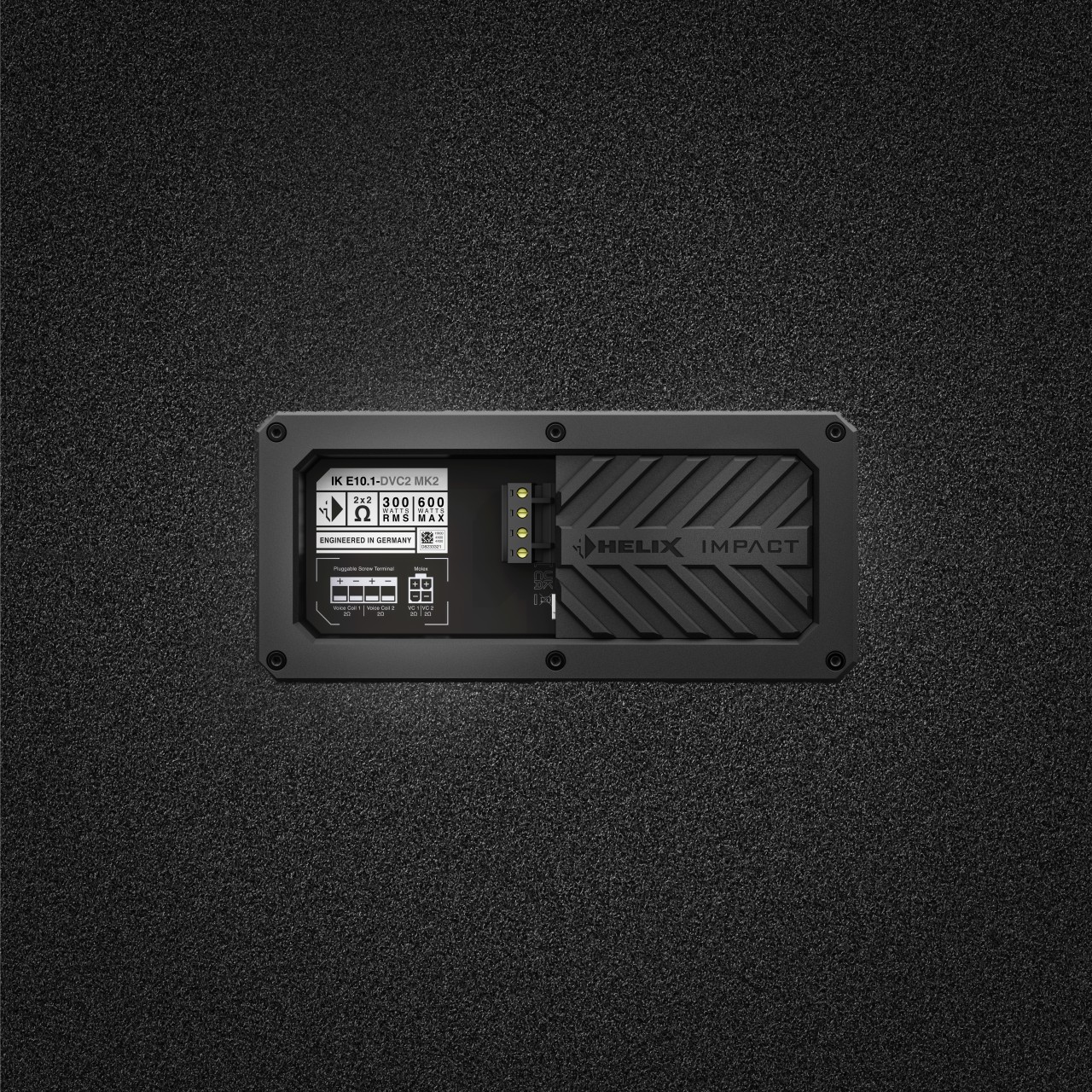

New in the MK2 version, it is ISM-ready. Swap the passive terminal for the optional Helix Impact ISM 400.2DSP subwoofer module and it becomes an active subwoofer with its own amplifier and DSP. The new plug-in terminal also takes standard speaker cable on screw terminals or a Molex plug, so it is quick to remove when you need the boot space.
Features
- Downfire design for even bass spread and driver protection
- Compact, low-profile ported enclosure for high output
- 10″ / 250 mm Helix IK W10-DVC2 driver with hand-scooped paper cone
- Dual voice coil, configurable at the terminal as 2 x 2 Ohm, 1 x 4 Ohm or 1 x 1 Ohm
- MK2: ISM-ready, converts to an active subwoofer with the Helix Impact ISM 400.2DSP module
- New plug-in terminal with screw connection plus a Molex connector for custom wiring harnesses
- Feet with Velcro pads for a secure stand
- Hard-wearing carpet finish with embroidered Helix logo
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Helix IK E10.1-DVC2 MK2
Power handling RMS
300 W
Recommended amplifier power
150 – 300 W RMS
Impedance
2 x 2 Ohm / 1 x 4 Ohm / 1 x 1 Ohm
Max. linear excursion (Xlin)
+/- 8 mm
Max. mechanical excursion (Xmax)
+/- 18.5 mm
Port tuning frequency (Fb)
43 Hz
Sensitivity
91 dB @ 2.83 V / 1 m, 88 dB @ 1 W / 1 m
Integrated subwoofer chassis
Helix IK W10-DVC2
Recommended DSP settings
“Self-define” highpass 37 Hz / Q = 1.5, EQ filter 115 Hz / Q = 0.7 / -2 dB
Compatible amplifier module
Helix Impact ISM 400.2DSP
Order number
K331020
Product Data
Physical Specifications: Helix IK E10.1-DVC2 MK2
Dimensions (H x W x D): 187 x 470 x 375 mm / 7.4 x 18.5 x 14.8″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix IK E10.1-DVC2 MK2 10″ Downfire Subwoofer Enclosure
Helix IK E10.1-DVC2 MK2, part number K331020. A low-profile 10″ downfire ported subwoofer enclosure, 300 W RMS, 2 x 2 Ohm and ready for the Impact ISM active subwoofer module.
£229.99
