Helix HEC HD-Audio USB Interface for DSP Mini MK2
The HEC HD-Audio USB Interface is a plug-in extension module that adds a high resolution USB audio input to your Helix DSP, turning a laptop, phone or tablet into an HD audio player. This version, part number HP40044, is made for the Helix DSP Mini MK2, and Helix list it as compatible with that unit only.
Music travels digitally from the source straight into the DSP at up to 192 kHz / 32 Bit with no extra conversion, and an asynchronous USB link with its own clock generators keeps jitter to a minimum.
It has two modes. Full Speed mode (default) works with Windows, macOS, Android and iOS devices up to 96 kHz / 32 Bit with no driver needed. High Speed mode allows up to 192 kHz / 32 Bit, and Windows needs an extra driver above 96 kHz. Android phones need a USB-C to mini USB cable or a micro USB OTG cable, and Apple devices need a USB-C to mini USB cable or the Apple Camera Connection Kit. Helix state iPhones up to generation 16 are supported, but generation 17 is not, and the interface cannot charge your phone.
Features
- Version for the Helix DSP Mini MK2
- High resolution USB audio input up to 192 kHz / 32 Bit
- Direct digital transfer to the DSP for lossless processing
- Asynchronous USB with own clock generators for very low jitter
- Automatic signal detection
- Works with Windows, macOS, Android and iOS (iPhone 16 and older)
- Device-specific side panel, Allen screw and Allen key included
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Helix HEC HD-Audio USB Interface HP40044
Input sampling rate
32 kHz to 192 kHz / 16, 24 or 32 Bit
Input format
PCM
Supported operating systems
Windows, macOS, Android, iOS (iPhone 16 and older)
Operating modes
Full Speed (default, up to 96 kHz / 32 Bit, no driver), High Speed (up to 192 kHz / 32 Bit, Windows driver needed above 96 kHz)
Additional features
Asynchronous USB connection with own clock generators
Compatibility
Helix DSP Mini MK2
Contents

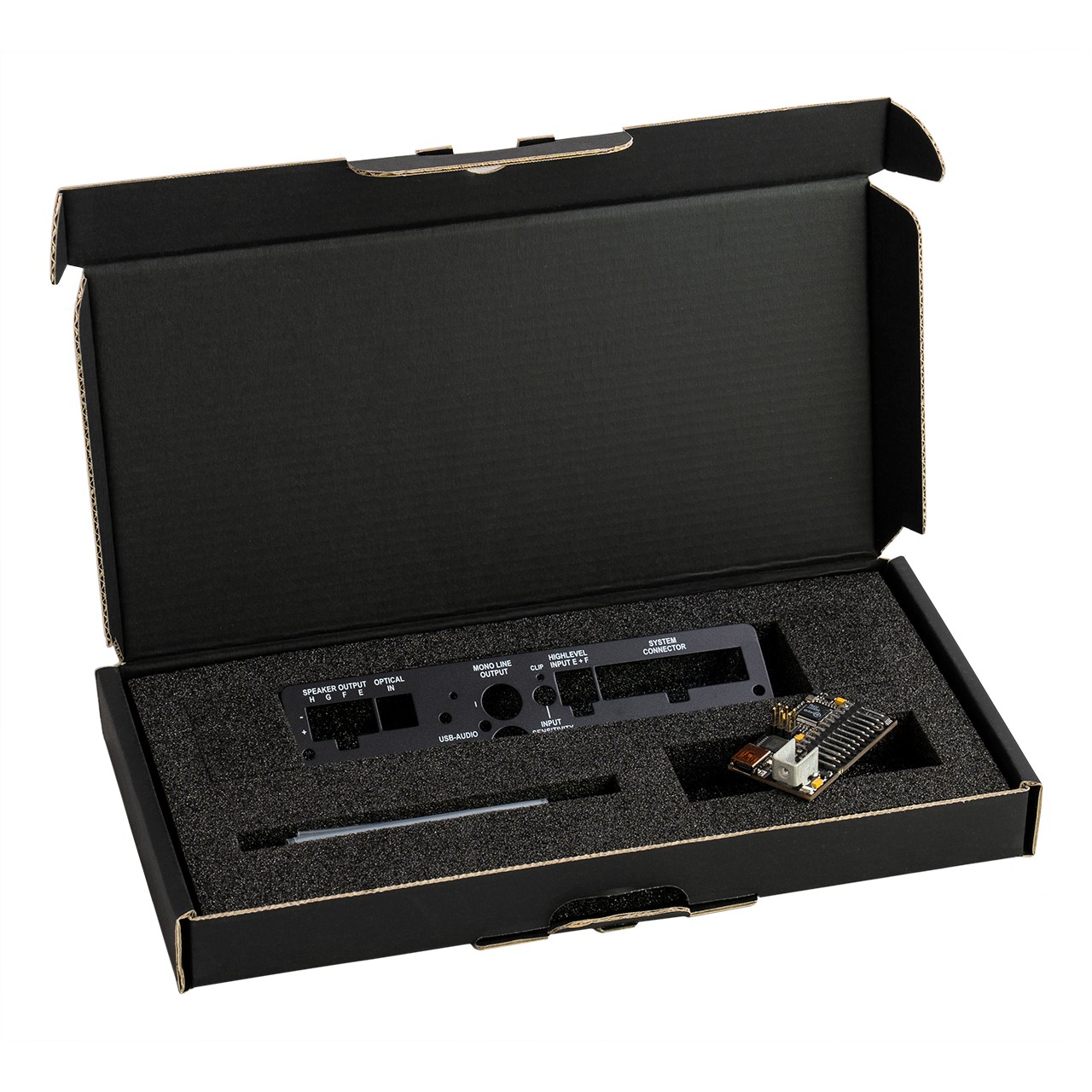

1 x HEC HD-Audio USB Interface module, 1 x device-specific side panel, 1 x Allen screw, 1 x Allen key, 1 x instruction manual
Order number
HP40044
Product Data
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
