Helix HEC BT HD for V Eight DSP MK2
The Helix HEC BT HD is a plug-in extension module that adds high definition Bluetooth audio streaming to your Helix DSP. This version, part number HA40014, is made for the Helix V Eight DSP MK2, and Helix list it as compatible with that unit only.
It uses Bluetooth 5.0 + EDR with support for SBC, AAC, aptX and aptX HD, streaming at up to 576 kbps and 24 Bit / 48 kHz. The audio passes digitally straight into the DSP with no extra conversion, so nothing is lost before processing. An optical SPDIF output is also built in.
With a DIRECTOR or CONDUCTOR remote you get play/pause, track skip and pairing control, and the DIRECTOR display shows artist, title and codec. The module also allows wireless tuning from a Bluetooth equipped PC with DSP PC-Tool V5 or later. A device-specific side panel and antenna are supplied.
Features
- Version for the Helix V Eight DSP MK2
- Bluetooth 5.0 + EDR HD audio streaming with Qualcomm aptX HD
- SBC, AAC, aptX and aptX HD codecs, up to 576 kbps and 24 Bit / 48 kHz
- Direct digital transfer to the DSP for lossless processing
- Wireless DSP tuning via DSP PC-Tool V5 for ACO platform devices
- Artist and title on the DIRECTOR display (ACO devices, DIRECTOR software 2.10 or later)
- Play/pause, track skip and pairing via DIRECTOR or CONDUCTOR
- Extra optical SPDIF output
- Device-specific side panel and antenna included
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Helix HEC BT HD HA40014
Bluetooth standard
5.0 + EDR
Bluetooth profiles
A2DP, AVRCP, SPP
Bluetooth codecs
SBC, AAC, Qualcomm aptX, Qualcomm aptX HD
Paired devices
8
Wireless frequency range
2402 – 2480 MHz
Range
Up to 10 m
Digital optical output
SPDIF, 96 kHz / 24 Bit or 48 kHz / 24 Bit depending on device sampling rate
Compatibility
Helix V Eight DSP MK2
Contents

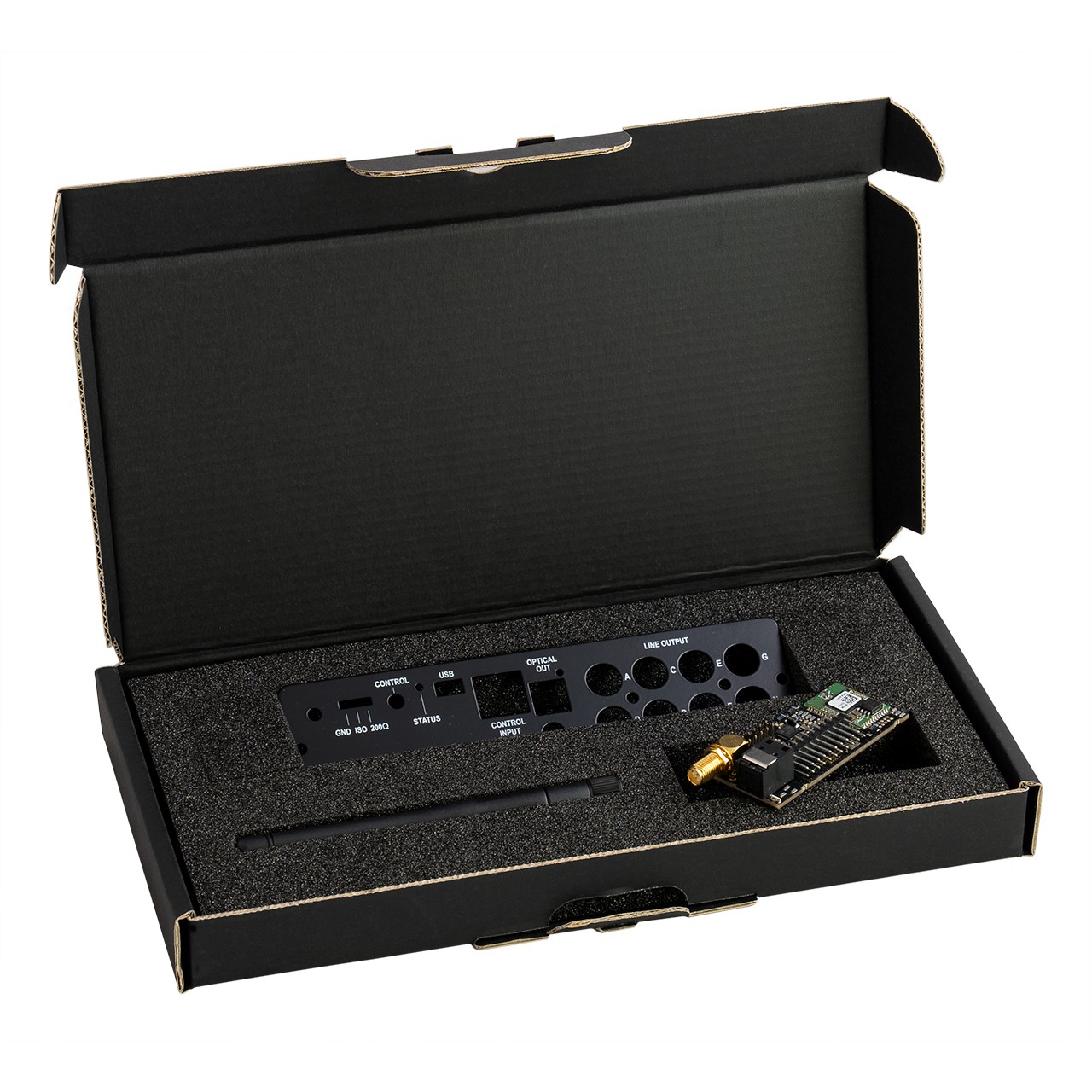

1 x HEC BT HD module, 1 x device-specific side panel, 1 x antenna, 1 x instruction manual
Order number
HA40014
Product Data
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix HEC BT HD Bluetooth Module for V Eight DSP MK2
Helix HEC BT HD, part number HA40014. An HD Bluetooth audio streaming module with aptX HD and an optical output, in the version for the Helix V Eight DSP MK2.
£139.99
