Description

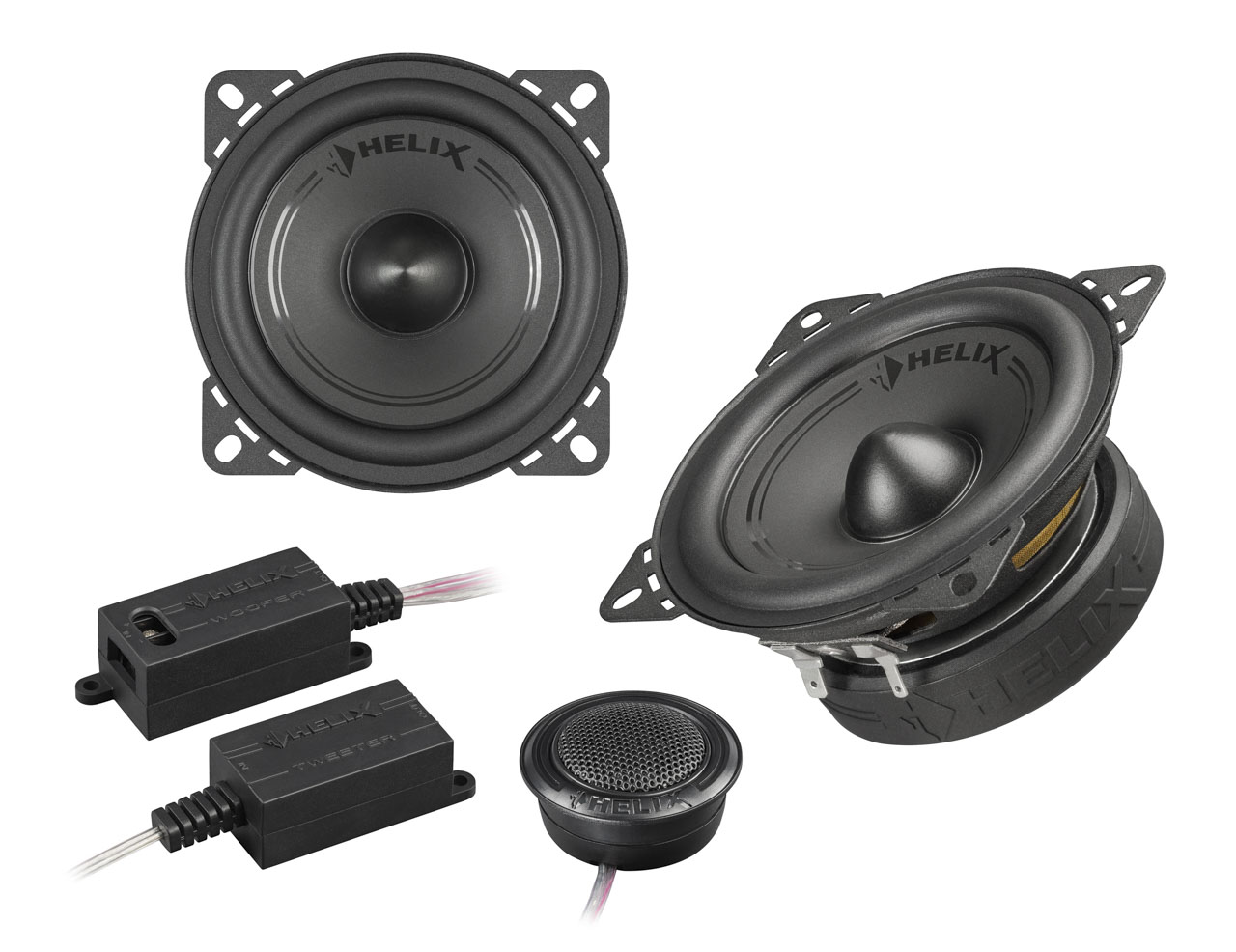

HELIX F 42C
Immerse yourself in the world of HELIX sound with the new F loudspeaker series. The combination of proven components and cutting-edge materials guarantees a great sound experience with rich bass, accurate mids and detailed highs.
During development special attention was paid to an easy integration into the vehicle. In addition to the low installation depth, the innovative, two-part “Flex-Crossover” in particular offers much more freedom in terms of connectivity and installation. Thus the F loudspeakers are the first choice especially if the tweeters and woofers are separately installed in the door and A-pillar.
The elegant design underlines the qualities at first glance. Thus, the bass drivers of this series present themselves in a stylish, elegant design with matt black HELIX cone finish and shiny black HELIX-logo.
Features
- Stylish & elegant HELIX design with black matt cone finish and black shiny HELIX-logo

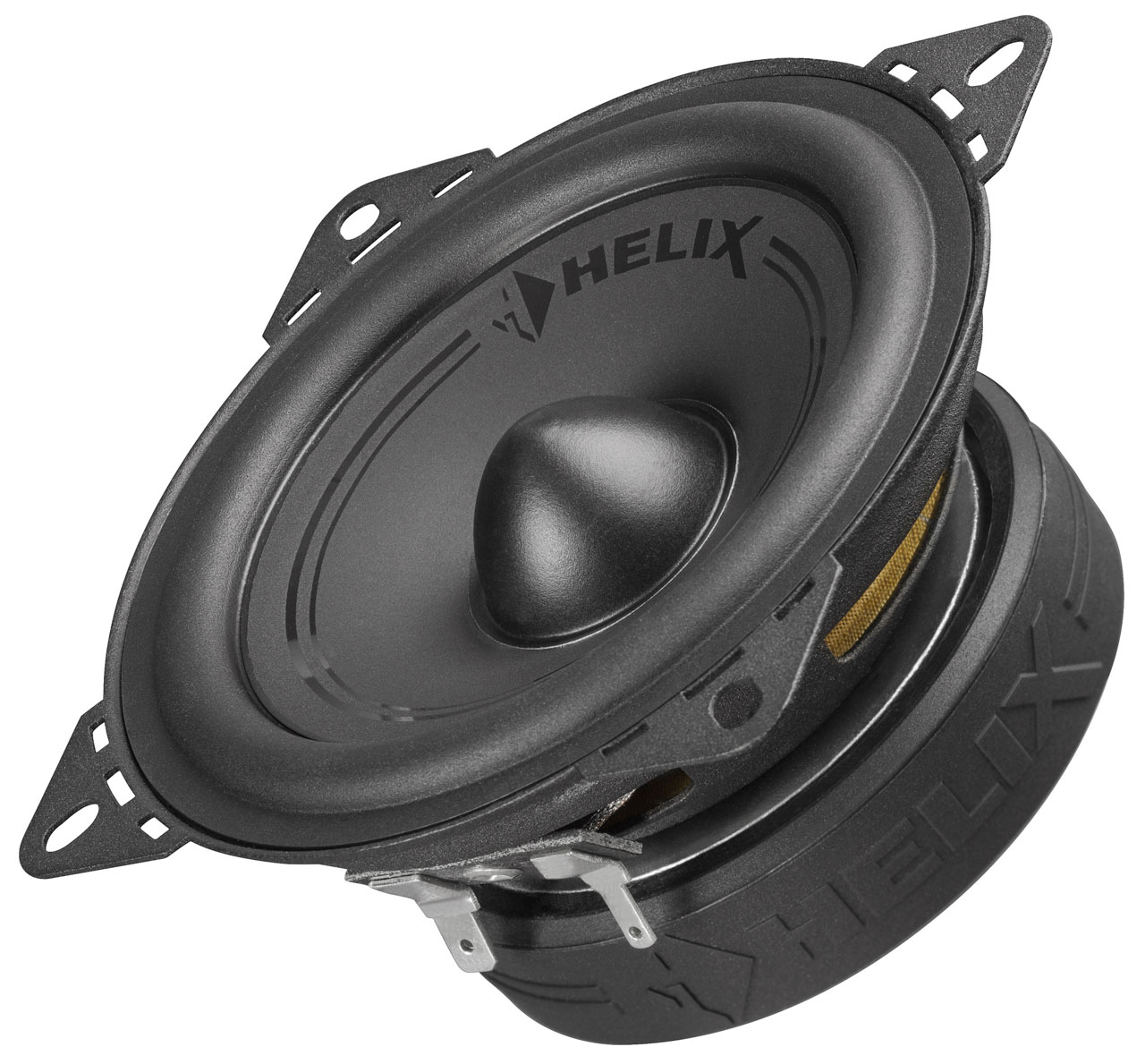

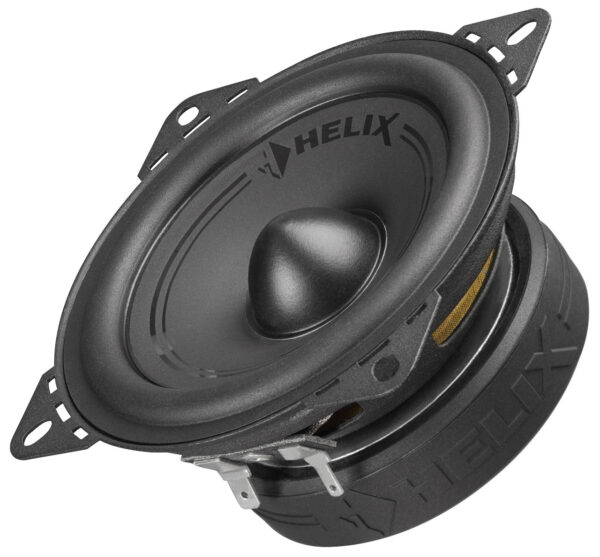

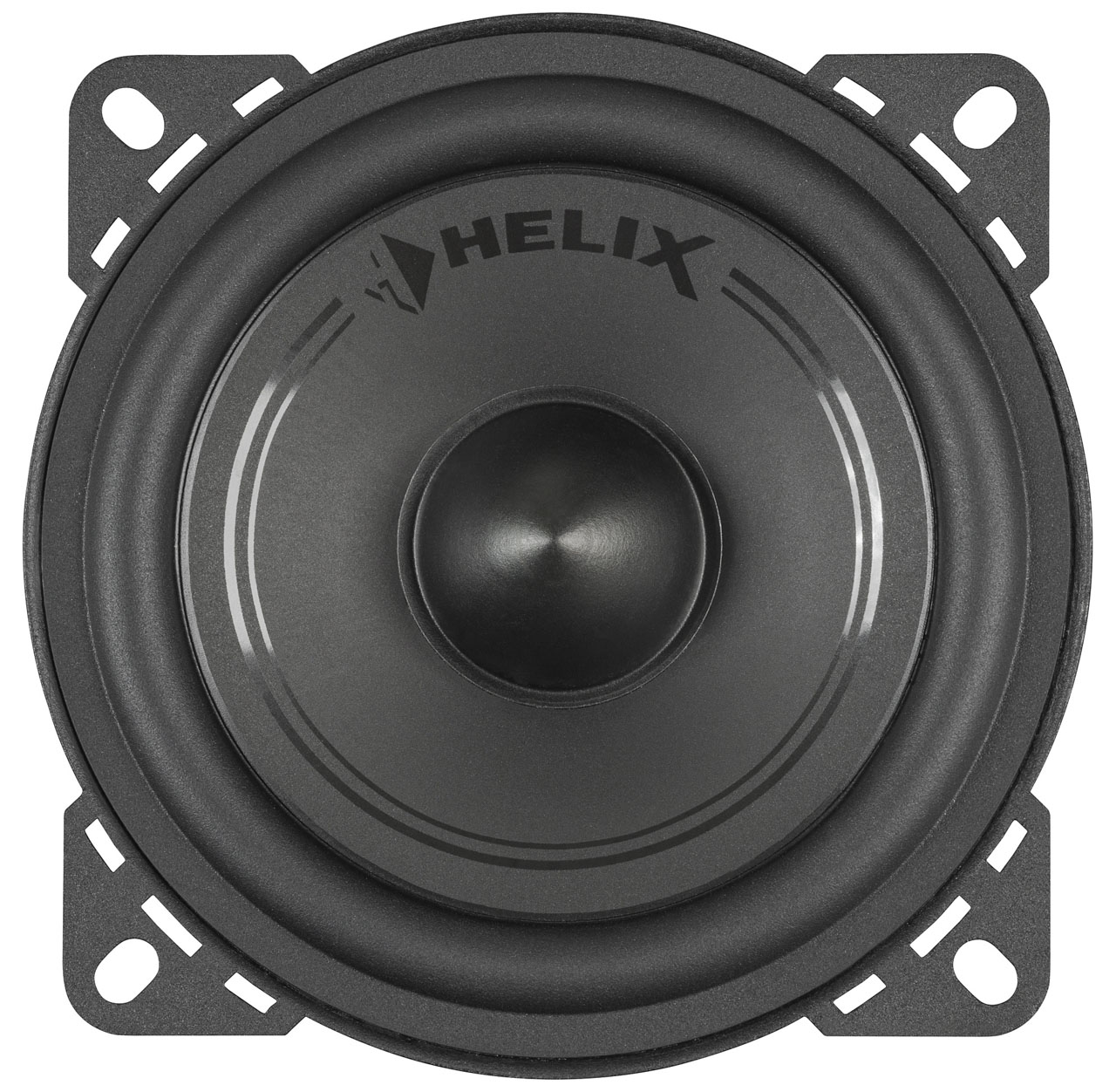

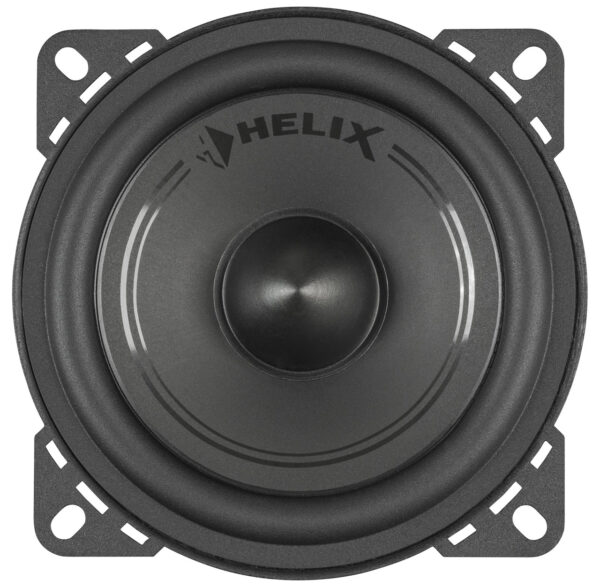

- 4? / 100 mm woofer with novel, low resonant cone made of injected polypropylene with embedded carbon fibers
- 0.75? / 20 mm silk dome tweeter with neodymium magnet for crispy and clear treble response
- Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
- Solid rubber magnet protection ring with HELIX-logo

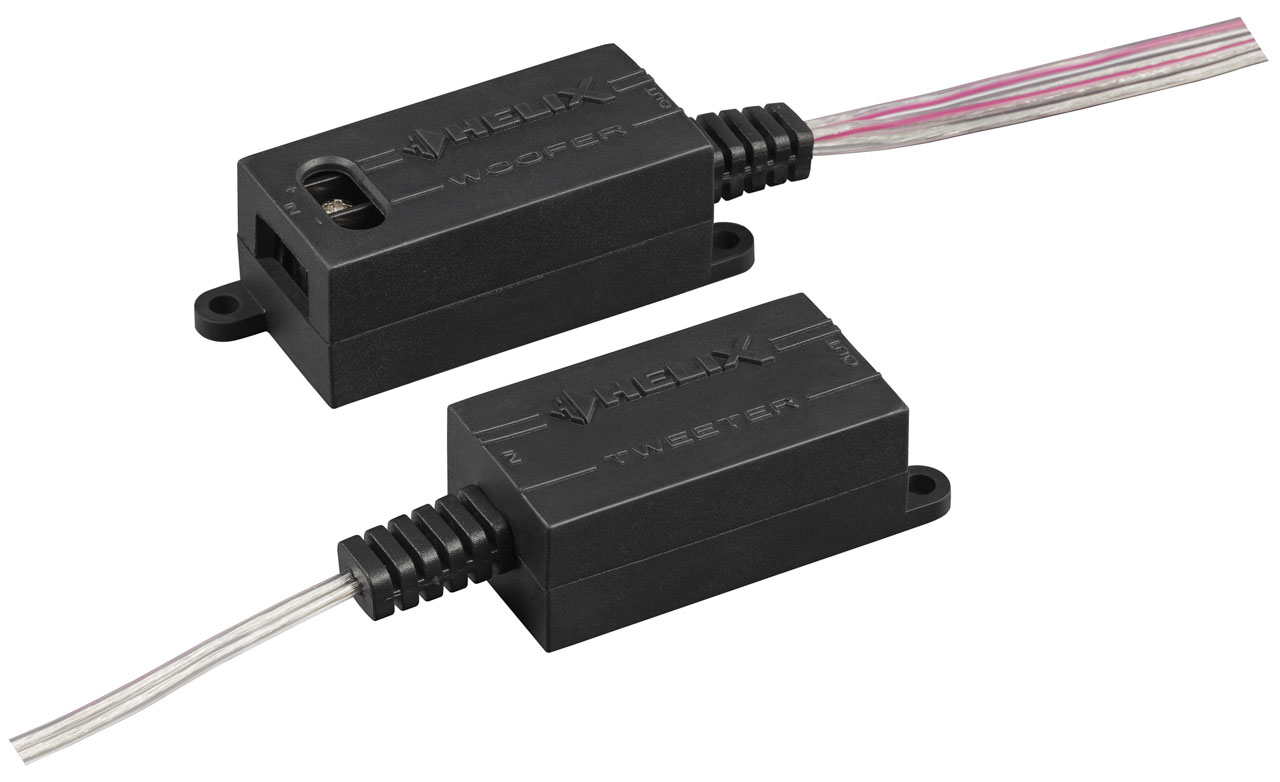

- Separate, two-part “Flex-Crossover” with 6/12 dB slope and integrated tweeter protection for versatile connection options – well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer
Additional Information
Specification
Performance Specifications
HELIX F 42C
Power RMS / max.
40 / 80 Watts
Frequency response
100 Hz – 22,000 Hz
Impedance
3 Ω
Sensitivity 1 W / 1 m
89 dB
Cone material
TW: Silk dome W: Injected polypropylene with embedded carbon fibers
Crossover
Separate, 6/12 dB slope and tweeter protection
Product Data
Physical Specifications: HELIX F 42C
Outer diameter: TW: 52.6 mm / 2.07″ W: 102.4 mm / 4.03″
Installation diameter: TW: 45 mm / 1.77″ W: 93 mm / 3.66″
Installation depth: TW: 17.3 mm / 0.68″ W: 45 mm / 1.77″
Dimensions crossover: Tweeter: 51.5 x 27.5 x 20.5 mm / 2.03 x 1.08 x 0.81″ Woofer: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix F 42C 4″ 2 Way Component Set
10 cm/ 4″ 2-way component system Power handling: 40 / 80 Watts
£109.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
