Description
Helix Extension Card 2.0 BT-HD

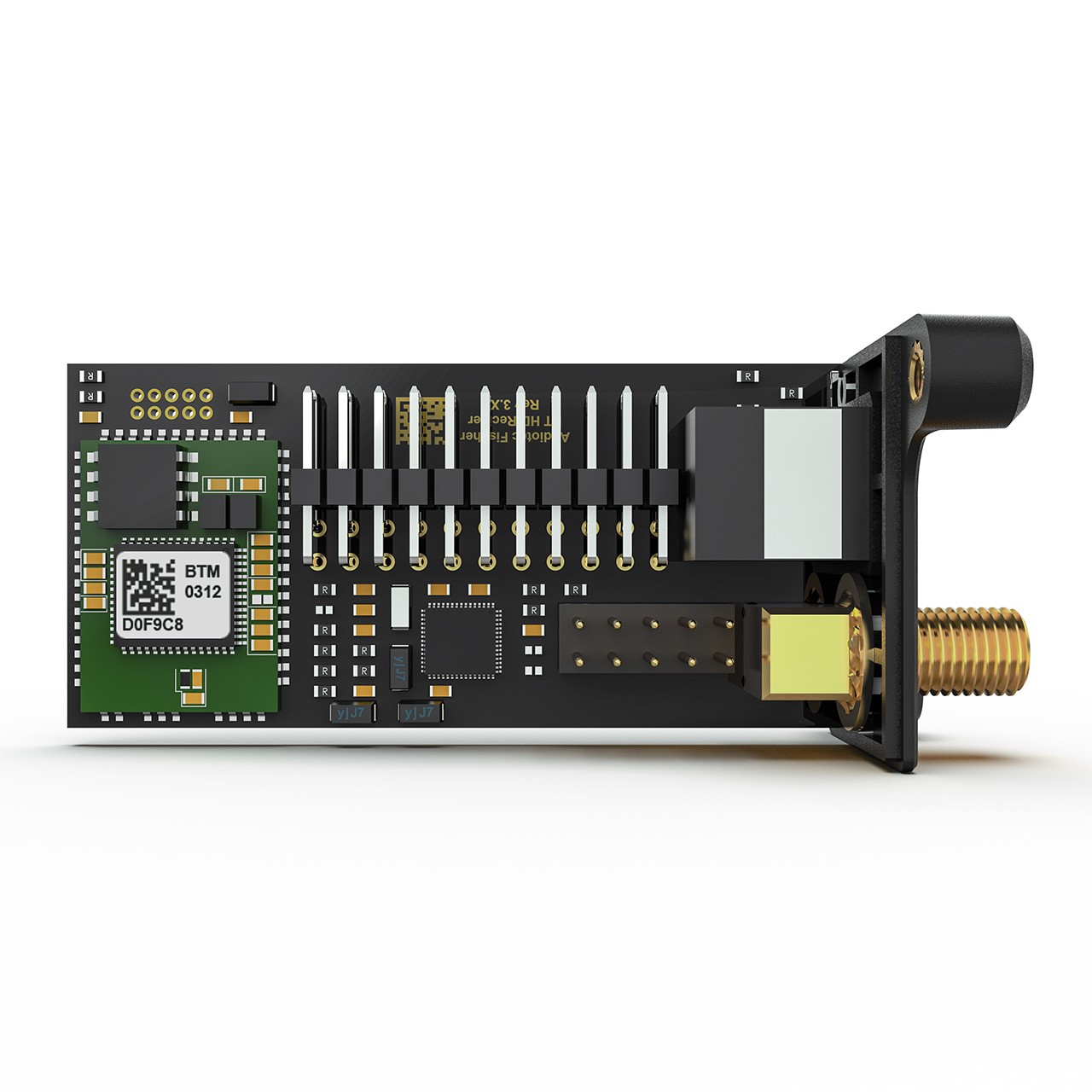

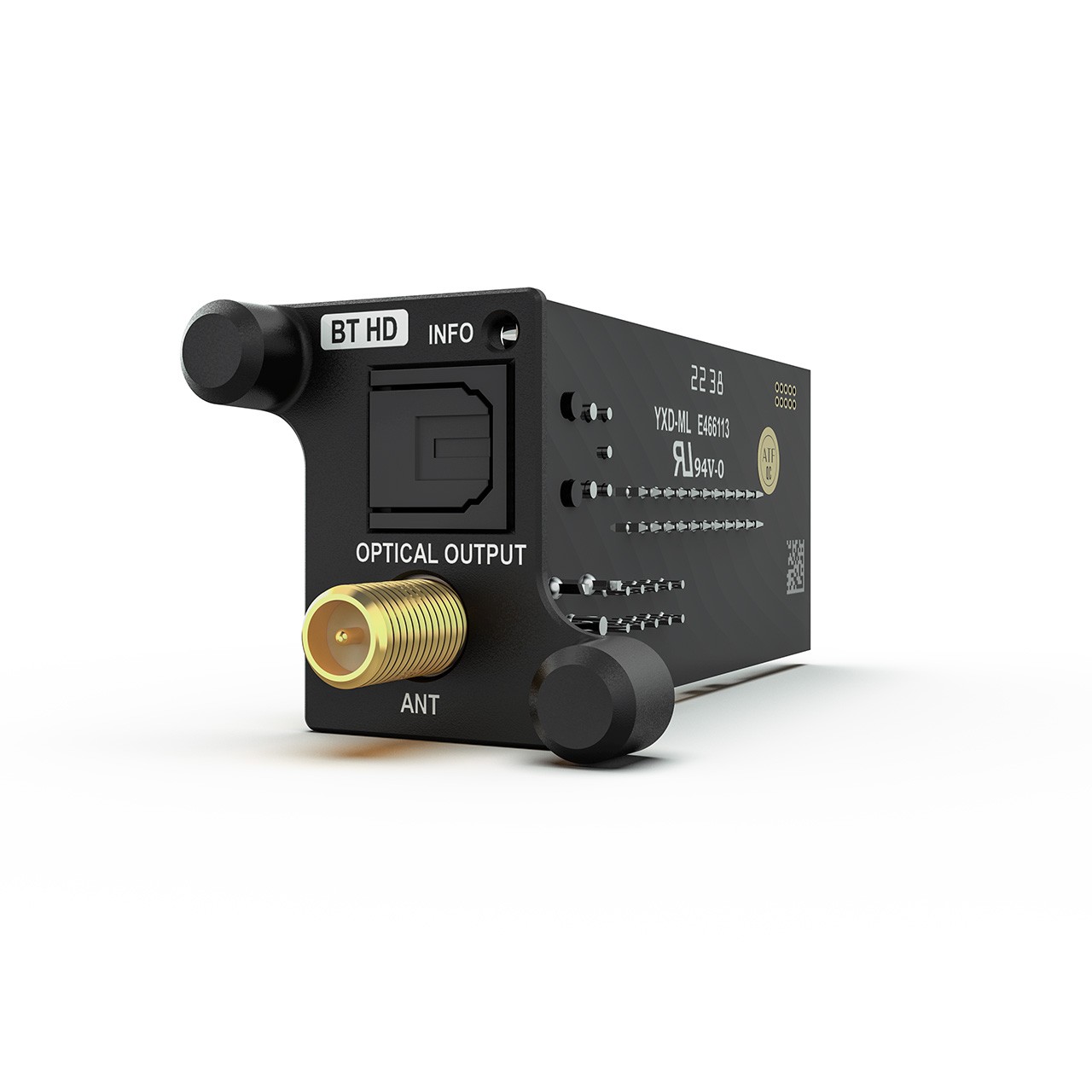

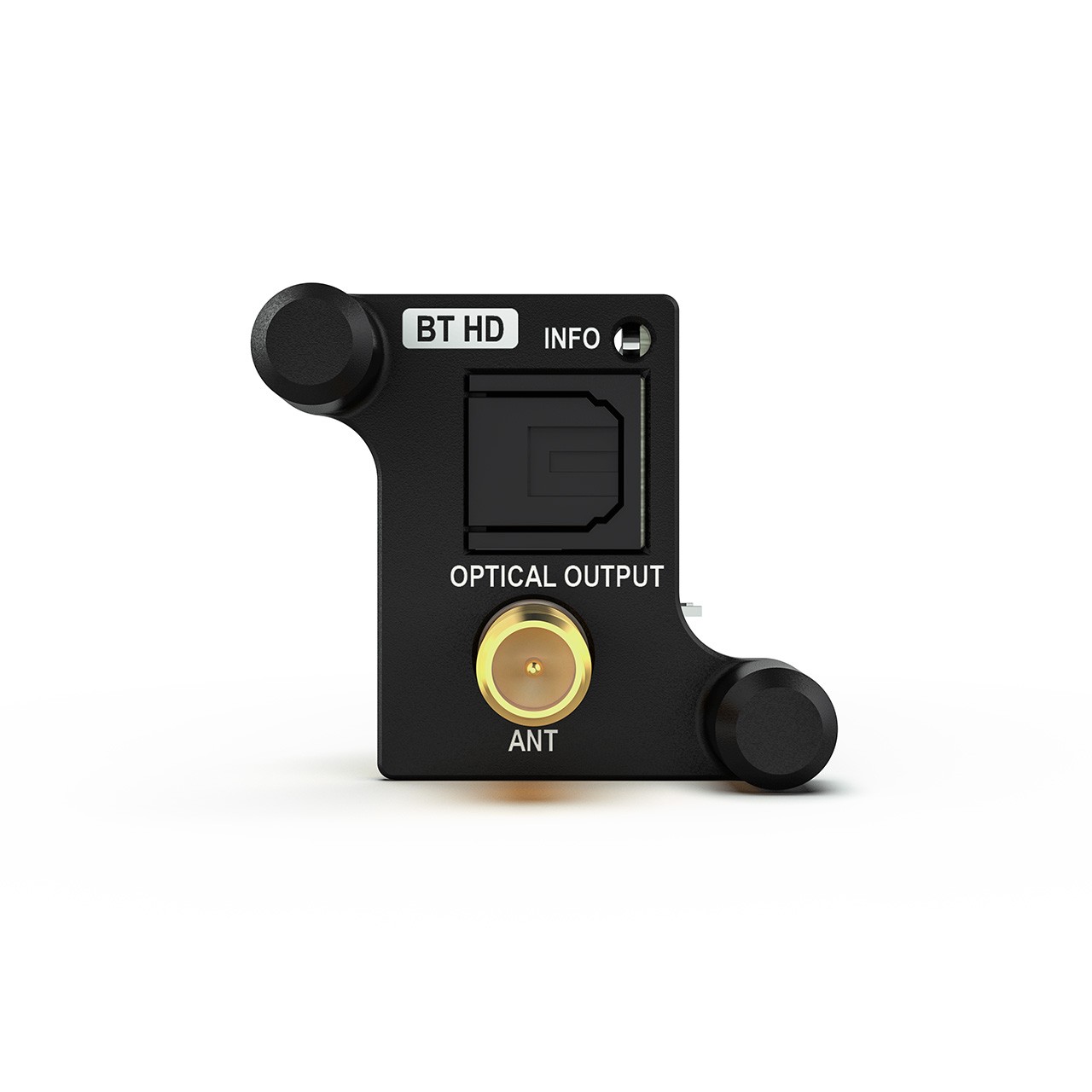

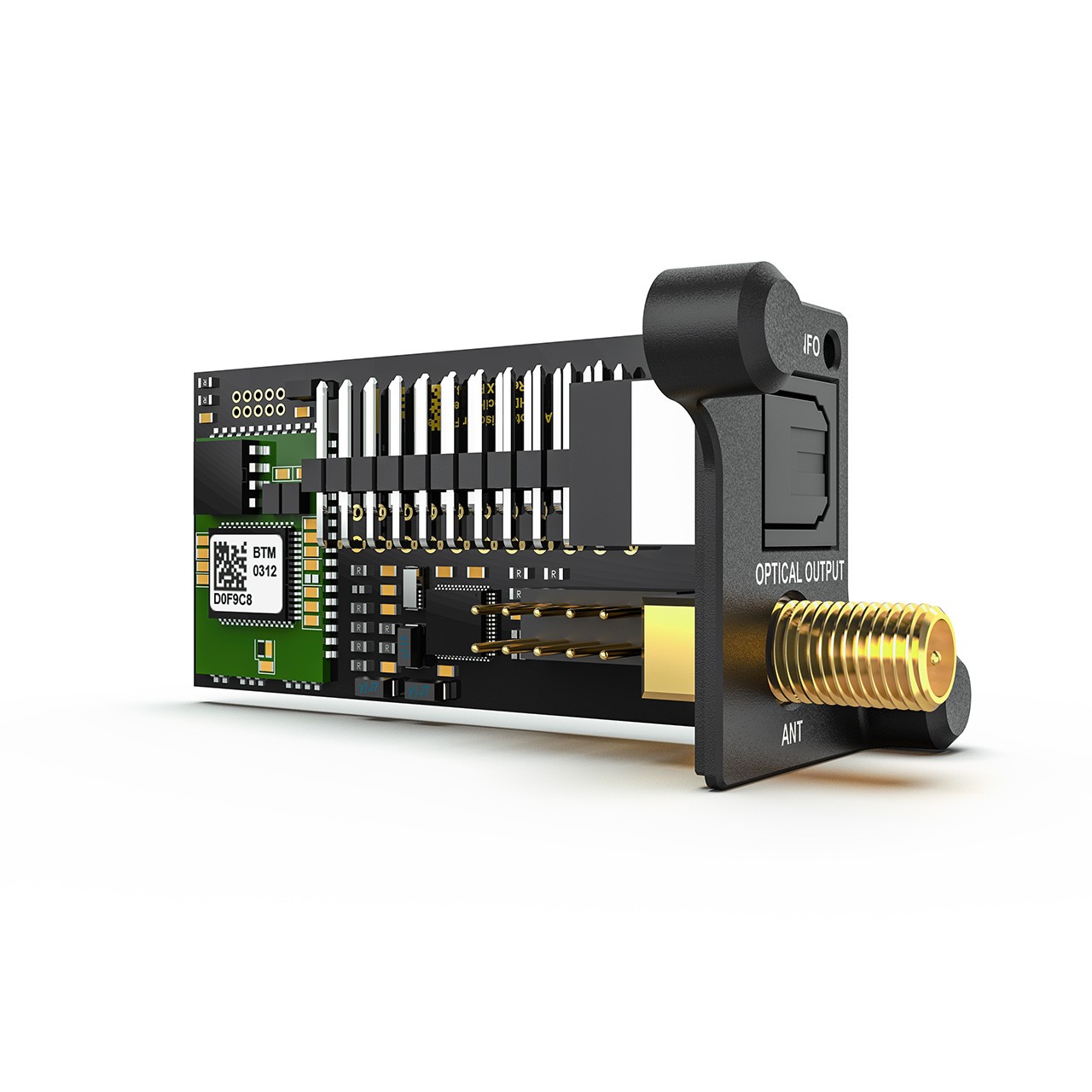

The Extension Card 2.0 BT-HD turns your Helix or Match DSP or DSP amplifier into a full Bluetooth audio streaming hub. It uses Bluetooth 5.0 with aptX HD, AAC and SBC, streaming at up to 576 kbps and 24 Bit / 48 kHz, and adds an optical SPDIF output too.
The audio goes digitally straight from the module into the DSP with no extra conversion, so nothing is lost before processing. With a CONDUCTOR or DIRECTOR remote you get play/pause, track skip, pairing and connect/disconnect, and the DIRECTOR display shows artist, title and the codec in use. It also lets you tune the DSP wirelessly from a Bluetooth equipped PC with DSP PC-Tool 6 or later (ACO platform devices).
Which DSPs it fits: every Helix and Match DSP with an Extension Card 2.0 slot. From our range that’s the Match UP 10DSP MK2, Match UP 8DSP MK2, Match UP 8BMW MK2, Match UP 6DSP MK2, Helix V Eight DSP Ultimate and Helix Next DSP Ultra XT. A module-specific cover panel and a high-performance antenna are included. Older DSPs without the Extension Card 2.0 slot use their own model-specific HEC or MEC BT HD module instead. Made in Germany.
Features
- Bluetooth 5.0 + EDR audio streaming with Qualcomm aptX HD
- SBC, AAC, aptX and aptX HD codecs, up to 576 kbps and 24 Bit / 48 kHz
- Direct digital transfer to the DSP for lossless processing
- Optical SPDIF output
- Wireless DSP tuning via DSP PC-Tool 6 or later (ACO platform devices)
- Artist and title on the DIRECTOR display (ACO devices, DIRECTOR software 2.10 or later)
- Play/pause, track skip, pairing and connect/disconnect via CONDUCTOR or DIRECTOR
- Fits all Helix and Match DSPs with an Extension Card 2.0 slot
- Cover panel with threaded inserts and antenna included
- Made in Germany
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
HELIX Extension Card 2.0 BT-HD
Bluetooth standard
5.0 + EDR
Bluetooth profiles
A2DP, AVRCP, SPP
Bluetooth codecs
SBC, AAC, Qualcomm aptX and Qualcomm aptX HD
Number of paired devices
8
Wireless frequency range
2402 to 2480 MHz
Range
Up to 10 m
Digital optical output
SPDIF, 96 kHz / 24 Bit or 48 kHz / 24 Bit depending on the device sampling rate
Compatibility
All Helix and Match DSP devices with an Extension Card 2.0 slot
Product Data
Physical Specifications: HELIX Extension Card 2.0 BT-HD
Scope of delivery: 1 x BT HD module, 1 x module-specific cover panel, 1 x antenna, mounting screws
Part number: EC20002
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix Extension Card 2.0 BT-HD Bluetooth Module for Helix and Match DSPs
Helix Extension Card 2.0 BT-HD, part number EC20002. aptX HD Bluetooth streaming plus an optical output for any Helix or Match DSP with an Extension Card 2.0 slot, including the UP 10DSP MK2, UP 8DSP MK2 and V Eight DSP Ultimate.
£129.99
