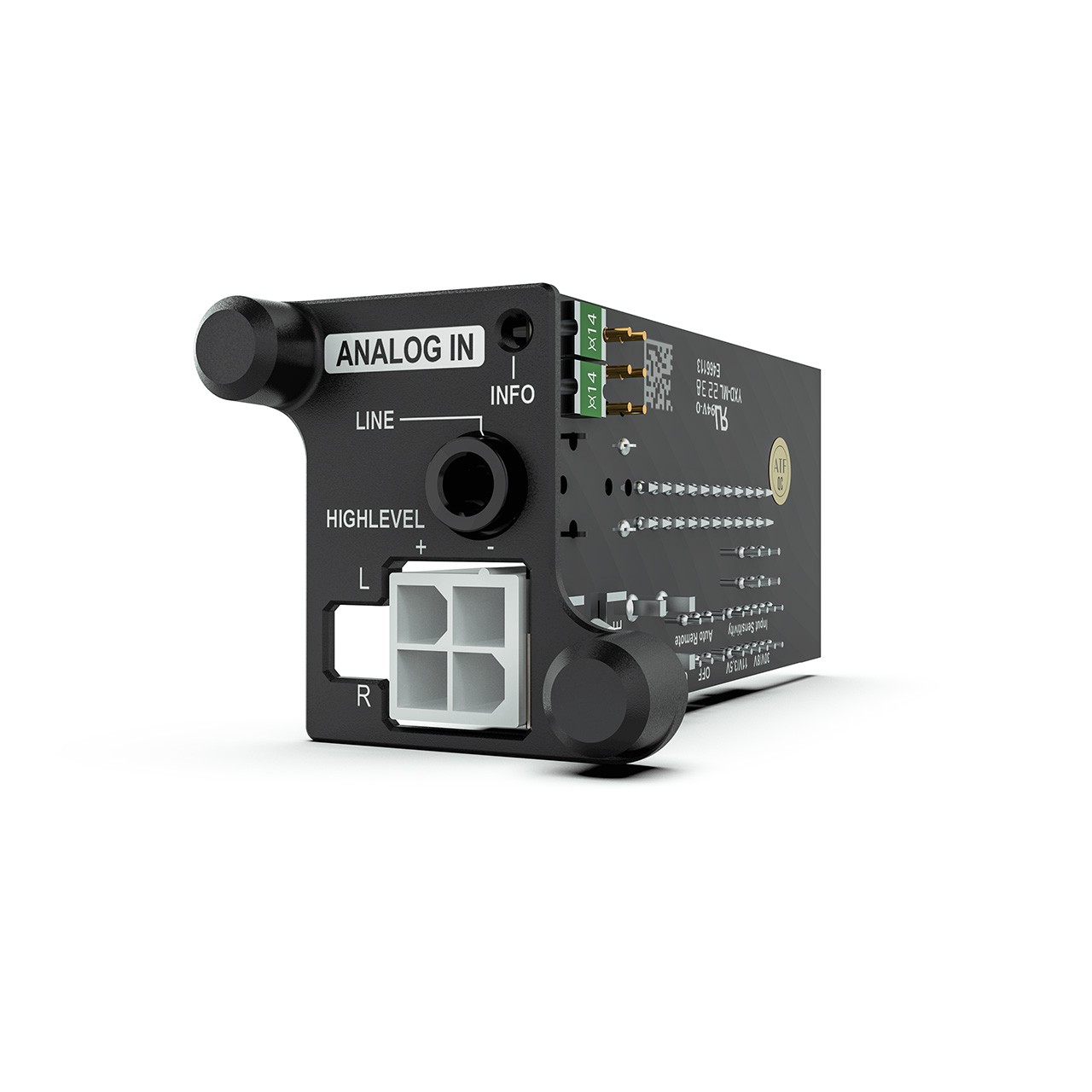

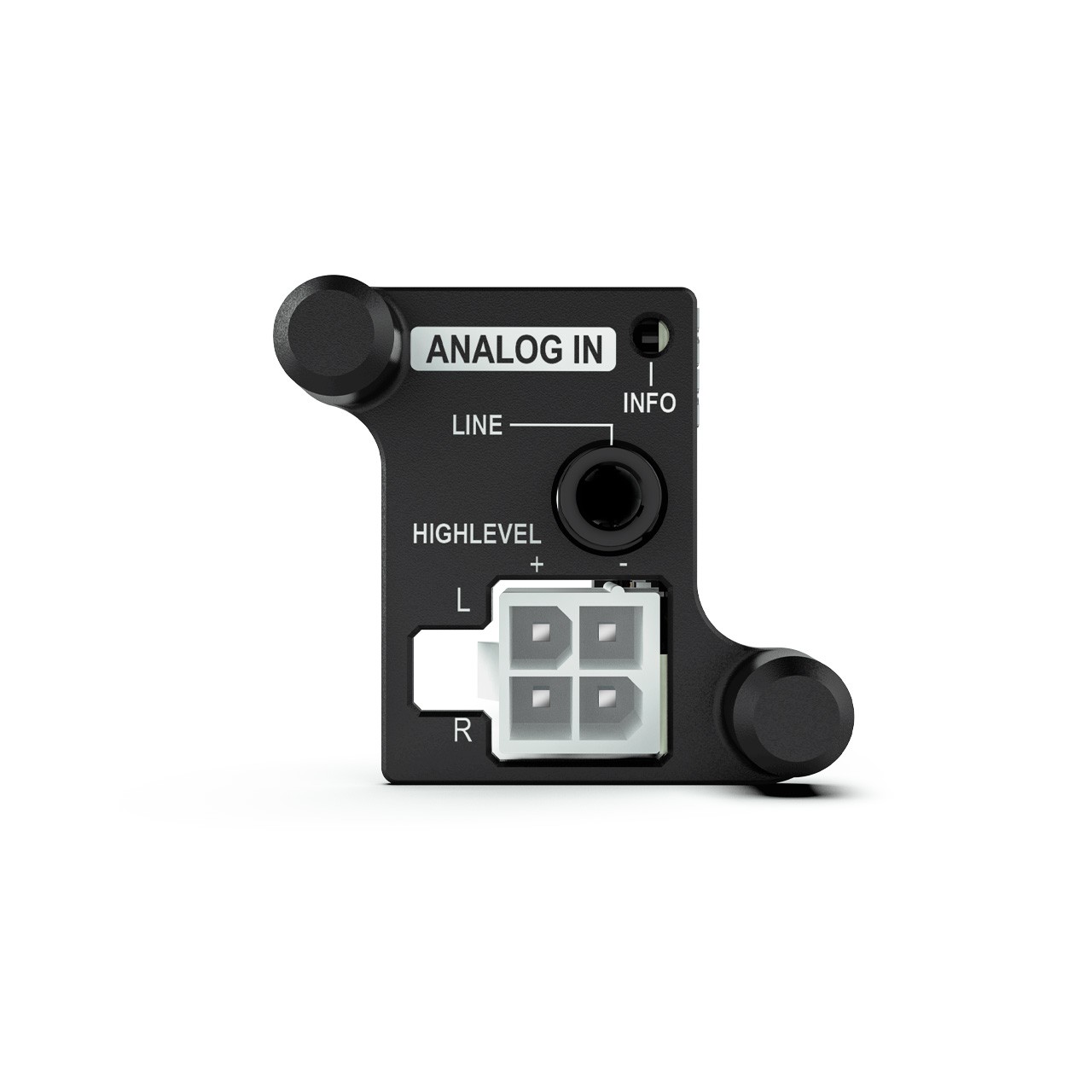

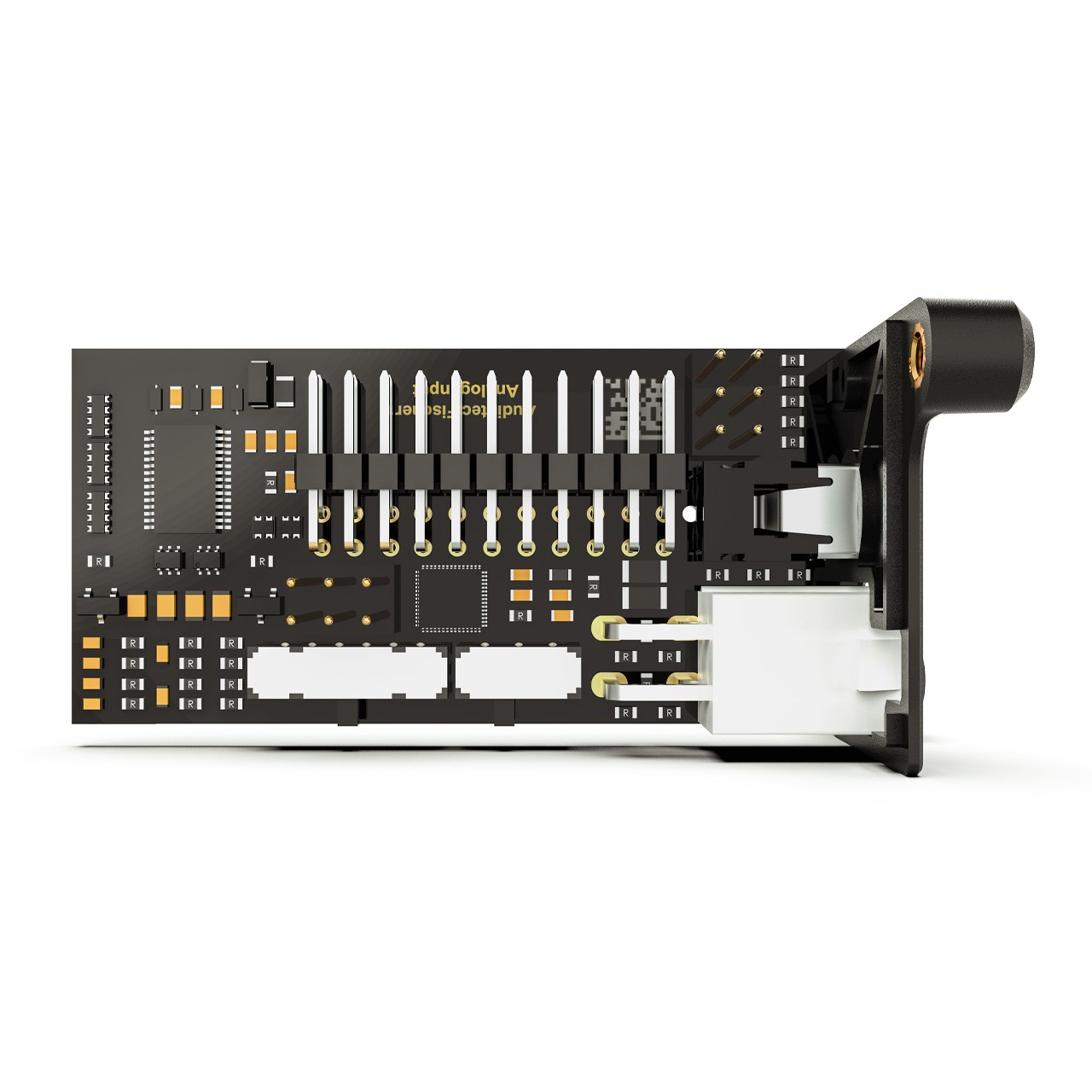

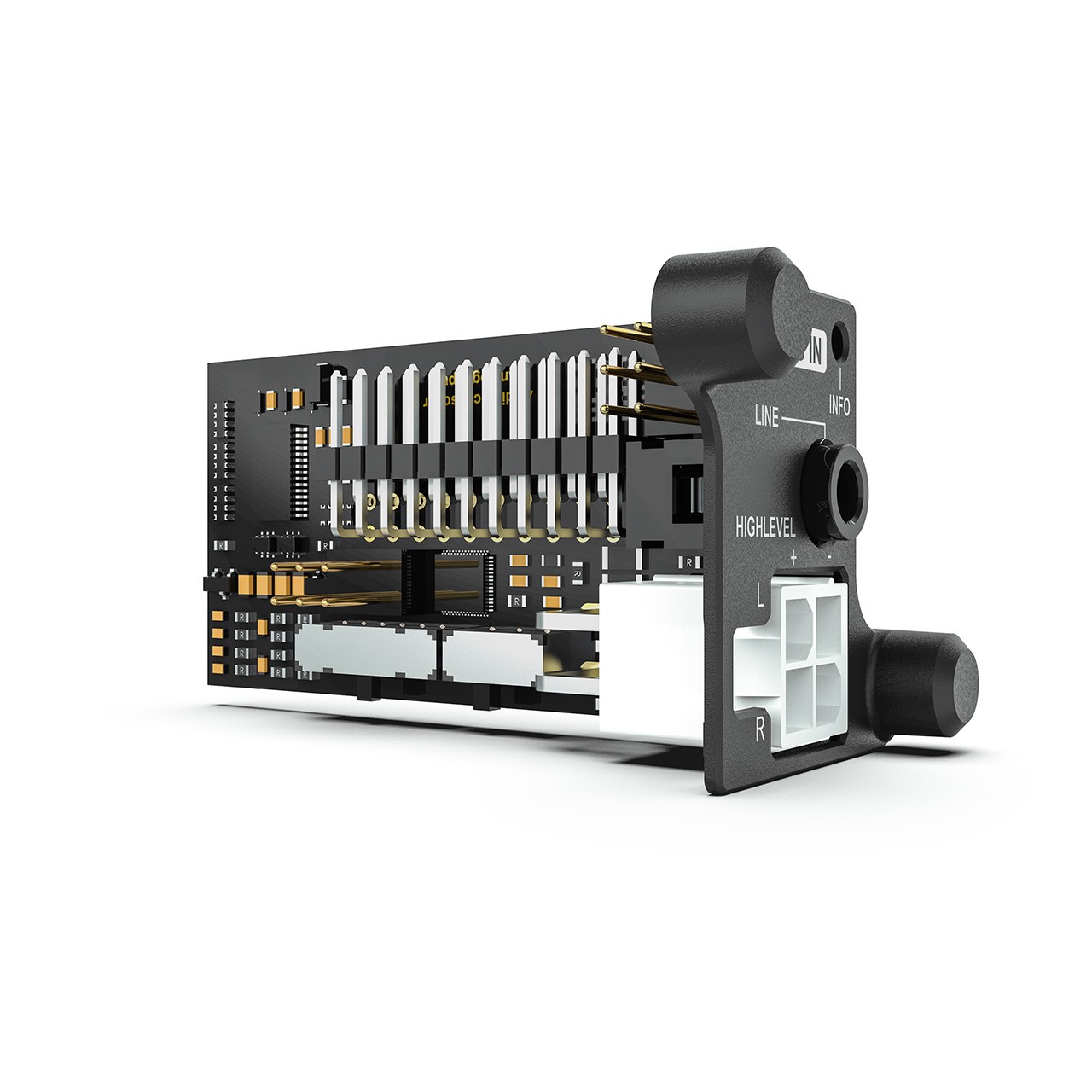

Helix Extension Card 2.0 ANALOG IN
The Extension Card 2.0 ANALOG IN adds two analog input channels to your Helix or Match DSP or DSP amplifier. It is ideal for complex installs, for adding another source such as a TV or smartphone, or for integration into a factory premium sound system. Some Match Plug & Play harnesses need it, for example the PP-TES 5.15 Ryzen Premium Main for Teslas with premium sound.
The highlevel input has the ADEP.3 circuit, an Auto Remote function and adjustable input sensitivity from 1.5 to 30 V, so it works with factory head units and factory amplifiers. For sources with a lowlevel output there is also a 3.5 mm stereo input, adjustable from 0.5 to 8 V. Both inputs can be set up in the DSP PC-Tool as extra main inputs or as an AUX source.
It fits all Helix and Match DSP products with an Extension Card 2.0 slot, including the Match UP 10DSP MK2, UP 8DSP MK2, UP 8BMW MK2 and the Helix V Eight DSP Ultimate. A module-specific cover panel is included so it fits neatly into the device’s side panel. Made in Germany.
Features
- Two additional analog input channels
- Highlevel input with ADEP.3, Auto Remote and adjustable 1.5 to 30 V input sensitivity
- Lowlevel stereo input via 3.5 mm jack, adjustable 0.5 to 8 V
- Inputs configurable in the DSP PC-Tool as main inputs or an AUX source
- Cover panel with threaded inserts and MOLEX highlevel cable included
- Made in Germany
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
HELIX Extension Card 2.0 ANALOG IN
Input voltage highlevel
1.5 to 30 V (adjustable)
Input voltage lowlevel
0.5 to 8 V (adjustable)
Additional features
ADEP.3, Auto Remote function
Compatibility
All Helix and Match DSP devices with an Extension Card 2.0 slot
Product Data
Physical Specifications: HELIX Extension Card 2.0 ANALOG IN
Lowlevel input: 3.5 mm jack
Scope of delivery: 1 x ANALOG IN module, 1 x module-specific cover panel, 1 x MOLEX highlevel cable, mounting screws
Part number: EC20001
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix Extension Card 2.0 ANALOG IN Analog Input Module for Helix and Match DSPs
Helix Extension Card 2.0 ANALOG IN, part number EC20001. Adds two analog input channels (highlevel with ADEP.3, plus a 3.5 mm line input) to any Helix or Match DSP with an Extension Card 2.0 slot.
£99.99
