Description
HELIX C FOUR
Audiophile sound quality combined with impressive output power

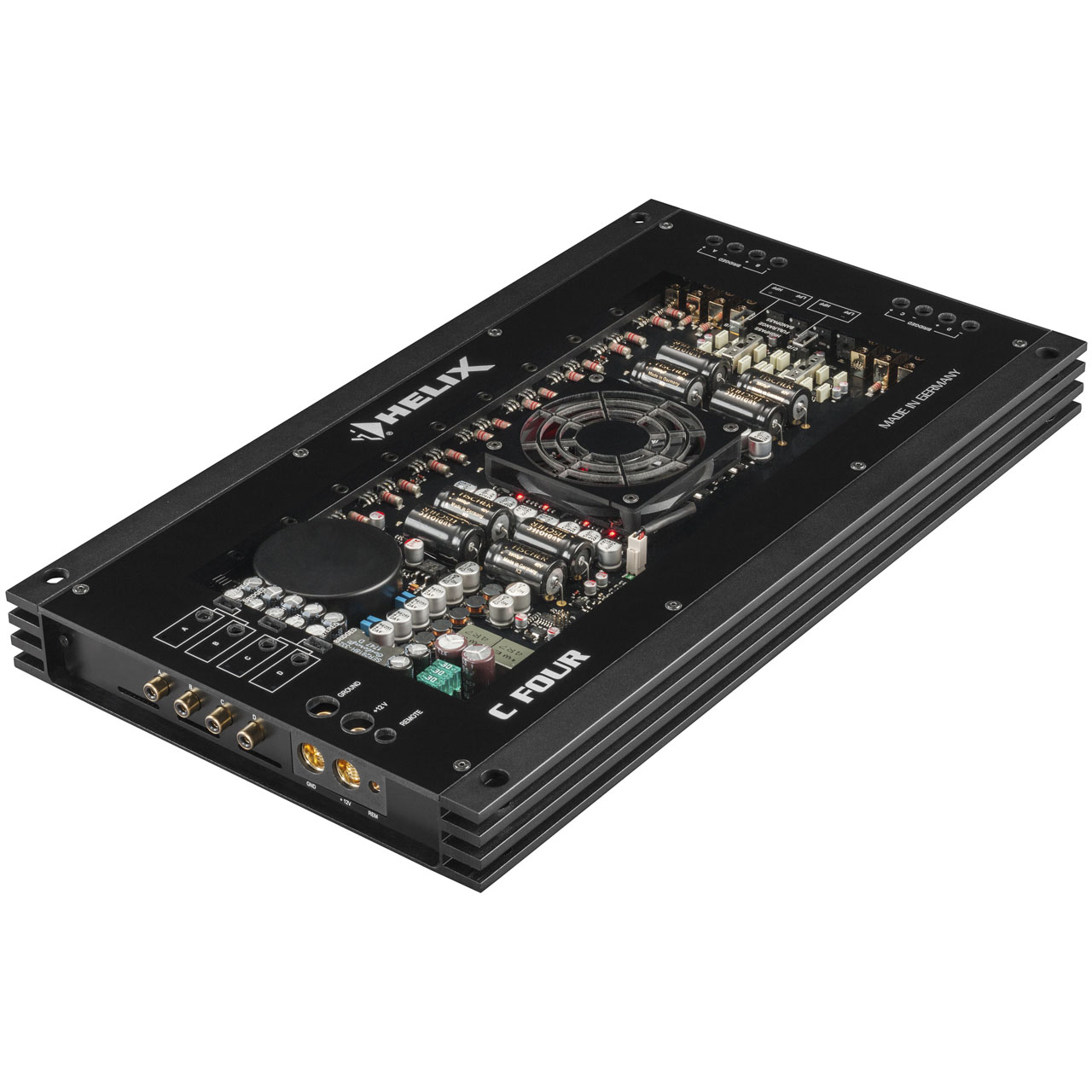

The C FOUR is a high-end 4-channel amplifier that has been designed down to the last detail for ultimate sound quality. Audiotec Fischer’s proprietary ultra low-noise and ultra low-distortion Class A driver stage feeds a total of 32 hand-selected MOSFET power transistors, resulting in an incredible damping factor of 1,000 for relentless control of every loudspeaker. The intelligent regulation of the power supply assures stable conditions for the output stages and therefore phenomenal output power independent of the cars battery voltage.
In combination with the optionally available digital input module HDM 2, the C FOUR demonstrates the perfect transition to the digital era. The HDM 2 accepts digital audio signals up to 96 kHz sampling rate via its two optical inputs followed by cutting-edge BurrBrown D/A converters with 32 Bit resolution that transform the signals back to the analog domain. Therefore the C FOUR is absolutely future-proof and perfectly prepared for the combination with our digital signal processors.
Features
- Extremely broadband Class AB amplifier with eight selected MOSFET transistors per channel for exceptional sound quality – ideal for High-Resolution audio
- Ultra low-noise and distortion-free power amp drivers in Class A technology
- Enormous damping factor of 1,000 @ 4 Ohms for perfect speaker control
- Optionally available HELIX Digital Input Module (HDM) to extend the amplifier with two optical digital inputs in SPDIF format
- Integrated, active crossover with highpass, lowpass and bandpass
- Regulated DC / DC switching power supply with Start-Stop capability down to 6V supply voltage
- Microprocessor-based monitoring of amplifier status including temperature-dependent fan control
- Input Mode switch for flexible routing of the input signals
- Cutting-edge BurrBrown D/A converters with 32 Bit resolution in combination with the optional HDM 2 module
- Massive 24-carat gold-plated power and speaker terminals

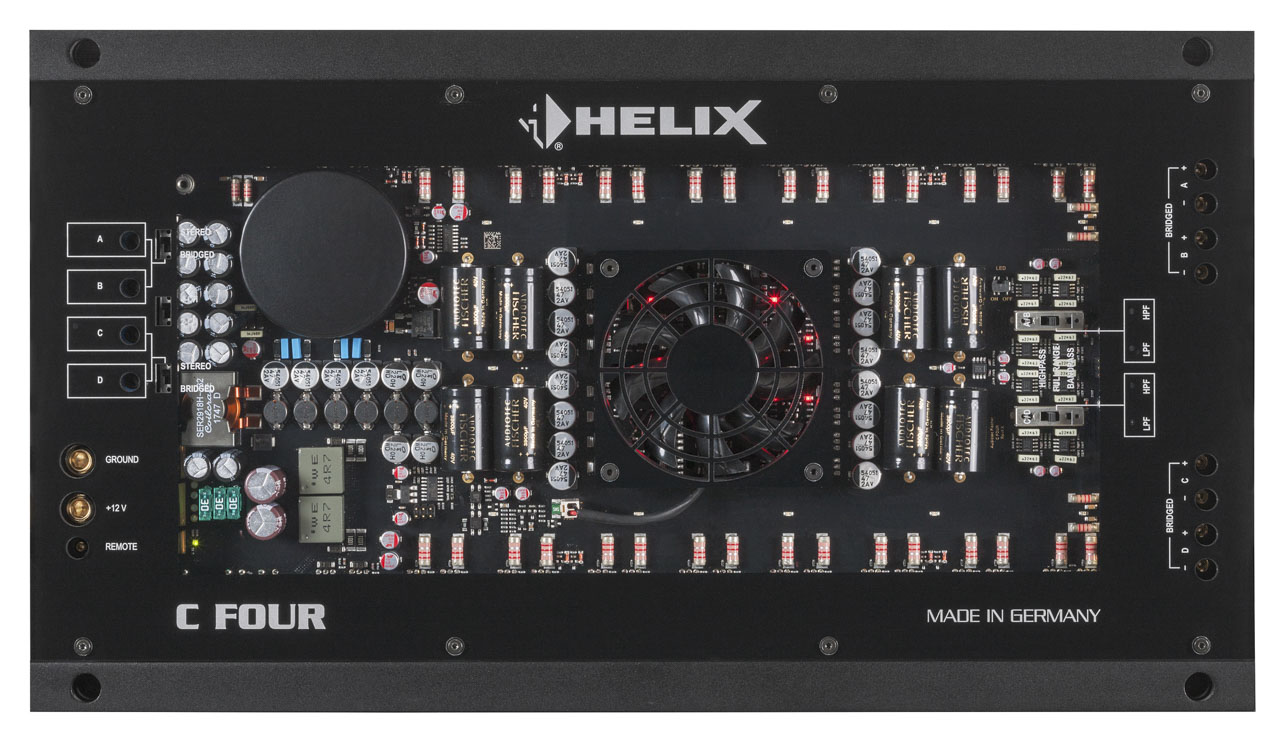

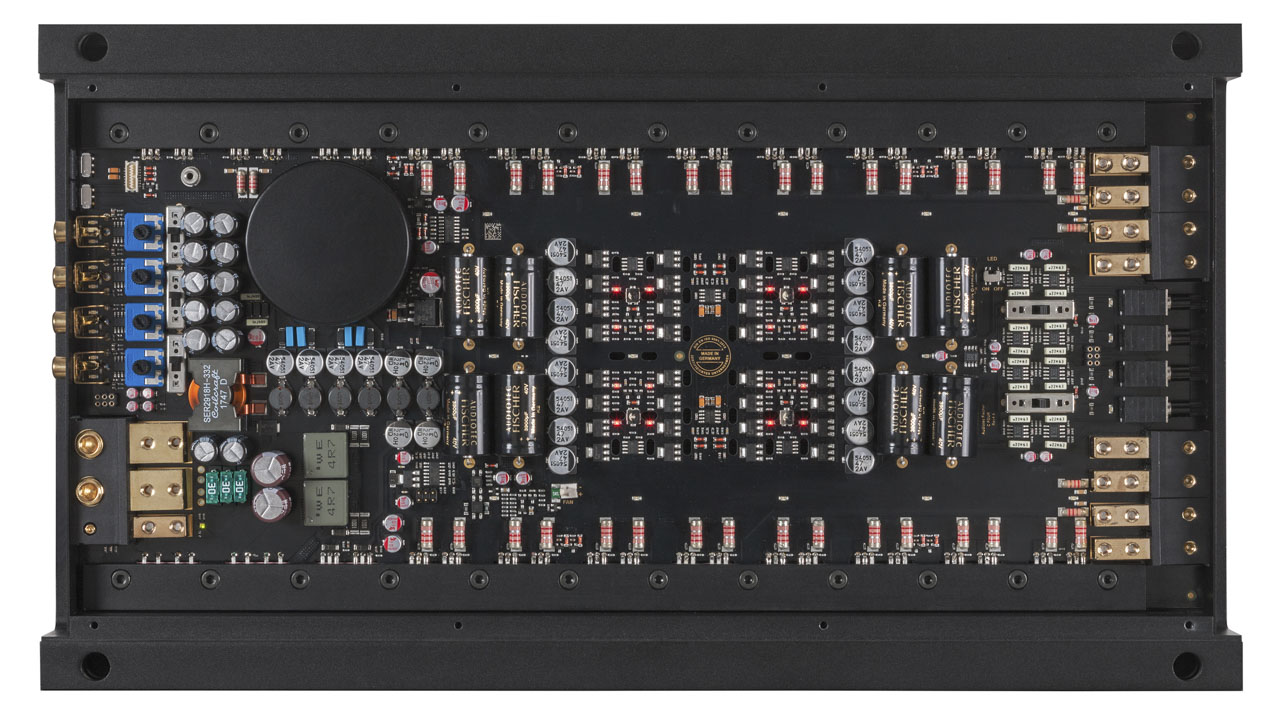

- Quad-layer PCB with extra-solid 70μ copper traces for lowest possible losses and SMD (Surface Mounted Device) manufacturing technology
Special features:
Start-Stop capability
The switched power supply of the HELIX C FOUR assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
High-Resolution audio
The extremely broadband audio bandwidth of the amplifier ensures a lossless audio reproduction of High-Resolution audio content to provide the best possible sound in studio quality.
Additional Information
Specification
Performance Specifications
C FOUR
Output power RMS ≤ 1% THD+N
‘- @ 4 Ohms
4 x 150 Watts
‘- @ 2 Ohms
4 x 220 Watts
‘- @ 1 Ohms
‘-
‘- bridged @ 4 Ohms
2 x 440 Watts
‘- bridged @ 2 Ohms
‘-
Max. output power per channel
Up to 250 Watts RMS @ 2 Ohms
Amplifier technology
Class AB

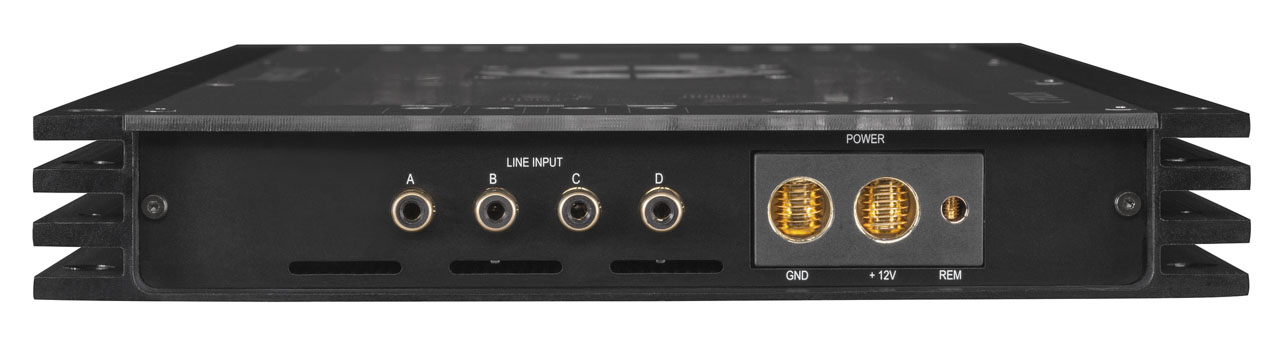

Inputs
4 x RCA / Cinch
1 x Remote In
Optional via HDM 2 module:
2 x Optical SPDIF (28 – 96 kHz)
Input sensitivity
RCA / Cinch 1 – 8 Volts
Input impedance RCA / Cinch
7.5 kOhms
Input impedance highlevel
‘-

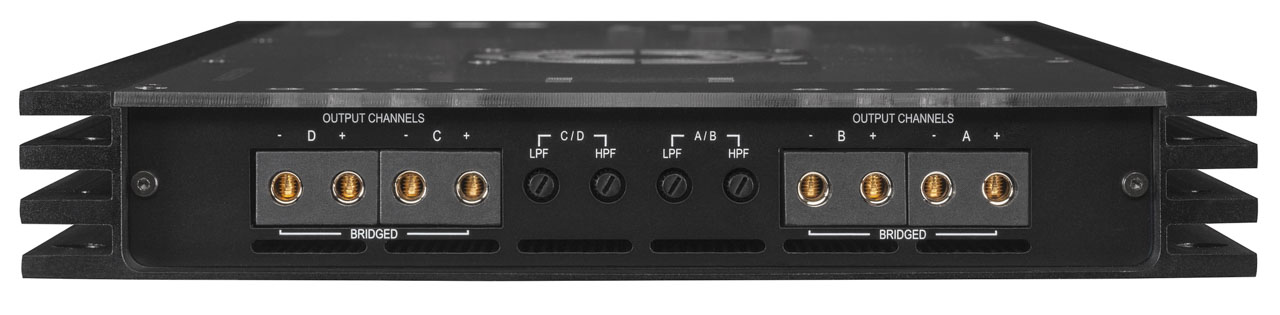

Outputs
4 x Speaker output
Output voltage RCA / Cinch
‘-
Signal converter for digital input
‘-
Frequency response
10 Hz – 80,000 Hz
Bass boost
‘-
Highpass
15 Hz – 4,000 Hz adjustable
Lowpass
15 Hz – 4,000 Hz adjustable
Bandpass
15 Hz – 4,000 Hz adjustable
Subsonic
‘-
Phase
‘-
Slope high- / lowpass
12 dB/Oct.
Slope subsonic / lowpass
‘-
Signal-to-noise ratio digital input
‘-
Signal-to-noise ratio analog input
112 dB (A-weighted)
Distortion (THD)
< 0.007 %
Damping factor
> 1000
Operating voltage
9 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
2400 mA
Operating temperature range
‘-40° C to +70° C
Fuse
3 x 30 A LP-Mini-fuse (APS)
Additional features
Active, adjustable crossover, HDM slot, input mode switch, High-Resolution audio, Start-Stop capability
Product Data
Physical Specifications: C FOUR
Approximate Length: 430 mm
Approximate Width: 240 mm
Approximate Height: 37.1 mm
File Download
Delivery Information
Delivery information content here.
Helix C FOUR 4 Channel Amplifier
Helix 4-channel High-end amplifier with integrated active crossover (Class AB) 4 x 150 / 300 Watts @ 4 Ohms
£999.99
