Helix Amplify 201 X-Over
The Helix Amplify 201 X-Over is a very compact, 1 Ohm stable mono subwoofer amplifier with a built-in active crossover, made for adding a proper subwoofer to a factory or aftermarket head unit. It delivers 250 W RMS at 4 Ohms, 450 W RMS at 2 Ohms and up to 750 W RMS at 1 Ohm with a music signal, a perfect match for a 2 x 2 Ohm subwoofer wired in parallel.
Integration is the X-Over’s strong point. Switchable highlevel and RCA inputs mean it connects to almost any source, and the highlevel input handles up to 32 V, so it copes with powerful factory amplifiers in premium OEM systems. The ADEP.3 circuit prevents error messages from modern factory radios, and the amplifier can switch itself on from the music signal, so no separate remote wire is needed.
The active crossover gives you an adjustable lowpass (50 to 250 Hz) and subsonic filter (10 to 50 Hz), both at 12 dB/octave, plus phase control from 0 to 180 degrees. A cable remote level control is included so you can adjust the bass from the driving seat.
Features
- Mono Class D subwoofer amplifier, stable down to 1 Ohm
- 250 W RMS at 4 Ohms, 450 W RMS at 2 Ohms, up to 750 W RMS at 1 Ohm (music signal)
- Highlevel input up to 32 V with ADEP.3 for trouble-free OEM integration
- Auto turn-on from the music signal, no remote wire needed
- Active crossover with lowpass, subsonic and phase control
- Cable remote level control included
- Start-stop capable, holds up for up to 5 seconds down to 6 V
- Very compact 248 x 118 mm footprint with removable top cover
Full technical data is on the Product Specification and Product Data tabs.
Additional Information
Specification
Performance Specifications
Helix Amplify 201 X-Over
Channels
1 (mono)
Power RMS @ 4 Ohms (≤ 1% THD+N, 14.4 V)
1 x 250 Watts
Power RMS @ 2 Ohms (≤ 1% THD+N, 14.4 V)
1 x 450 Watts
Power RMS @ 1 Ohm (≤ 1% THD+N, 14.4 V)
1 x 750 Watts (continuous 1 Ohm power with music signal only)
Max. output power
Up to 850 Watts RMS @ 1 Ohm
Amplifier technology
Class D
Inputs

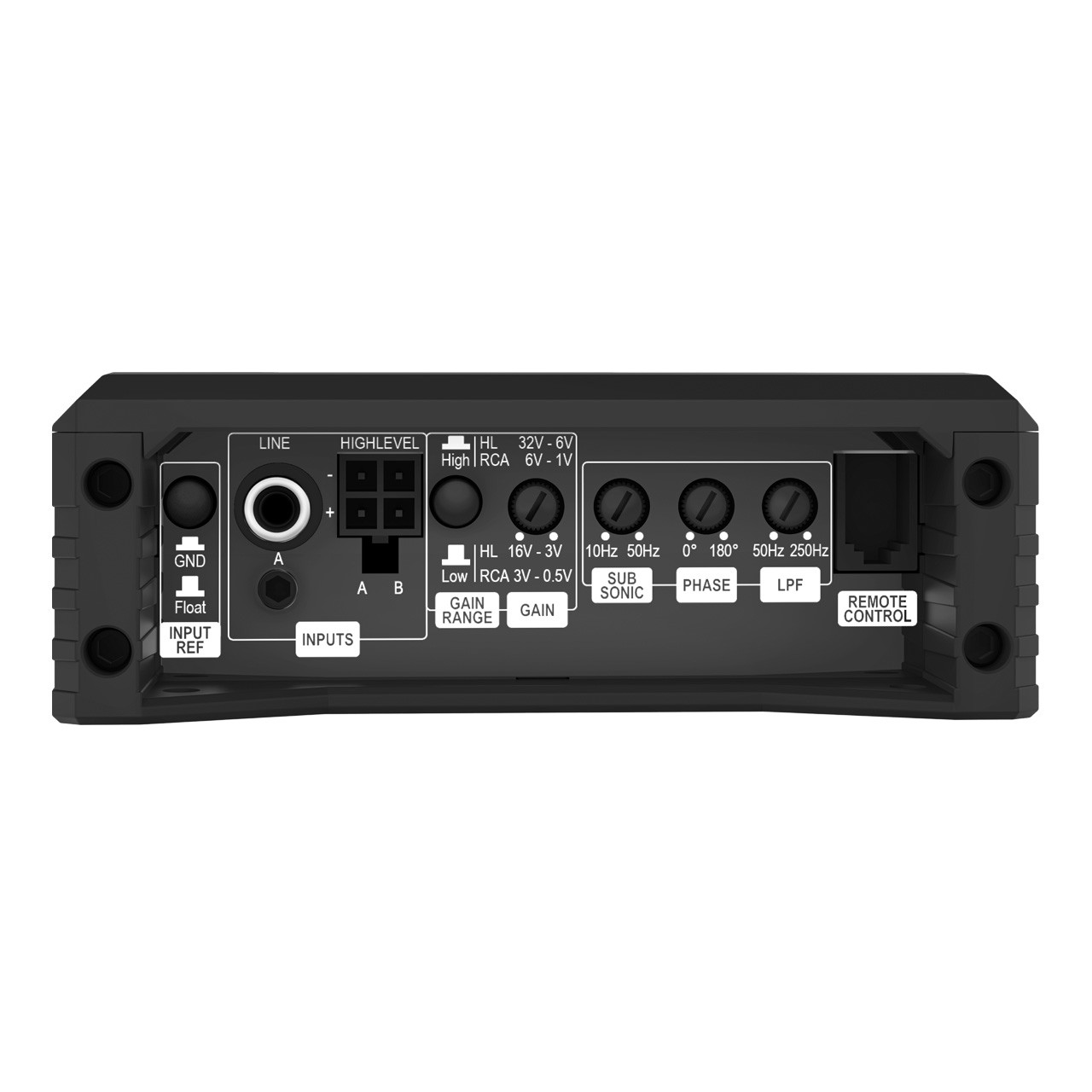

1 x RCA / Cinch, 2 x Highlevel speaker input, 1 x Remote In, 1 x Remote control input
Input sensitivity
RCA / Cinch: 0.5 – 6 Volts; Highlevel: 3 – 32 Volts
Input impedance
RCA / Cinch: 8 kOhms; Highlevel: 9 – 33 Ohms
Outputs

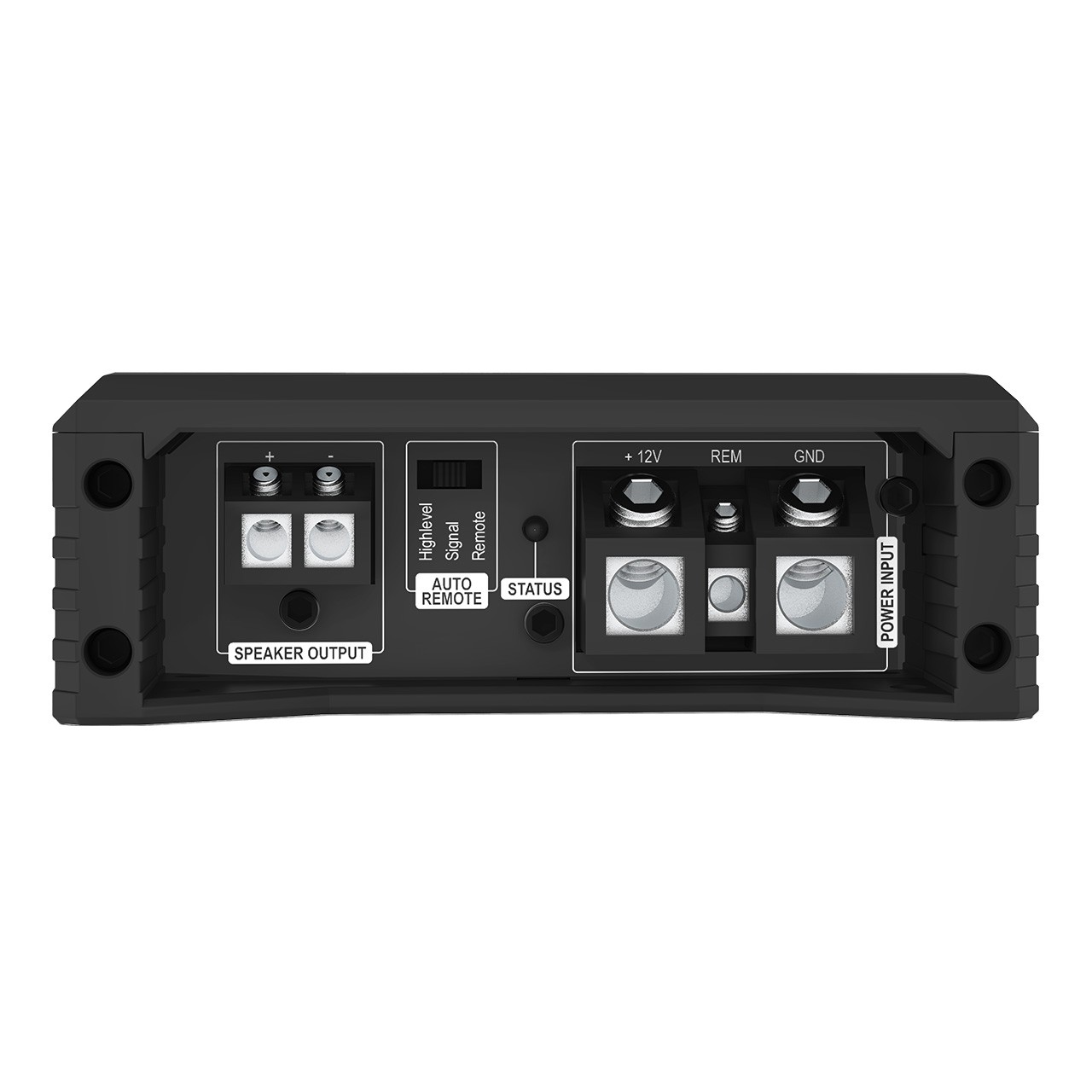

1 x Speaker output
Frequency response
10 Hz – 250 Hz
Lowpass
50 Hz – 250 Hz adjustable, 12 dB/Oct.
Subsonic
10 Hz – 50 Hz adjustable, 12 dB/Oct.
Phase
0° – 180° adjustable
Signal-to-noise ratio (A-weighted)
114 dB @ full power
Distortion (THD @ 100 Hz, 1 W into 4 Ohms)
< 0.003 %
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms)
< 0.02 %
Damping factor
200
Operating voltage
10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
1,100 mA
Fuse
2 x 30 A LP-Mini-fuse (APS)
Power rating
12 V DC, 80 A max.
Operating temperature range
-40 °C to +70 °C
Additional features
Active, adjustable crossover, Start-Stop capability, highlevel input with automatic turn-on function, ADEP.3
Order number
AC20120
Product Data
Physical Specifications: Helix Amplify 201 X-Over
Dimensions (H x W x D): 41.5 x 248 x 118 mm / 1.63 x 9.76 x 4.65″
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Helix Amplify 201 X-Over Mono Subwoofer Amplifier
Helix Amplify 201 X-Over, part number AC20120. A very compact, 1 Ohm stable mono subwoofer amplifier with active crossover and 32 V highlevel input, delivering up to 750 W RMS at 1 Ohm.
£219.99
Want it fitted?We can fit anything we sell at our Nottingham workshop.
Helix Amplify 201 X-Over
The Helix Amplify 201 X-Over is a very compact, 1 Ohm stable mono subwoofer amplifier with a built-in active crossover, made for adding a proper subwoofer to a factory or aftermarket head unit. It delivers 250 W RMS at 4 Ohms, 450 W RMS at 2 Ohms and up to 750 W RMS at 1 Ohm with a music signal, a perfect match for a 2 x 2 Ohm subwoofer wired in parallel.
Integration is the X-Over’s strong point. Switchable highlevel and RCA inputs mean it connects to almost any source, and the highlevel input handles up to 32 V, so it copes with powerful factory amplifiers in premium OEM systems. The ADEP.3 circuit prevents error messages from modern factory radios, and the amplifier can switch itself on from the music signal, so no separate remote wire is needed.
The active crossover gives you an adjustable lowpass (50 to 250 Hz) and subsonic filter (10 to 50 Hz), both at 12 dB/octave, plus phase control from 0 to 180 degrees. A cable remote level control is included so you can adjust the bass from the driving seat.
Features
- Mono Class D subwoofer amplifier, stable down to 1 Ohm
- 250 W RMS at 4 Ohms, 450 W RMS at 2 Ohms, up to 750 W RMS at 1 Ohm (music signal)
- Highlevel input up to 32 V with ADEP.3 for trouble-free OEM integration
- Auto turn-on from the music signal, no remote wire needed
- Active crossover with lowpass, subsonic and phase control
- Cable remote level control included
- Start-stop capable, holds up for up to 5 seconds down to 6 V
- Very compact 248 x 118 mm footprint with removable top cover
Full technical data is on the Product Specification and Product Data tabs.
Performance Specifications
Helix Amplify 201 X-Over
Channels
1 (mono)
Power RMS @ 4 Ohms (≤ 1% THD+N, 14.4 V)
1 x 250 Watts
Power RMS @ 2 Ohms (≤ 1% THD+N, 14.4 V)
1 x 450 Watts
Power RMS @ 1 Ohm (≤ 1% THD+N, 14.4 V)
1 x 750 Watts (continuous 1 Ohm power with music signal only)
Max. output power
Up to 850 Watts RMS @ 1 Ohm
Amplifier technology
Class D
Inputs
1 x RCA / Cinch, 2 x Highlevel speaker input, 1 x Remote In, 1 x Remote control input
Input sensitivity
RCA / Cinch: 0.5 – 6 Volts; Highlevel: 3 – 32 Volts
Input impedance
RCA / Cinch: 8 kOhms; Highlevel: 9 – 33 Ohms
Outputs
1 x Speaker output
Frequency response
10 Hz – 250 Hz
Lowpass
50 Hz – 250 Hz adjustable, 12 dB/Oct.
Subsonic
10 Hz – 50 Hz adjustable, 12 dB/Oct.
Phase
0° – 180° adjustable
Signal-to-noise ratio (A-weighted)
114 dB @ full power
Distortion (THD @ 100 Hz, 1 W into 4 Ohms)
< 0.003 %
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms)
< 0.02 %
Damping factor
200
Operating voltage
10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current
1,100 mA
Fuse
2 x 30 A LP-Mini-fuse (APS)
Power rating
12 V DC, 80 A max.
Operating temperature range
-40 °C to +70 °C
Additional features
Active, adjustable crossover, Start-Stop capability, highlevel input with automatic turn-on function, ADEP.3
Order number
AC20120
Physical Specifications
Helix Amplify 201 X-Over
Dimensions (H x W x D)
41.5 x 248 x 118 mm / 1.63 x 9.76 x 4.65″
