Description
URC.3

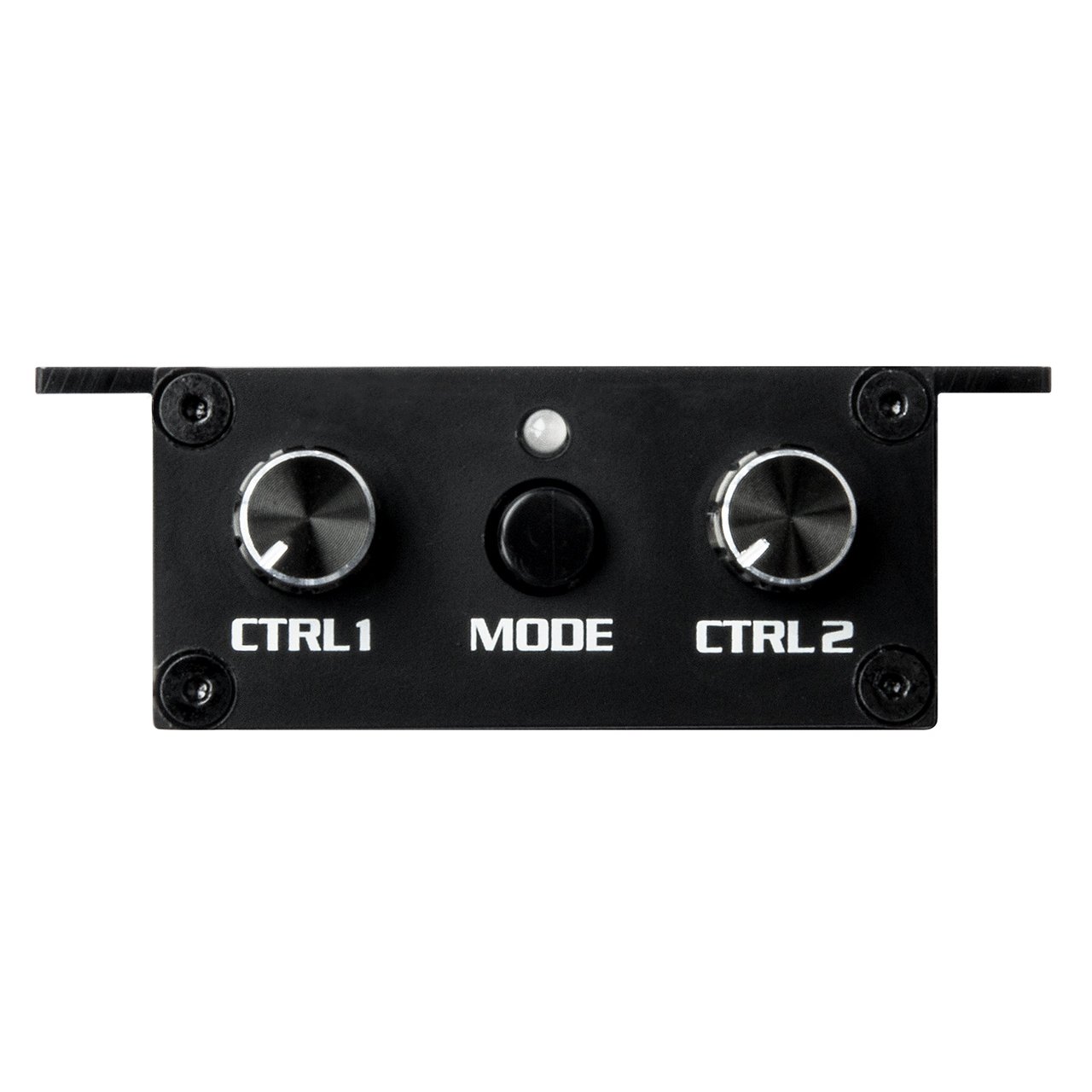

The universal cable remote control URC.3 allows controlling different functions such as subwoofer volume or HEC / MEC / AUX volume of BRAX, HELIX and MATCH DSP products. It consists of two rotary knobs and a switch, all of which can be easily defined from our DSP PC-Tool suite. The specific configuration options for each product can be found in the “Device configuration menu” (DCM) software package.
Features
- CONTROL I and CONTROL II (CTRL): Various functions can be selected in the DSP PC-Tool Software, e.g. controlling the master volume, controlling the subwoofer volume, controlling the HEC / MEC / AUX volume etc.
- MODE: Various functions can be selected in the DSP PC-Tool Software, e.g. activating the digital input, activating the HEC / MEC / AUX input, switching between two DSP-setups, deactivating all sound optimizing features of the DSP for demonstration purposes etc.
- STATUS LED: The LED shows the status of the MODE switch
- 17’ / 5.2 m connection cable
- Mounting material included
Compatibility
| BRAX | NOX4 DSP* |
| HELIX | DSP ULTRA DSP PRO (MK1 / MK2 / MK3) DSP.3 DSP.2 DSP DSP MINI C-DSP* P SIX DSP ULTIMATE P SIX DSP (MK1 / MK2) V TWELVE DSP V EIGHT DSP (MK1 / MK2) M SIX DSP M FOUR DSP |
| MATCH | DSP UP 10DSP UP 8DSP UP 7BMW UP 7DSP M 5.4DSP M 5DSP (MK1 / MK2) PP 86DSP PP 82DSP PP 62DSP PP 52DSP |
*An additional adaptor is required for the connection of the remote control (Art.No. H424481).
Additional Information
Specification
Performance Specifications
URC.3
Control elements
2 x Rotary knob 1 x Switch
Cable length
2.5 Meter
Connector
MiniDIN (8-pole)
Product Data
Physical Specifications: URC.3
Approximate Length: 46mm
Approximate Width: 69mm
Approximate Height: 25mm
File Download
Delivery Information
Delivery information content here.
Audiotec Fischer URC.3 Remote Control for Brax, Match & Helix
Universal remote control URC.3 for BRAX, HELIX and MATCH DSP products
£34.99
URC.3
The universal cable remote control URC.3 allows controlling different functions such as subwoofer volume or HEC / MEC / AUX volume of BRAX, HELIX and MATCH DSP products. It consists of two rotary knobs and a switch, all of which can be easily defined from our DSP PC-Tool suite. The specific configuration options for each product can be found in the “Device configuration menu” (DCM) software package.
Features
- CONTROL I and CONTROL II (CTRL): Various functions can be selected in the DSP PC-Tool Software, e.g. controlling the master volume, controlling the subwoofer volume, controlling the HEC / MEC / AUX volume etc.
- MODE: Various functions can be selected in the DSP PC-Tool Software, e.g. activating the digital input, activating the HEC / MEC / AUX input, switching between two DSP-setups, deactivating all sound optimizing features of the DSP for demonstration purposes etc.
- STATUS LED: The LED shows the status of the MODE switch
- 17’ / 5.2 m connection cable
- Mounting material included
Compatibility
| BRAX | NOX4 DSP* |
| HELIX | DSP ULTRA DSP PRO (MK1 / MK2 / MK3) DSP.3 DSP.2 DSP DSP MINI C-DSP* P SIX DSP ULTIMATE P SIX DSP (MK1 / MK2) V TWELVE DSP V EIGHT DSP (MK1 / MK2) M SIX DSP M FOUR DSP |
| MATCH | DSP UP 10DSP UP 8DSP UP 7BMW UP 7DSP M 5.4DSP M 5DSP (MK1 / MK2) PP 86DSP PP 82DSP PP 62DSP PP 52DSP |
*An additional adaptor is required for the connection of the remote control (Art.No. H424481).
Performance Specifications
URC.3
Control elements
2 x Rotary knob 1 x Switch
Cable length
2.5 Meter
Connector
MiniDIN (8-pole)
Physical Specifications
URC.3
Approximate Length
46mm
Approximate Width
69mm
Approximate Height
25mm
