Description

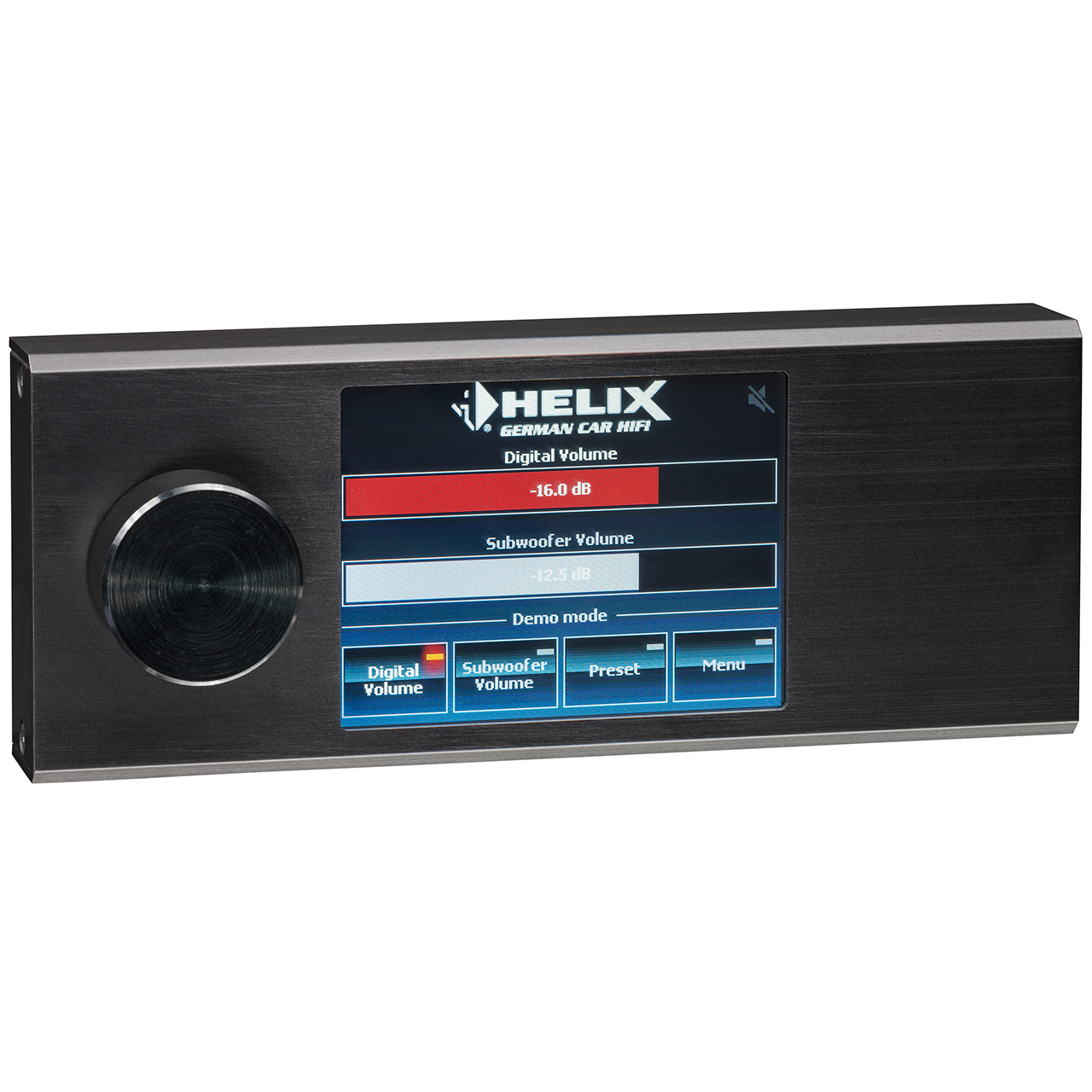

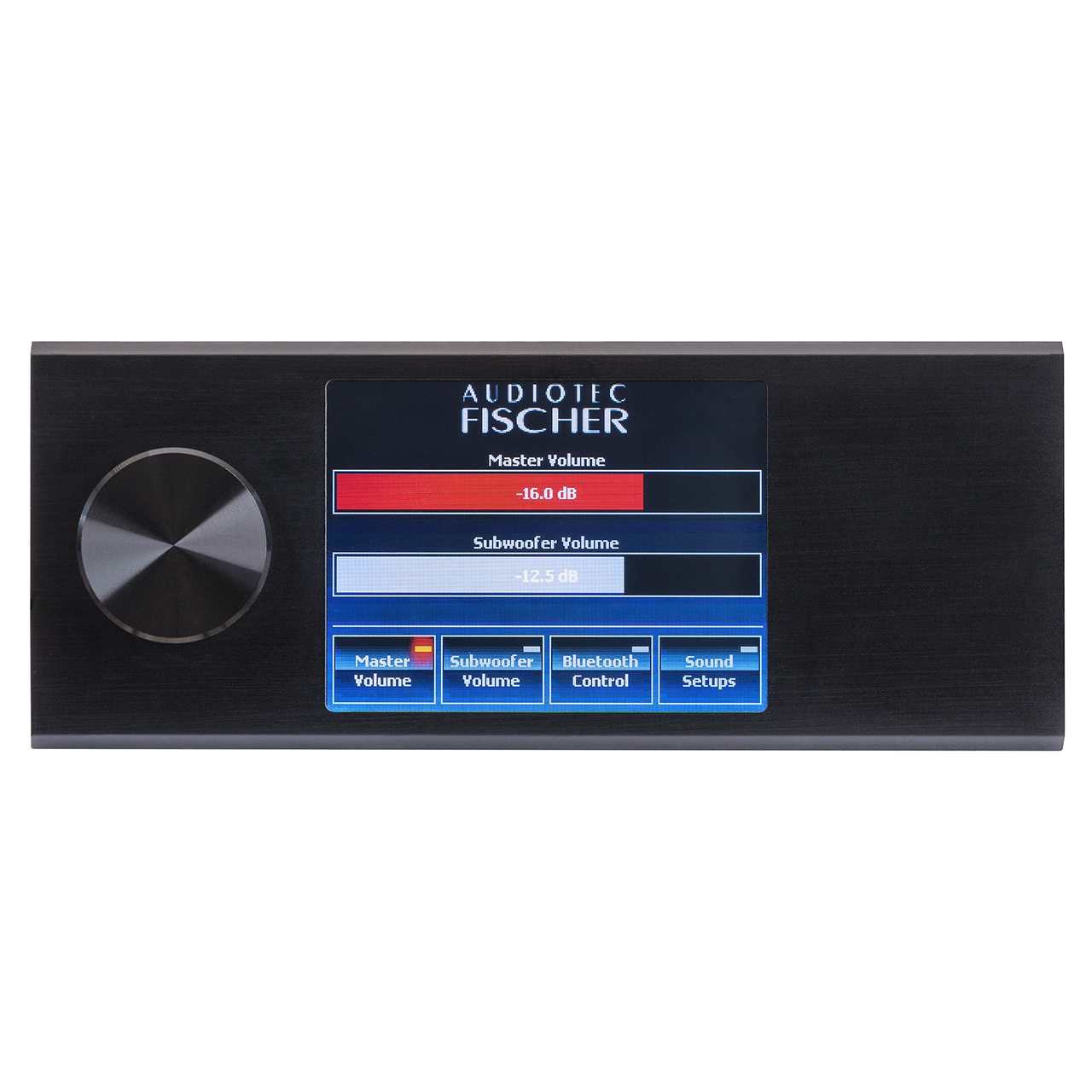

DIRECTOR – Display Remote Control
Everything under control!
With the new remote control DIRECTOR, you lead from the front!
The 2.8” / 7 cm full colour touchscreen display and the intuitive menu navigation allow easy handling of many features – for example:
- Source selection
- Volume control of all sources
- Volume control of the subwoofer
- Control and configuration of the HEC BT module
- Switching between sound setups
Furthermore it provides sufficient memory for 20 additional sound setups and comes with a USB connector allowing straight access to your DSP device via the DIRECTOR – a big relief if you want to tweak your configuration while your processor/amplifier is hidden somewhere in the trunk.
The high-resolution, full colour touchscreen display is housed in what was solid block of aluminum.
The DIRECTOR is compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher.
Features
- 2.8“ / 7 cm touchscreen display and powerful ARM processor
- Easy handling of the main functions
- Volume control of all sources
- Volume control of the subwoofer
- Source selection
- Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
- Switching between sound setups
- Memory locations for 20 additional sound setups (only devices without ACO platform)
- Automatic dimming function of the display
- Display rotation adjustable to 180°
- Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
- Exclusive solid aluminum housing
- 17’ / 5.2 m connection cable included
Additional Information
Additional information
| Version: | For Control Input, for SCP |
|---|
Specification
Performance Specifications
Director
Screen size
7 cm
Touchscreen
Yes
Memory
20 additional sound setups (only devices without ACO platform)
Automatic dimming
Yes
Display rotation
180°
Cable length
5.2 m
Compatibility
BRAX
DSP
NOX4 DSP*
HELIX
DSP ULTRA
DSP PRO MK3**
DSP PRO (MK1/MK2)
DSP.3S**
DSP.3
DSP.2
DSP MINI MK2**
DSP MINI
DSP P SIX
DSP ULTIMATE** (not in 24V applications)
P SIX DSP (MK1 / MK2)
V TWELVE DSP
V EIGHT DSP (MK1 / MK2)
M SIX DSP
M FOUR DSP
MATCH
DSP UP 10DSP**
UP 8DSP**
UP 7BMW
UP 7DSP
M 5.4DSP**
M 5DSP (MK1 / MK2)
PP 86DSP
PP 82DSP
PP 62DSP
PP 52DSP
* An additional adaptor (Art.No. H424481) is required for connecting the remote control.
** The Control Input-to-SCP adaptor supplied with the DSP product is required for connecting the remote control.
Product Data
Physical Specifications: Director
Approximate Length: 135 mm
Approximate Width: 53.5 mm
Approximate Height: 18 mm
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
Audiotec Fischer Director DSP Controller for Brax, Match & Helix
DSP Processor Universal Remote Control with Touchscreen
£249.00
