CONDUCTOR PRO
One-touch remote control, premium edition

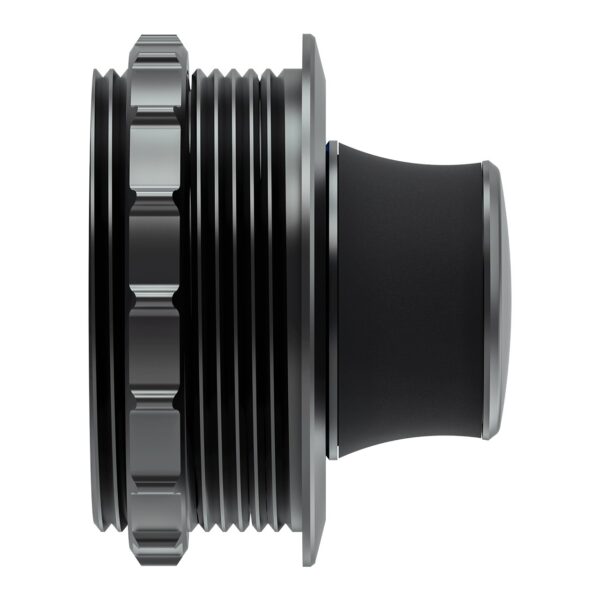

The CONDUCTOR PRO puts every key function of your Brax, Helix or Match DSP under one knob: volume, source selection, sound setup switching and control of an optional Bluetooth HD Extension Card. It uses the same proven operating logic as the CONDUCTOR, in an aluminium housing with a rubber-touch grip on the side of the knob for precise control while driving.
Use it as a simple subwoofer level control or as the control centre for a multi-zone system, for example music in the front and an audio book in the rear at a different volume. It connects to the DSP’s Smart Control Port (SCP) and needs no separate power feed.
Features
- Controls up to 4 separate volumes (Master, Digital, HEC/AUX, Rear Attenuation or Subwoofer) plus full system mute
- Volume range selectable as 60 dB, 24 dB or 12 dB, in 1 dB or 0.5 dB steps
- Switches between up to 10 sound setups and selects the signal source
- Controls an optional Bluetooth module: play, pause, track skip and pairing*
- ToneControl: boost or cut highs and lows by up to 6 dB

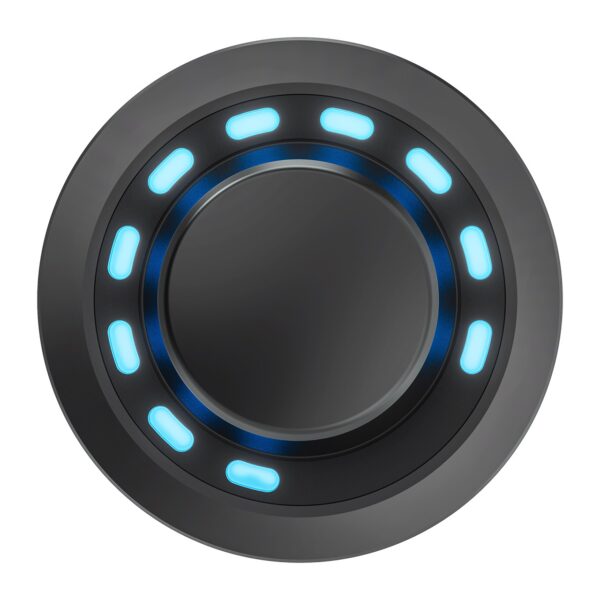

- 12 RGB LEDs, colour configurable per volume menu, with adjustable brightness and automatic dimming
- Flush mounts in a 40 mm hole with a rear mounting ring and fine thread
- 5 m SCP cable with split connector included, no separate power supply needed
- Fully configurable and updatable through the DSP PC-Tool software
* Needs a DSP fitted with a Bluetooth Extension Card (Extension Card 2.0 BT HD or HEC / MEC BT HD). The BT HD STREAMER is not supported.
Compatibility
All Brax, Helix and Match DSP devices with the ACO platform and a Smart Control Port (SCP). The CONDUCTOR PRO can’t be combined with another control unit.
In the box: 1 x CONDUCTOR PRO, 1 x mounting ring, 1 x 5 m SCP connection cable.
Additional Information
Specification
Performance Specifications
CONDUCTOR PRO
Connection
SCP (Smart Control Port), no separate power needed
Hardware
Rotary encoder, 12 x RGB LEDs, 48 MHz ARM processor
Volume control
Up to 4 volumes plus mute; 60 / 24 / 12 dB range; 1 or 0.5 dB steps
Sound setups
Up to 10
ToneControl
+/- 6 dB highs and lows
Compatibility
Brax, Helix and Match DSPs with ACO platform and SCP
Product Data
Physical Specifications: CONDUCTOR PRO
Housing: Aluminium, rotary knob with rubber-touch side
Dimensions (dia x H): 46 x 36 mm
Installation depth: 18 mm
Mounting hole: 40 mm
Cable length: 5 m (4.8 m connection cable + 0.2 m CONDUCTOR cable)
File Download
Delivery Information
Next working day delivery if ordered before 12:00, unless item is special order.
