Description
Audiotec Fischer AMI Tuning Kit
The AMI Tuning Kit is a complete, ready to use measurement suite for tuning DSP based car audio systems. At its heart is the AMI (Audio Measurement Interface), built to work hand in hand with the Audiotec Fischer DSP PC-Tool for both electrical and acoustic measurements.

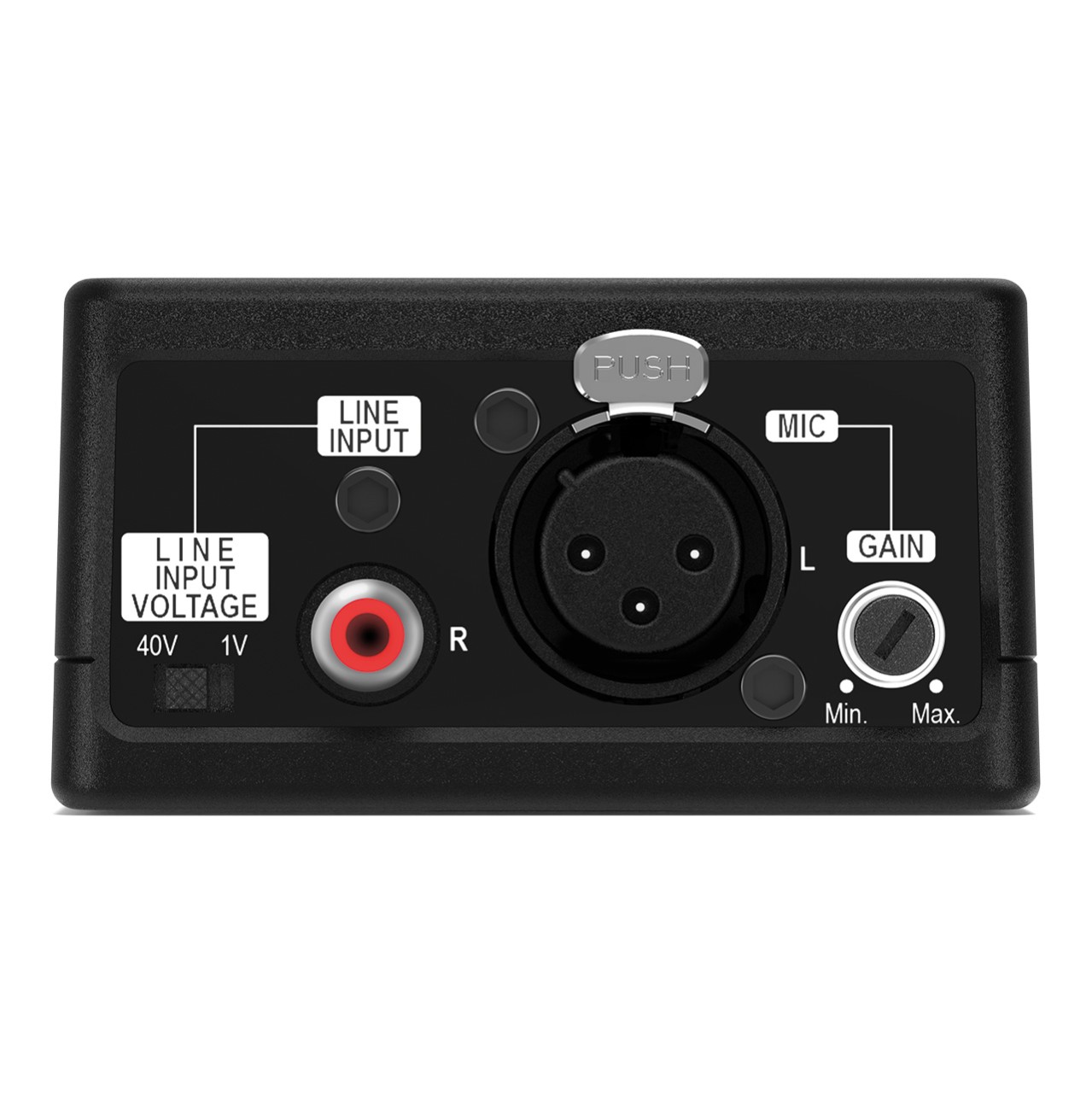

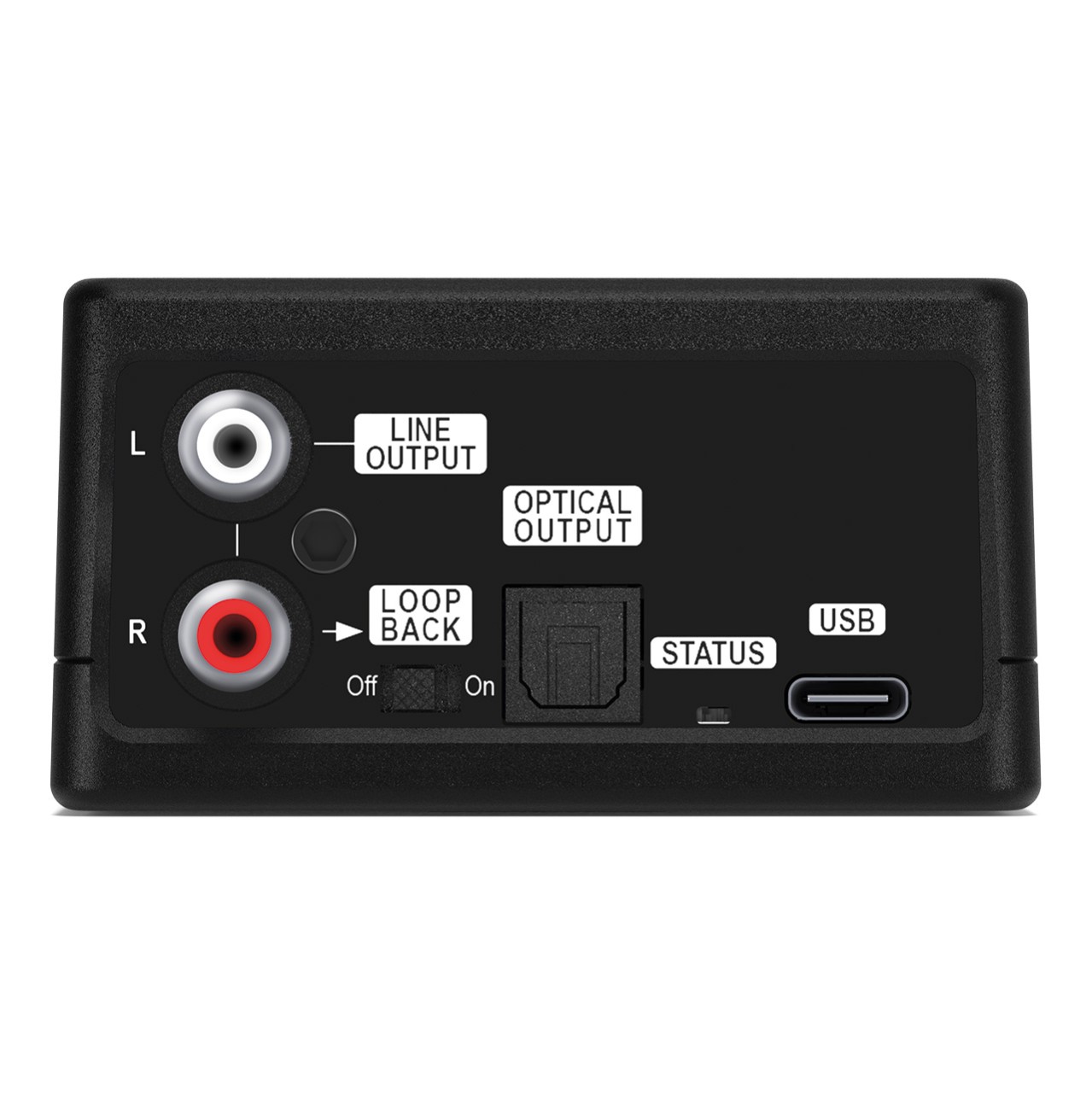

The AMI has a microphone input with adjustable gain and 24 V phantom power, a line input switchable for low or high-level signals (max. 1 V or 40 V), stereo RCA and optical outputs for playing test signals straight into a DSP, and a loopback function for phase measurements. It is USB powered and works with Windows 10 and 11, macOS, Android and iOS.
In DSP PC-Tool it unlocks AISA input analysis to find and correct factory EQ, time alignment and allpass filters, RTA measurements with automatic TuneEQ equalisation, and ATM automatic time measurement for speaker delays.
What the kit adds over the standard AMI (H424519): the standard AMI comes with the interface, a 3 m USB-C cable with USB-A adaptor, an RCA-to-high-level adaptor and a 16 GB USB drive of DSP tuning tracks. The Tuning Kit includes all of that plus a calibrated Beyerdynamic MM-1 measurement microphone made in Germany, a tripod microphone holder, a 2 m XLR microphone cable, a 3.5 m optical Toslink cable and a 3.5 m mono RCA cable.
Features
- AMI interface for electrical and acoustic signal analysis
- Beyerdynamic MM-1 calibrated condenser microphone with free-field calibration files for 0° and 90°
- Linear response at 90° for accurate in-car measurement
- Line input up to 1 V or 40 V RMS for low and high-level signals
- RCA and optical outputs for direct playback into a DSP, plus loopback
- Works with AISA, RTA, TuneEQ and ATM in DSP PC-Tool 4, 5 and 6
- USB powered, no external supply needed
- 16 GB USB 3.0 drive preloaded with DSP tuning tracks
- All cables included: USB-C, Toslink, RCA, XLR and RCA-to-high-level adaptor
Full technical data is on the Product Specification and Product Data tabs.
